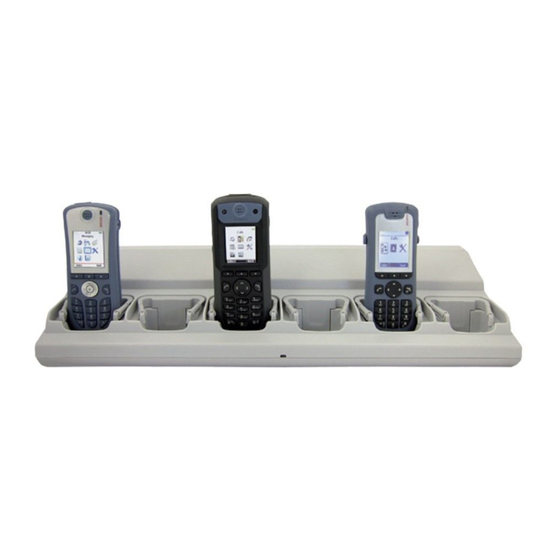

Charging racks

Advertisement

INSTALLATION AND OPERATION MANUAL
CR3, CR5, and CR7 Charging Racks

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ASCOM CR3

  • Page 1 INSTALLATION AND OPERATION MANUAL CR3, CR5, and CR7 Charging Racks...
  • Page 2 INSTALLATION AND OPERATION MANUAL CR3 CR5, and CR7 Charging Racks Abbreviations and Glossary Abbrevations DHCP Dynamic Host Configuration Protocol A protocol for automating the configuration of computers and handsets that use TCP/IP. Device Manager Application for management of handsets, charging racks, etc.
  • Page 3: Table Of Contents

    INSTALLATION AND OPERATION MANUAL CR3 CR5, and CR7 Charging Racks Contents 1 Introduction............................ 1 Technical Solution.......................2 Interfaces ...........................3 Safety ..........................3 Regulatory Compliance Statements (EU and EFTA only)............4 Regulatory Compliance Statements (UK only) ................4 Regulatory Compliance Statements (USA and Canada only) ............4 2 Charging Rack Installation ......................5...
  • Page 4: Introduction

    This document describes how to install, configure and operate CR3, CR5, and CR7 charging racks. This document is also intended to be used as a guide for maintenance and troubleshooting. CR3 charging rack is used for Ascom IP-DECT and VoWiFi handsets while CR5 and CR7 charging racks are used to charge Ascom Myco™ handsets CR3 charging rack is available in two different models (advanced and basic), while CR5 and CR7 charging racks are only available as a basic model.
  • Page 5: Technical Solution

    INSTALLATION AND OPERATION MANUAL CR3 CR5, and CR7 Charging Racks Introduction Table 2 Variants of charging racks (continued) CR5-AAAA Basic charging rack — Ascom Myco — Ascom Myco 2 CR7-AAAA Basic charging rack — Ascom Myco — Ascom Myco 2 —...
  • Page 6: Interfaces

    INSTALLATION AND OPERATION MANUAL CR3 CR5, and CR7 Charging Racks Introduction If the Ethernet connection is used, each advanced charging rack needs an IP address. See label for MAC address. If the advanced charging rack is connected to the WinPDM via both USB and Ethernet, the USB connection has higher priority.
  • Page 7: Regulatory Compliance Statements (Eu And Efta Only)

    This equipment is in compliance with the essential requirements and other relevant provisions of EMC Directive 2014/30/EU, LVD Directive 2014/35/EU and of Directive 2015/863 (RoHS3) amending 2011/65/EU. The complete Declaration of Conformity is found at https://www.ascom-ws.com/doc/. The product is marked with...
  • Page 8: Charging Rack Installation

    INSTALLATION AND OPERATION MANUAL Charging Rack Installation CR3 CR5, and CR7 Charging Racks Charging Rack Installation General The unit shall be installed by authorized personnel only. • The units shall be placed in a dry environment with a temperature range from +5° C up to + 40° C (41° F to 104°...
  • Page 9: Placing On A Table

    INSTALLATION AND OPERATION MANUAL CR3 CR5, and CR7 Charging Racks Charging Rack Installation Table 3 Example of plug and screw dimensions Wall material Plug length Screw diameter Single plasterboard Thorsman TP1 3.5 – 5 mm Double plasterboard Thorsman TP2 3.5 – 5 mm...
  • Page 10: Electrical Installation

    INSTALLATION AND OPERATION MANUAL Charging Rack Installation CR3 CR5, and CR7 Charging Racks If several charging rack (or battery pack chargers) are to be mounted close to each other, mount them so that there is enough space between them to be able to disconnect the handsets (vertical distance) and to be able to open the top cover (horizontal distance).
  • Page 11: Install Multiple Units

    INSTALLATION AND OPERATION MANUAL CR3 CR5, and CR7 Charging Racks Charging Rack Installation The LED on the front of the charger should light up. The LED is disabled on the basic charging rack and will not light up. Put a handset into a charging slot and check if the handset LED lights up.
  • Page 12 INSTALLATION AND OPERATION MANUAL Charging Rack Installation CR3 CR5, and CR7 Charging Racks Table 4 Wiring color codes (continued) Blue White Black Neutral Return, Cold, Grounded connector Gr/Ye Green Green Earth Ground, Safety Earth, Earth Ground, Grounding conductor The "Old" standard was used in various countries (including Australia), and some wiring may still use these colors.
  • Page 13 INSTALLATION AND OPERATION MANUAL CR3 CR5, and CR7 Charging Racks Charging Rack Installation Mount the cable support holder at the unused opening in the charger closer to the AC power source. The cable support holder is provided in the parts bag.
  • Page 14: Communication Cable Connection

    INSTALLATION AND OPERATION MANUAL Charging Rack Installation CR3 CR5, and CR7 Charging Racks Installation Test When the fixed installation is completed, apply AC power by switching on the disconnect device. The LED on the front of each charger should light up.
  • Page 15: Software Installation

    INSTALLATION AND OPERATION MANUAL CR3 CR5, and CR7 Charging Racks Charging Rack Installation Software Installation This section is applicable to the advanced charging rack only. The charger is delivered with pre-installed software and it is possible to upgrade the charger software, refer to Portable Device Manager (PDM), Windows version, Installation and Operation Manual, TD 92325EN.
  • Page 16: Charging Rack Configuration

    INSTALLATION AND OPERATION MANUAL Charging Rack Configuration CR3 CR5, and CR7 Charging Racks Charging Rack Configuration This section is applicable to the advanced charging rack only. Each charging rack needs an access to DHCP to receive an IP address automatically. If no DHCP is accessible it is possible to configure with WinPDM.
  • Page 17: Commissioning

    INSTALLATION AND OPERATION MANUAL CR3 CR5, and CR7 Charging Racks Commissioning Commissioning The commissioning includes the following: • Installation test, refer to Installation Test, page • Charging, refer to Charging, page • Communication with WinPDM/Device Manager, refer to Communication with WinPDM/Device Manager,...
  • Page 18: Charger Operation

    INSTALLATION AND OPERATION MANUAL Charger Operation CR3 CR5, and CR7 Charging Racks Charger Operation When the charger is connected to an external power supply, normal operation is done as follows: Handset Charging Connect the charger to the AC power supply.
  • Page 19: Maintenance

    INSTALLATION AND OPERATION MANUAL CR3 CR5, and CR7 Charging Racks Maintenance Maintenance Information in this section is applicable to the advanced charging rack only. Operation when the Charger Rack is Connected to WinPDM/Device Manager When the charger is connected the following additional operations can be done: •...
  • Page 20 INSTALLATION AND OPERATION MANUAL CR3 CR5, and CR7 Charging Racks Maintenance Amber, flashing (1000 ms on, 1000 ms off) — Software download. — File transfer during easy replacement. Amber, flashing (100 ms on, 800 ms off) Change phone indication during easy replacement.
  • Page 21: Troubleshooting

    INSTALLATION AND OPERATION MANUAL CR3 CR5, and CR7 Charging Racks Troubleshooting Troubleshooting The LED information is applicable to the advanced charging rack only. For general LED indications, refer to 6.4 LED Indications, page Fault Solution Status LED on the charger is not lit.
  • Page 22: Related Documents

    Portable Device Manager (PDM), Windows version, Installation and Operation Manual, TD 92325EN Device Manager, User Manual, TD 92855EN CR3 Charging Rack, Data Sheet, TD 92628 EN CR5 Charging Rack, Data Sheet, TD 93053EN CR7 Charging Rack, Data Sheet, TD 93291EN...
  • Page 23: Document History

    Date Description 17 August 2021 New: 1.5 Regulatory Compliance Statements (UK only), page Updated: Included Ascom d83 product into the list in 1 Introduction, page 30 October 2020 General: Minor changes in the whole document and its structure have been made.
  • Page 24 Vista removed in 1.6 Interfaces on page 4. Item No.: CR3-AAAA and CR3-AAAB removed. 25 May 2011 Document updated to apply the CR3 for charging only. See change bars for more information. 10 November 2010 Document updated to apply the i62 handset. See change bars for additional changes.
  • Page 25 Ascom (Sweden) AB Grimbodalen 2 SE–417 49 Göteborg Sweden Phone +46 31 55 93 00 www.ascom.com...
