- Page 1 TD 92480EN Installation and Operation Manual CR3 and CR5 Charging Rack 20 May 2015 / Ver. G...
-
Page 2: Table Of Contents
Installation and Operation Manual TD 92480EN CR3 and CR5 Charging Rack Contents 1. Introduction ........................1 1.1 Abbreviations and Glossary ................... 2 1.2 Safety ........................2 1.3 Regulatory Compliance Statements (EU and EFTA only)........3 1.4 Regulatory Compliance Statements (USA and Canada only) ......... 3 1.5 Technical Solution .................... -
Page 3: Introduction

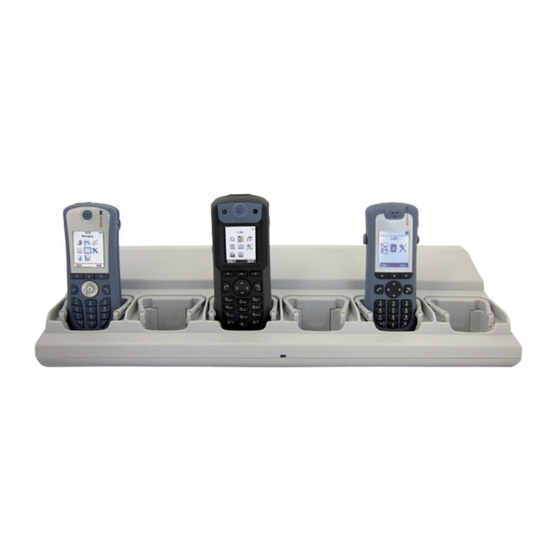

This document describes how to install, configure and operate the CR3 and CR5 Charging Racks. The CR3 Charging Rack is available in two different models, Advanced and Basic. The CR5 Charging Rack is only available as a Basic model. The Advanced Charging Rack can be used to program and charge handsets. -
Page 4: Abbreviations And Glossary
Installation and Operation Manual 1. Introduction TD 92480EN CR3 and CR5 Charging Rack Installation Alternatives NOTE: In the USA and Canada the Charging Rack can only be installed as a single unit, serial configuration is not permitted. • The Charging Rack can be installed as a single unit. When installed as a single unit, the power cord with the C14 connector can be used together with a suitable extension cord, and can be plugged into a wall outlet. -
Page 5: Regulatory Compliance Statements (Eu And Efta Only)
This equipment is in compliance with the Council Directive on Radio and Telecommunication Terminal Equipment (R&TTE) 1999/5/EC and ErP Directive 2009/125/EC . The Declaration of Conformity may be consulted at: http://www.ascom.com/ws/products_ws.htm The product is marked with Regulatory Compliance Statements (USA and Canada only) -
Page 6: Technical Solution
Installation and Operation Manual 1. Introduction TD 92480EN CR3 and CR5 Charging Rack Technical Solution The following functionality is provided by the Charging Rack: Model Charger functionality Advanced - Charging of the handset battery. - Provide a means for software and parameter update of handsets. -
Page 7: Installation And Configuration
Installation and Operation Manual 2. Installation and TD 92480EN CR3 and CR5 Charging Rack Installation and Configuration Charging Rack Installation 2.1.1 General NOTE: The unit shall be installed by authorized personnel only. • The units shall be placed in a dry environment with a temperature range from... -
Page 8: Placing On A Table
Installation and Operation Manual 2. Installation and TD 92480EN CR3 and CR5 Charging Rack Examples of Ways to Mount the Charging Racks Different ways to mount the Charging Racks is shown in figure 6 on page 9. It is possible to set up different combinations of Charging Racks and Battery Pack Chargers. -
Page 9: Wall Mounting
Installation and Operation Manual 2. Installation and TD 92480EN CR3 and CR5 Charging Rack 2.1.3 Wall Mounting First, make an outline of how the Charging Racks are to be placed. TIP: If several Charging Racks (or Battery Pack Chargers) are to be mounted close to each other, mount them so that there is enough space between them to be able to disconnect the handsets (vertical distance) and to be able to open the top cover (horizontal distance). - Page 10 Installation and Operation Manual 2. Installation and TD 92480EN CR3 and CR5 Charging Rack Figure 5. Charging Rack with IEC C14 connector and an extension cord with an IEC C13 connector. For the Advanced Charging Rack, connect the communication cable when required.
- Page 11 Installation and Operation Manual 2. Installation and TD 92480EN CR3 and CR5 Charging Rack Figure 6. Examples of how Charging Racks can be mounted and connected by fixed installation to a power source. To disconnect device To disconnect device Opening the Top Cover Open the top cover by first pressing on the sides of the top cover, then lifting it upwards.
- Page 12 Installation and Operation Manual 2. Installation and TD 92480EN CR3 and CR5 Charging Rack Brown Black Active Line, Hot Blue White Black Neutral Return, Cold, Grounded connector Gr/Ye ** Green Green Earth Ground, Safety Earth, Earth Ground, Grounding conductor *** The “Old“...
- Page 13 Installation and Operation Manual 2. Installation and TD 92480EN CR3 and CR5 Charging Rack Remove the C14 connector from the additional charger. Cut and strip the mains power supply cord coming from the additional charger to the length required. Run the power supply cord from the additional charger through the cable support...
-
Page 14: Communication Cable Connection
Installation and Operation Manual 2. Installation and TD 92480EN CR3 and CR5 Charging Rack Mount the safety cover and fasten it with one screw. Secure the mains power supply cable with two screws (2), which are provided in the parts bag, see... -
Page 15: Software Installation
Installation and Operation Manual 2. Installation and TD 92480EN CR3 and CR5 Charging Rack Charging Rack 1 Charging Rack 2 Open the top cover, see figure 7 on page 9. If a single Charging Rack is used, connect the Ethernet cable or USB cable to the... - Page 16 Installation and Operation Manual 2. Installation and TD 92480EN CR3 and CR5 Charging Rack Subnet mask 255.255.255.0 (default) Default gateway IP address 192.168.0.1 (default) DNS IP address 192.168.0.2 (default) Charger IP port 12346 (default) Service Discovery Enabled Yes (default), No...
-
Page 17: Commissioning
Installation and Operation Manual 3. Commissioning TD 92480EN CR3 and CR5 Charging Rack Commissioning The commissioning includes the following: • Installation test • Charging • Communication with PDM or Device Manager NOTE: The communication functionality is applicable for the Advanced Charger Rack only. -
Page 18: Operation
Installation and Operation Manual 4. Operation TD 92480EN CR3 and CR5 Charging Rack Operation Charger Operation When the charger is connected to an external power supply, normal operation is done as follows: Handset charging Connect the charger to the AC power supply. -
Page 19: Maintenance
Installation and Operation Manual 5. Maintenance TD 92480EN CR3 and CR5 Charging Rack Maintenance Operation when the Charger Rack is Connected to a PDM or Device Manager NOTE: This section is not applicable for the Basic Charger Rack. When the charger is connected the following additional operations can be done: •... -
Page 20: Led Indications
Installation and Operation Manual 5. Maintenance TD 92480EN CR3 and CR5 Charging Rack LED Indications NOTE: The LED is disabled on the Basic Charger Rack. The charger is equipped with a status LED. The following indications are used: LED indication... -
Page 21: Troubleshooting
Installation and Operation Manual 6. Troubleshooting TD 92480EN CR3 and CR5 Charging Rack Troubleshooting NOTE: The LED is disabled on the Basic Charger Rack. For general LED indications, see 5.4 LED Indications on page 18. Status LED on the charger is not lit. -
Page 22: Related Documents
Installation and Operation Manual 7. Related Documents TD 92480EN CR3 and CR5 Charging Rack Related Documents Installation and Operation Manual, Portable Device Manager (PDM), Windows version Installation and Operation Manual, Device Manager Installation Guide, CR4 Battery Pack Charger Data Sheet, CR3 Charging Rack... -
Page 23: Document History
Document updated to apply the i62 handset. See change bars for additional changes 25 May 2011 Document updated to apply the CR3 for charging only. See change bars for more information. 13 February 2014 Clarified that “ErP Directive 2009/125/EC” only is applicable for CR3 (charging only) in 1.3 Regulatory...
