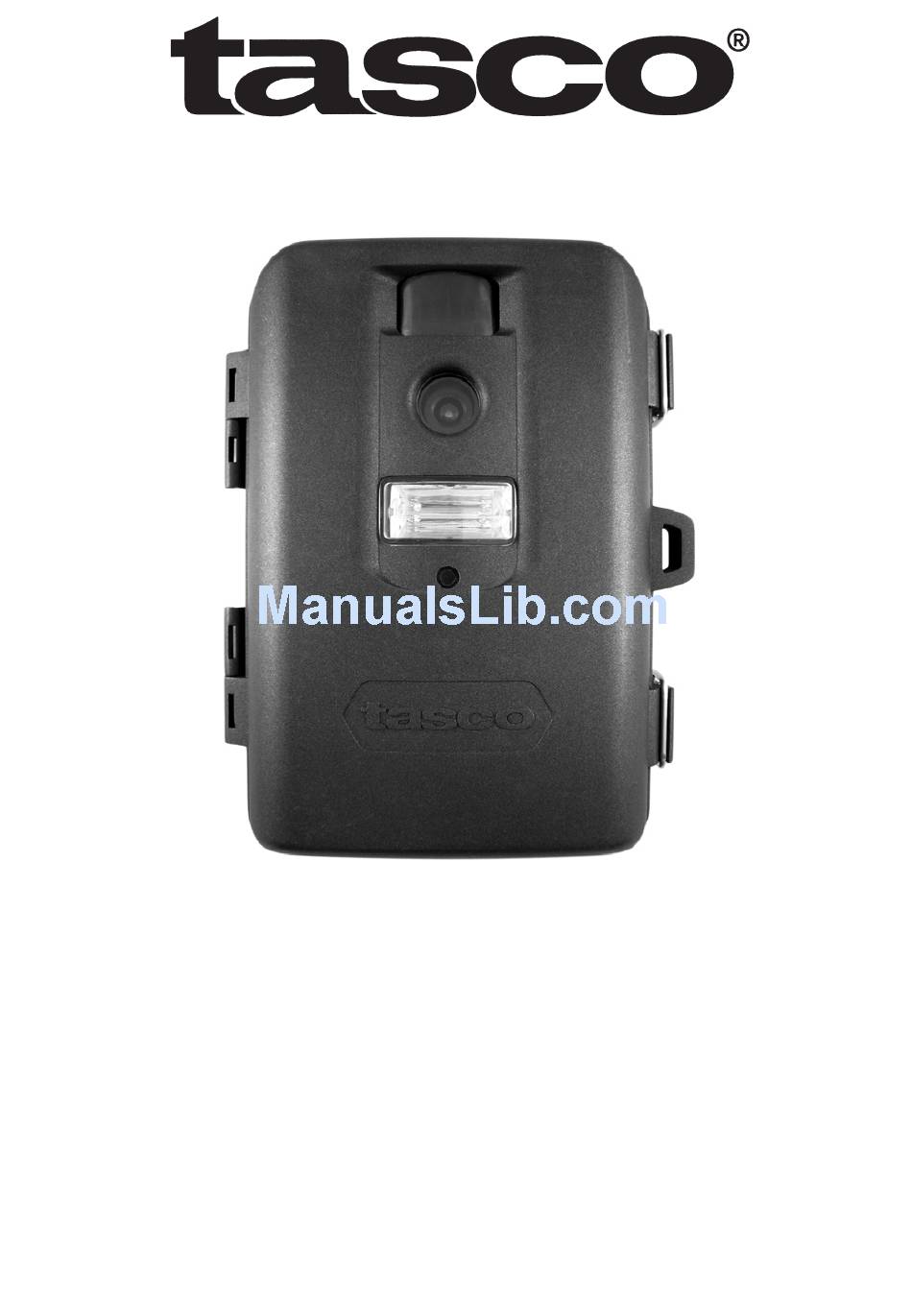

Page 1: Instruction Manual
Digital Trail Camera Instruction Manual Model#: 119223C Lit# 93-0580/04-10... -
Page 2: Important Note
Congratulations on your purchase of one of the best trail cameras on the market! Tasco is very proud of this little unit and we are sure you will be pleased with it as well. We appreciate your business and want to earn your trust. -
Page 3: Table Of Contents
Introduction Parts and Controls Camera Setup Setting the Year, Date & Time Setting Camera/Video Mode and Resolution Formatting SD Cards Exiting the Setup Menu Camera Operation Mount the Camera Test the Coverage Area Secure the Camera Viewing the Photos and Videos Glossary Specifications Troubleshooting/FAQ... -
Page 4: Introduction
Congratulations on your purchase of the Tasco 119223C digital trail camera. This trail camera is designed to record the activity of wildlife in the outdoors with its still image and movie modes and weatherproof, rugged construction. Main Features: • 1.3MP digital sensor •... -
Page 5: Parts And Controls
Parts and Controls Guide Camera Lens Indicator Front of Camera PIR Motion Sensor Padlock Hole Xenon Flash... - Page 6 Parts and Controls Guide SD Card Display Slot Power USB Port Button Battery Control Panel Compartment (Front Opened) Control Panel Detail...
-
Page 7: Camera Setup
Open the Cam by pulling out on the two latches on the right side. Install 4 “C” cell batteries (flat base of all batteries contacting springs), and insert an SD card (not included, use any capacity from 16MB to 8GB. Do not substitute MMC cards.) in the slot to the right of the 5 buttons as indicated on the slot cover (upside down, with the notched corner of the card on the left and metal contacts of the card facing the back of the slot). -
Page 8: Setting Camera/Video Mode And Resolution
CAMERA SETuP (continued) • Again use the UP/DOWN buttons to change the day if necessary and press OK. • To set the time, use UP/DOWN to set the hour and minute. The time display uses the 24 hr standard, so 2:00 PM is indicated as “1400”, etc. -
Page 9: Exiting The Setup Menu
you’ve saved any you wish to keep. • The display will read “FoNo”, with “No” and the SD card icon blinking. Press OK when “No” is flashing if you don’t want to format the card. • To format the card, press either UP/DOWN button and the “Fo” portion will blink. -
Page 10: Camera Operation
CAMERA OPERATION Once your camera has been setup, you are ready to begin using it to capture photos of wildlife activity in the area you choose to locate it. Just follow these steps: 1. Mount the Camera It is recommended that you mount the camera about 4 or 5 feet (1.2~1.5 meters) off the ground, with the camera pointed at a slight downward angle. -
Page 11: Secure The Camera
CAMERA OPERATION (continued) area, press the MENU button, then step away from the camera. Move straight back from the camera to find the length (depth) of the sensor detection zone, and move left or right to check the width (edges) of the detection zone (note that it becomes wider as you move farther back-see below). -
Page 12: Viewing The Photos And Videos
VIEWING THE PHOTOS and VIDEOS After your camera has been operating for awhile, you will of course want to review the photos and/or videos it has been capturing. This can be done by either of two methods, according to your preference or the availability of accessory equipment: using an SD Card Reader Make sure the power is off, and remove the SD card by pushing down... -
Page 13: Glossary
GLOSSARY PIR (Passive Infrared Sensor): Senses motion like a typical security motion detector. Requires infrared energy (heat) in addition to motion to trigger the sensor to help limit detection to live animals (rather than leaves, etc). Xenon Flash: This is a standard electronic flash tube, which fires automatically in low light conditions to provide adequate illumination. -
Page 14: Specifications
File Format (Image/Video) Date Time Imprint Moon Phase Imprint Exposure White Balance Mode Power Supply Water Resistant Technical Specifications 119223C 1/3 Inch CMOS 1.3 Megapixels 4.4 mm f/2.0 Monochrome LCD 1.6 second 16 feet (5 meters) SD Card up to 8 GB Capacity Yes (Setup mode only) 1.3MP, 3.0MP... -
Page 15: Troubleshooting/Faq
Make sure that you are using a good quality name brand SD card in your camera. Tasco recommends SanDisk® brand SD Cards up to 8GB. Our experience indicates that poor quality SD cards can sometimes reduce your Trail Cam battery life. - Page 16 If this is seen on a consistent basis, then the sensor may need servicing. Please contact Tasco customer service. 7. Short video clips—not recording to the length set a. Check to make sure that the SD card is not full.
- Page 17 Troubleshooting / FAQ Photos Do Not Capture Subject of Interest Try to set your camera up in an area where there is not a heat source in the camera’s line of sight. In some cases, setting the camera near water will make the camera take images with no subject in them.
- Page 18 Lenexa, Kansas 66214 For products purchased outside the United States or Canada please contact your local dealer for applicable warranty information. In Europe you may also contact Tasco at: This warranty gives you specific legal rights. You may have other rights which vary from country to country.
- Page 19 · Consult the dealer or an experienced radio/TV technician for help. The device does not contain any user-serviceable parts. Repairs should only be made by an Authorized Tasco repair center. Unauthorized repairs or modifications could result in permanent damage to the equipment, and will void your warranty and your authority to operate this device under Part 15 regulations.
- Page 20 For further questions or additional information please contact: Tasco 9200 Cody, Overland Park, Kansas 66214 (800) 423-3537 • www.Tasco.com ©2010 B.O.P.
