Names And Functions Of Parts; Front Panel - Tascam LM-8ST Owner's Manual

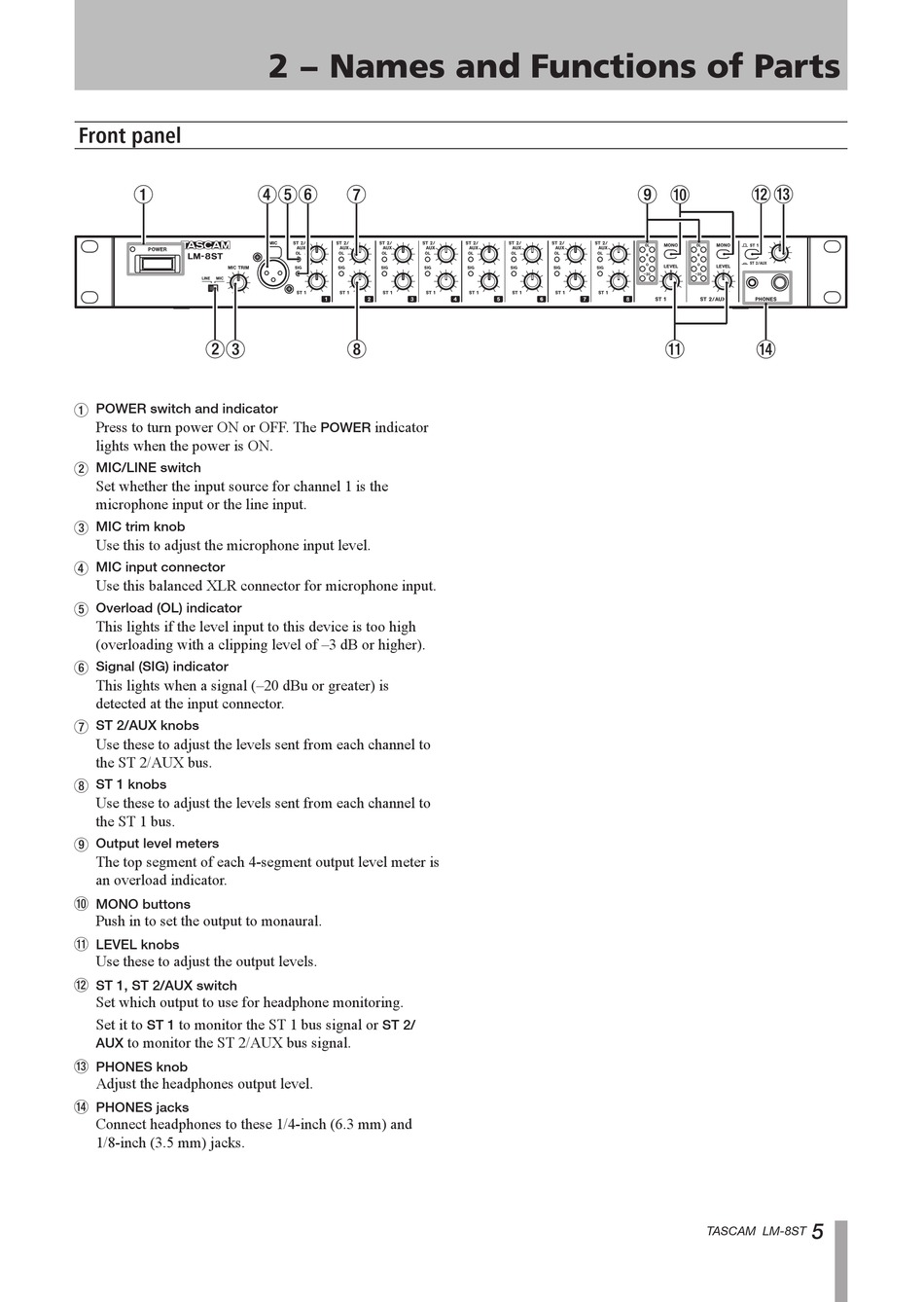

Front panel

POWER switch and indicator
11
Press to turn power ON or OFF. The
lights when the power is ON.
MIC/LINE switch
21
Set whether the input source for channel 1 is the
microphone input or the line input.
MIC trim knob
31
Use this to adjust the microphone input level.
MIC input connector
41
Use this balanced XLR connector for microphone input.
Overload (OL) indicator
51
This lights if the level input to this device is too high
(overloading with a clipping level of –3 dB or higher).
Signal (SIG) indicator
61
This lights when a signal (–20 dBu or greater) is
detected at the input connector.
ST 2/AUX knobs
71
Use these to adjust the levels sent from each channel to
the ST 2/AUX bus.
ST 1 knobs
81
Use these to adjust the levels sent from each channel to
the ST 1 bus.
Output level meters
91
The top segment of each 4-segment output level meter is
an overload indicator.
MONO buttons
0
Push in to set the output to monaural.
LEVEL knobs
q
Use these to adjust the output levels.
w ST 1, ST 2/AUX switch
Set which output to use for headphone monitoring.
Set it to to monitor the ST 1 bus signal or
ST 1
to monitor the ST 2/AUX bus signal.
AUX
PHONES knob
e
Adjust the headphones output level.
r PHONES jacks
Connect headphones to these 1/4-inch (6.3 mm) and
1/8-inch (3.5 mm) jacks.
2 − Names and Functions of Parts
indicator
POWER
ST 2/
5
TASCAM LM-8ST
