Riverside Furniture MILTON PARK Assembly Instructions

email: info@riverside-furniture.com
Desk Top Pedestal
1 pc.
A B
Ø5/16" x Ø22mm 5 mm
Flat Washer
Allen Wrench
H4 12 pcs. H5
Be sure to check all packing material carefully for small parts, which may have come loose inside the carton during shipment.
To prevent possible scratches and damage, this furniture must be assembled by two people on a soft surface such as a blanket or carpet.
Step 1 : Remove Drawer
B
UP
H5
Step : 3
MILTON PARK
Assembly Instructions
Side Frame
Ø5/16" x 1-1/2"
Allen Head Bolt
1 pc. 1 pc.
C H1
Furniture Tipping Restraint Kit
1 pc.
H6
H2
H3
H4
Home Office
Ø5/16"
Ø5/16" x 1-3/4"
Allen Head Bolt Spring Washer
6 pcs. 6 pcs.
H2 H3
1 pc.
OPTION 1
Step 2 : Pedestal Rotated
180 Degrees Left View
C
A
Made in Viet Nam
12 pcs.

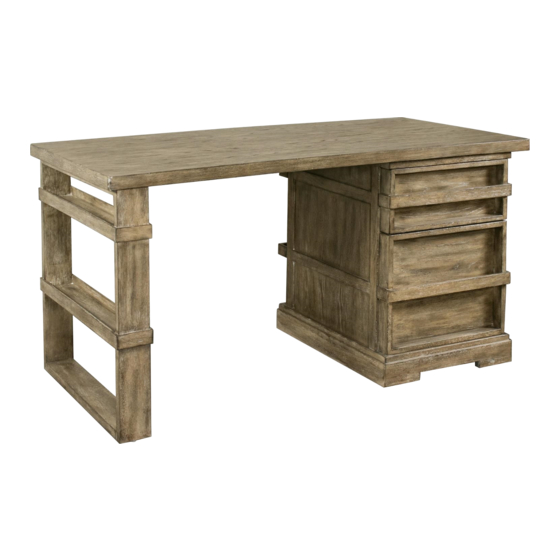

18630+18631 Writing Desk
Down
H4
H5
Page 1 of 4
H3
H1
