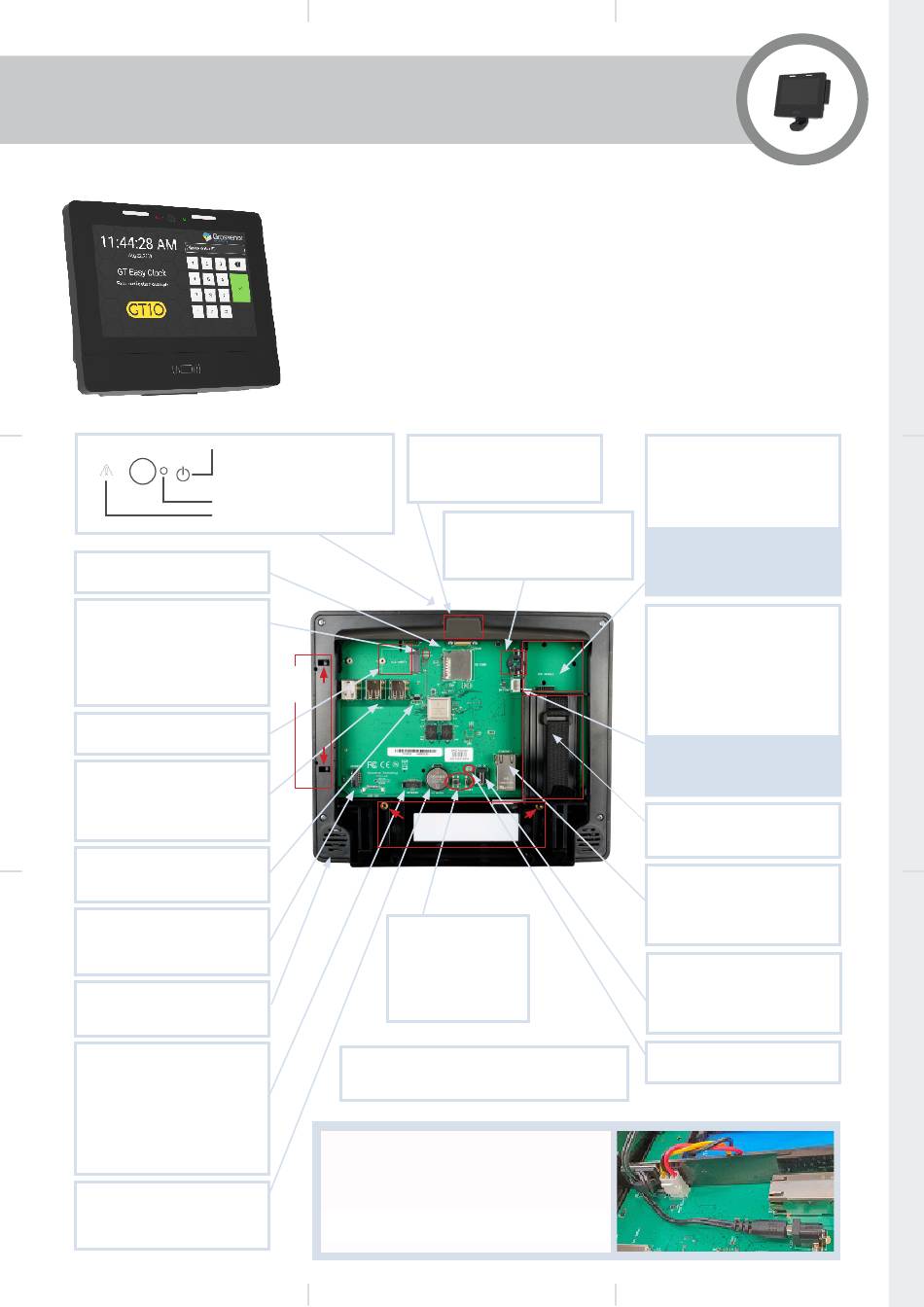

Grosvenor GT10S Installation Manual

Version 1.4 October 2021
GT10S
Installation Guide
Part numbers: FP-GT10S-A
FP-GT10S-L
Front Indicators
Green
Blue
Red
Camera active
Application LED - Red, Green, Blue
Memory Card Slot
Supports SD flash card
Wireless Module Indicators
BT Indicator
- Indicates Bluetooth Enabled
(requires supporting module)
WiFi Indicator
- Indicates WiFi Enabled
M.2 Port
Supports WiFi extension modules
USB Ports
Six USB2 full size sockets for
devices such as memory stick,
barcode scanner, extension
modules
USB Debug Port
For development use, allows loading
of applications
Swipe Reader Module Connector
Reader Modules include
- Mag Swipe
- Barcode Swipe
Speakers (one each side)
2W per channel stereo
High efficiency class D amplifier
Proximity Reader Module
Connector
Reader Modules include
- HID Prox and iClass
- Feig Prox
- Generic Prox 5V or 12V
For full list of supported proximity
modules and formats refer to GTL
website
RTC Backup Battery
Real Time Clock Backup Battery
maintains time during power
disconnection. 10 year life
General
The GT10S Data Collection
Terminal is a modular design which
can be customised by adding easy
to install optional modules to the
terminal.
The GT10S terminal includes an
inlay which can include customised
artwork (subject to minimum order
quantities).
Camera and Microphone Module
- PoE power present
Camera and microphone may be
- 12V in power present
- Running on battery removed by extracting the two
screws and withdrawing the module
Swipe
Reader
Mounting
Position
Proximity Reader
Mounting Position
RECOVERY Switch
Press the Recovery
button for Factory Reset
RESET Switch
Press to initiate hardware
reset, Terminal will reboot
Operating Temperature: 0 to +45C (14 to 113F)
Humidity: 5-90% non condensing Weight 1.5Kg (3.3lb)
Power Loading: 620mA @12V Power IN
*Stress relief clip
To use the clip and protect the DC/Jack socket:
- twist the cable to create a loop
- thread the loop through the clip
Stress relief clip*
Self-adhesive clip fitted to protect
DC Jack socket if/when panel is
removed from the wall
Options include:
Mains or PoE Power Supply
Reader Module
(Proximity and/or Swipe)
Biometric Module
Enterprise grade
WiFi module
Power over Ethernet (PoE)
Module Position
Optional module enables terminal to
be powered via the Ethernet cable
using IEEE802.3af or IEEE802.3at
Ethernet switch or mid-span injector.
Note: It is strongly recommended
that POE+ (IEEE802.3at) is used to
ensure that there is sufficient power
available for the device.
Battery Connector
For connection of the GTL Li-Ion
Battery Pack
EM-BB-2HR-A
Provides up to 2 hour runtime
Battery backup may be used with all
power options including PoE
Warning: Only fit battery pack
specified, failure to observe may
result in fire hazard
Battery Housing
Housing for 2 hour battery with
securing strap
Ethernet Connector
10/100/1000baseT
Full duplex, auto crossover,
supports PoE (when optional
module fitted)
Power IN Connector (2.1mm)
12V DC External PSU (centre
positive) 12V± 5% with minimum 2A
capacity (refer to Power Loading for
current calculation)
PWR Indicator
Indicates 12V power present
