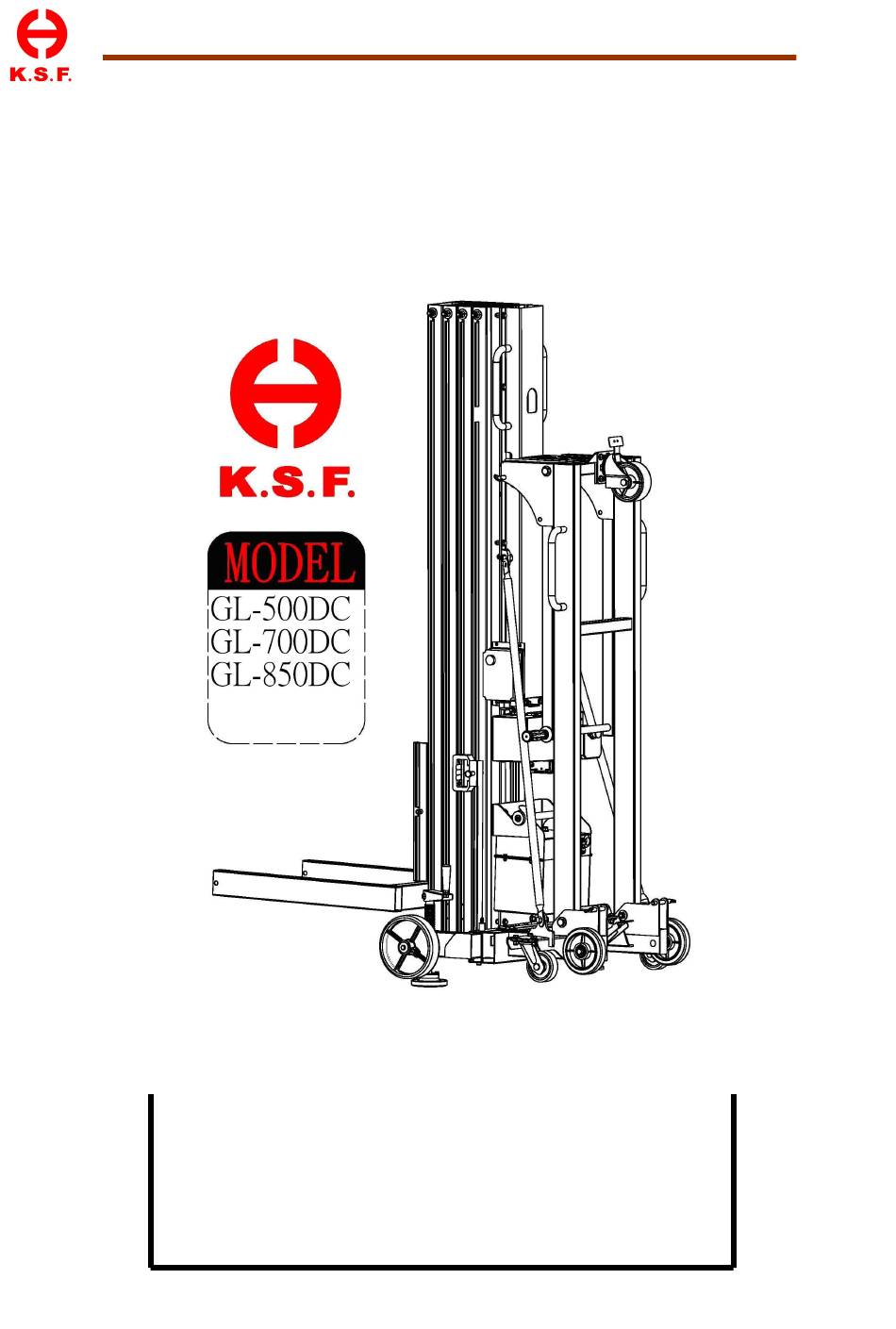

- Page 1 GLASS LIFTER INSTRUCTION BOOK SAFETY To maintain the operation safety, make sure read and understand this instruction book BEFORE operating this equipment.
- Page 2 If you have any questions about products please contact us anytime. Qualified personnel Only the qualified personnel is allowed to install and use this equipment .The qualified personnel is authorized to move, install and operate the machinery according to the setup Safety Practice and Standard.
- Page 3 Unique of the products 1. New fast folding legs design, the backseat to expand only need 10 seconds, efficiency and convenience. 2. Lifter can free choose AC motor or DC direct current motor (include fill the quickly battery charger), and electronic operation is convenient to save time .
- Page 4 2 .3-Vacuums cradle : 1. Vacuum cradle angle can be controlled, it can choose the glass is presented vertically or use horizontally . If installing for the roof, the glass and vacuums cradle need to horizontally hang. If installing for the wall, the glass and vacuums cradle need to vertically hang .
-
Page 5: Table Of Contents
~ INDEX ~ 1. CAUTIONS ＆ WARNING A. Symbol -----------------------------------------6 B. Hazards ----------------------------------------8 C. Dangerous working surroundings Hazards ---------------------------------------9 2. SPECIFICATION -------------------------------------10 A. Lifter body -------------------------------------13 Accessory- 3. CHECK BEFORE RISING-----------------15 4. LEGEND----------------------------------------16 5. SET UP ----------------17 A. Installed the storage battery -------------------------------20 B. -
Page 6: Cautions ＆ Warning
1. CAUTIONS ＆ WARNING A. SYMBOL To maintain the operation safety of this machine, the user shall read the included cautions in this manual very carefully to make sure of your personal safety , and to indicated by the safety marks. The individual safety marks are as the follows. DO NOT stand under or allow personal stand under the platform when it’s raised. - Page 7 DO NOT operate the machine under unsteady or unbalanced place. DO NOT exceed the rated load capacity. Do not operate the Lifter on a moving or mobile or vehicle. DO NOT operate the machine under strong or raining day. DO NOT operate the machine when the typhoon comes.
-
Page 8: Hazards
B. HAZARDS This manual shall be put in the place easily to be taken and handed to all the users to read the details very carefully. Failure to obey the instructions and safety rules in this instruction may result in the damage of machines and safety issues. 1. -
Page 9: Dangerous Working Surroundings Hazards
an unsafe condition 12. Except for the professional trained personnel of our distributor , please do’t disassemble the spare parts of this unit. 13. DO NOT use or operate the procedures which are prohibited in this instruction, or other unidentified usage. 14. -
Page 10: Specification
2. SPECIFICATION A. Lifter body Spec / Model GL-550DC GL-700DC GL-850DC 2,15 2,15 2,15 Basic height 5,53 7,16 8,71 Lifting height(Folkdown) 4,98 6,64 8,16 Lifting height (Folk up) Load capacity 900x760 900x760 900x760 Length –width(store) 2220x1510 2220*1510 2220*1510 Length –width(operating) Ground clearance (Folk Ground clearance... - Page 11 Photo 1 ~11~...
- Page 12 Photo 2 Photo 3 ~12~...
-
Page 13: Accessory
B. Accessory Spec / Model FOLK GL-U GL-3V GL-4V Weight 250/300 Load capacity Photo 1 (FOLK) Photo 2 (GL-U) ~13~... - Page 14 Photo 3 (GL-3V) 1450 Photo 4 (GL-4V) 1460 ~14~...
-
Page 15: Check Before Rising
3.CHECK BEFORE RAISING 1.Please check the followings before use. a.Check the steel wire before operating . If you find any damage or tearing , stop using and contact the seller or the manufacturer to check . b.Check the whole machine to see whether the welded points are broken ? Any loose , missing or broken parts ? Make sure that the lifter is in its best condition . -
Page 16: Legend
4. LEGEND Aluminum Mast Pull rod Urgently stop receiving box Universal crane Utility duty winch Push handle seat Storage battery seat Front leg Level device Counter weight seat 8-inch wheels 5-inch brake wheel ~16~... -
Page 17: Set Up
5. SET UP Note:Please read the manual thoroughly and understand tne functions for all parts , methods of operation , and cautions completely before use . A. Installed the storage battery Photo 1 STORAGE BATTERY POSITION Photo 2 HANG STORAGE BATTERY SEAT ~17~... - Page 18 Photo 3 PLUG THE SOCKET Photo 4 REMOVE THE COVER Photo 5 INSERT BATTERY CHARGER OF THE WIRED REMOVE CONTROL ~18~...
- Page 19 Photo 6 PRESS BUTTON FOR TEST Photo 7 INSERT BATTERY CHARGER OF WIRED REMOVE CONTROL WHEN BATTERY RUN OUT Photo 8 TURN ON BATTERY CHARGER SWICH ~19~...
-
Page 20: Expand The Lifter
B. Open the Lifter Photo 1 TAKE OUT THE PIN (LONG) Photo 2 FALL DOWN THE COUNTER WEIGHT SEAT Photo 3 THE PIN STUCK IN FIXED POSITION (LONG) ~20~... - Page 21 Photo 4 TAKE OUT THE PINS Photo 5 THE PUSH HANDLE SEAT TO RISE Photo 6 THE PINS STUCK IN FIXED POSITION ~21~...
- Page 22 Photo 7 STEP ON THE BRAKE (5-INCH WHEEL ) Photo 8 STEP ON THE BRAKE Photo 9 THE BOTH SIDES OF PINS STUCK IN FIXED POSITION ~22~...
- Page 23 Photo 10 PUT IN THE COUNTER WEIGHT(4pcs) Photo 11 PULLOUT THE BOTH SIDES OF THE FIXED Photo 12 PULL OUT THE RIGHT AND LEFT LEGS,MAKE SURE EXTEND EVERY INCH p.s. 1.BE SURE THE BOTH SIDES OF FIXED PIN FIX BACK ~23~...
- Page 24 Photo 13 RELEASE THE BRAKE Photo 14 ADJUST LEVEL DEVICE Photo 15 OPEN URGENTLY STOP RECEIVING BOX ~24~...
- Page 25 Photo 16 TURN ON THE RADIO REMOVE CONTROL Photo 17 PRESS BUTTON UP AND DOWN FOR TEST Photo 18 PULL OUT FIXED MAST POLE ~25~...
-
Page 26: Restore The Lifter
C. Restore the Lifter Photo 1 STEP ON THE BRAKE Photo 2 REALSE THE LEVEL ADJUSTED HANDLE Photo 3 PULL THE FIXEDLY PIN ~26~... - Page 27 Photo 4 PUSH BACK RIGHT AND LEFT LEGS Photo 5 TAKE OUT THE COUNTER WEIGHT(4pcs) Photo 6 TAKE OUT THE ~27~...
- Page 28 Photo 7 PACK BACK THE PUSH HANDLE SEAT Photo 8 PINS STUCK IN ORIGINAL FIXED POSITION Photo 9 UNLOCK THE BRAKE (5-INCH WHEEL) ~28~...
- Page 29 Photo 10 TAKE OUT BOTH SIDES OF PINS Photo 11 TAKE OUT PIN (LONG) Photo 12 PACK UP THE COUNTER WEIGHT SEAT ~29~...
- Page 30 Photo 13 THE PIN STUCK IN ORIGINAL FIXED POSITION Photo 14 REALSE BRAKE Photo 15 CATCH ON ALUMINIUM MAST FIXED HANDLE ~30~...
- Page 31 Photo 16 PRESS UP BUTTON TO FIX HANDLE Photo 17 TRUN OFF THE RADIO REMOTE CONTROL Photo 18 CLOSE THE URGENTLY STOP RECEIVING BOX ~31~...
-
Page 32: Horizontal Collection
D. Horizontal collection Photo 1 TAKE OUT PIN Photo 2 PUT DOWN THE COUNTER WEIGHT SEAT Photo 3 STEP ON THE BRAKE (5-INCH WHEEL) ~32~... - Page 33 Photo 4 PUT DOWN THE ALUMINUM MAST Photo 5 STUCK IN FIXED POSITION Photo 6 UNLOCK THE BRAKE (5-INCH WHEEL) ~33~...
-
Page 34: Erection Collection
E. Erection collection Photo 1 STEP ON THE BRAKE (5-INCH WHEEL) Photo 2 TAKE OUT THE Photo 3 STAND UP THE ALUMINUM MAST ~34~... - Page 35 Photo 4 UNLOCK THE BRAKE (5-INCH WHEEL) Photo 5 PULL BACK THE COUNTER WEIGHT SEAT Photo 6 THE PIN STUCK IN ORIGINAL FIXED POSITION ~35~...
-
Page 36: Operating Raising/Lowering
6. OPERATING RAISING/LOWERING 1. Plug in the remote control and turn on it. 2. Press the UP and DOWM bottom for test 3. TURN ON URGENTLY STOP RECEVING BOX AND URGENTLY STOP SWITCHT. 4. Press the UP and DOWN bottom for test ！！IMPORTANT！！... -
Page 37: Explode View Of Gl Series Of Electric Glass Lifter
7. EXPLODE VIEW OF GL SERIES OF ELECTRIC GLASS LIFTER ~37~...
