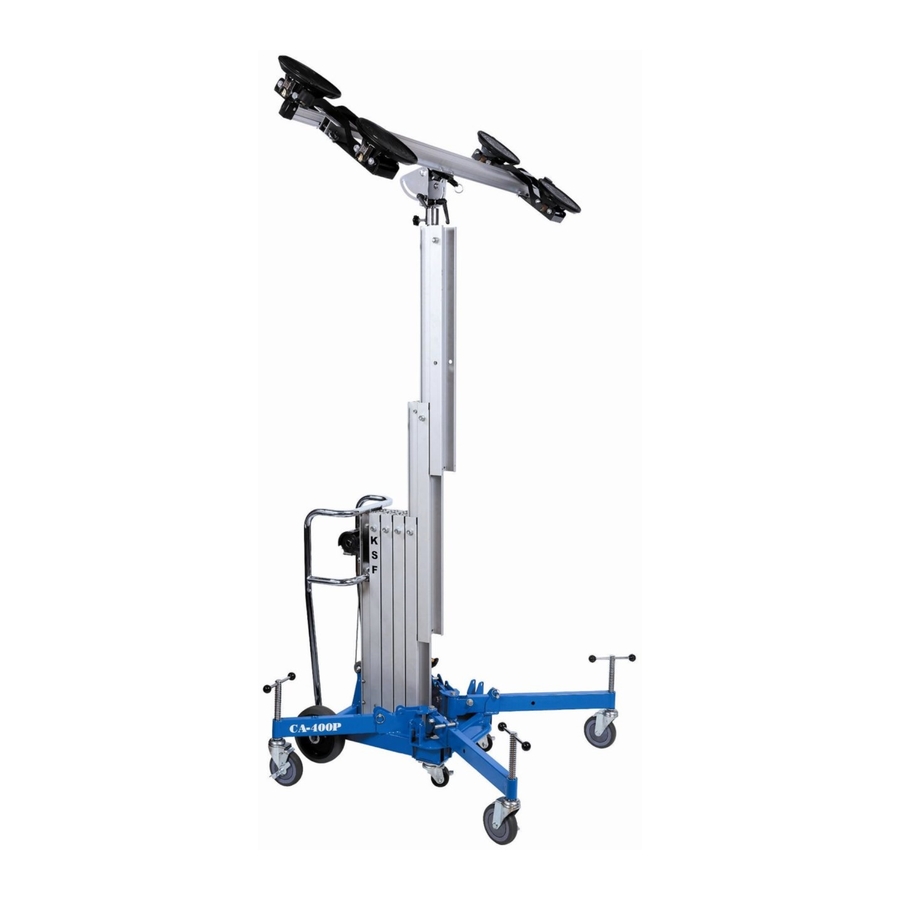

- Page 1 KeM.Tech - KSF CA 400 GL MODEL CA- 400 - GL UPTER design SAFETY...
- Page 3 K.S.F. WARNING SYMBOL To maintain the operation safety of this machine, the user shall read the included cautions in this manual very carefully to make sure of your personal safety, and to protect the equipment itself from damage. The cautions in the equipment will be indicated by the safety marks.
- Page 4 K.S.F. If there is any condition of taking off or damage , assure to change it at once. Qualified Personnel Only the qualified personnel is allowed to install and use this equipment. The qualified personnel is authorized to move, install and operate the machinery according to the setup Safety Practice and Standard.
- Page 5 K.S.F. We are very appreciated for your adopting CA of Portable Lifter. Our company is the team insisted in High Quality and Excellent Technology to manufacture all types of professional equipment to help the customers to create high profits and high quality products. CA Portable Lift is the professional equipments to install, position and lifting: .Electric Curly Doors .Iron Racks...
-
Page 6: Table Of Contents
K.S.F. INDEX 1. PRECAUTIONS & WARNING------------------------------------------------ 5 2. TRANSPORTING THE PORTABLE LIFTER----------------------------- 3. STORAGE------------------------------------------------------------------------- 8 4. CHECK ---------------------------------------------------------------------------- 5. LEGEND -------------------------------------------------------------------------- 10 6. SET UP ---------------------------------------------------------------------------- 11 7. STORE SIZE ---------------------------------------------------------------------- 13 8. OPERATING SIZE --------------------------------------------------------------- 14 9. OPERATING SIZE OF COUNTER WEIGHT SEAT--------------------- 15 10. -
Page 7: Precautions & Warning
K.S.F. 1. PRECAUTIONS & WARNING HAZARDS This instruction book shall be put in an easily accessible location for all users. AILURE TO OBEY THE INSTRUCTIONS AND SAFETY RULES MAY RESULT IN DEATH SERIOUS INJURY AND PROPERTY DAMAGE 1. DO NOT use this equipment to life people or as a ladder or step. 2. - Page 8 K.S.F. DO NOT lower the load unless the area below is clear of personnel and obstructions. 14. DO NOT place ladder or scaffolding against any part of this unit. 15. No untrained or unauthorized personnel to operate the machine. Proper training and instruction is needed to maintain safe operations.
- Page 9 K.S.F. 4.Keep the work space and surroundings clean and tidy. Working in dirty or dark surroundings could cause an accident. 5. DO NOT operate the machine on any unsteady surface. The machine must be kept steady and balanced when in use. 6.
-
Page 10: Transporting The Portable Lifter
K.S.F. 4. The Portable Lifter is equipped with Level Device. Checking if it's in the condition of leveling before raising. 5. Ensure the steel cable is A): not worn or frayed. B): not derailed and not caught in obstructions. C): not hooked by abnormal objects causing unusual friction or possibility of derailing. 6. -
Page 11: Check
K.S.F. 2. The Portable Lifter should be stored on a flat surface. DO NOT place heavy objects on it. If stacking, please handle it according to the instructions on the outer carton. 3. The Portable Lifter must be stored in an area with no vibration or risk of the machine being knocked or damaged. -
Page 12: Legend
K.S.F. 5. LEGEND CRADLE TELESCOPING MAST MOTOR AND WHEEL ADJUSTABEL GEARBOX SCREW BRACE FRONT LEG COUNTER WEIGHT AND SEAT 8- INCH WHEELS LEVEL ADJUSTABEL LEVEL WHEEL 2-1/2 INCH WHEELS FRONT LEG... -
Page 13: Set Up
K.S.F. 6. SET UP 1.Take out the pin 2. A. Put down front legs B. Put in the pin C Take out the pin A. Put down legs B. Put in the pin (MUST PUT IN B... - Page 14 K.S.F. 4. Counter weight and seat are needed when put front legs in B WARNING! MAKE SURE SET IT IN LEVEL STATUS. 5. Model CA-400 equipped with the LEVEL, make sure the machine is set up in level status. 6. Put the Platform on and tighten the screw below to secure it.
-
Page 15: Store Size
K.S.F. 7. STORE DIMENSION 550mm... -
Page 16: Operating Size
K.S.F. 8.OPERATING DIMENSION 1 970mm... -
Page 17: Operating Size Of Counter Weight Seat
K.S.F. 9.OPERATING DIMENSION 2 1591mm 10.CRADLE DIMENSION 1450mm... -
Page 18: Pre-Operation Inspection
K.S.F. 11. Pre-operation Inspection 1. Check before operation 1-1 Before plugging, please make sure the voltage is right. BEFORE RAISING, PLEASE MAKE SURE THE ATTACHED MANUAL HANDLE IS NOT SET IN MANUAL SHAFT. BEFORE RAISING, PLEASE MAKE SURE EMERGENCY STOP BUTTON IS COMPLETELY PULLED UP AS SHOWN, IF NOT, THE MOTOR IS RUNNING BUT THE MAST CAN NOT BE RAISING, JUST LIKE OPERATE IN MANUALLY. -
Page 19: Raising And Lowering
K.S.F. 12. RAISING AND LOWERING LEVER ALWAYS ACCORDING THE UP AND DOWN MARK AS SHOWN TRIGGER ABOVE ON THE HANDLE BOX TO OPERATING RAISING OR LOWERING. RAISING: Shift the LEVER to UP mark side of the switch box and press the TRIGGER to raising. LOWERING: Shift the LEVER to DOWN mark side of the switch box and... - Page 20 K.S.F. !! IMPORTANT !! YES!! RIGHT!! NO!! WRONG!! THE AUTOMATIC OVERLOAD BREAKER STARTED IS SOUND LIKE " DA. DA. DA. DA", AND THE PORTABLE LIFTER WILL STOP RAISING AT ONCE EVEN THE MACHINE IS NOT REACH THE TOP. In this situation, check the LEVER at first. If the LEVER is not at the UP side position, shift it to the UP side and the machine will lowering.
-
Page 21: Emergency Stop Button, Manually
K.S.F. 13. EMERGENCY STOP BUTTON , MANUALLY 1. When the unexpect situation is happening, press the emergency stop button, the machine will stop raising or lowering immediately. 2. Manually: Mounted the manual handle on and rotate it raising or lowering. WARNING!! When operation in manual, operator must be squatting below... -
Page 22: Use Of Glazing Installation
K.S.F. 14. USE OF GLAZING INSTALLATION - CA 400 Pre-operation Inspection 1. The glass surface is reserved for clean, bearing no traces of oil or grease. 2. The lever screw head orientation support should be checked before each use. 3. The screw on the vacuum suction cups must be checked before each use. - Page 23 K.S.F. Using the vacuum suction cups - Never use cups with rubber disc is damaged. - Do not attempt to detach the vacuum suction cup with sharp objects or tools, this might damage the vacuum suction cups. - Never exceed the prescribed load - Never expose the rubber discs for a long time in the sun, they quickly lose their elasticity.
- Page 24 K.S.F. 4. Make sure the surface / object to be lifted is of non-porous material. In addition, the surface must be clean, dry and free of oils and grease. On rough or porous surfaces, the holding capacity decreases or is non-existent. 5.
- Page 25 K.S.F. Maintenance of suction 1. Always keep rubber pads clean and free of oil or grease. Clean suction pads regularly with spirit or other non-aggressive cleaners. 2. Do not expose rubber pads to sunlight over extended period of time to preserve their elasticity. 3.
- Page 26 K.S.F. How to use the rotating head of cradle Understand the function of the glass substrate and before each use 1. Put the glass cradle on the base and lock the levers as the photo 1. 2. Place the glass on the vacuum suction cups (see instruction page 20-23).
-
Page 27: Ordinary Examination
K.S.F. 15. ORDINARY EXAMINATION POSITION ITEMS TOOLS RESULT RESOLUTION Telescoping Lubrication Because of the usage Grease Engine 1. Check the mast Mast of machine, it will be oil on the is Lubricated or covered with dust or cylinder by not. dirt. -
Page 28: Appendix
K.S.F. 16. APPENDIX Model CA-400 Specification Voltage 110V Or 220V Current 110V-8A , 220V-4A Platform 150KG Glass Crandle -- Capacity 120KG Front load (Slant) 100KG Front load (Vertical) 60KG Right/Left Side(Vertical) Body 66KG 5.3KG Weight Platform Glass Crandle 21 KG 96CM Basic Height Height... -
Page 29: Explode View Of Motor And Gearbox
K.S.F. K.S.F. 17. Explode View of Motor and Gearbox... -
Page 30: Explode View Of Ca-400
K.S.F. K.S.F. 18.Explode View of CA-400... -
Page 31: Explode View Of Cradle
K.S.F. 19.Explode View of CRADLE...
