startKIT Hardware Manual
1 Features

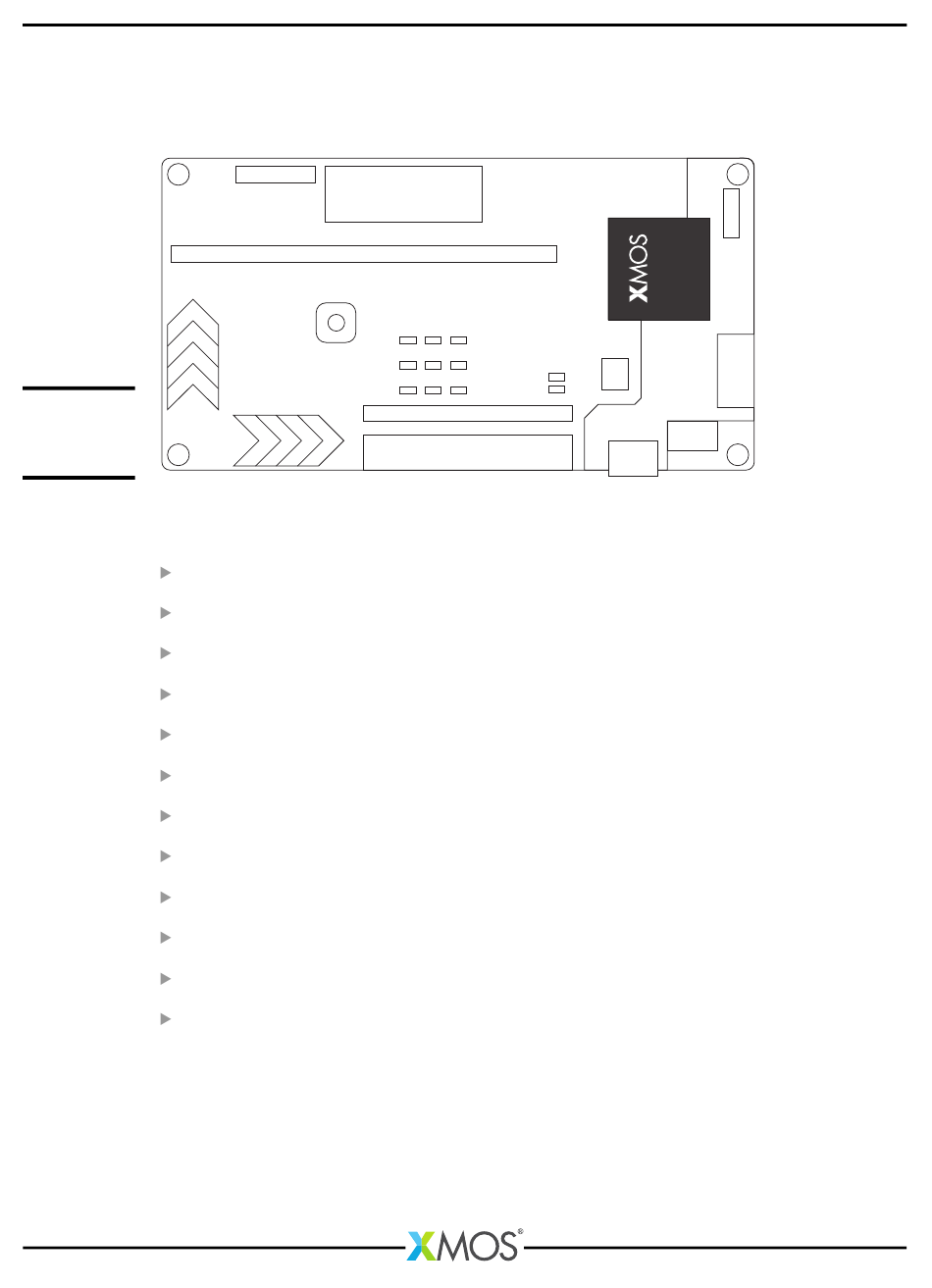

A block diagram of the startKIT is shown below:
F
Figure 1:
startKIT block
diagram
It includes the following features:
A: xCORE Multicore Microcontroller device with integrated debugger
B: Micro USB connector for debugger/JTAG
C: PCIe slot for sliceCARD or 1x24 GPIO header
D: 2x13 header for GPIO and compatible with Raspberry Pi
E: 1x13 header providing two XMOS Links
F: Two four-zone cap sense areas
G: 3x3 grid green LEDs
H: Two green LEDs
I: SPI Flash
J: Push-button switch
K: 3x2 analog input header
L: 24MHz Oscillator
XM004110C
C
C
C
J
G
F
I
H
E
D
B
A
L
K
