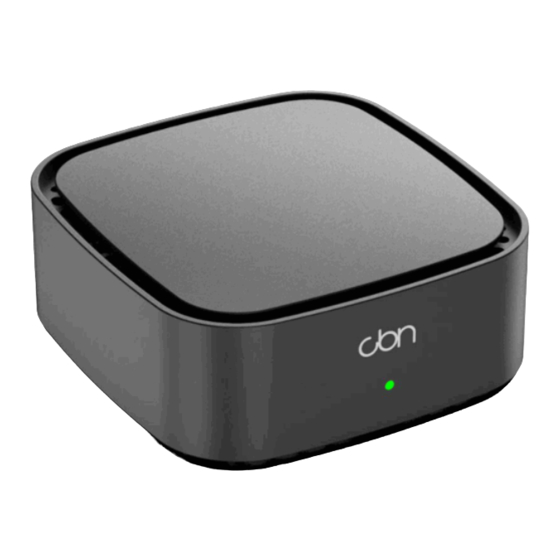

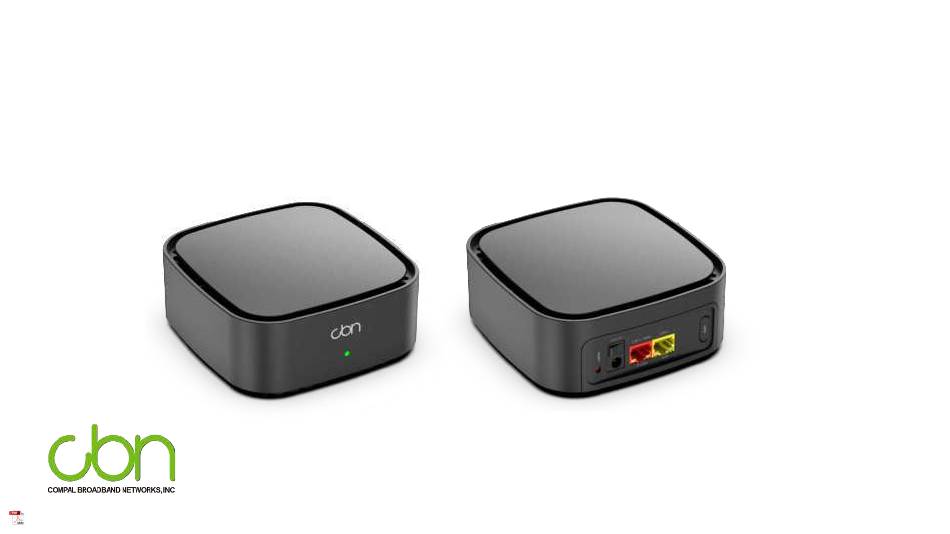

- Page 1 Wireless Access Point Fast Installation GuideWR5842 • Wi-Fi Network set up • Cable network set up...
-
Page 2: Lan Options
LAN Options LAN Options +12V DC Power Wireless LAN Wired Ethernet LAN 1 x WAN 1 x LAN 1Gbps 2.5Gbps Reset Power Adapter Ethernet cable... -
Page 3: Inside The Box
Inside the Box One Power Adapter WR5842 110V... -
Page 4: Power Connection
Plug the power Adapter into an +110V AC power outlet and DC plug in the other end of the power cord into +12VDC inlet of WR5842. Turn the switch ON( - ), Every time WR5842 is turned on, it takes about 2 minutes to find and lock the Mesh Wi-Fi. - Page 5 Wireless LAN Connection For Configuration Manager Access Wireless LAN Connection For Configuration Manager Access Check the WR5842 label to find out the basic setting of Wireless Wi-Fi SSID and password. Check the WR5842 LED status. The WR5842 front panel LED indicators provide the status information for power, communications, and errors.
- Page 6 Wireless LAN Connection For Configuration Manager Access Go to the device you wish to connect. Open your device’s Wi-Fi settings (make sure Wi-Fi is turned on). Refresh the "Network and Internet" window to select and connect to the WR5842 SSID name printed on the label. CBN-XXXX Enter the password printed on the label and press "Next"...
- Page 7 Wired Ethernet LAN Connection For Configuration Manager Access User can easily connect any 10/100/1000 Mbps/ 2.5GbE (WAN/LAN selectable) Ethernet connection directly to the WR5842 Ethernet LAN port to access the configuration manager through http://192.168.200.1 2.5GbE LAN1 10/100/1000GbE LAN2 Ethernet cable...
- Page 8 WR5842 Configuration Manager (CMGR) The WR5842 Configuration Manager (CMGR) allows you to change and view the settings of your WR5842. You can reach the configuration manager at http://192.168.200.1 to login CMGR, you should key in the correct Password provided in Unit label.
- Page 9 Complete WR5842 Configuration Manager (CMGR) After logging into the management system, CMGR allows you to change and view the settings on your WR5842. Congratulations! Your wireless access point has been set up. If you have any problem, please follow the troubleshooting instructions to troubleshoot.
- Page 10 First make sure your cable modem is able to connect to the internet, press the cable modem and WR5842 WPS button at the same time, wait for 5-10 second to complete the Mesh network setting. If LED is solid green light, this means WR5842 is scanning and trying to connect to the Mesh network. Cable modem...
-
Page 11: Front Panel Led Behavior
Front Panel LED Behavior The WR5842 front panel LED indicators provide the following status information for power, communications, and errors: Description Status Device is power-on Wifi White Network Device is power-off Flashing Device restart/ software upgrading/ settings setup Green Mesh network is connecting... -
Page 12: Troubleshoot
Before calling your internet service provider, try pressing and hold the Reset button on the rear panel of the WR5842 for 5 seconds to reset the unit to be default setting. Please note, if you press the Reset button, you will lose all your custom configuration settings, including Firewall and Advanced settings. - Page 13 Safety Warning and Disclaimer 設備名稱: 無線基地台 型號 (型式): WR5842 Equipment Name: Router Type designation (Type) 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 Unit Lead Mercury Cadmium Hexavalent Poly-brominated Poly-brominated Chromium Biphenyls Diphenyls Ethers...
- Page 14 Safety Warning and Disclaimer Please avoid from contact with water or immersed in any liquid. Do not use this product in highly humid places, and do not • touch the power plug with wet hands to avoid electric shock, fire, or malfunction of the product. This product is a high-efficiency communication device, suitable for home and office environment, please use this product •...
- Page 15 Federal Communication Commission Interference Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and This equipment has been tested and found to comply with the limits for a Class B digital device, Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two pursuant to Part 15 of the FCC Rules.
