- Page 1 Wireless Access Point Fast Installation Guide AP5541 • Wi‐Fi Network set up • Cable network set up...
-
Page 2: Lan Options

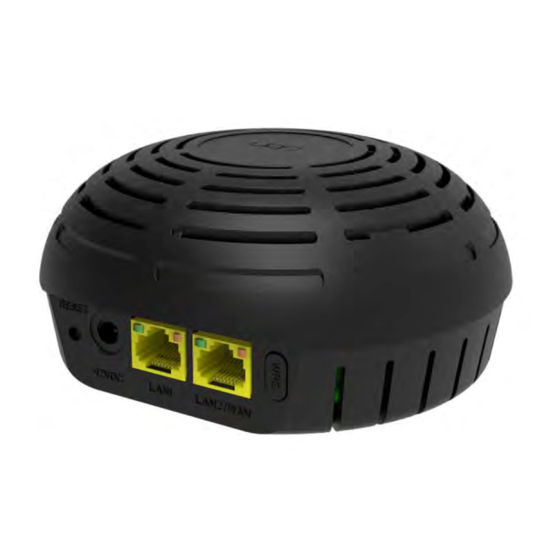

LAN Options Wireless Wi‐Fi Wireless LAN Wired Ethernet LAN Reset +12V DC RJ45 Power Power Adapter Ethernet cable... -
Page 3: Inside The Box
Inside the Box AP5541 One Power Adapter One Ethernet cable... -
Page 4: Power Connection
Power Connection Plug the power cord into an AC power outlet and the other end of the power cord into power port of AP5541. Every time AP5541 is turned on, it takes about 2 minutes to find and lock the Mesh Wi‐Fi. Wireless Wi‐Fi Power Adapter AC electrical outlet Power port... - Page 5 Wireless LAN Connection For Configuration Manager Access Check the AP5541 label to find out the basic setting of Wireless Wi‐Fi SSID and password. Check the AP5541 LED status. The AP5541 front panel LED indicators provide the status information for power, communications, and errors. If AP5541 is power on and work function LED should be solid white.(at start)
- Page 6 Wireless LAN Connection For Configuration Manager Access Go to the device you wish to connect. Open your device’s Wi‐Fi settings (make sure Wi‐Fi is turned on). Refresh the "Network and Internet" window to select and connect to the AP5541 SSID name printed on the label Enter the password printed on the label and press "Next" for Wi‐Fi connection. You can access the AP5541 configuration manager through http://192.168.200.1.
- Page 7 Wired Ethernet LAN Connection For Configuration Manager Access User can easily connect any PC RJ45 Ethernet port directly to the AP5541 Ethernet port to access the configuration manager through http://192.168.200.1 1GbE LAN1 Ethernet cable...
- Page 8 AP5541 Configuration Manager (CMGR) The AP5541 Configuration Manager (CMGR) allows you to change and view the settings on your AP5541. You can reach the configuration manager at http://192.168.200.1...
- Page 9 Complete AP5541 Configuration Manager (CMGR) After logging into the management system, CMGR allows you to change and view the settings on your AP5541. Congratulations! Your wireless access point has been set up. If you have any problems, please follow the troubleshooting instructions to troubleshoot. IP address If your Wi‐Fi is already connected to the network or device, but still can’t connect or access to the internet. Please check/change PC IP address setting to auto let DHCP auto assist IP.
- Page 10 Mesh setting First make sure your cable modem is able to connect to the internet, press the cable modem and AP5541 WPS button at the same time or in a 60 second window, wait for 5‐10 second to complete the Mesh network setting. If Wi‐Fi LED is blinking red light, this means AP5541 is scanning and trying to connect to the Mesh network. Cable modem Wireless Wi‐Fi (1) Wireless Wi‐Fi (2) If you need to set up more Mesh networks, please press WPS button at the wireless Wi‐Fi(1) that has already been connected to cable modem and then press the WPS button on the new wireless Wi‐Fi(2) your going to set up. Wait for 5‐10 second to complete the Mesh network setting. ...
-
Page 11: Front Panel Led Behavior
Front Panel LED Behavior The AP5541 front panel LED indicators provide the following status information for power, communications, and errors: Status Description White Device is power‐on Device is power‐off Yellow Flashing Default setting Mesh network is off server / Mesh network can’t accesses IP address. Flashing Mesh network is connecting / Mesh network accessing IP address / WPS device connecting / WPS device connecting Mesh network Blue Mesh 5GHz Wi‐Fi network single strong (RSSI ≧ ‐ 65dBm) Flashing Mesh 5GHz Wi‐Fi network single poor (RSSI < ‐ 65dBm) Green Mesh 2.4GHz Wi‐Fi network single strong (RSSI < ‐ 65dBm) Flashing Mesh 2.4GHz Wi‐Fi network single poor (RSSI ≧ ‐ 65dBm) -
Page 12: Troubleshoot
Troubleshoot If the device is not working properly, please check troubleshoot below. 1. Check electrical outlet is properly plugged into the AP5541 and the device is power on . 2. Check LED light status on the device is working properly. For more information check LED behavior. Power light is off Check the AP5541 is properly plugged into the AC electrical wall outlet. If still not working, change another electrical • outlet or make sure electrical outlet is work properly. • If the device still cannot be overpowered normally, it may be that power adapter is defective and must be replaced. *Note: Please use the power adapter we provide. The output voltage is +12V DC / 1.5A. Make sure you plug in the right voltage. Please contact your cable company for replacement when power adapter is not function normally. After the device is turned on 1 min, LED red light is turn on or flashing ‐ Make sure the computer network card driver is installed correctly/up to date. ‐ Check whether the computer network is set to obtain an IP address automatically. If the computer is set to obtain an IP address automatically, please check whether the network connection is correct. ‐ If the LED red light continuously bright or flashing for 5minute, it means that the Mesh network cannot establish normal services or cannot obtain an IP address. Please contact your internet service provider to report for repairs. LED flashing blue or green light Mesh network 5GHz Wi‐Fi signal is weak (blue light flashing), or 2.4GHz Wi‐Fi signal is weak (green light flashing). Users can change the position of the wireless base station until the blue or green LED light of the wireless device is steady or LED light is constantly on, indicating that the Mesh network established by the wireless station and the cable modem is stable, properly receiving and sending Wi‐Fi signals, and the data transmission speed is high. * If the solutions listed here do not solve your problem, contact your internet service provider. Before calling your internet service provider, try pressing the Reset button on the rear panel of the AP5541. Please note, if you press the Reset button, you will lose all your custom configuration settings, including Firewall and Advanced settings. Your service provider may ask for the front panel LED status, check Front‐ Panel LEDs and Error Conditions. - Page 13 Federal Communication Commission Interference Statement This device contains licence‐exempt transmitter(s)/receiver(s) that comply with Innovation, Science and This equipment has been tested and found to comply with the limits for a Class B digital device, Economic Development Canada’s licence‐exempt RSS(s). Operation is subject to the following two pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection conditions: against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, (1) This device may not cause interference. may cause harmful interference to radio communications. However, there is no guarantee that (2) This device must accept any interference, including interference that may cause undesired operation interference will not occur in a particular installation. If this equipment does cause harmful of the device. interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Cet appareil contient des émetteurs / récepteurs exempts de licence qui sont conformes au (x) RSS (s) exemptés de licence d'Innovation, Sciences et Développement économique Canada. L'opération est • Reorient or relocate the receiving antenna. soumise aux deux conditions suivantes: • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is (1) Cet appareil ne doit pas provoquer d'interférences. connected. (2) Cet appareil doit accepter toute interférence, y compris les interférences susceptibles de provoquer un • Consult the dealer or an experienced radio/TV technician for help. fonctionnement indésirable de l'appareil. • FCC Caution: Any changes or modifications not expressly approved by the party responsible for The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for compliance could void the user’s authority to operate this equipment. harmful interference to co‐channel mobile satellite systems les dispositifs fonctionnant dans la bande 5150‐5250 MHz sont réservés uniquement pour une • This device complies with Part 15 of the FCC Rules. Operation is subject to the following two utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites conditions: (1) This device may not cause harmful interference, and (2) this device must accept mobiles utilisant les mêmes canaux.
