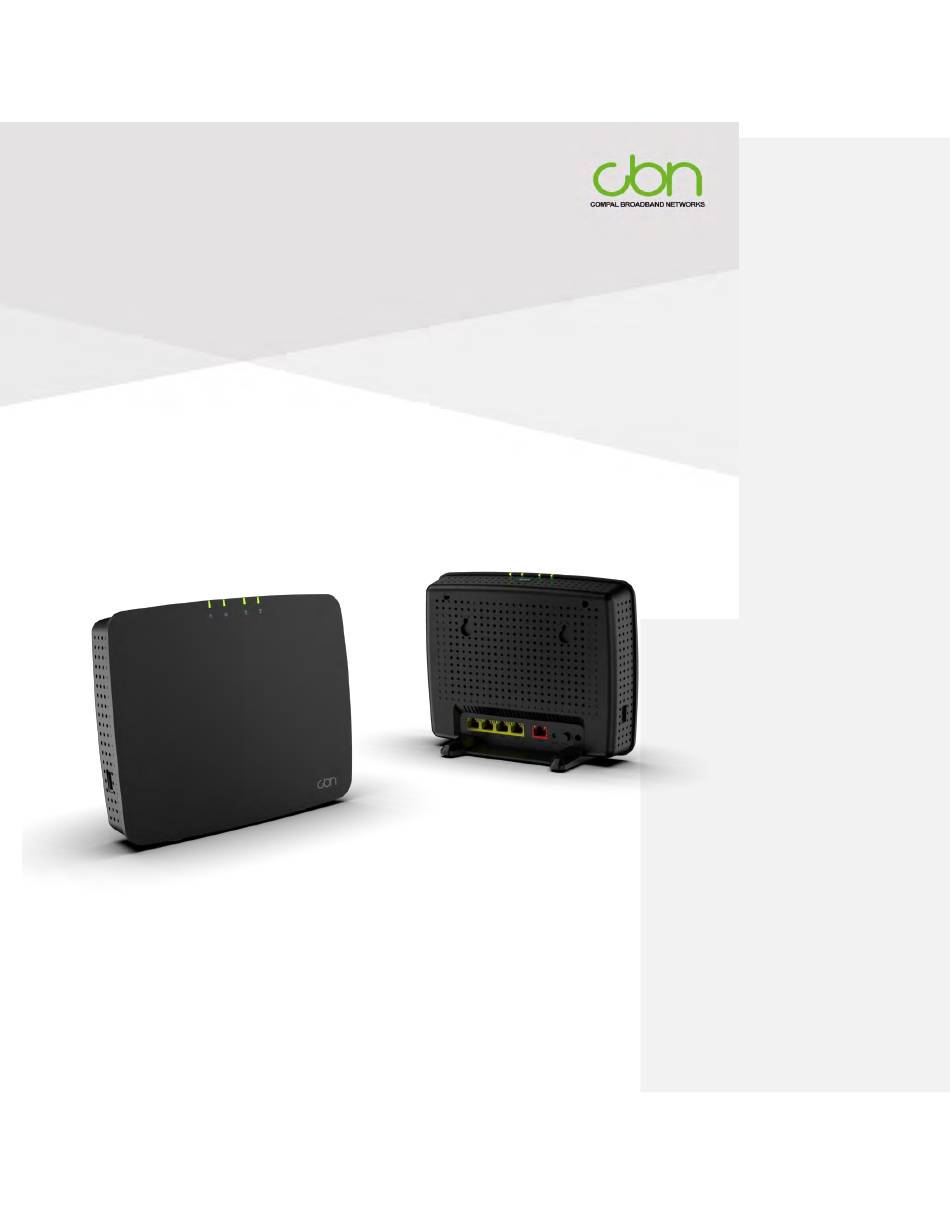

Wireless Access Point Quick Installation Guide
Release 1.0
Aug/2021
1
Copyright © 2021 Compal Broadband Networks, Inc. Confidential and Proprietary

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WR5881 and is the answer not in the manual?

Questions and answers

Related Manuals for CBN WR5881

Summary of Contents for CBN WR5881

  • Page 1 WR5881 Wireless Access Point Quick Installation Guide Release 1.0 Aug/2021 Copyright © 2021 Compal Broadband Networks, Inc. Confidential and Proprietary...

  • Page 2: Getting Started

    Thank you for choosing the CBN WR5881 whole home MESH Wi-Fi solution. The mesh Wi-Fi can be used to expand coverage of your existing CBN Wireless Network and without dead zone. This Quick Start Guide will get you up and running in no time.

  • Page 3: Wireless Access Point Overview

    格式化: 置中 Wireless Access Point Overview Front Panel The WR5881 front panel contains indicator light. 格式化: 字型: 11 點 Copyright © 2021 Compal Broadband Networks, Inc. Confidential and Proprietary...

  • Page 4: Led Descriptions

    LED descriptions The WR5881 front panel LED indicators to provide the following status information for power, communications, Wi-FI, MESH and errors. This device consists of multiple leds which shows the status of all functions. When devices in CAP mode Icon...

  • Page 5: Rear Panel

    Rear Panel The WR5881 rear panel contains of LAN Ports, WAN Port, reset button, Power button, Power port and WPS Button on top. The WR5881 (shown above) rear panel contains the following cabling port and connectors: 格式化: 左右對齊, 行距: 多行 1.15 li 格式化: 字型: 11 點...
  • Page 6 WPS Button (Top) To use WPS feature press WPS button to start WPS directly 格式化: 靠左 Copyright © 2021 Compal Broadband Networks, Inc. Confidential and Proprietary...
  • Page 7 Chassis Label 格式化: 字型: (英文)Calibri The WR5881 Chassis label is located on the bottom of the WR5881 devices. The label contains Web GUI login information and your Wi-Fi network name and password Wireless LAN Configuration Manager connection SSID & (CMGR) Login IP address Password User name &...

  • Page 8: Wireless Lan Connection

    Wireless LAN Connection Go to the device you wish to connect. Open your device’s Wi-Fi settings (make sure Wi-Fi is turned on). Refresh the "Network and Internet" window to select and connect to the WR5881 SSID name printed on the bottom label.
  • Page 9 Wired Ethernet LAN Connection Users can easily connect any PC RJ45 Ethernet port directly to the WR5881 Ethernet port to establish a wired Ethernet LAN connection. WR5881 Configuration Manager (CMGR) Login The WR5881 Configuration Manager (CMGR) allows you to change and view the settings on your WR5881.
  • Page 10 1. Auto Detect: WR5881 will auto detect itself if its CAP or RE mode 2. Router Mode: Set WR5881 being the Router Control Access Point (CAP) of the Mesh network. 3. Bridge Mode: Set WR5881 being the Bridge Control Access Point (CAP) of the Mesh network.
  • Page 11 Then log in Configuration Manager (CMGR) change The WR5881 to Router mode (CAP) Press the WPS button of the WR5881 and the Wi-Fi AP_1 WPS button at the same time or within a 60-second window, and then wait 5-10 seconds to complete the Mesh network settings. You will see Wi-FI LED is blinking blue, it means that the WR5881 is scanning and trying to connect to the mesh network.
  • Page 12 Power LED is Off 1. Check the power cord is properly plugged into the AC wall outlet and WR5881 power port. If WR5881 LED is still off, switch to another AC wall outlet that you know is working properly, and try again.

  • Page 13: Federal Communication Commission Interference Statement

    Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 14: Ic Radiation Exposure Statement

    This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.
