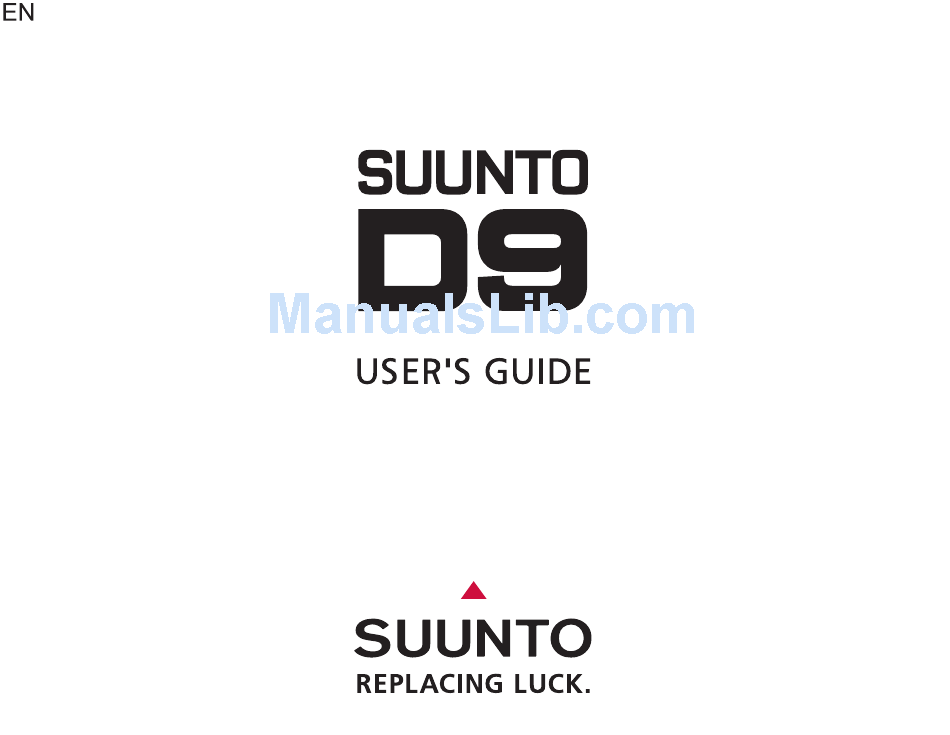

Suunto D9 User Manual

Suunto watch user's guide d9
Hide thumbs Also See for D9:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Suunto D9

Summary of Contents for Suunto D9

  • Page 2 CUSTOMER SERVICE CONTACTS Suunto Oy Phone +358 9 875870 Suunto USA Phone 1 (800) 543-9124 Canada Phone 1 (800) 776-7770 Europe Phone +358 2 284 11 60 Suunto website www.suunto.com +358 9 87587301...

  • Page 3: Table Of Contents

    1. WELCOME TO THE WORLD OF SUUNTO DIVING INSTRUMENTS ... 8 2. WARNINGS, CAUTIONS, AND NOTES ... 10 3. SUUNTO D9 AT A GLANCE ... 16 3.1. Navigating in the menus ... 17 3.2. Button symbols and functions ... 18 4.
  • Page 4 5.4. Nitrox ... 35 5.5. Freediving ... 35 5.6. Audible and visual alarms ... 36 5.7. Error conditions ... 40 5.8. Wireless transmission ... 41 5.8.1. Installing the wireless transmitter ... 41 5.8.2. Pairing and code selection ... 42 5.8.3. Transmitting data ... 44 5.9.
  • Page 5 5.10.5. Personal adjustments ... 58 5.11. Safety Stops ... 60 5.11.1. Recommended Safety Stops ... 60 5.11.2. Mandatory Safety Stops ... 61 5.12. Deep stops ... 63 6. DIVING ... 64 6.1. Diving in AIR mode (DIVEair) ... 64 6.1.1. Basic dive data ... 64 6.1.2.
  • Page 6 7.1.4. Flying after diving ... 83 7.1.5. MEMORY mode ... 84 7.1.6. Suunto Dive Manager (SDM) ... 89 7.1.7. SuuntoSports.com ... 90 8. CARE AND MAINTENANCE ... 92 8.1. Water contacts and buttons ... 92 8.2. Care of your dive computer ... 92 8.3.
  • Page 7 11.1. User’s responsibility ... 110 11.2. CE ... 110 11.3. Limits of liability and ISO 9001 compliance ... 111 11.4. After sales service ... 111 12. WARRANTY ... 112 13. DISPOSAL OF THE DEVICE ... 114 GLOSSARY ... 115...

  • Page 8: Welcome To The World Of Suunto Diving Instruments

    1. WELCOME TO THE WORLD OF SUUNTO DIVING INSTRUMENTS Suunto D9 was designed to help you get the most out of your diving. By reading this manual and becoming familiar with the functions of your dive computer, you can begin...
  • Page 9 – not hanging off you in a tangle of different gauges. To get the most out of your Suunto D9, please read this instruction manual carefully and make sure you understand the use, displays, and limitations of the instrument before using it.

  • Page 10: Warnings, Cautions, And Notes

    Before you go on to read the manual itself, it is extremely important that you read the following warnings. These warnings are intended to maximize your safety while using Suunto D9 and must not be ignored. READ THIS MANUAL! Carefully read this manual in its entirety,...
  • Page 11 NOT FOR PROFESSIONAL USE! Suunto dive computers are WARNING intended for recreational use only. The demands of commercial or professional diving may expose the diver to depths and conditions that tend to increase the risk of decompression illness (DCI). Therefore, Suunto strongly recommends that the device is not used for any commercial or professional diving activities.
  • Page 12 SUUNTO STRONGLY RECOMMENDS THAT SPORT DIVERS WARNING LIMIT THEIR MAXIMUM DEPTH TO 40 M/130 FT OR TO THE DEPTH CALCULATED BY THE COMPUTER BASED ON THE SELECTED O DIVES THAT REQUIRE DECOMPRESSION STOPS ARE NOT WARNING RECOMMENDED. YOU SHOULD ASCEND AND BEGIN...
  • Page 13 Thus, any diving activity up to four days prior to initial use of the computer may cause misleading information and must be avoided. DO NOT EXPOSE THE SUUNTO D9´S OPTIONAL PRESSURE WARNING TRANSMITTER TO ANY GAS MIX CONTAINING MORE THAN 40% OXYGEN! Enriched air with greater oxygen content presents a risk of fire or explosion and serious injury or death.
  • Page 14 DO NOT DIVE WITH A CYLINDER OF ENRICHED AIR IF YOU WARNING HAVE NOT PERSONALLY VERIFIED ITS CONTENTS AND ENTERED THE ANALYZED VALUE INTO YOUR DIVE COMPUTER! Failure to verify cylinder contents and enter the appropriate O dive planning information. THE DIVE COMPUTER WILL NOT ACCEPT FRACTIONAL WARNING PERCENTAGE VALUES OF OXYGEN CONCENTRATION.
  • Page 15 SELECT THE CORRECT PERSONAL ADJUSTMENT SETTING! WARNING Whenever it is believed that factors that tend to increase the possibility of DCI exist, it is recommended that you use this option to make the calculations more conservative. Failure to select the correct Personal Adjustment setting will result in erroneous dive and planning data.

  • Page 16: Suunto D9 At A Glance

    3. SUUNTO D9 AT A GLANCE If no button is pressed for 5 minutes, the dive computer beeps NOTE and returns to the TIME mode automatically.

  • Page 17: Navigating In The Menus

    3.1. Navigating in the menus Suunto D9 has three main operating modes - TIME mode (TIME), DIVE mode (DIVE), and MEMORY mode (MEM) – as well as the COMPASS submode, which can be activated from either TIME or DIVE modes. To toggle between the main modes, press the MODE button.

  • Page 18: Button Symbols And Functions

    3.2. Button symbols and functions The table below explains the main functions of the dive computer's buttons. The buttons and their use will be explained in more detail in the relevant sections of the manual. Table 3.1. Button symbols and functions Symbol Button Press...
  • Page 19 Symbol Button Press Short Long DOWN Short DOWN Long Main functions Toggle between alternative displays Change submode Increase values Enable gas switching in NITROX mode Toggle between alternative displays Change submode Decrease values Enter Setting mode Toggle between ceiling and remaining air time display...

  • Page 20: Getting Started With Your Suunto D9

    BEFORE getting into the water. 4.1. TIME mode settings The first thing you'll want to do with your Suunto D9 , is to set the TIME mode shortcuts: alarm, time, dual time, date, units, backlight, and tones. In this section, we look at how to do this.

  • Page 21: Setting The Alarm

    The seconds display reverts to date display after 5 minutes in NOTE order to save battery power. The display is illuminated by holding down the MODE button for NOTE more than 2 seconds. Now that you know how to toggle between the shortcuts, you can start to set them. The following figure shows how to enter the TIME SETTINGS menu.

  • Page 22: Setting The Time

    ADJUST WITH UP AND DOWN BUTTONS. ACCEPT WITH SELECT BUTTON. 4.1.2. Setting the time In the TIME SETTING mode, you are able to set the hour, minute, and second, as well as choose between 12 and 24 hour display. ADJUST WITH UP AND DOWN BUTTONS.

  • Page 23: Setting The Date

    4.1.4. Setting the date Use the DATE SETTING mode to set the year, month, and day. The day of the week is automatically calculated in accordance with the date. 4.1.5. Setting the units In the UNITS SETTING mode you can choose to have the units displayed in either the metric or imperial system - meters/feet, Celsius/Fahrenheit etc.

  • Page 24: Setting The Backlight

    4.1.6. Setting the backlight Use the BACKLIGHT SETTING mode to turn the backlight on or off and to define how long it stays on for (5, 10, 20, 30, or 60 seconds). When the backlight is turned off, it does not illuminate when an alarm sounds. 4.1.7.

  • Page 25: Stopwatch

    DOWN BUTTONS. ACCEPT WITH SELECT BUTTON. 4.2. Stopwatch The Suunto D9’s stopwatch measures elapsed and split times. A separate stopwatch (dive timer) can also be used when in GAUGE mode. See Section 6.3. Diving in GAUGE mode (DIVEgauge) . USE DOWN BUTTON TO START STOPWATCH AND TAKE A SPLIT TIME.

  • Page 26: Ac Water Contacts

    4.3. AC water contacts The water and data transfer contact is located on the right side of the case. When submerged, the water contact is connected to the casing (which is the other pole of the water contact) by the conductivity of the water and the “AC” symbol appears on the display.

  • Page 27: Learning How To Use Your Compass

    4.4. Learning how to use your compass Suunto D9 is the first dive computer in the world to integrate a digital compass. It can be used both while diving and on the surface, and can be accessed by long-pressing...

  • Page 28: Compass Display

    4.4.1. Compass display The Suunto D9 displays the compass as a graphical representation of a compass rose. The rose displays the cardinal and half cardinal points, in addition to which, the current bearing is also displayed numerically.

  • Page 29: Locking A Bearing

    Locked bearings are stored in the memory for later analysis and are available the next time the compass is activated. The Suunto D9 also provides help for navigating square and triangular patterns, as well as navigating a return heading. This is made possible by following graphical symbols in the center of the compass display: Table 4.1.

  • Page 30: Compass Settings

    Symbol Explanation You are 120 (or 240) degrees from the locked bearing 4.4.3. Compass settings You can define the compass settings (declination and calibration) when in COMPASS mode: Declination You can compensate for the difference between true north and magnetic north by adjusting the compass declination.
  • Page 31 Calibration Because of changes in the surrounding magnetic field, the Suunto D9 electronic compass occasionally needs to be re-calibrated. During the calibration process, the compass adjusts itself to the surrounding magnetic field. As a basic rule, you should calibrate the compass whenever it doesn’t seem to operate properly, or after replacing the dive computer's battery.
  • Page 32 If the calibration fails several times in a row, it is possible that you are in an area with sources of magnetism, such as large metal objects, powerlines or electric appliances. Move to another location and try to calibrate the compass again. If the calibration continues to fail, contact an authorized Suunto service center.

  • Page 33: Before Diving

    Make sure that you fully understand the use, displays, and limitations of the instrument. If you have any questions about the manual or the Suunto D9, please contact your Suunto representative before diving with the dive computer.

  • Page 34: The Suunto Rgbm/Deep Stop Algorithm

    It is a significant advance on the classic Haldane models, which do not predict free gas. The advantage of Suunto RGBM is additional safety through its ability to adapt to a variety of situations and dive profiles.

  • Page 35: Dive Computer Limitations

    5.3. Dive computer limitations While the dive computer's calculations are based on current decompression research and technology, it is important to realize that the computer cannot monitor the actual physiological functions of an individual diver. All decompression schedules currently known to the authors, including the U.S. Navy Tables, are based on theoretical mathematical models, which are intended to serve as a guide to reduce the probability of decompression illness.

  • Page 36: Audible And Visual Alarms

    DCI. Therefore, FREEDIVING AFTER SCUBA DIVING IS NOT RECOMMENDED. You should avoid freediving, and not exceed 5 m/16 ft, for at least two hours after scuba diving. Suunto also recommends that you receive training in freediving WARNING techniques and physiology before conducting breathhold dives.
  • Page 37 Table 5.1. Audible and visual alarm types Alarm type Short single beep Three beeps with a three second interval Three beeps with a three second interval and activated backlight Continuous beeps and activated backlight Alarm reason Dive computer is activated. Dive computer automatically returns to the TIME mode.
  • Page 38 You are able to preset alarms before the dive. The programmable alarms can be set for maximum depth, dive time and time. See also Section 5.9. DIVE mode settings and Section 4.1. TIME mode settings. Table 5.2. Preset alarm types Alarm type Continuous beep series for 24 seconds Maximum depth blinks as long as the current depth...
  • Page 39 Table 5.3. Oxygen alarms in NITROX mode Alarm type Continuous beeps for 3 minutes and activated backlight When the backlight is turned OFF, it does not illuminate when an NOTE alarm is activated. WHEN THE OXYGEN LIMIT FRACTION INDICATES THAT THE WARNING MAXIMUM LIMIT IS REACHED, YOU MUST IMMEDIATELY ASCEND UNTIL THE OLF VALUE STOPS BLINKING.

  • Page 40: Error Conditions

    5.7. Error conditions The dive computer has warning indicators that alert you to react to certain situations that would significantly increase the risk of DCI. If you do not respond to its warnings, the dive computer will enter an Error mode, indicating that the risk of DCI has greatly increased.

  • Page 41: Wireless Transmission

    Remove the high pressure (HP) port plug on the first stage of your regulator using an appropriate tool. Thread the high pressure transmitter of the Suunto D9 into the HP port of your regulator with your fingers. DO NOT OVERTIGHTEN! Maximum torque 6 Nm/4.4 lbsft or 53 lbsin.The seal is based on a static O-ring, not force!

  • Page 42: Pairing And Code Selection

    5.8.2. Pairing and code selection In order to receive wireless data, the transmitter and the Suunto D9 need to be paired. During the pairing procedure, the transmitter and dive computer select a common transmission code. The transmitter is activated when the pressure exceeds 15bar/218 psi and it then starts sending pressure data together with a code number.
  • Page 43 Take the Suunto D9 wrist unit close to the transmitter. The unit will then quickly display the selected code number and then start displaying the transmitted cylinder pressure. A lightning symbol is displayed every time the Suunto D9 receives a valid signal.

  • Page 44: Transmitting Data

    A pressure reading of over 360 bar/5220 psi will display as “---“. If the Suunto D9 is unable to receive a valid signal for more than one minute it will start displaying “FAIL” intermittently with the latest valid pressure reading.

  • Page 45: Dive Mode Settings

    5.9. DIVE mode settings Suunto D9 has several user-definable functions, as well as depth and time-related alarms that you can set according to your personal preferences. The DIVE mode settings are dependent on the dive sub-mode chosen (AIR, EAN, GAUGE), so that, for example, nitrox settings are only available in the DIVEean sub-mode.
  • Page 46 Table 5.5. DIVE mode settings Setting Depth alarm Dive-time alarm Nitrox Personal/Altitude Sample rate Safety/Deep stop RGBM Tank pressure Units HP code The following figure shows how to enter the DIVE mode settings menu. AIR mode NITROX mode GAUGE mode...

  • Page 47: Setting The Depth Alarm

    The settings cannot be activated until 5 minutes has elapsed after NOTE the dive. 5.9.1. Setting the depth alarm You can set a depth alarm in the dive computer. ADJUST WITH UP AND DOWN BUTTONS. ACCEPT WITH SELECT BUTTON. USE UP AND DOWN BUTTONS TO TOGGLE BETWEEN DIVE SETTINGS.

  • Page 48: Setting The Dive-Time Alarm

    100 m/9 ft to 328 ft. 5.9.2. Setting the dive-time alarm The Suunto D9 has a dive-time alarm setting which, when activated, can be used for several purposes to add to your diving safety. With a range of 1 - 99 minutes, the alarm can be set to your NOTE planned bottom time, for example.
  • Page 49 In order to minimize the risk of error during a dive, it is highly recommended that the mixes are set in the proper order. This means that as the mix number rises, so does oxygen content, and this is the order they are usually used during the dive. Before a dive, only set to “ON”...

  • Page 50: Setting The Personal/Altitude Adjustments

    5.9.4. Setting the personal/altitude adjustments The current Altitude and Personal Adjustment settings are displayed in the startup screen when entering the DIVE mode. If the mode does not match the altitude or personal conditions (see Section 5.10.4. Diving at altitude and Section 5.10.5. Personal adjustments), it is imperative that you enter the correct selection before diving.

  • Page 51: Setting The Safety Stops/Deep Stops

    5.9.6. Setting the Safety Stops/Deep Stops The Deep Stop setting allows you to choose between traditional Safety Stops or Deep Stops. If Deep Stops are set to OFF, the traditional Safety Stop calculation is used. If set to ON, iterative Deep Stops will be prompted instead. The length of the individual Deep Stops can be set to 1 or 2 minutes.

  • Page 52: Tank Pressure

    5.9.8. Tank pressure The wireless transmission can be set “ON” or “OFF” depending whether the optional wireless pressure transmitter is used or not. No cylinder pressure-related data is shown, nor data reception made, when this selection is “OFF”. You can set the secondary cylinder pressure alarm point. The 50 bar alarm is fixed and cannot be changed, but the secondary alarm pressure can be set in the range 10 –200bar.

  • Page 53: Hp Code

    5.10.1. Accessing DIVE mode The Suunto D9 has three diving modes: AIR mode for diving with standard air only, NITROX mode for diving with oxygen enriched mixtures, and GAUGE mode for use as a bottom timer and for freediving.

  • Page 54: Dive Mode Activation

    5.10.2. DIVE mode activation The dive computer activates automatically when submerged deeper than 0.5 m/1.5 ft. However, it is necessary to activate the DIVE mode BEFORE diving to check the cylinder pressure, altitude and personal adjustment settings, battery condition, oxygen settings etc.
  • Page 55 the instrument operates in the correct mode and provides a complete display • (AIR/NITROX/GAUGE mode) the battery level is ok • the altitude, personal adjustment, Safety/Deep stops, and RGBM settings are • correct the instrument displays correct units of measurement (Metric/Imperial) •...

  • Page 56: Battery Power Indication

    5.10.3. Battery power indication Temperature or internal oxidation of the battery affect the battery voltage. If the instrument is stored for a long period, or used in cold temperatures, the low battery warning may be displayed even though the battery has enough capacity. In these cases, re-enter DIVE mode to receive the battery power indication.

  • Page 57: Diving At Altitude

    5.10.4. Diving at altitude The dive computer can be adjusted both for diving at altitude and also to increase the conservatism of the mathematical nitrogen model. When programming the instrument for the correct altitude, you need to select the correct Altitude Adjustment settings according to Table 5.6, Altitude Adjustment settings. The dive computer will adjust its mathematical model according to the entered altitude setting, giving shorter no-decompression times at higher altitudes (see Table 9.1, No- decompression time limits for various depths (m) and Table 9.2, No-decompression...

  • Page 58: Personal Adjustments

    5.10.5. Personal adjustments There are personal factors that can affect your susceptibility to DCI, which you can predict in advance, and input into the decompression model. Such factors vary between divers and also for the same diver from one day to another. The three-step Personal Adjustment setting is available if a more conservative dive plan is desired and, for very experienced divers, a two step adjustment for RGBM effect on repetitive dives is available.
  • Page 59 Several risk factors or conditions exist The Suunto D9 also allows experienced divers who are willing to accept a greater level of risk to adjust the RGBM model. The default setting is 100%, which gives full RGBM effect. Suunto strongly advises you to use full RGBM effect. Statistically, very experienced divers have less incidents with DCI.

  • Page 60: Safety Stops

    The reasons for performing a Safety Stop include: reducing sub-clinical DCI, microbubble reduction, ascent control, and orientation before surfacing. The Suunto D9 displays two different types of Safety Stops: Recommended Safety Stop and Mandatory Safety Stop. 5.11.1. Recommended Safety Stops With every dive over 10 meters, there is a three minute countdown for the Recommended Safety Stop, to be taken in the 6 - 3 m/10 ft - 20 ft range.

  • Page 61: Mandatory Safety Stops

    The Suunto RGBM calculation model responds to this by adding a Mandatory Safety Stop to the dive. The time of this Mandatory Safety Stop depends on the severity of the ascent rate excess.
  • Page 62 WHEN CEILING AND STOP ARE DISPLAYED, MAKE A ONE MINUTE MANDATORY SAFETY STOP IN THE DEPTH ZONE BETWEEN 6 M AND 3 M. You must not ascend shallower than 3 m/10 ft with the Mandatory Safety Stop warning on. If you ascend above the Mandatory Safety Stop ceiling, a downward pointing arrow will appear and a continuous beeping starts.

  • Page 63: Deep Stops

    5.12. Deep stops The Suunto D9 allows you to choose a Deep Stop algorithm instead of the traditional Recommended Safety Stop. Deep Stops are safety stops that occur deeper than traditional stops, with the purpose of minimizing microbubble formation and excitation.

  • Page 64: Diving

    6. DIVING This section contains instructions on how to operate the dive computer and interpret its displays. You’ll find that this dive computer is easy to use and read. Each display shows only the data relevant to that specific diving mode. 6.1.
  • Page 65 your present depth in meters/feet • the available no-decompression time in minutes as NO DEC TIME • the ascent rate presented as a bar graph on the right side • the Diver Attention Symbol if surface interval should be prolonged (see Table 7.1, •...

  • Page 66: Bookmark

    It is possible to record bookmarks in the profile memory during a dive. These bookmarks are displayed when scrolling the profile memory on the display. The bookmarks will also be shown as annotations in the downloadable Suunto Dive Manager PC software. The bookmark logs the depth, time, and water temperature, as well as compass heading (if the compass has been enabled)and tank pressure when available.

  • Page 67: Tank Pressure Data

    6.1.3. Tank pressure data When using the optional wireless pressure transmitter, the pressure of your scuba cylinder in bars (or psi) is shown digitally in the lower left corner of the alternative display. Whenever you start a dive, the remaining air time calculation begins. After 30 - 60 seconds (sometimes more, depending on your air consumption), the first estimation of remaining air time will be shown in the left center window of the display.

  • Page 68: Ascent Rate Indicator

    Filling your BC affects the air time calculation due to the temporary NOTE increase in air consumption. A change of temperature will affect the cylinder pressure and NOTE consequently the air time calculation. Low Air Pressure Warnings The dive computer will warn you with three audible double beeps and a blinking pressure display when the cylinder pressure reaches 50 bar/725 psi.

  • Page 69: Safety Stops And Deep Stops

    NORMAL ASCENT RATE. DO NOT EXCEED THE MAXIMUM ASCENT RATE! Rapid WARNING ascents increase the risk of injury. You should always make the Mandatory and Recommended Safety Stops after you have exceeded the maximum recommended ascent rate. If this Mandatory Safety Stop is not completed, the decompression model will penalize your next dive(s).

  • Page 70: Decompression Dives

    YOU ARE ADVISED TO MAKE A DEEPSTOP AT 12 M. THE SECOND INDICATOR SHOWS THAT YOU HAVE 58 SECONDS LEFT OF YOUR DEEPSTOP. 6.1.6. Decompression dives When your NO DEC TIME becomes zero, your dive becomes a decompression dive so you must perform one or more decompression stops on your way to the surface. The NO DEC TIME on your display will be replaced by an ASC TIME, and a CEILING notation will appear.
  • Page 71 the time needed to reach the surface after the ceiling and Safety Stops have been • completed YOUR ACTUAL ASCENT TIME MAY BE LONGER THAN WARNING DISPLAYED BY THE INSTRUMENT! The ascent time will increase if you: • • • These factors will also increase the amount of air required to reach the surface.
  • Page 72 In such cases, it is more manageable to maintain an additional distance below the ceiling, to make sure that the waves do not lift you above the ceiling. Suunto recommends that decompression takes place deeper than 4 m/13 ft, even if the indicated ceiling is shallower.
  • Page 73 Display below the floor The blinking ASC TIME and an upward pointing arrow indicate that you are below the floor. You should start your ascent immediately. The ceiling depth is shown on the left side, and the minimum total ascent time on the right side, of the center window. Below is an example of a decompression dive without Deep Stops, below the floor.
  • Page 74 Display at the ceiling zone When you reach the ceiling zone, the display will show you two arrows pointing at each other (the “hour glass” icon). Below is an example of a decompression dive at the ceiling zone. TWO ARROWS POINT AT EACH OTHER “HOUR GLASS”...

  • Page 75: Diving In Nitrox Mode (Diveean)

    You must not dive again for at least 48 hours. (See Section 5.7. Error conditions). 6.2. Diving in NITROX mode (DIVEean) NITROX mode (DIVEean) is the second dive mode available in Suunto D9 and is used when using oxygen- enriched gas mixtures.
  • Page 76 To set the nitrox mixes, refer to Section 5.9.3. Setting the nitrox values. Default nitrox settings In NITROX mode, the Suunto D9 allows you to set 1-3 nitrox mixes containing 21-99% oxygen. In the NITROX mode, the default setting for MIX1 is standard air (21% O ).

  • Page 77: Oxygen Displays

    % and PO values. MAXIMUM OPERATIONAL DEPTH BASED ON SET O If set to NITROX mode, the Suunto D9 will additionally show on the alternative display: • the oxygen percentage, labeled O the set oxygen partial pressure limit, labeled PO •...

  • Page 78: Oxygen Limit Fraction (Olf)

    6.2.3. Oxygen limit fraction (OLF) If set to NITROX mode, in addition to tracking the diver's exposure to nitrogen, the instrument tracks the exposure to oxygen. These calculations are treated as entirely separate functions. The dive computer calculates separately for Central Nervous System oxygen toxicity (CNS) and Pulmonary Oxygen toxicity, the latter measured by the addition of Oxygen Toxicity Units (OTU).

  • Page 79: Gas Change And Multiple Breathing Gas Mixes

    The oxygen toxicity calculations are based on the factors listed in Section 9.3 “Oxygen exposure”. 6.2.4. Gas change and multiple breathing gas mixes The Suunto D9 allows gas changes to enabled gas mixes during the dive. Gas changes are made by following the procedure below: Mix number, O NOTE scrolling.

  • Page 80: Diving In Gauge Mode (Divegauge)

    6.3. Diving in GAUGE mode (DIVEgauge) If set to GAUGE mode, the dive computer can be used as a bottom timer or as a freediving instrument. In the GAUGE mode, the total dive time is always displayed in minutes in the lower right corner.

  • Page 81: After Diving

    7. AFTER DIVING 7.1. At the surface Once back at the surface, Suunto D9 continues to provide post-dive safety information and alarms. Calculations to enable repetitive dive planning also help to maximize diver safety. 7.1.1. Surface interval An ascent to any depth shallower than 1.2 m/4 ft will cause the DIVING display to be...

  • Page 82: Dive Numbering

    the oxygen partial pressure labeled PO • the current oxygen toxicity exposure labeled OLF • 7.1.2. Dive numbering Several repetitive dives are considered to belong to the same repetitive dive series when the dive computer has not counted the no-fly time to zero. Within each series, the dives are given individual numbers.

  • Page 83: Repetitive Dive Planning

    7.1.3. Repetitive dive planning The Suunto D9 includes a dive planner that allows you to review the no-decompression limits on a subsequent dive, taking the residual nitrogen loading of previous dives into consideration. The Dive Planning mode is explained in Section Dive Planning mode (MEMplan) in Section 7.1.5.

  • Page 84: Memory Mode

    Following any dive that required a decompression stop, flying should be delayed • for at least 24 hours, and if possible, for 48 hours Suunto recommends that flying is avoided until all the DAN and UHMS guidelines, • as well as the dive computer’s no-fly conditions, are satisfied 7.1.5.
  • Page 85 When entering the MEMplan mode, the display first briefly shows the remaining desaturation time before going into plan mode. By pressing the UP/DOWN buttons, you can scroll the no-decompression limits in 3 m/10 ft increments ending at 45 m/150 ft. No-decompression limits longer than 99min are displayed as “—“.
  • Page 86 Dive numbering ). Dive logbook (MEMlog) The Suunto D9 has a very sophisticated, high capacity Logbook and Profile Memory. The data is recorded in the profile memory based on the selected sample rate. Dives shorter than the recording interval are not registered (see Section 5.9.5. Setting the...
  • Page 87 The END OF LOGS text is displayed between the oldest and most recent dive. The following information will be shown on three pages: INFORMATION. USE SELECT BUTTON TO SCROLL BETWEEN LOGBOOK PAGES I, II, AND III. THE DATA OF Page I, main display Maximum depth (NOTE! Depending on the sampling rate, the reading may differ •...
  • Page 88 warnings • used tank pressure (if enabled) • Page III • depth/time profile of the dive real-time water temperature • • real-time tank pressure (if enabled) The memory will retain approximately the last 36 hours of dive time. After that, when new dives are added, the oldest dives are deleted.

  • Page 89: Suunto Dive Manager (Sdm)

    SDM software, you can download dive data from your dive computer to your PC. You can then view and organize all the data recorded with your Suunto D9 . You can also plan dives, print copies of your dive profiles and upload your dive logs to share with your friends at SuuntoSports.com.

  • Page 90: Suuntosports.com

    PC-based dive data files. 7.1.7. SuuntoSports.com When you have dived and transferred your dive data to your Suunto Dive Manager, you can share your best experiences with other diving enthusiasts at SuuntoSports.com. It's a free and open Internet community where you can compare your underwater experiences with other Suunto users and learn from each other.
  • Page 91 Community members can also use group-specific bulletin boards and calendars, create their own link lists and group activities. All registered SuuntoSports.com users automatically become members of the ‘World of Suunto Sports’ community. The Sport forums include sport-specific news, bulletin boards, event calendars, ranking lists and discussions.

  • Page 92: Care And Maintenance

    Have your dive computer serviced every two years or after 200 dives (whichever • comes first) by an authorized Suunto representative. This service will include a general operational check, replacement of the battery, and a water resistance check. The service requires special tools and training, so do not attempt to carry...

  • Page 93: Maintenance

    Suntan oil, silicone spray and grease will speed up this process. As a result of this build-up, moisture will be trapped next to the water contacts and will prevent your Suunto D9 from operating properly.

  • Page 94: Water Resistance Inspection

    Make sure that all salt crystals and sand particles have been flushed out. Check the display for possible moisture or water, and do not use the Suunto D9 if you detect any moisture or water inside. •...

  • Page 95: Battery Replacement

    8.5. Battery replacement 8.5.1. Computer battery replacement It is advisable to contact an authorized Suunto representative for NOTE battery replacement. It is imperative that the change is made in a proper manner to avoid any leakage of water into the battery compartment or computer.

  • Page 96: Wireless Transmitter Battery Replacement

    8.5.2. Wireless transmitter battery replacement It is advisable to contact an authorized Suunto representative for NOTE transmitter battery replacement. It is imperative that the change is made in a proper manner to avoid any leakage of water into the transmitter.
  • Page 97 Check for any traces of leakage, or for any other damage. If there is a leak or any other damage, take the transmitter to an authorized Suunto representative or distributor for checking and repair. Check the condition of the O-ring. A defective O-ring may indicate sealing or other problems.
  • Page 98 Wireless transmitter parts. The code stands for spare part order number.

  • Page 99: Technical Data

    9. TECHNICAL DATA 9.1. Technical specifications Dimensions and weight: Dive Computer • Diameter: 50.0 mm/1.97 in • Thickness: 17.6 mm/0.67 in • Weight: 110 g/3.88 oz Transmitter: • Max. diameter: 40 mm/1.57 in • Length: 80 mm/3.15 in • Weight: 118 g/4.16 oz •...
  • Page 100 Temperature display: • Resolution: 1°C/1.5°F • Display range: -20 to +50°C/-9 to +122°F • Accuracy: ± 2°C/± 3.6°F within 20 minutes of temperature change Calendar clock: • Accuracy: ± 25 s/month (at 20°C/68°F) • 12/24 h display Other displays: • Dive time: 0 to 999 min, counting starts and stops at 1.2 m/4 ft depth •...
  • Page 101 It is recommended that the instrument be stored in a dry place at room temperature. Do not leave the dive computer in direct sunlight! NOTE Tissue calculation model: • Suunto Deep Stop RGBM algorithm (developed by Suunto and Bruce R. Wienke, BSc, MSc, PhD) • 9 tissue compartments •...
  • Page 102 • 100 dives/year – 2 years • 300 dives/year – 1.5 years Transmitter: • One 3V lithium battery: 1/2AA (K5546) and O-ring 2.00 mm x 2.00 mm (K5538) • Battery storage time (shelf life): Up to three years • Replacement: Every two years, or more often depending on dive activity •...

  • Page 103: Rgbm

    It is a significant advance on the classical Haldane models, which do not predict free gas (microbubbles). The advantage of Suunto RGBM is additional safety through its ability to adapt to a wide variety of situations. Suunto RGBM addresses a number of diving circumstances outside the range of dissolved-gas-only models by: Monitoring continuous multiday diving •...

  • Page 104: Suunto Rgbm Adaptive Decompression

    9.2.1. Suunto RGBM adaptive decompression The Suunto RGBM algorithm adapts its predictions of both the effects of microbubble build-up and adverse dive profiles in the current dive series. It also changes these calculations according to the personal adjustment you select.

  • Page 105: No-Decompression Limits

    9.2.2. No-decompression limits The no-decompression limits displayed by the dive computer for the first dive to a single depth (see Table 9.1, No-decompression time limits for various depths (m) and Table 9.2, No-decompression time limits for various depths (ft) .), are slightly more conservative than those permitted by the U.S.
  • Page 106 No-decompression time limits (mins) for various depths (m) for the first Depth P0/A0 P0/A1 Table 9.2. No-decompression time limits for various depths (ft) No-decompression time limits (mins) for various depths (ft) for the first Depth (ft) P0/A0 P0/A1 dive of a series Personal Mode / Altitude Mode P0/A2 P1/A0...

  • Page 107: Altitude Diving

    No-decompression time limits (mins) for various depths (ft) for the first Depth (ft) P0/A0 P0/A1 9.2.3. Altitude diving The atmospheric pressure is lower at high altitudes than at sea level. After traveling to a higher altitude, you will have additional nitrogen in your body, compared to the equilibrium situation at the original altitude.

  • Page 108: Oxygen Exposure

    As a result, the allowed no-decompression-stop limits are considerably reduced. 9.3. Oxygen exposure The oxygen exposure calculations are based on currently accepted exposure time limit tables and principles. In addition to this, the dive computer uses several methods to conservatively estimate the oxygen exposure. For example: the displayed oxygen exposure calculations are raised to the next higher percentage •...

  • Page 109: Intellectual Property

    Suunto, D9, Consumed Bottom Time (CBT), Oxygen Limit Fraction (OLF), Suunto Reduced Gradient Bubble Model (RGBM), and Continuous Decompression and their logos are all registered or unregistered trademarks of Suunto. All rights are reserved. 10.3. Patent notice This product is protected by the following patents and patent applications: US 5,845,235...

  • Page 110: Disclaimers

    11. DISCLAIMERS 11.1. User’s responsibility This instrument is intended for recreational use only. Suunto D9 must not be used for obtaining measurements that require professional or industrial precision. 11.2. CE The CE mark is used to mark conformity with the European Union EMC directive 89/336/EEC and Personal Protective Equipment directive 89/686/EEC.

  • Page 111: Limits Of Liability And Iso 9001 Compliance

    11.3. Limits of liability and ISO 9001 compliance Suunto Oy does not assume any responsibility for losses or claims by third parties, which may arise through the use of this device. Due to continuous product development, the Suunto D9 is subject to change without notice.

  • Page 112: Warranty

    Suunto shall not be liable for loss of use of the product or other incidental or consequential costs, expenses or damage incurred by the purchase.
  • Page 113 Suunto's dive computers and wristop computers can be registered online at www.suunto.com. Registering your unit makes it quicker and easier for us to help you if you ever need to send your product for servicing, or if you need information about...

  • Page 114: Disposal Of The Device

    13. DISPOSAL OF THE DEVICE Please dispose of the device in an appropriate way, treating it as electronic waste. Do not throw it in the garbage. If you wish, you may return the device to your nearest Suunto representative.

  • Page 115: Glossary

    GLOSSARY Air time Altitude dive Ascent rate ASC RATE Ascent time ASC TIME Ceiling Ceiling zone Central nervous system toxicity CNS% Compartment The amount of dive time remaining, based on a calculation of cylinder pressure and ambient pressure and present air consumption. A dive made at an elevation greater than 300 m/1000 ft above sea level.
  • Page 116 Decompression Decompression range Decompression illness Dive series Dive time ΔP Enriched air nitrox Equivalent air depth Floor Time spent at a decompression stop, or range, before surfacing, to allow absorbed nitrogen to escape naturally from tissues On a decompression stop dive, the depth range between the floor and the ceiling within which a diver must stop for some time during ascent.
  • Page 117 Abbreviations for oxygen enriched air nitrox. Abbreviation for oxygen limit fraction. Abbreviation for oxygen tolerance unit. Used to measure the whole-body-toxicity. A term used by Suunto for the values displayed in the oxygen toxicity bargraph. The value is either the CNS% or the OTU%.
  • Page 118 Oxygen partial pressure RGBM Reduced Gradient Bubble Model Repetitive dive Residual nitrogen SURF TIME Surface interval time Tissue group Whole-body toxicity Oxygen percentage or oxygen fraction in the breathing gas. Standard air has 21% oxygen. Limits the maximum depth to which the nitrox mixture can be safely used. The maximum partial pressure limit for enriched air diving is 1.4 bar.
