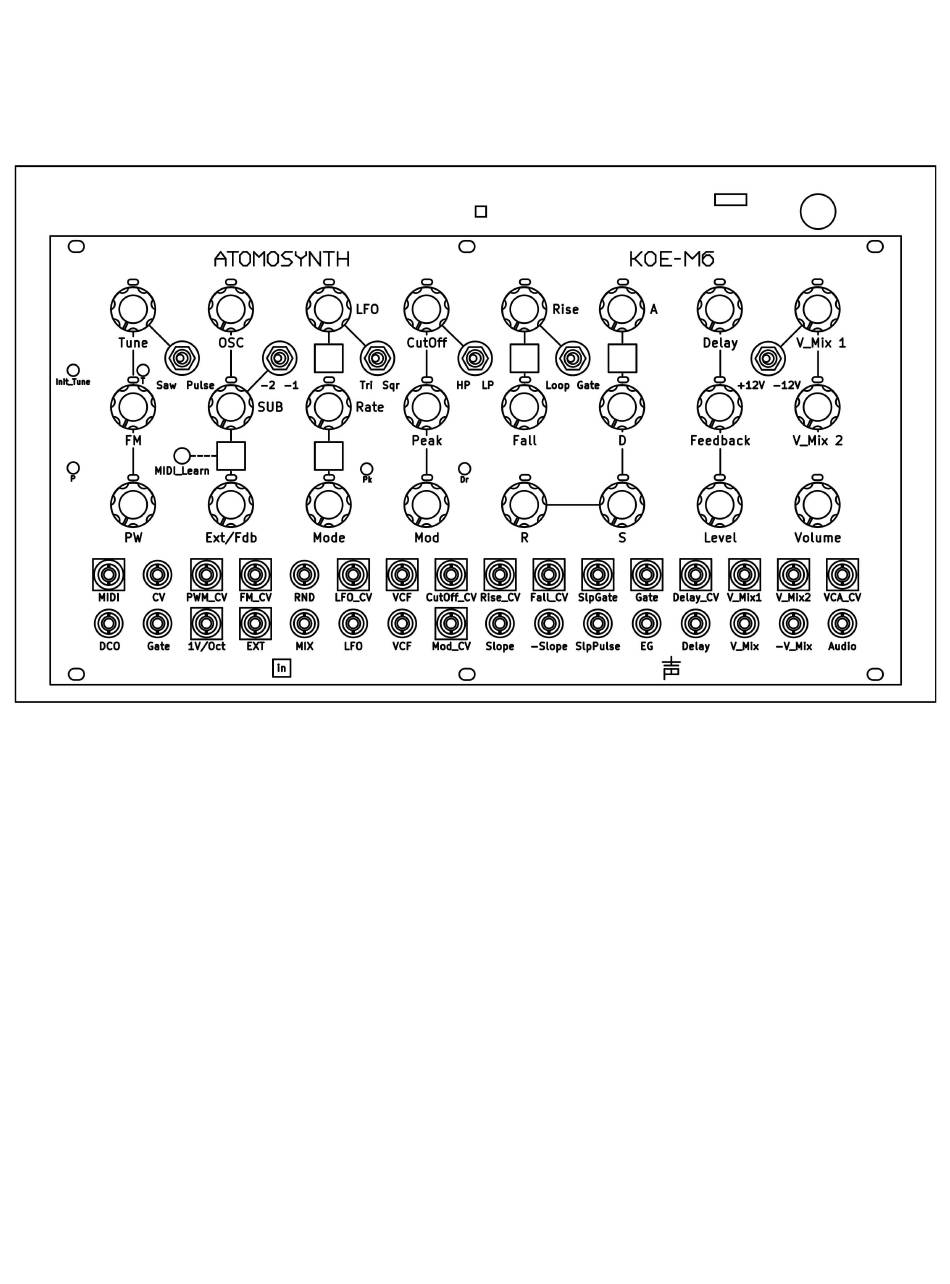

AtomoSynth Koe M6.
Analog semi modular synthesizer.
Thank you for purchasing the AtomoSynth, KOE M6 desktop edition. Analog semi modular
synthesizer. In order to enjoy long and trouble free use, please read this manual carefully and use the
instrument correctly. After reading this manual, please keep it for later reference.
Precautions
• Using the unit in the following locations can result in a malfunction.
• In direct sunlight.
• Locations of extreme temperature or humidity.
• Excessively dusty or dirty locations.
• Locations of excessive vibration.
• Close to magnetic fields.
Advertisement
Table of Contents
Related Manuals for AtomoSynth Koe M6
Summary of Contents for AtomoSynth Koe M6
- Page 1 AtomoSynth Koe M6. Analog semi modular synthesizer. Thank you for purchasing the AtomoSynth, KOE M6 desktop edition. Analog semi modular synthesizer. In order to enjoy long and trouble free use, please read this manual carefully and use the instrument correctly. After reading this manual, please keep it for later reference.
- Page 2 • Please use the included power supply, if you are forced to replace it, use a 15V DC. 2A 5.5mm barrel plug center positive power supply. • To avoid breakage, do not apply excessive force to the switches or controls. •...
- Page 3 • Push the “Midi Learn” button once, the LED will light. • Send a midi note from your controller, the red LED will go dark and the Koe will set at the same midi channel to the controller. MIDI CC configuration. •...
- Page 4 • FM_CV input connector: it adjusts the frequency modulation of the oscillator by voltage and is attenuated by the FM knob, when a cable is plugged to this input, the internal connection to the LFO is broken. • 1V/Oct input connector: it controls the pitch of the oscillator by voltage, it is calibrated to 1 volt per octave.
- Page 5 • Mode knob: it sets the mode and is indicated by a different color of the mode LED as it is turned clockwise: • Red; Sample and Hold mode: It generated a stepped random voltage. As the mode knob is turn clockwise it increases in level up to a range of 0 to 10 volts. •...
- Page 6 Slope Generator • Rise knob: it sets the rise time of the slope. • Loop / Gate switcher: it sets the mode to looping or gate activated. • Fall knob: it sets the fall time of the slope. • Rise_CV input connector: it controls the rise time of the slope generator by voltage. •...
- Page 7 • VCA_CV input connector: it controls the output level of the VCA by voltage. • Volume knob, it sets the volume of the main audio output. • Audio output connector: it outputs the main audio signal. AtomoSynth all rights reserved www.atomosynth.net...
