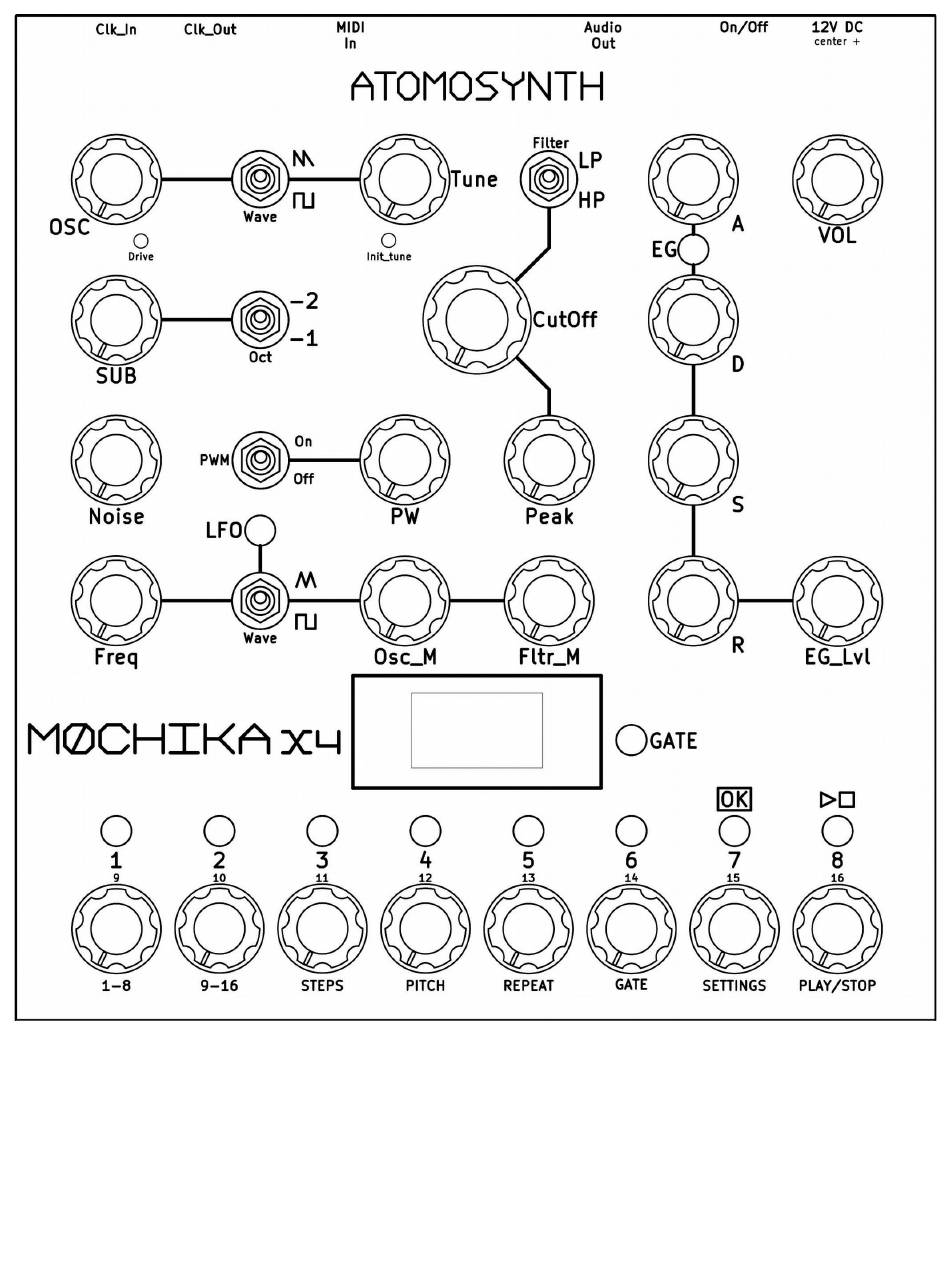

  • Page 2 AtomoSynth “Mochika X4” Analog synthesizer + step sequencer. Quick start guide. Basic Operation. Synthesizer Section: 1. Connect the included power supply to “12V DC center +” input located in the rear panel and connect power supply to mains. 2. Connect the “AUDIO OUT” located in the rear panel of the unit to a mixer or amplifier. Use unbalanced ¼"...
  • Page 3 17. Push the “PITCH” knob/button and turn the desired step knob one detent position and the display will show the actual pitch assigned to that step. To edit the pitch of that step turn the knob more than one detent position and the display will show the pitch change. 18.
  • Page 4 7. Pattern . Push the “SETTINGS” knob/button once. Turn the step knob “7” one detent position, the display will show the number of the actual active pattern. To change the active pattern, turn the knob “7” more than one detent position, the display will show the change in the pattern number, then push the button “7 / OK”...
  • Page 5 4. The reset operation will take several seconds, do not turn off the unit! After it is completed the unit will start normally. Note: all data stored will be erased and can not be recovered. © AtomoSynth 2021 Lima – Peru. All rights reserved.
