Ameriwood HOME 2090015COM Manual

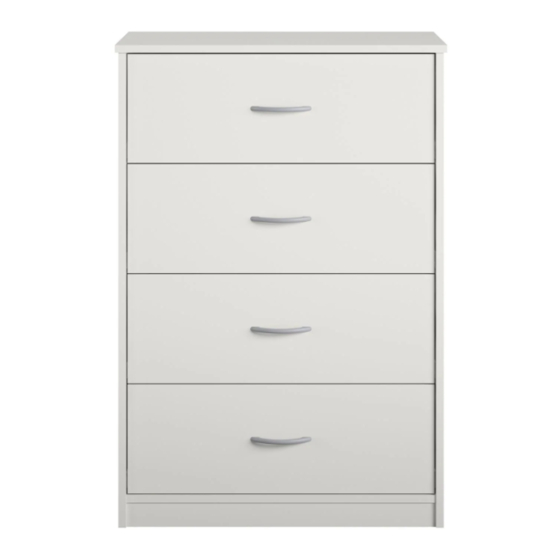

4 drawer dresser
Hide thumbs

Advertisement

Quick Links

Download this manual
2090015COM
4 Drawer Dresser
Date of Purchase ___ / ___ / ___
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Secure Your Furniture
Keep your home and family safe
with the wall anchor kit that is
included with the product.
Serious or fatal crushing injuries can
occur from
g furniture.
WARNING: Manufacturer assumes no liability
for improper
on or excessive loads
placed on screws or bracket. This wall anchor
is not a subs tute for proper adult supervision.
Do Not Return This Product!
Contact our customer service team for help rst.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
Easy
Assembly Di culty Meter
Follow Ameriwood Home
B342090015COM00MP
Tough
You
Tube

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2090015COM and is the answer not in the manual?

Questions and answers

Related Manuals for Ameriwood HOME 2090015COM

Summary of Contents for Ameriwood HOME 2090015COM

  • Page 1 Easy Tough Assembly Di culty Meter Serious or fatal crushing injuries can occur from g furniture. Follow Ameriwood Home WARNING: Manufacturer assumes no liability for improper on or excessive loads placed on screws or bracket. This wall anchor Tube is not a subs tute for proper adult supervision.

  • Page 2: Helpful Hints

    Contact Us! Do NOT return this product! Contact our friendly customer service team t for help. Assembly Tips Call us! 1-800-489-3351 Monday-Friday 9am - 5pm CST Tube Visit ameriwoodhome.com to view the limited warranty valid in the U.S. and Canada. Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 1-2 ESTIMATED ASSEMBLY TIME: 45 MINUTES...

  • Page 3: Before You Start

    Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver #2 Phillips Head Screwdriver and Hammer Cau on: If using a power drill or power screwdriver for screwing please be aware to slow down and stop when screw is ght.
  • Page 4 Not actual size Back T2090015030MP T2090015050MP Le Panel Right Panel (x4) T2090015010MP T2090015020MP Drawer Front T2090015040MP T2090015060MP (x4) Drawer Side T2090015070MP (x4) (x4) Support Drawer Back Drawe (x4) T2090015100MP T2090015110MP T2090015090MP Drawer Side T2090015080MP This part is paperboard construction. It is not made from wood, but is required for the assembly of your unit.
  • Page 5 Not actual size This part is paperboard is not made from wood but is required for the assembly of your unit. ameriwoodhome.com...

  • Page 6: Part List

    Hardware Bag Reference number : 22090015COM0MP Part List Actual Size (x46) (x18) (x24) TMP12120 TMP4703 TMP8002 (x16) 7/16" pan screw nail wood dowel TMP21970 drive fastener (x8) (x4) (x8) TMP12700 TMP53600 TMP54520 3/4" pan screw angle bracket drawer bracket Not Actual Size (x4) (x1) TMP50681...
  • Page 7 STEP 1 (x1) TMP84050 Install Safety Bracket (8a) to Top Panel (C). ameriwoodhome.com...
  • Page 8 STEP 2 (x2) (x4) (x8) TMP8002 TMP12120 TMP53600 Install Angle Bracket (6) to Kick Panel (K) and Bo�om Panel (D). Insert Wood Dowel (1) to both side of Bo�om Panel (D). ameriwoodhome.com...
  • Page 9 STEP 3 (x20) TMP8002 Insert Wood Dowel (1) to Drawer Support (M), Support Panel (J) and Back Support (E). ameriwoodhome.com...
  • Page 10 STEP 4 (x2) TMP8002 Insert Wood Dowel (1) to Le� Side Panel (A) and Right Side Panel (B). ameriwoodhome.com...
  • Page 11 STEP 5 Assemble Back Support (E) to Le� Side Panel (A). Turn the switch to lock. pre-drill nut turn switch to lock ameriwoodhome.com...
  • Page 12 STEP 6 Assemble Support Panel (J) and Bo�om Panel (D) to Le� Side Panel (A). pre-drill nut turn switch to lock ameriwoodhome.com...
  • Page 13 STEP 7 Assemble Right Side Panel (B). Turn the switch to lock. pre-drill nut turn switch to lock ameriwoodhome.com...
  • Page 14 STEP 8 Turn the unit to upright posi�on. Assemble Top Panel (C). Turn the switch to lock. pre-drill nut turn switch to lock TURN 90° ameriwoodhome.com...
  • Page 15 STEP 9 Flip the unit, back facing up. TURN 90° ameriwoodhome.com...
  • Page 16 STEP 10 (x6) (x18) TMP12120 TMP4703 IMPORTANT! THE BACK PANEL IS A STRUCTURAL PART OF THIS UNIT AND MUST BE INSTALLED PROPERLY. With the help of another person carefully turn your unit over on its front side. Make sure the unit is square.
  • Page 17 STEP 11 (x8) (x16) TMP54520 TMP12120 Install Drawer Bracket (7) to Drawer Front (F) using Screw (2). Repeat this step for other drawers. ameriwoodhome.com...
  • Page 18 STEP 12 (x16) TMP12120 Assemble Drawer Side (G1 & G2) and Drawer Support (M) to Drawer Front (F). Repeat this step for other drawers. ameriwoodhome.com...
  • Page 19 STEP 13 (x16) TMP21970 Insert Drawer Bo�om Panel (H). Assemble Drawer Back (I) to Drawer Side (G1 & G2). Tap the Drive Fastener (4) with Hammer. Repeat this step for other drawers. hed urface ameriwoodhome.com...
  • Page 20 STEP 14 (x8) (x4) TMP12700 TMP50681 Install Handle (9) to Drawer Front (F). Repeat this step for other drawers. ameriwoodhome.com...
  • Page 21 STEP 15 For Masonry, Concrete, or other wall materials: Consult your local hardware store for appropriate anchors to securely attach the safety bracket. (x1) TMP84050 IMPORTANT: THIS UNIT MUST BE SECURE TO THE WALL TO HELP PREVENT TIPOVER. FOLLOW THESE INSTRUCTIONS TO INSTALL THE ANTI-TIPPING SAFETY BRACKET PROVIDED WITH THIS PRODUCT.

  • Page 23: Maximum Loads

    Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging instability product collapse and/or serious injury. 25 lbs 11.3 kg (each drawer) 50 lbs 22.7 kg Warning: Risk of injury to persons - do not place a television on this furniture. This furniture is not approved for use with a television.
  • Page 25 - Antes de la instalación, asegúrese de que el interruptor de luz esté desbloqueado. Sistema de cierre Cam Lock (página 3) Este sistema de sujeción Cam Lock se utilizará durante todo el proceso de montaje.
  • Page 26 Página 7 -Instale el soporte de seguridad (8A) en el panel superior (C). No apriete completamente el tornillo. Página 8 -Instale el soporte en ángulo (6) en el panel de protección (K) y el panel inferior (D). Inserte la clavija de madera (1) a ambos lados del panel inferior (D). Página 9 -Inserte la clavija de madera (1) en el soporte del cajón (M), el panel de soporte (J) y el soporte trasero (E).
  • Page 27 Página 20 -Instale la manija (9) en el frente del cajón (F). Página 21...
  • Page 28 Página 22 Página 23 Página 24...
  • Page 29 -Avant l'installation, assurez-vous que l'interrupteur d'éclairage est déverrouillé.
  • Page 30 Page 7 -Installez le support de sécurité (8A) sur le panneau supérieur (C). Ne serrez pas complètement la vis. Page 8 -Installez le support d'angle (6) sur le panneau de protection (K) et le panneau inférieur (D). Insérez le goujon en bois (1) des deux côtés du panneau inférieur (D). Page 9 -Insérez le goujon en bois (1) dans le support du tiroir (M), le panneau de support (J) et le support arrière (E).
  • Page 31 Page 20 -Installez la poignée (9) sur l'avant du tiroir (F). Page 21...
  • Page 32 Page 22 Page 23 Page 24...
