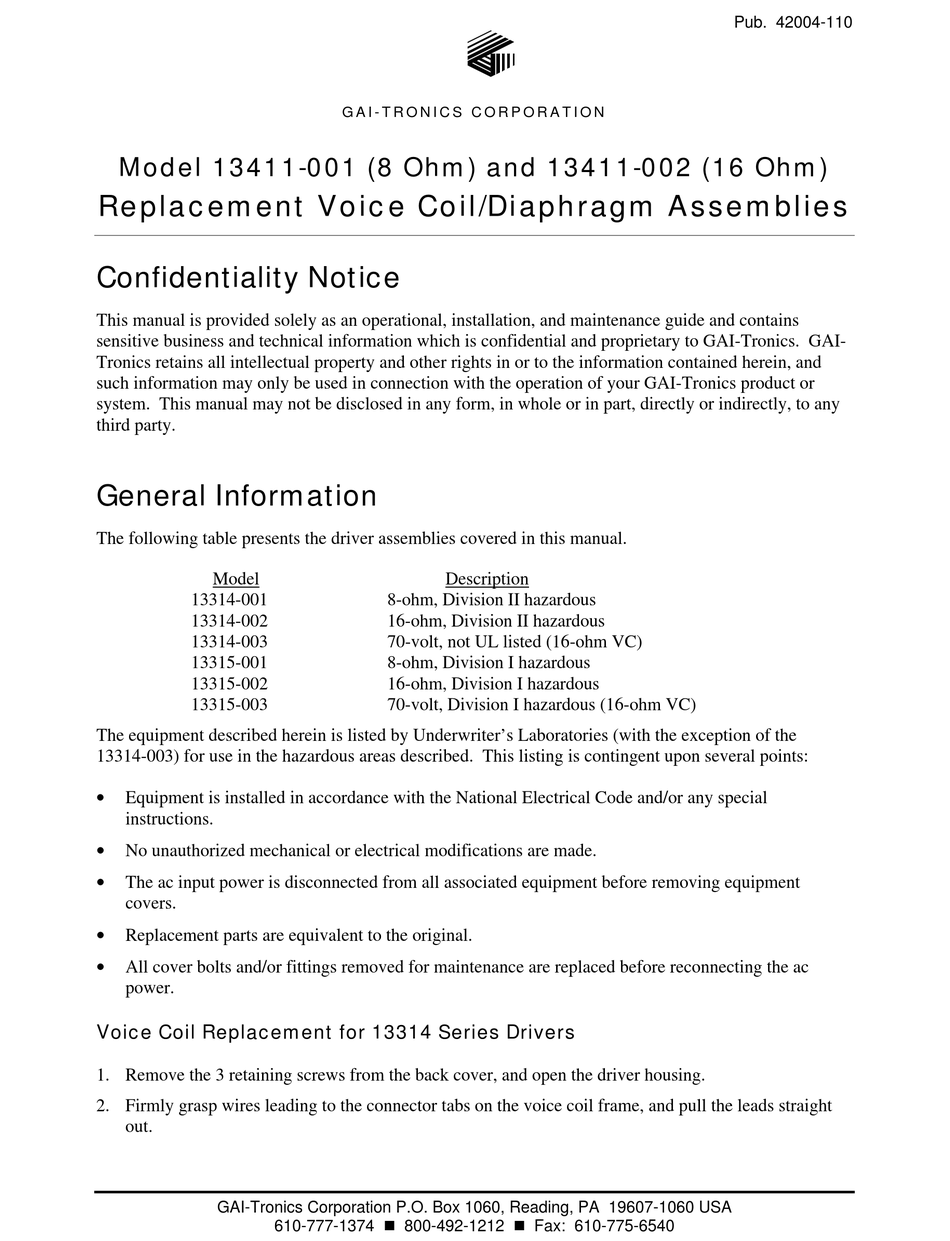

Model 13411-001 (8 Ohm) and 13411-002 (16 Ohm)
Replacement Voice Coil/Diaphragm Assemblies
Confidentiality Notice
This manual is provided solely as an operational, installation, and maintenance guide and contains
sensitive business and technical information which is confidential and proprietary to GAI-Tronics. GAI-
Tronics retains all intellectual property and other rights in or to the information contained herein, and
such information may only be used in connection with the operation of your GAI-Tronics product or
system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any
third party.
General Information
The following table presents the driver assemblies covered in this manual.
Model
13314-001
13314-002
13314-003
13315-001
13315-002
13315-003
The equipment described herein is listed by Underwriter's Laboratories (with the exception of the
13314-003) for use in the hazardous areas described. This listing is contingent upon several points:
•
Equipment is installed in accordance with the National Electrical Code and/or any special
instructions.
•
No unauthorized mechanical or electrical modifications are made.
•
The ac input power is disconnected from all associated equipment before removing equipment
covers.
•
Replacement parts are equivalent to the original.
•
All cover bolts and/or fittings removed for maintenance are replaced before reconnecting the ac
power.
Voice Coil Replacement for 13314 Series Drivers
1. Remove the 3 retaining screws from the back cover, and open the driver housing.
2. Firmly grasp wires leading to the connector tabs on the voice coil frame, and pull the leads straight
out.
GAI-Tronics Corporation P.O. Box 1060, Reading, PA 19607-1060 USA
610-777-1374 n 800-492-1212 n Fax: 610-775-6540
G A I - T R O N I C S C O R P O R A T I O N
Description
8-ohm, Division II hazardous
16-ohm, Division II hazardous
70-volt, not UL listed (16-ohm VC)
8-ohm, Division I hazardous
16-ohm, Division I hazardous
70-volt, Division I hazardous (16-ohm VC)
Pub. 42004-110
Advertisement
Table of Contents
Related Manuals for GAI-Tronics 13411-001
Summary of Contents for GAI-Tronics 13411-001
- Page 1 Tronics retains all intellectual property and other rights in or to the information contained herein, and such information may only be used in connection with the operation of your GAI-Tronics product or system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any third party.
- Page 2 Pub. 42004-110 2 of 3 Page: 3. Remove the 2 retaining screws from the bracket holding the magnet assembly in place, and carefully withdraw the magnet assembly. 4. Replace the voice coil assembly, placing the new silicon gasket provided into the driver cavity first.
- Page 3 Pub. 42004-110 3 of 3 Page: Cleaning the Magnetic Gap If any material (fillings, dust, and so on) is apparent in the magnetic gap, it may be cleaned easily using a small piece of masking tape doubled over with its adhesive side out. Insert the tape end into the gap, and slide it all the way around.
