Display V02 & Remote V01
User Manual
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Display V02 and is the answer not in the manual?

Questions and answers

Related Manuals for TQ Display V02

Summary of Contents for TQ Display V02

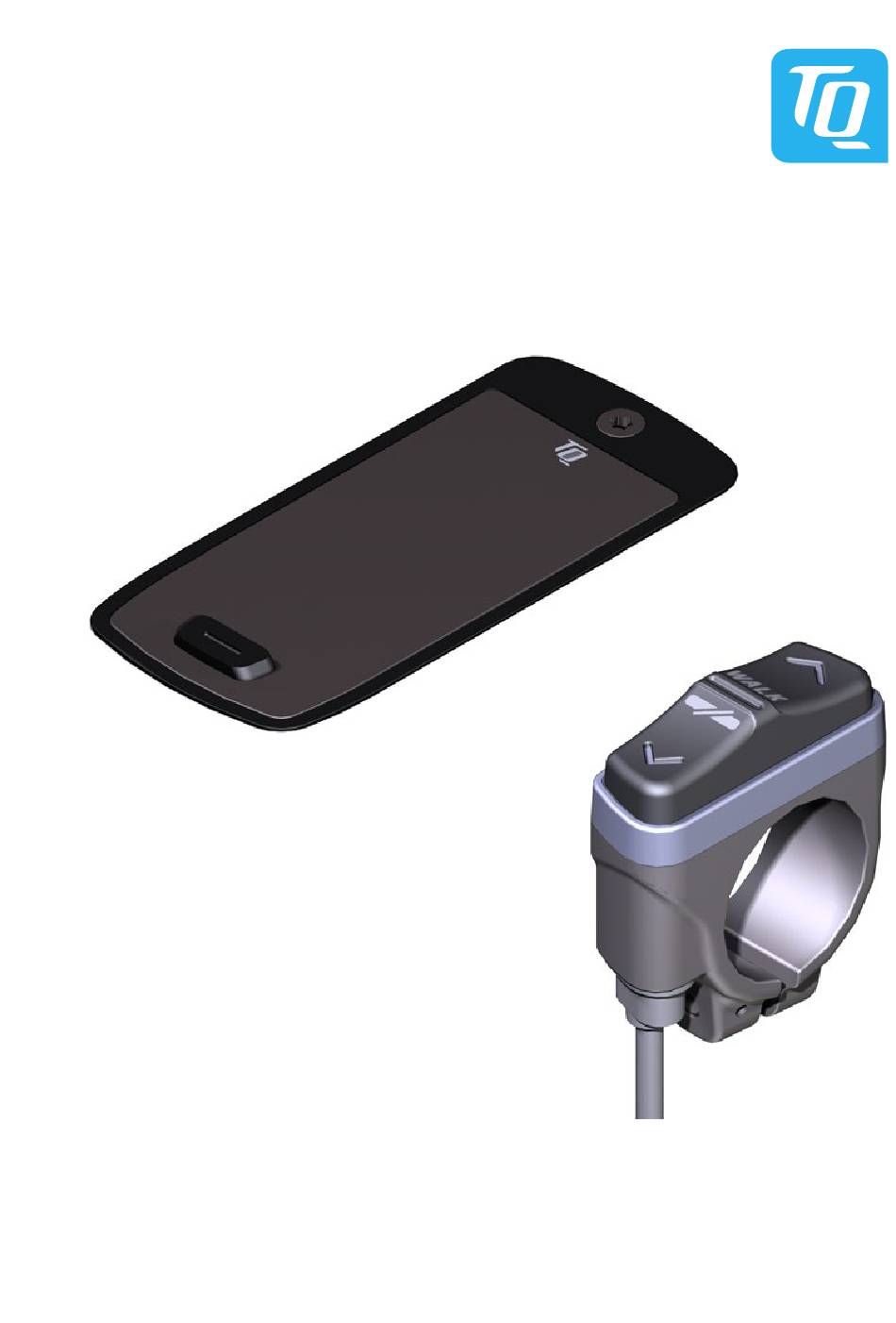

  • Page 1 Display V02 & Remote V01 User Manual...
  • Page 2 Safety This instruction contains information that you must observe for your personal safety and to prevent personal injury and damage to property. They are highlighted by warning triangles and shown below according to the degree of danger. ► Read the instructions completely before start-up and use. This will helpyou to avoid hazards and errors.
  • Page 3 Intended Use The display V02 and the remote V01 of the drive system are intended exclu- sively for displaying information and operating your e-bike and must not be used for other purposes. Any other use or use that goes beyond this is considered improper and will result in the loss of the warranty.
  • Page 4 Riding safety instructions Observe the following points to avoid injuries due to a fall when starting with high torque: — We recommend that you wear a suitable helmet and protective clothing every time you ride. Please observe the regulations of your country. —...
  • Page 5 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. No changes shall be made to the equipment without the manufacturer’s permission as this may void the user’s authority to operate the equipment This equipment complies with the RF exposure limits in FCC §...

  • Page 6: Technical Data

    Technical data Display Screen diagonal 2 inch State of charge indication Seperate for battery and range extender Connectivity Bluetooth, ANT+ (Radio network standard with low power consumption) Protection class IP66 Dimension 74 mm x 32 mm x 12,5 mm / 2,91“...

  • Page 7: Overview Display

    Operation and indication components Overview display Pos. in Description Fig. 1 State of charge battery (max. 10 bars, 1 bar corresponds 10 %) State of charge range extender (max. 5 bars, 1 bar corresponds 20 %) Display panel for different screen views with riding information (see section 6 on page Assist mode...

  • Page 8: Operation

    Operation ► Make sure that the battery is sufficiently charged before operation. Switch on drive system: ► Switch on the drive unit by shortly pressing the button (see FigFig. 3) on the display. Switch off drive system: ► Switch off the drive unit by long pressing the button (see Fig.
  • Page 9 Setup-Mode Setup-Mode activate ► Switch off the drive system. ► Press and hold the button on the display (pos. 5 in Fig. 1) and the DOWN button on the remote (pos. 2 in Fig. 2) for at least 5 seconds. >5 s >5 s Settings...
  • Page 10 Riding information In the center of the display, riding information can be shown on 4 different screen views. Regardless of the currently selected view, the state of charge of the battery and optional range extender is displayed at the top edge and the selected assistance mode is displayed at the bottom edge.
  • Page 11 Screen view Riding information — Current rider power in watt (163 W in this example). — Current drive unit power in watts (203 W in this example). — Current speed (36 km/h in this example) in kilometers per hour (KPH) or miles per hour (MPH).
  • Page 12 DOWN button at the same time. Depending on wheter the e-bike is equipped with light and TQ smartbox. (Please see the smartbox manual for more information). — Deactivated light (LIGHT OFF) — Switch off the light by pressing the UP button and DOWN button at the same time.
  • Page 13 Select assist mode You can choose between 3 assist modes or switch off the assist from the drive unit. The selected assist mode I, II or III is shown on the display with the corresponding number of bars (see pos. 1 in Fig. 5). —...
  • Page 14 Set connections Connection e-bike to smartphone NOTE — You can download the Trek Connect app from the Appstore for IOS and the Google Play Store for Android. — Download the Trek Connect app. — Select your bike (you only need to pair your smartphone the first time).
  • Page 15 Connection e-bike to bicycle computers NOTE — To make a connection with the bicycle computer, the e-bike and bicycle computer must be within radio range (maximum distance approx. 10 meters). — Pair your bicycle computer (Bluetooth or ANT+). — Select at least the three shown sensors (see Fig.

  • Page 16: Walk Assist

    Walk assist The walk assist makes it easier to push the e-bike, e.g. off-road. NOTE — The availability and characteristics of the walk assist are subject to coun- try-specific laws and regulations. For example, the assistance provided by the push assist is limited to a speed of max. 6 km/h in Europe. —...

  • Page 17: Reset To Factory Settings

    Reset to factory settings ► Switch on the drive system. ► Press and hold the button on the display and the DOWN button on the remote for at least 5 s (see Fig. 10). ► Make your choice with the buttons on the remote and confirm it by pressing the button on the display.
  • Page 18 General riding notes 11.1 Functionality of the drive system The drive system supports you when riding up to a speed limit permitted by law which may vary depending on your country. The precondition for motor assistance is that the rider pedals. At speeds above the permitted speed limit, the drive system turns off the assistance until the speed is back within the permitted range.

  • Page 19: Maintenance And Service

    — Clean the display and the remote only with a soft, damp cloth. Maintenance and Service All service, repair or maintenance work performed by a TQ authorized bicycle dealer. Your bicycle dealer can also help you with questions about bicycle use, service, repair or maintenance.

  • Page 20: Error Codes

    ERR 401 DRV SW General software error ERR 403 DRV COMM Peripheral communication Restart the system. Contact error your TQ dealer if the error still ERR 405 DISP COMM Walk assist communica- occurs. tion error ERR 407 DRV SW Motor electronic error...
  • Page 21 Error code Cause Corrective measures ERR 453 DRV SW Motor initalization error Restart the system. Contact your TQ dealer if the error still ERR 457 BATT CONN Motor voltage error occurs. ERR 458 BATT CONN Motor overvoltage error Replace the charger and use only original charger.
  • Page 22 ERR 487 DRV SW ERR 488 DRV SW ERR 489 DRV SW Restart the system. Contact ERR 48A DRV SW your TQ dealer if the error still Software runtime error occurs. ERR 48B DRV SW ERR 48C DRV SW ERR 48D DRV SW...
  • Page 23 Restart the system and avoid ERR 49D DRV SENS Torquesensor error unintended use. Contact your ERR 49E DRV SENS TQ dealer if the error still occurs. ERR 49F DRV SENS ERR 4A0 DRV COMM Check the charging port for CAN-Bus communication dirt.
  • Page 24 Corrective measures WRN 601 SPD SENS Speedsensor problem Check the distance between magnet and speedsensor. Restart the system. Contact your TQ dealer if the error still occurs. WRN 602 DRV HOT Motor overtemperature Permissible operating tempera- ture exceeded. Switch off the drive unit to allow it to cool down.
  • Page 25 EN - 25...
  • Page 26 NOTE For more information and TQ product manuals in various language, please visit www.tq-group.com/ebike/downloads or scan this QR-Code. We have checked the contents of this publication for conformity with the product described. However, deviations cannot be ruled out so that we cannot accept any liability for complete conformity and correctness.

This manual is also suitable for:

Remote v01Hpr display v01Hpr remote v02
