141-DC30,DC40
Easy power feeder
Operationg instructions
Distributor:
IGM nástroje a stroje s.r.o.
Ke Kopanině 560, 252 67, Tuchoměřice
Czech Republic, EU
Phone: +420 220 950 910
E-mail: sales@igmtools.com
Website: www.igmtools.com
PDF ONLINE
www.igmtools.info
2022-07-11
141-DC30,DC40 IGM Easy Power Feader Manual EN v2.7.00 A4ob
Advertisement
Table of Contents
Related Manuals for IGM 141-DC30
Summary of Contents for IGM 141-DC30

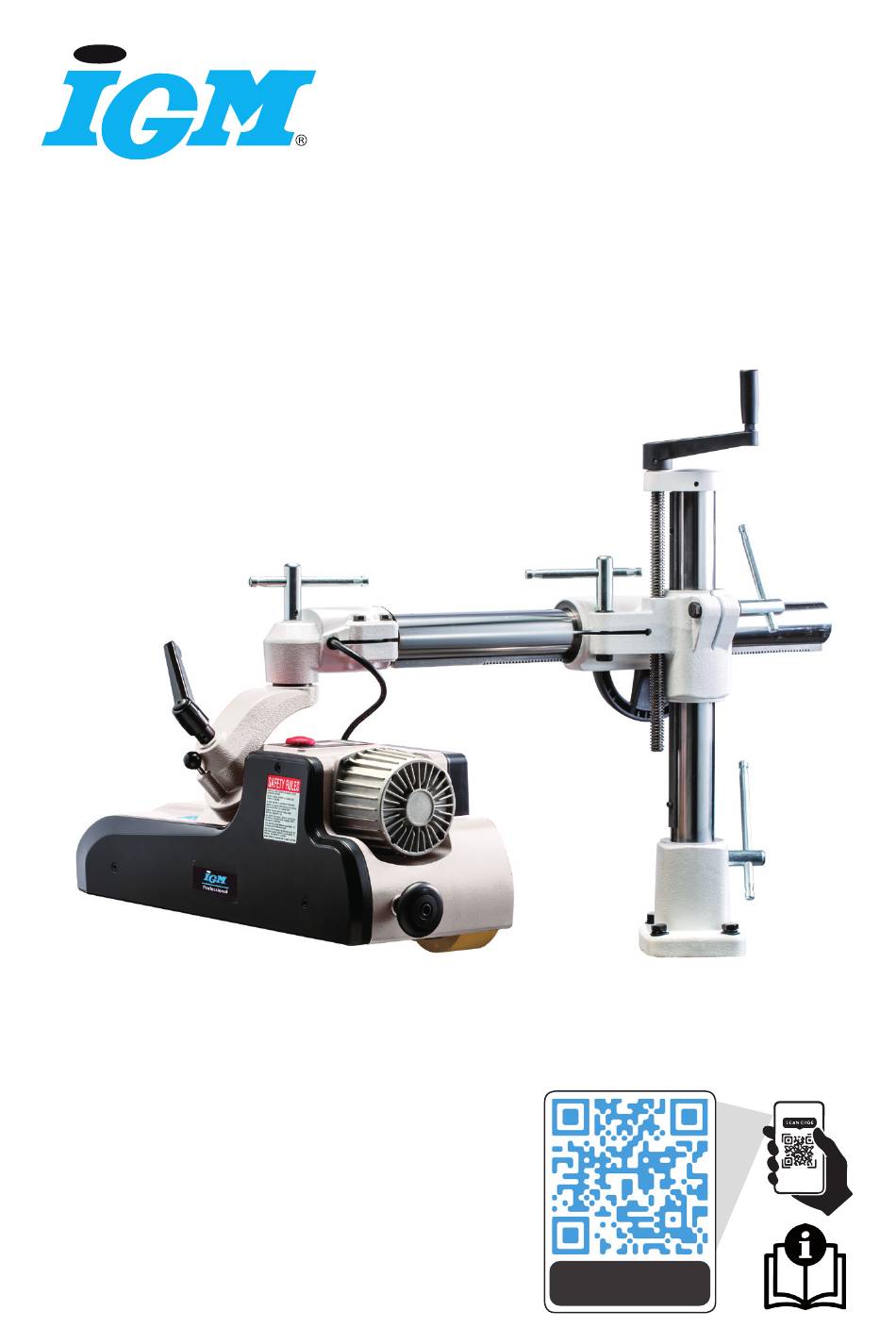

- Page 1 Easy power feeder Operationg instructions Distributor: IGM nástroje a stroje s.r.o. Ke Kopanině 560, 252 67, Tuchoměřice Czech Republic, EU Phone: +420 220 950 910 E-mail: sales@igmtools.com Website: www.igmtools.com PDF ONLINE www.igmtools.info 2022-07-11 141-DC30,DC40 IGM Easy Power Feader Manual EN v2.7.00 A4ob...
- Page 2 Because of our policy of constant improvement, the design, construction or pictures may differ slightly. Should you discover any mistakes, please contact us at podpora@igm.cz. TABLE OF CONTENTS page 5.2.2.
- Page 3 2. WARRANTY SERVICE The warranty is subject to Terms and Conditions and Any alterations or changes to the machine are Warranty Conditions of IGM nástroje a stroje s.r.o., prohibited. the current version of which are available at www. igmtools.com.
- Page 4 Operating instructions EN Never leave the machine unattended. Always switch 4. SPECIFICATIONS OF THE MACHINE the machine off when leaving the workspace. 4.1 Machine description Watch your fingers and other body parts when working. Never walk away from a machine without protective guards.
- Page 5 Operating instructions EN 5. TRANSPORT, UNPACKING AND ASSEMBLY 5.1 Transport and unpacking The machine is not assembled due to transport. Remove the feeder from the packaging and place on a flat surface. Check for any apparent transport damages, these could damage the machine or your health.
- Page 6 Operating instructions EN 5.3 Electrical connection 6.1.1 Feeding from the side - Release the locking lever (A) and turn the feeder off the WARNING: Make sure the electrical connection corresponds to the motor specification (see engine workbench. - Release the lever (H), grab the handle of the feeder and cover.) WARNING: Make sure the switch is in the lift the locking pin, turn the feeder to a vertical position.
- Page 7 Operating instructions EN 6.2 Control panel features 3. Tlačítko směru podávání Vypínač 2. Tlačítko nastavení s nastavení m rychlosti 4. Tlačítko směru podávání pic.16 Switch Speed in the range of 2-22 m/min and feed Press to turn the feed on and off speed Settings Press to set up the desired feed...
- Page 8 141-R12060 IGM Narrow spare roller D120x25 for DC30-DC40 Feeders 141-R12025 IGM Swivel Cone Kit 0 - 90° set for Feeders DC30-DC40 Obr. 26 141-KS - Oil change after 200 hours of operation (30 days) of a new machine. Afterwards, replace oil every 1000 hours (6 months).
