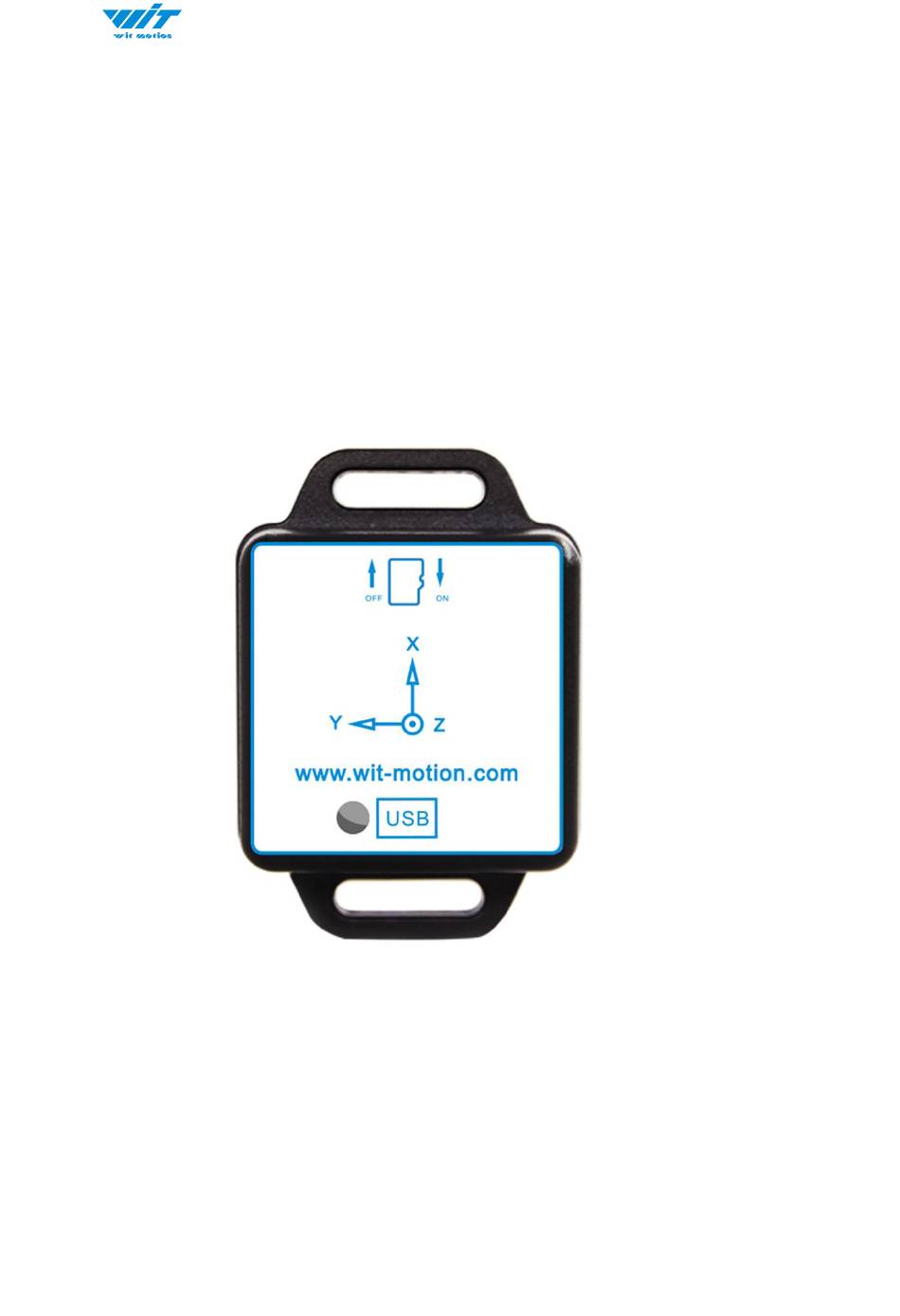

- Page 1 USER MANUAL WT901SDCL Inclinometer Sensor Acceleration Data Logger WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 1 -...
-
Page 2: Contact
Technical Support Contact Info Application ● AGV Truck ● Platform Stability ● Auto Safety System ● 3D Virtual Reality ● Industrial Control ● Robot ● Car Navigation ● UAV ● Truck-mounted Satellite Antenna Equipment WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 2 -... -
Page 3: Table Of Contents
2.4.2 Output Rate ..................- 22 - 2.4.3 Baud Rate ..................- 23 - 2.4.4 Calibrate Time ................. - 24 - 2.4.5 Data Recording ................- 26 - 2.4.6 Data Playback .................. - 29 - WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 3 -... - Page 4 2.4.10 Restore Factory Setting ............- 37 - 2.4.11 6-axis/ 9-axis Algorithm ............- 38 - 3 Offline Record ......................- 39 - 3.1 Guidelines ..................... - 39 - 3.2 Instructions ....................- 40 - WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 4 -...
-
Page 5: Introduction

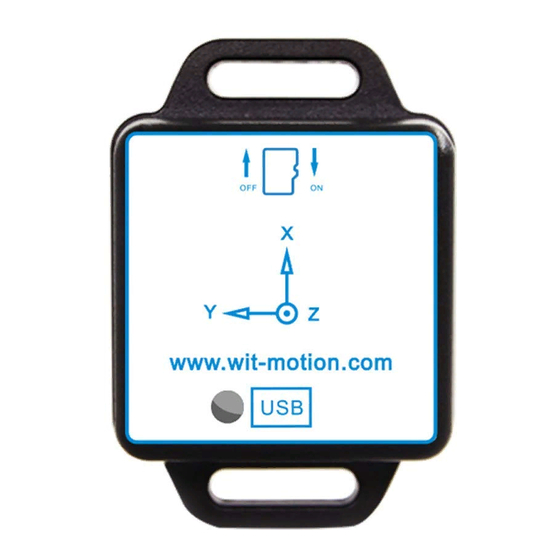

Introduction The WT901SDCL is a multi-sensor device detecting acceleration, angular velocity, angle as well as magnetic filed. The small outline makes it perfectly suitable for industrial retrofit applications such as condition monitoring and predictive maintenance. Configuring the device enables the customer to address a broad variety of use cases by interpreting the sensor data by smart algorithms. -
Page 6: Warning Statement
For proper instrument grounding: use WITMOTION with its original factory-made cable or accessories. For secondary developing project or integration: use WITMOTION with its compiled sample code. WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 6 -... -
Page 7: Use Instructions With Pc
Please use the cable that comes with the product. Use the data cable to connect the product (the SD card is plugged into the module before the module starts to work). WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 7 -... -
Page 8: Indicator Status
(red) is always on, indicating that the product is charging. The red light will go out after charging is completed. 2. After inserting the SD card for about 1 second, the blue light flashes, indicating that the SD card is recording data. WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 8 -... -
Page 9: Software Preparation
Step 3. Open the software(Minimu.exe) Data will appear after auto-search finishes Notice: If not successful, please operate manually Choose the com port and baud rate 9600, data will be shown on the software. WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 9 -... -
Page 10: Software Introduction
For manufacturer internal test only Auto-search Auto searching the sensor Port Com port selection Baud Baud rate selection Type Fixed setting as Normal for WT901SDCL Open Open com port Close Close com port WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 10 -... -
Page 11: Menu Of Configuration
Menu of Configuration Menu of Configuration Button Function Read Config Reading the current configuration Lock Lock the sensor Unlock Unlock the sensor Calibrate Time Calibration time of chip Save Config Save configuration WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 11 -... - Page 12 HWT901B) Reset Z-axis Angle Reset Z-axis angle to 0 degree, only available for WT901SDCL in 6-axis algorithm Angle Reference Setting current angle as 0 degree Gyro Auto Calibrate Auto-calibration of gyroscope WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 12 -...
- Page 13 WTGAHRS2, WT901B, etc Location Latitude&Longitude data output, only for GPS IMU series, such as WTGAHRS1, WTGAHRS2 PDOP Ground velocity data output, only for GPS IMU series, such as WTGAHRS1, WTGAHRS2GPS IMU WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 13 -...
- Page 14 Menu of Port D0 Model Extended port D0 D1 Model Extended port D1 D2 Model Extended port D2 D3 Model Extended port D3 Pulse width Pulse width of PWM Cycle Cycle of PWM WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 14 -...
-
Page 15: Calibration
After calibration, the measurement will be accurate. Methods: Step 1. Keep the module horizontally stationary Step 2. Click the accelerometer calibration Step 3. Click the “Start calibration”and wait for 3 seconds Step 4. Click “Complete Calibration” WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 15 -... - Page 16 0, 0,1, the X and Y axis Angle is around 0°. After calibration, the x-y axis Angle is accurate. Note: When putting the module horizontal, there is 1g of gravitational acceleration on the Z-axis. WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 16 -...
-
Page 17: Magnetic Field Calibration
Sensors should be 20CM away from magnetic and iron and other materials Methods: Step 1. Open the Config menu Step 2. Click the magnetic field calibration button. click the “Start calibration” WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 17 -... - Page 18 Step 3. Slowly rotate the module 360° around X, Y, Z, 3-axis accordingly WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 18 -...
- Page 19 Step 4. After rotation, click “End calibration” Successful result: Most of data dots will be within the ellipse. If not successful, please stay away from the objective that can create magnetic field interference. WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 19 -...
-
Page 20: Gyroscope Automatic Calibration
Calibration methods as follow: firstly keep the module static, click the “Config” open the configuration bar and then click “Reset Z-axis Angle” option, you will see the the angle of the Z axis backs to 0 degree in the module data bar. WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 20 -... -
Page 21: Configuration
Taking WT901SDCL as an example, the default output of the module is acceleration, angular velocity, angle, and magnetic field. Notice: If choosing the GPS Original, there will be no other data output. -
Page 22: Output Rate
If the return rate is high, the baud rate should be set higher, generally 115200. WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 22 -... -
Page 23: Baud Rate
Note: After the change, the module will no longer output data at the original baud rate. The data will be output only when the baud rate that has been changed is selected on the PC software again. WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 23 -... -
Page 24: Calibrate Time
2.4.4 Calibrate Time Method: Step 1: Click “Calibrate Time” in the “ Config” Step 2: Click “Time” Step 3: Notification will be shown if successfully calibrated Step 4. Click “Save Config” WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 24 -... - Page 25 Function: By calibrating the time, the host computer time is the same as the current time. When recording data, you can know when the data was recorded. WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 25 -...
-
Page 26: Data Recording
There is a 16G SD memory card inside the sensor, but the real-time data can still be recorded and saved by the PC software. Instructions as follows: Step 1: Click “Record” and “Begin” Step 2: Click “Stop” WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 26 -... - Page 27 X, Y , Z axis. “wx, wy, wz” respectively represents the angular velocity of X, Y, Z axis. “AngleX, AngleY, AngleZ” respectively represents the angle of the X, Y, Z axis. T represents the temperature. WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 27 -...
- Page 28 It is highly recommended that data can be pasted to an Excel file. In this way, all data will be shown in order. WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 28 -...
-
Page 29: Data Playback
Recorded data playback method: Step 1: Disconnect the sensor Step 2: Click “File” Button and then click “Load” Step 3: Choose the original path of software installation and load the Bin file WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 29 -... - Page 30 Step 4: Click “Run” and the Binary file will be playback When playback, the rate can be editable. WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 30 -...
-
Page 31: File Conversion
2.4.7 File Conversion Tutorial to convert SD card TSV file format data to a TXT one: Step 1: After the data can be played back, click "File Conversion". WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 31 -... - Page 32 Step 3: Click “Yes” to open the document as shown in the figure below, 1 represents the time to convert the document, 2 represents the time to convert the data, and 3 represents the time to record the data. WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 32 -...
- Page 33 WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 33 -...
-
Page 34: Placement Direction
Step 1: Rotate the module 90 degrees around the X-axis Step 2: Place the sensor 90 degrees vertically Step 3: Click “Vertical” as install directions on “Config” menu WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 34 -... -
Page 35: Bandwidth
1. The higher rate of bandwidth setting will lead to the higher fluctuation in data waveform. Conversely, the lower rate of bandwidth, data will become more fluent. For example: Bandwidth as 20Hz, Output rate as 10Hz. The waveform is very steady. WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 35 -... - Page 36 For example, if the bandwidth setting is 20Hz, retrieval rate as 100Hz, there will be 5 repeating data. If you prefer there is no repeating data, it is required to increase the bandwidth more than 100Hz. WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 36 -...
-
Page 37: Restore Factory Setting
2.4.10 Restore Factory Setting Command method: Step 1: Connect the WT901SDCL module and the computer through the cable that comes with. Step 2: Click the Settings tab, and click to “Reset”. Step 3: After restoring the factory settings, you need to power on the module again. -
Page 38: 6-Axis/ 9-Axis Algorithm
9-axis algorithm: Z-axis angle is mainly calculated and analyzed based on the magnetic field. Z-axis angle will have few drift. The default algorithm of WT901SDCL is 9-axis. If there is magnetic field interference around installed environment, it is recommended to switch to 6-axis algorithm to detect the angle. -
Page 39: Offline Record
Each time an SD card is inserted, the data will be getting recorded. The data will be stored in the SD card as a text. The LOG with the largest number is the latest file. WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 39 -... -
Page 40: Instructions
Step 2. Measure the data (install the sensor as you prefer) Step 3. Remove the SD card and insert it into the card reader Step 4. Plugin the reader and Open Minimu.exe WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 40 -... - Page 41 Step 5. Select the recorded file from the USB Drive path and load the recorded file, click the “Run” and data will be playback WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 41 -...
- Page 42 Step 6. Convert the recorded file to txt format. It would be better to review. (Please refer to Chapter 2.4.7) WT901SDCL | manual v0707 | http://wiki.wit-motion.com/english - 42 -...
