Summary of Contents for WiT WT901BLE

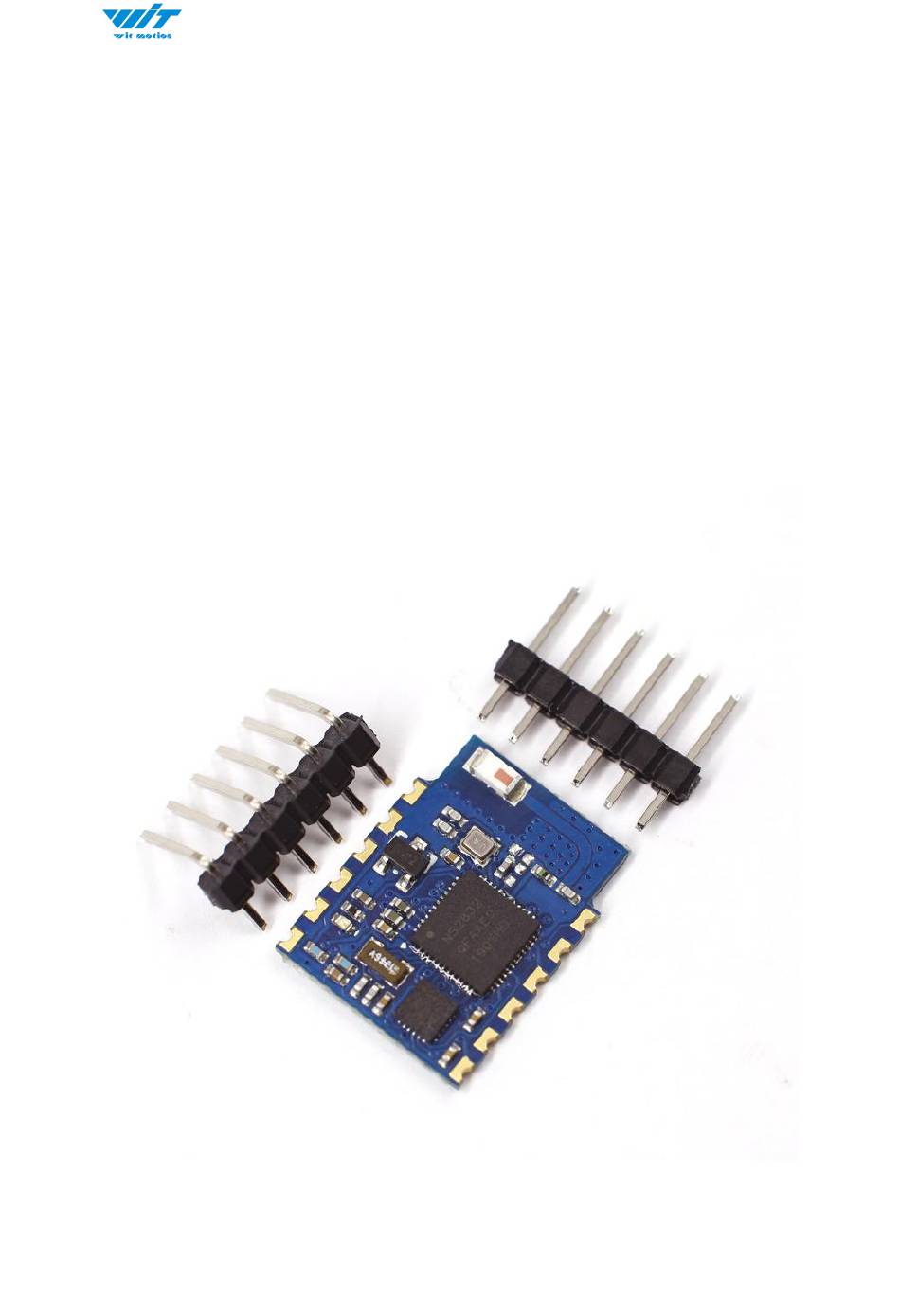

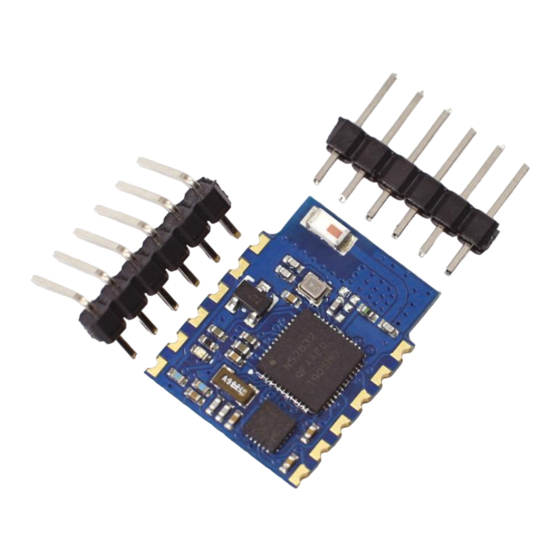

- Page 1 USER MANUAL WT901BLE BLE5.0 Bluetooth 5.0 Inclinometer Sensor WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 1 -...
-
Page 2: Tutorial Link
Application ● AGV Truck ● Platform Stability ● Auto Safety System ● 3D Virtual Reality ● Industrial Control ● Robot ● Car Navigation ● UAV ● Truck-mounted Satellite Antenna Equipment WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 2 -... -
Page 3: Table Of Contents
2.4.1 Data Recording .............. - 20 - 2.4.2 Data Playback ..............- 22 - 2.4.3 Placement Direction ............ - 24 - 2.4.4 Bandwidth ................ - 25 - 2.4.5 6-axis/ 9-axis Algorithm ..........- 27 - WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 3 -... - Page 4 3.1 APP Installation ................ - 28 - 3.2 Connection ................. - 29 - 3.3 Calibration .................. - 31 - 3.3.1 Acceleration Calibration ..........- 31 - 3.3.2 Magnetic Field Calibration ......... - 32 - WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 4 -...
-
Page 5: Introduction
Introduction The WT901BLE BLE5.0 is a multi-sensor device detecting acceleration, angular velocity, angle as well as magnetic filed. The small outline makes it perfectly suitable for industrial retrofit applications such as condition monitoring and predictive maintenance. Configuring the device enables the customer to address a broad variety of use cases by interpreting the sensor data by smart algorithms. -
Page 6: Warning Statement
For secondary developing project or integration: use WITMOTION with its compiled sample code. LED Status Status Remark Flashing Pairing succeeds Blue (connect with adapter) Flashing Pairing succeeds (connect with Android APP) WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 6 -... -
Page 7: Use Instructions With Pc
2.1.1 Serial Connection Step 1. Connect the sensor with a serial converter PIN Connection: VCC - TX - RX - GND - GND (When connecting with computer, VCC-5V is recommended.) WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 7 -... - Page 8 Step 4. Open the software(Minimu.exe) Data will appear after auto-search finishes Notice: If not successful, please operate manually Choose the com port and baud rate 115200, data will be shown on the software. WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 8 -...
- Page 9 WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 9 -...
-
Page 10: Ble 5.0 Adapter Connection
Step 2. Power on the sensor after blue light of adapter flashes Step 3. Wait till the adapter's blue LED light keeps on-- means pairing succeeded Step 4. Open the software, Minimu.exe Step 5. Data will appear once the auto-search finished WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 10 -... -
Page 11: Software Introduction
For manufacturer internal test only Auto-search Auto searching the sensor Port Com port selection Baud Baud rate selection Type Fixed setting as Bluetooth 5.0 for WT901BLE BLE5.0 Open Open com port WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 11 -... -
Page 12: Menu Of Configuration
Close Close com port 2.2.2 Menu of Configuration Menu of Configuration Button Function Read Config Reading the current configuration Calibrate Time Calibration time of chip WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 12 -... - Page 13 WT901BLE BLE5.0 in 9-axis algorithm Gyro Auto Calibrate Auto-calibration of gyroscope Menu of Range Button Function Acceleration acceleration measurement range (2/4/8/16g/s2) Gyro gyroscope measurement range (250/500/1000/2000 deg/s) Band Width Bandwidth range (5/10/20/42/98/188/256Hz) WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 13 -...
- Page 14 Menu of Communication Button Function Output Rate Return rate selection WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 14 -...
-
Page 15: Calibration
After calibration, the measurement will be accurate. Methods: Step 1. Keep the module horizontally stationary Step 2. Click the acceleration in the “Config” and wait for 5 seconds Step 3. Calibration done if OK shows WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 15 -... - Page 16 Step 4. Check the result--confirm if there is 1g on Z-axis acceleration WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 16 -...
-
Page 17: Magnetic Field Calibration
2. The value of H in magnetic field must be lower than 350. Methods: Step 1. Open the Config menu. Step 2. Click the “magnetic field” and slowly rotate the sensor 360° around X, Y, Z, 3-axis accordingly. WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 17 -... - Page 18 Step 4. Place the sensor horizontally stationary and make the Y axis point to the north. Step 5. Check the data of Z axis angle, it’s ok if the value is about 0°. WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 18 -...
-
Page 19: Gyroscope Automatic Calibration
Z-axis Angle” in the “Config”, you will see the angle of the Z axis backs to 0 degree in the module data bar. 2.3.5 Reset Height to 0 Only available for the module built-in barometer like WT901B, HWT901B, WTGAHRS1, WTGAHRS2. WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 19 -... -
Page 20: Configuration
Method is as follows: Click “Record” and “Start” will save the data as a TXT file.The saved file is in the directory of the upper computer program Data.tsv: the beginning of the file has the value corresponding to the data. WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 20 -... - Page 21 It is highly recommended that data can be pasted to a Excel file. In this way, all data will be shown in order. WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 21 -...
-
Page 22: Data Playback
Recorded data playback method: Step 1: Disconnect the sensor Step 2: Click “File” Button and then click “Load” Step 3: Choose the original path of software installation and load the Bin file WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 22 -... - Page 23 Step 4: Click “Run” and the Binary file will be playback When playback, the rate can be editable. WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 23 -...
-
Page 24: Placement Direction
Step 1: Rotate the module 90 degrees around the X-axis Step 2: Place the sensor 90 degrees vertically Step 3: Click “Vertical” as install directions on the “Config” menu WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 24 -... -
Page 25: Bandwidth
1. The higher rate of bandwidth setting will lead to higher fluctuation in data waveform. Conversely, the lower rate of bandwidth, data will become more fluent. For example: Bandwidth as 50Hz, Output rate as 5Hz. The waveform is very steady. WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 25 -... - Page 26 For example, if the bandwidth setting is 20Hz, retrieval rate as 50Hz, there will be 5 repeating data. If you prefer there is no repeating data, it is required to increase the bandwidth more than 50Hz. WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 26 -...
-
Page 27: 6-Axis/ 9-Axis Algorithm
Step 1: Switch to the"6-axis" algorithm on the “Config” menu. Step 2: Proceed with the “Accelerometer calibration” and “Reset Z-axis angle” calibration. After the calibration is completed, it can be used normally. WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 27 -... -
Page 28: Use Instructions With Android Phone
Android (6.0) mobile phone is paired with a Bluetooth device, positioning must be allowed when using Bluetooth at the same time. 2. After turning on Bluetooth, it takes about one minute to search for authorization to find Bluetooth. WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 28 -... -
Page 29: Connection
Step 1. Install the APK file, give permission of Location and Storage Step 2. Open APP and choose “BLE 5.0 Series” as sensor series Step 3: power on the sensor and scan the device WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 29 -... - Page 30 Step 4. When pairing is done, the blue LED light of the sensor will flash and keep about one second After a few seconds, the data will show automatically WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 30 -...
-
Page 31: Calibration
Step 1. Keep the module horizontally stationary Step 2. Click the “Calibration” menu Step 3. Click the “Acceleration Calibration” and wait for 3 seconds Step 5. Check the result--confirm if there is 1g on Z-axis acceleration WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 31 -... -
Page 32: Magnetic Field Calibration
Step 4. After rotation, click “Finish” Check the result: The Z-axis angle will have less drift than before. Notice: If not successful, please stay away from the objective that can create magnetic field interference. WT901BLE BLE5.0 | manual v0707 | http://wiki.wit-motion.com/english - 32 -...
