Note - Apollo Atomizer 7700 Series Maintenance Manual

5 6
4
3
1 2

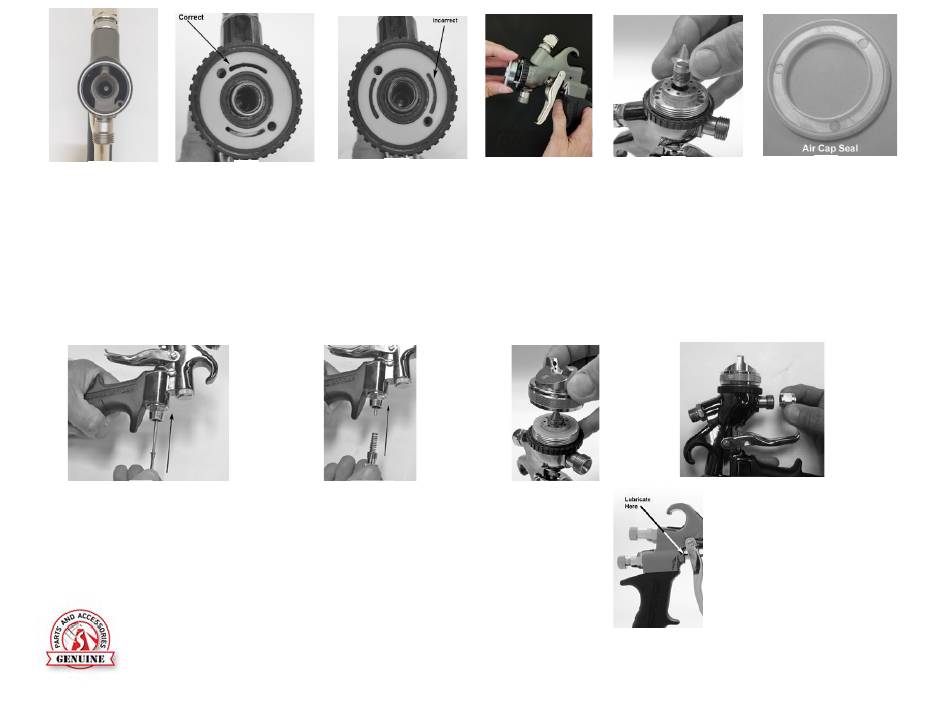

1. Push the Needle (#22) back into the spray gun.
2. Insert the Needle Spring into the Material Adjustment Screw (#20).
3. Install the Material Adjustment Screw with Needle Spring (#21).
4. Install air cap and air cap ring. Spray gun is now re-assembled and ready to use.
5. Remove the Material Blanking Cap (#12) from either the gravity or bottom feed port of the spray gun and clean out any material.

NOTE:

When reassembling your spray gun, do not tighten down the Air Cap Ring (#1), leave it loose. This will ensure that if there is any
material residue on the threads it will not dry and seal itself to the Air Distributor (#7).
11
7 8-9
10
NOTE: Periodically, use Apollo spray gun lube to lubricate the Air Valve Bushing as shown.
For Genuine Apollo replacement parts and accessories visit our web site and on-line catalog at HVLP.com
