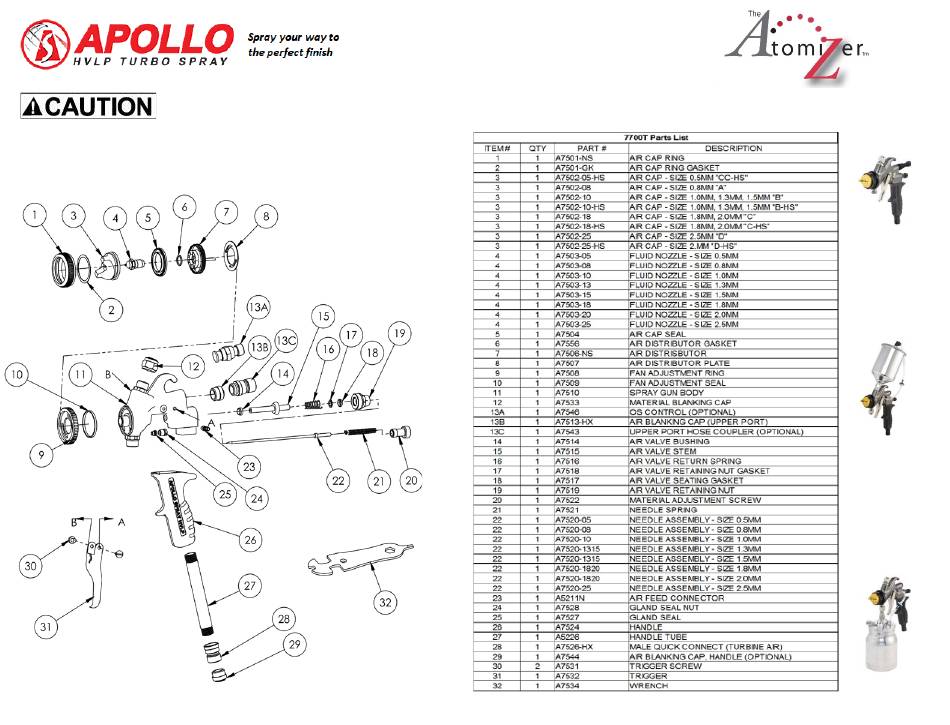

- Page 1 7700 SERIES SPRAY GUN MAINTENANCE GUIDE Always unplug your spray gun from the turbine before doing any maintenance or repairs. 7700 SPRAY GUN PARTS DIAGRAM & PARTS LIST...
- Page 2 Cleaning your 7700 AtomiZer® spray gun does not have to be a difficult task. Often, when spraying a variety of clear coatings, a thorough rinsing and wiping of basic parts is all that may be necessary. The basic steps below are for simple and easy cleaning of your Apollo 7700 AtomiZer® spray gun.
- Page 3 4. Remove the Fan Adjustment Ring (#9) and Air Distributor Plate (#8). The Air Distributor Plate is attached to the ring. These two pieces separate. 5. Clean them both if necessary. NOTE: Make sure you reassemble the two pieces correctly or you will only get a round fan pattern. 6.
- Page 4 Air Distributor (#7). NOTE: Periodically, use Apollo spray gun lube to lubricate the Air Valve Bushing as shown. For Genuine Apollo replacement parts and accessories visit our web site and on-line catalog at HVLP.com...
