- Page 1 Rain Sensor Shutoff for Automatic Irrigation Systems Owner’s Manual and Installation Instructions Wireless Rain-Clik WR-CLIK Wireless Rain/Freeze-Clik WRF-CLIK...
-
Page 2: Table Of Contents
Table of ConTenTs Features .................................3 ™ Wireless Rain-Clik Components ........................4 Mounting the Receiver ............................6 Mounting the Transmitter ..........................10 Adjustments and Operation ..........................11 FCC Notice................................17 FCC Declaration of Conformity .........................18 Industry of Canada Notice ..........................20 CE & Australia Notice ............................21 Notes ...................................22... -
Page 3: Features
feaTures Wireless Rain-Clik ™ sensors attach quickly and easily to your controller. Wireless Rain-Clik ™ features include: 1. Quick Response ™ – Unique technology that Wireless Rain/Freeze-Clik (WRF-CLIK) – The turns off the irrigation system immediately Wireless Rain/Freeze-Clik includes a freeze rather than after it has accumulated a fixed sensor that is designed to keep the irrigation amount of rain. -
Page 4: Wireless Rain-Clik Components

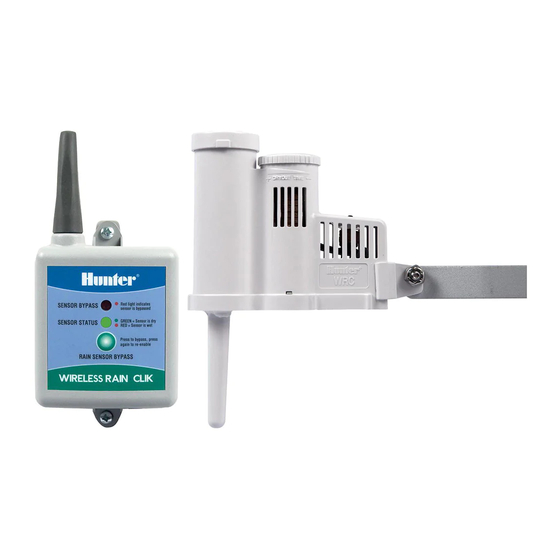

™ Wireless rain-Clik ComponenTs 3. Radio Antenna – Transmits a wireless signal Wireless rain-Clik ™ Transmitter to the receiver up to 1. Manual Test Spindle – Press and hold 800 ft. (275m). It is the manual test spindle to confirm proper recommended that the operation of your transmitter. - Page 5 ™ Wireless rain-Clik ComponenTs Blue/Orange Wires (used for normally open Wireless rain-Clik ™ receiver sensor applications) 1. Bypass Button – Allows automatic or manual 7. Rubber Cover – Used to protect the receiver watering when the sensor is active. when mounted in outdoor locations. 2.
-
Page 6: Mounting The Receiver
The reCeiver Wiring the receiver to Your Controller Wiring the receiver to a hunter srC Using the hardware supplied, mount the 1. Attach the two yellow wires to the AC terminals. receiver to the wall next to the irrigation 2. - Page 7 The reCeiver Wiring the receiver to a hunter X-Core, pro-C, Wiring the receiver to a hunter aCC iCC and i-Core 1. Connect the blue and white wire to any of the four Sensor Terminal pairs (Sen 1 shown). 1. Remove the sensor jumper across the two 2.
- Page 8 mounTing The reCeiver Wiring the receiver to other Controllers: normally Closed sensor applications 1. Attach the two yellow wires to the 24 VAC terminals. 2. Attach the blue and white wire to the sensor terminals (if available) or in-line with the valve common wire.
- Page 9 mounTing The reCeiver normally open sensor applications Pump A few controllers on the market require AC AC normally open rain sensors. To attach the receiver to this type of controller, attach the blue and orange wire to the sensor input. SENSOR BYPASS Red light indicates sensor is bypassed...
-
Page 10: Mounting The Transmitter
mounTing The TransmiTTer standard mounting gutter mounting (optional) Using the screws The sensor gutter provided with your mount can be sensor, mount the purchased as an transmitter on any optional accessory surface where it for your Wireless will be exposed Rain-Clik ™... -
Page 11: Adjustments And Operation
adjusTmenTs and operaTion hints for mounting the transmitter • Choose a location such as the side of a • Correct placement of the Wireless Rain/ building or post. The closer the transmitter is Freeze-Clik model is important for accurate to the receiver, the better the reception. Do temperature sensing. - Page 12 adjusTmenTs and operaTion 2. SENSOR BYPASS LED: Transmitter operation RED – Rain sensor is bypassed (even though There is nothing to set up with the the sensor is bypassed, the STATUS LED Wireless Rain-Clik ™ will continue to alert you of the state of the sensor (wet or dry).
- Page 13 adjusTmenTs and operaTion bypassing the sensor setting the Transmitter address at the receiver The sensor may be bypassed by using the built in bypass feature on the receiver. To Each transmitter is produced with a unique bypass the sensor, press the SENSOR BYPASS address.
- Page 14 adjusTmenTs and operaTion 1. Prior to applying power (yellow wires) to the battery life receiver, press and hold the bypass button on The Wireless Rain-Clik ™ transmitter is the receiver. designed to operate up to ten years with 2. While the bypass button is depressed, it’s sealed, maintenance-free battery.
- Page 15 adjusTmenTs and operaTion To check the status of the battery in the system will not come on at all: transmitter: • Check to make sure that the sensor discs are dry and the switch “clicks” on and off freely 1. Press and hold the quick response spindle at by pressing the top of the spindle.
- Page 16 adjusTmenTs and operaTion system will not shut off even after sensor bypass led is flashing red: heavy rainfall: • Check that the battery in the transmitter • Remove the sensor jumper across the two is good (See page 15). • Check for obstructions around the transmitter SEN terminals.
-
Page 17: Fcc Notice
fCC noTiCe sensor fCC id:m3uWrCe This device complies with FCC rules Part 15. Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for class B digital devices, pursuant to part 15 of the FCC Rules. -
Page 18: Fcc Declaration Of Conformity
