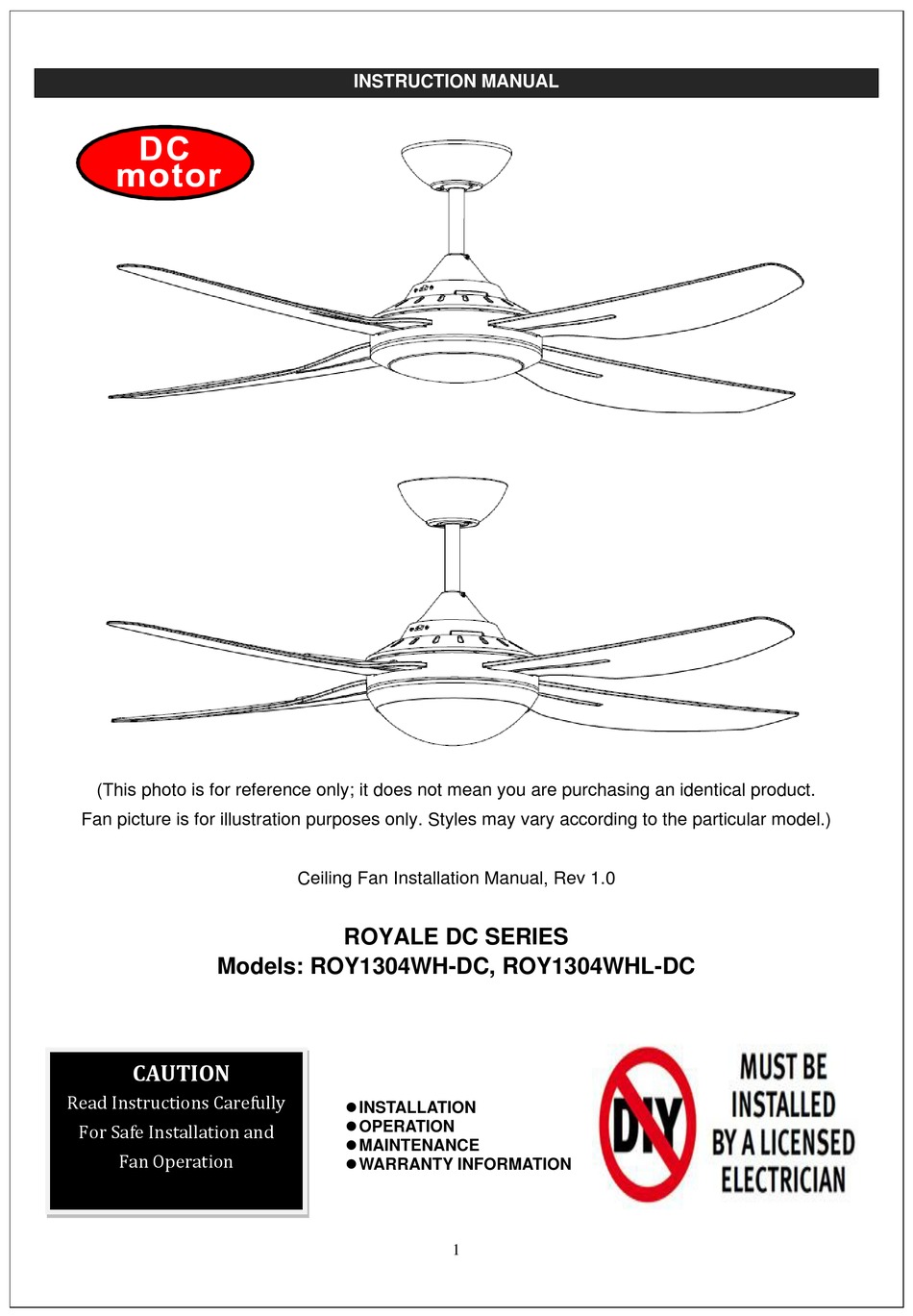

INSTRUCTION MANUAL
(This photo is for reference only; it does not mean you are purchasing an identical product.
Fan picture is for illustration purposes only. Styles may vary according to the particular model.)
Ceiling Fan Installation Manual, Rev 1.0
ROYALE DC SERIES
Models: ROY1304WH-DC, ROY1304WHL-DC
CAUTION
Read Instructions Carefully
⚫ INSTALLATION
⚫ OPERATION
For Safe Installation and
⚫ MAINTENANCE
Fan Operation
⚫ WARRANTY INFORMATION
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ventair ROYALE DC Series
Summary of Contents for Ventair ROYALE DC Series
- Page 1 (This photo is for reference only; it does not mean you are purchasing an identical product. Fan picture is for illustration purposes only. Styles may vary according to the particular model.) Ceiling Fan Installation Manual, Rev 1.0 ROYALE DC SERIES Models: ROY1304WH-DC, ROY1304WHL-DC CAUTION Read Instructions Carefully ⚫...
-
Page 2: Safety Precautions
THANK YOU FOR PURCHASING Thank you for purchasing this quality Ventair ceiling fan. To ensure correct function and safety, please read all instructions before using the product and keep all instructions for future reference. SAFETY PRECAUTIONS The appliance is not intended for use by persons (including children) with reduced physical, sensory... - Page 3 the requirements of clause 7.12.2 of AS/NZS 60335.1. A single-pole switch on the active of the receiver input of remote control must also be included in the wiring, and located in the same room as the ceiling fan. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.
-
Page 4: Before Installation
BEFORE INSTALLATION Unpack the fan and carefully identify the parts. Please refer to Fig 1. Fig. 1 FAN WITHOUT LIGHT FAN WITH LED LIGHT Mounting bracket x 1 Mounting bracket x 1 Pre-assembled fan motor, down rod, canopy Pre-assembled fan motor, down rod, canopy and bottom cover x 1 and bottom cover x 1 Blades x 4... -
Page 5: Installing The Mounting Bracket
INSTALLING THE MOUNTING BRACKET • The ceiling fan must be installed in a location so that the blades have a minimum 300mm spacing from the tip of the blade to the nearest objects or walls. • Secure the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 30kg, with the two long screws provided. -
Page 6: Hanging The Fan
HANGING THE FAN Lift the fan assembly onto the mounting bracket. Ensure the registration slot (A) of the hanger ball is positioned on the stopper (B) of the mounting bracket (C) to prevent the fan from rotating when in operation. (Fig.4) Fig. -
Page 7: Electrical Wiring Diagram
ELECTRICAL WIRING DIAGRAM WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN. NOTE: AN ADDITIONAL ALL POLE DISCONNECTION MUST BE INCORPORATED IN THE FIXED WIRING IN ACCORDANCE WITH THE WIRING RULES. ⚫ Connect “LIVE” supply wire to the “L” of the terminal block on the mounting bracket. Connect “NEUTRAL”... -
Page 8: Finishing The Installation
FINISHING THE INSTALLATION ⚫ After completing the electrical connection at the mounting bracket terminal block, connect the ceiling fan wiring by the quick connector plug. ⚫ Cover the mounting bracket with the canopy. Ensure all electrical wiring is tucked inside the canopy and that the wires are not damaged during this step. -
Page 9: How To Use Remote Control
HOW TO USE REMOTE CONTROL 1. F/R button: Press F/R button to set up ceiling fan to operate in forward or reverse. 2. FAN ON/OFF button: Press to turn ON or turn OFF the ceiling fan. 3. Timer button: Press Timer button to enable fan to automatically switch OFF after 1Hr-4Hr-8Hr. - Page 10 REPAIRING THE FAN RECEIVER AND REMOTE NOTE: The remote and receiver has already been paired at the factory. When the ceiling fan is installed for the first time, pairing of the remote and receiver is NOT required. Should the remote and receiver lose control after installation or during use, the pairing of the remote and the receiver must be repaired.
-
Page 11: After Installation
AFTER INSTALLATION WOBBLE: NOTE: CEILING FANS TEND TO MOVE DURING OPERATION DUE TO THE FACT THAT THEY ARE MOUNTED ON A RUBBER GROMMET. IF THE FAN WAS MOUNTED RIGIDLY TO THE CEILING IT WILL CAUSE EXCESSIVE VIBRATION. MOVEMENT OF A FEW CENTIMETRES IS QUITE ACCEPTABLE AND DOES NOT SUGGEST ANY PROBLEM. -
Page 12: Important Facts
• If you consider there are faults relating to the installation, contact your installer to rectify. • If you consider there is a manufacturer defect to the fan motor, contact the warranty service line on 1300 665 926, or log the warranty at www.ventair.com.au/warranty You will need to provide the following information: •...
