- Page 1 SPA Bath Marina 188 x 133 Installation and user manual...
- Page 2 Dear customers, Thank you for trusting us and buying our product! The POOL-SPA company, one of the leaders in the European hydromassage bath market, has been offering its world class quality products for many years. The endurance, reliability and safety of our baths has always been of greatest importance to us;...
-
Page 3: Table Of Contents
CONTENTS Introduction ..........................4 PART 1 - INSTRUCTION MANUAL 1.1. Technical specifi cation ...................... 6 1.2. Jets ........................... 7 1.3. Conservation substances ....................8 1.4. Ventilation ......................... 8 1.5. Main functions accesible from the electronic control panel ..........8 1.6. Massage ......................... 12 1.7. -
Page 4: Introduction
Introduction In order to be able to fully use all functions of a SPA Laguna, please read all sections of this manual. You should remember that despite the therapeutic and relaxing function of a hydromassage treatment, seriously ill persons or persons suffering from heart disorder diseases or high blood pressure need to consider special conditions created inside the SPA baths and consult their physician before using such baths. -
Page 5: Part 1 - Instruction Manual

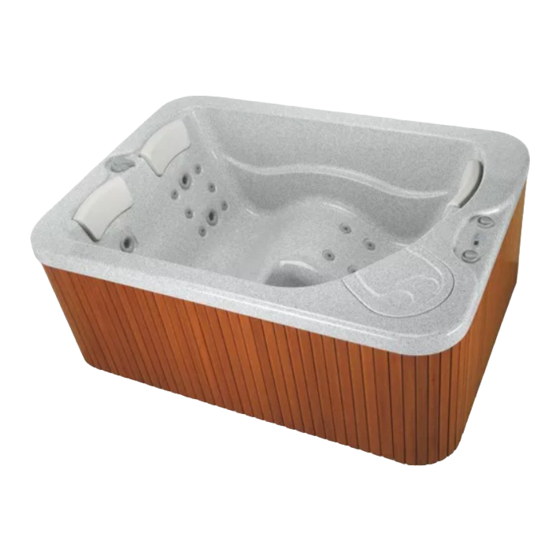

PART 1 - INSTRUCTION MANUAL Congratulations on buying a SPA MARINA portable bath! Hydromassage in the SPA MARINA bath can be en- joyed by even 3 people (two places for lying and a seat). The bath size makes it easy to carry it through any standard door;... -
Page 6: Technical Specification
1.1. TECHNICAL SPECIFICATION SPA MARINA dimensions: - length: 188 cm - width: 133 cm - depth: 70 cm - height: 75 cm Capacity: 580 litres Weight: 150kg (without water and housing) 1880 Material and construction: acrylic strengthened by laminated polyester... -
Page 7: Jets
C degrees of the surrounding air then ANTI- FROST systems starts after 15 minutes from last pump switch off. • If during filtration mode ANTIFROST system starts, filtration mode will be switch off. 1.2. JETS SPA MARINA is equipped with an innovative jet system: Jets Number Photo fi... -
Page 8: Conservation Substances
1.3. CONSERVATION SUBSTANCES The acrylic surface of the bath is covered with a thin layer of wax, being the remaining of the polishing process. Metallic elements have been coated with silicone oil for protection purposes. The SPA should be washed off (e.g. with a dishwashing detergent) prior to fi lling the bath with water. 1.4. - Page 9 Press and hold this button for more than 5 seconds to view from inside the spa the water temperature and time display projection, to read these data. 1.5.4. Setting the right time The controller is fi tted with the RTC system (real-time clock), which works permanently even after disconnecting the main power.
- Page 10 1.5.6. Filtration In this system, the fi ltration process is based on water ozonation. The water is sucked by the skim- mer fi lter and then mixed with ozone by the injector. After that, the water returns to the SPA bath through the ozone jet.
- Page 11 1.5.9. Increasing the maximum temperature This function allows the user to increase the water temperature by two degrees centigrade above 40°C (104°F). To set the temperature above 40°C, set the maximum temperature and next press and hold the up arrow button for 5 seconds until the Orx.x sign appears on the display, where x.x signifi...
-
Page 12: Massage
keyboard. The total keyboard locking function is not remembered after a power cut-off. 1.6. MASSAGE There are water and air massage systems installed in the bath: 1.6.1. Hydromassage (whirl bath) Hydromassage is the pressure on defi ned muscles exerting by stream of water or stream of air and water. -
Page 13: Water Ozonizing
– eliminates fungi and yeast in water, – refilling with water does not need to be frequent. Water fi ltration system SPA MARINA fi ltration system comprises: - telescopic skimmer fi lter – an element taking and fi ltering water - fi ltration and massage pump - water fi... -
Page 14: Disinfection
Return flow (first and second speed) 1.8. DISINFECTION Disinfection process in the SPA Marina is ozone based. Ozone is used during filtration. Additionally, the bath is equipped with a START SET for pH correction and disinfection with active oxygen, as described in Part 1.10. -
Page 15: Measurement And Treatment Formula Set
hinge in the middle, for easy folding and handling. Continous exposition to the sun, UV lightning can be the cause of color change of the thermal cover. Protect the thermal cover against the mechanical dama- ges. Measurement and treatment formula set 1.10. - Page 16 The START SET If the measured pH is outside the range 7.2 to 7.6 it will be necessary to use SPA Marina granules to correct level!!! 1. Dinominus - pH decreasing granules. Dosage: about 10 g/1000 litre to lower pH by 0.1 (in case of MARINA approximately 5 – 7 g).
-
Page 17: Part 2 - Installation Manual
2.2. SITE PREPARATION The SPA MARINA portable bath may be operated both indoors and outdoors. The site for the bath should comply with the following conditions: a. the proper area and the proper transportation routes (in case of closed premises) b. -
Page 18: Grounding Cable Connection
Please check the water level before entering the bath. The water level should be from 3 to 4 cm above the skimmer. See the fi gure on the right. If the water level is not suffi cient, the fi ltration system will not work properly. Also heating will not be possible. -
Page 19: Maintenance Of Acrylic Elements
All the SPA MARINA hydromassage components are on the right hand side of the bath. To ensure easy access to them, the right side of the bath should not be encased. Hydraulic connections L. Light A. 2 fixed rotational jets O. -
Page 20: Electrical Scheme Of The Marina Spa
2.8. ELECTRICAL SCHEME OF THE MARINA SPA 20AT 20AT L/LO N PE L/HI N PE L/HI N PE L/LO N PE N PE PUMP 1 PUMP 1 PUMP 2 PUMP 2 INPUT VOLTAGE... -
Page 21: Warranty For Spa
Before using the equipment, read carefully through the instructions included with the Spa. POOL-SPA Sp. z o.o. ul. Dąbskiego 35, 72-300 Gryfi ce phone: +48 91 38 777 00 service phone: +48 91 38 777 48 fax. +48 91 38 777 01 e-mail: info@poolspa.pl, www.poolspa.pl... -
Page 23: Technical Product Sheet
TECHNICAL PRODUCT SHEET MODEL Marina SPA FACTORY NUMBER DATE OF PRODUCTION AND TESTING QUALITY CONTROL POOL-SPA QUALITY CONTROL ..../..../....NOMINAL POWER REQUIREMENTS ~4,5 kW FUSING REQUIREMENTS VOLTAGE / FREQUENCY 230-240 V/50 Hz THERMAL PROTECTION... - Page 24 72-300 Gryfi ce tel. +48 91 38 777 00 fax +48 91 38 777 01 e-mail: info@poolspa.pl www.poolspa.pl POOL-SPA company has the policy of constant improvement of products and reserves the right to introduce changes to the specifi cation and colours without a prior notifi ca- tion.
