Summary of Contents for Poolspa Octavia

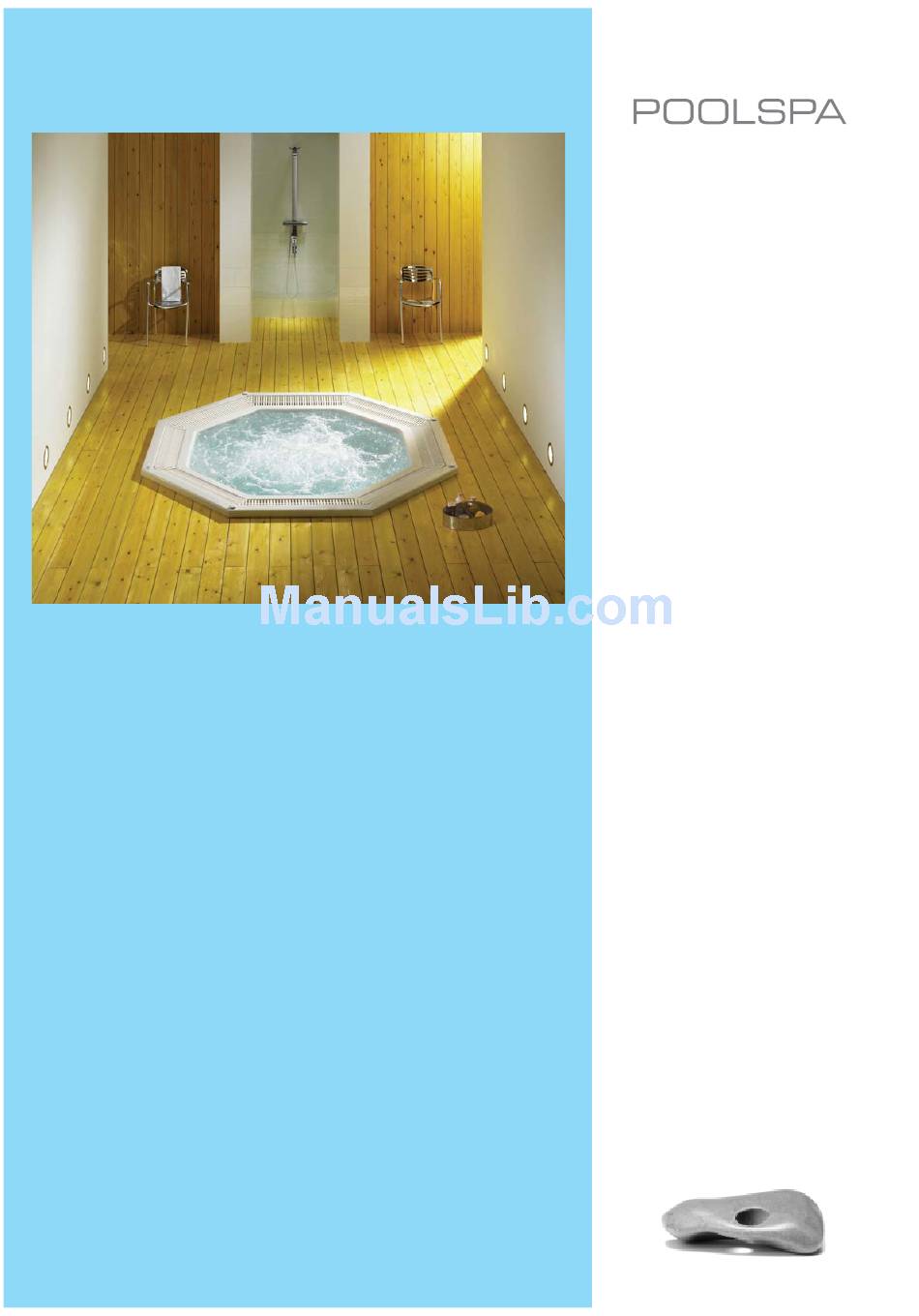

  • Page 1 Multi-person SPA bath gutter option Installation and instruction manual...
  • Page 2: Table Of Contents

    Dear Customers, Thank you for the trust you have us shown by purchasing our product. We have put all our efforts to ensure that this product fully meets you expectations. We have been offering world class quality products for many years. The endurance, reliability and safety of our products have always been of the greatest importance to us.
  • Page 3: General Information

    - 9 kW water heater with a fl ow metering and overheating metering sensor (SPA Vesta, Olivia - heater 12 kW) Underwater LED light or LED spotlight – 24 points CHARACTERISTICS: - Capacity of SPA baths with gutters: Janette: 900 litres Vesta: 1600 litres Octavia: 1050 litres Olivia: 2100 litres Victoria: 1100 litres Sunfl ower: 2000 litres...
  • Page 4 Victoria Classic 2610 2040 1930 Natalie Vesta 1200 1045...
  • Page 5 Olivia Sunflower 1270 1150 1000 2425 2990 Olimpia 2500 1900 1690...
  • Page 6: Safety Rules

    1. SAFETY RULES The SPA bath will be delivered to the Customer in its original package. After the package is removed, one should check the SPA bath carefully before commencement of installation and report all spotted problems. Do not move the bath and the fi ltrating equipment by holding them with the piping. The bath should be always placed on its legs, never on its side.
  • Page 7: Connection To Electrical System

    Fig. 1. Bath installed on the fl oor slab level Section B-B Sand filter Bath foundation 230 x 210 cm Sanitary Engine room pallet compartment 130 cm x 140 cm Technical compartment Overflow tank Section A-A Blower protection loop 3 mm of silicone Sand filter Drain grate Connection...
  • Page 8 Fig. 3. Electrical scheme of SPA bath Exclusive version: 1 hydromassage pump, multicolour LED light...
  • Page 9 Fig. 4. Electrical scheme of SPA bath Exclusive version: 1 hydromassage pump, LED spotlight – 24 points...
  • Page 10 Fig. 5. Electrical scheme of SPA bath Exclusive version: 2 hydromassage pumps, multicolour LED light...
  • Page 11 Fig. 6. Electrical scheme of SPA bath Exclusive version: 2 hydromassage pumps, LED spotlight – 24 points...
  • Page 12: Earthing

    4.1. Earthing To ensure the proper operation of the differential current safety fuse, an earthing system must be installed in the building, as per the valid regulations, as well as an equalizing connection. 4.2. Supply cable The SPA bath supply cable should be permanently fi xed to the electrical network. The electrical system must be installed in compliance with the valid requirements for low voltage systems.
  • Page 13: Filling And Draining Of Bath

    6. FILLING AND DRAINING OF BATH The air blower system must never be used for fi lling the SPA bath. The SPA bath can be permanently fi xed to the water supply line or can be fi lled by means of a disconnectable fl exible hose, fi...
  • Page 14: Ventilation System

    7. VENTILATION SYSTEM High water temperature in the SPA bath (maximum 40°C) will cause emitting of big amounts of vapour. An effi cient ventilation system should be provided in the room where the SPA bath is installed. Otherwise, installation of a steam condenser is recommended, to keep air humidity on the same level and avoid vapour condensation on the ceiling and on the fl...
  • Page 15: Heater And Lighting

    Six-function valve enables fi lter maintenance and controls its operation. During the standard operation the valve is set on fi ltration. Setting the valve into various position, performs a variety of maintenance functions at the fi lter, such as washing of the fi lter (cleaning sand deposits) and circulation (the fl ow of water with avoiding the sand deposit for rapid forced circulation in the pipeline).
  • Page 16: Stb-3 Control System

    12.1. STB-3 Control System Red diode shows the active control function STB- 3 Heater Filtration pump Automatic filling Flushing (not available in this model) Water temperature Hour Control clock Heater cooling time Manual control Green diode points out the information visible on the display STB-3 system will once a week control the temperature, the water level and the fi...
  • Page 17 12.1.3. Programming After the function is selected, holding pushbutton for at least 3 seconds activates function programming mode. Pushbuttons are used for parameters change. The pushbutton schanges a parameter for a consecutive one; when all function parameters are modifi ed, the system exits programming mode and modifi ed parameters remain saved.
  • Page 18: Maintenance Of Acrylic Coating

    12.1.3.4. Heater cooling time setting The function is selected with pushbutton . Setting can be changed between 0 and 50 minutes at any moment. 1. Push pushbutton and hold it over 3 seconds. 2. With pushbutton set minutes for each 10 minutes beginning from 10 minutes (0 to 50). 3.
  • Page 19: Maintenance Of Water

    UV lamp work only during fi ltration. 15. MAINTENANCE OF WATER In order to maintain perfect hygienic and aesthetic conditions of water, use of disinfection and water cleaning products specifi cally designed for the SPA baths is recommended. Before the first bath and always once in 2 weeks, please check the water pH with the enclosed Di- nofresh/pH Tester!!! pH tester: pH value measurement •...
  • Page 20 Dosage: spread concentrated or dissolved (1:10) agent on dirty surfaces using a brush. Rinse thoroughly after a short period of time. Do not let the agent dry before rinsing. - It is recommended to switch on the water fi ltrating pump for at least 5-6 hours per day, i.e. one hour before the intended use of the bath and a few hours after use, then for 3 subsequent hours of the same day at another hour.
  • Page 21: Guarantee Conditions

    8. The manufacturer will not reimburse the costs of any damages to wall and fl oor tiles caused directly in result of the necessary repairs as part of guarantee service works. 9. This Guarantee is valid on the territory of the Republic of Poland. ROCA POOL-SPA Sp. z o.o. ul. Wyczółkowskiego 20, 44-109 Gliwice tel. + 48 91 38 777 00 www.poolspa.pl,...
  • Page 23: Technical Product Sheet

    TECHNICAL PRODUCT SHEET MODEL FACTORY NUMBER DATE OF PRODUCTION AND TESTING NOMINAL POWER REQUIREMENTS FUSING REQUIREMENTS VOLTAGE / FREQUENCY 3 x 380V/50 Hz THERMAL PROTECTION QUALITY CONTROL...
  • Page 24 Wyczółkowskiego 20, 44-109 Gliwice tel. + 48 91 38 777 00 www.poolspa.pl, ROCA POOL-SPA company has the policy of constant improvement of products and reserves the right to introduce changes to the specifi cation and colours without a prior notifi cation. However, ROCA POOL-SPA makes all efforts to ensure that the specifi...
