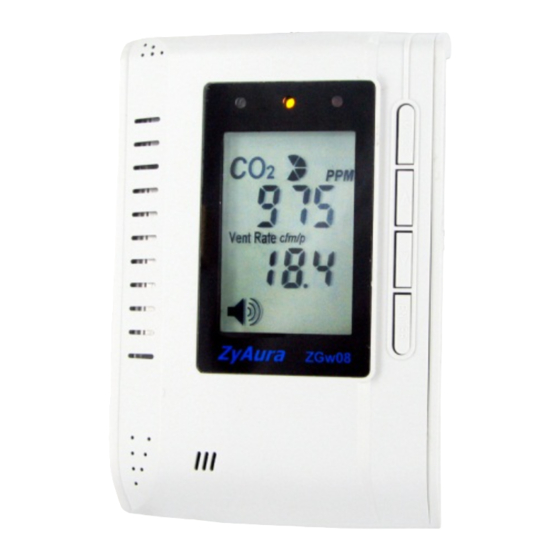

ZyAura ZGw08VRC Operating Instructions

Wall Mount CO2 Monitor
Operating Instructions
Thank you for selecting ZGw08VRC CO2 wall mount monitor.
Your safety is very important to us .To ensure you use your product correctly and safety, we would like to your attention to read those
warning and the entire User Manual before using the product.
☞ Note:
＊If you do not used this product for a long time, please remove AC adapter and keep them.
＊We do not guarantee measurement result by this product and/or the result by using the measurement.
＊This product and measurement result are not for business proof.

【Product Overview】

This product was developed to detect the presence of CO2 in the ambient air and help people to take care of the Indoor Air Quality.
The compact device is designed for use in HAVC in the building. The demand controlled ventilation in the building, also the
greenhouse with the CO2 concentration control.
By using the CO2 monitor as the indicator, it can easily get the current CO2 concentration together with the ventilation rate. And then
adjust the ventilation to the comfort condition automatically by the setting data. So the over-ventilation of the building can be reduced,
and the energy can be saved. The ZGw08VRC can be widely used in the office building, green house, school, exhibition, shopping
mall.
The ZGw08VRC is easy to use and has many features:
NDIR ( Non-Dispersive-Infrared) technology used to measure CO2 concentration

Three different LED display show the current Indoor Air Quality situation.

Voltage (0~5V), Current loop and relay output.

 Reliable Sensor provides long-term calibration stability.
The visual and audible alarm function can be adjustable by user.


【Caring for product】

To make sure you receive the maximum benefit from using this product, please observe the follow guideline.
1. Cleaning ----Disconnect the power before clean. Use a damp cloth, do not use the liquid cleaning agent, such as benzene, thinner
or aerosols.
2. Repair---- Do not attempt to repair the product or modify the circuitry by yourself. Please contact with the local dealer or a qualified
repairman if the product needs servicing.
3. Calibration--- Please observe the calibration operation to make sure the accuracy for the devices when it‟s necessary.
4. Air circulation---The vents allow the air circulation liquid for measurement of the CO2 concentration and the ventilation should not
be blocked.

【Safety Instruction】

1. Please take the devices lightly, do not subject the product to impact or shock.
2. Do not immerse the product in water.
3. Please pay attention to the terminal block connection instruction, the wrong mode of operation or opposite installation will destroy
the circuit of the devices.
4. Do not touch the exposed electronic circuitry of the device under any circumstances. Keep the circuit is close during installation. As
there is the danger of electric shock.
5. Please keep the devices away from children touch to avoid the dangerous or the accident.
6. Do not keep the product under the hot and moisture environment. Keep the product away from the heat source or near water.
7. Please ensure the screws are fixed on the wall tightly. Do not let the screws approach or close to the surface of PCB board during
installation. It has the risk of circuit damage or irreparable damage to device.
-1-
Model: ZGw08VRC
As of 20.Aug.2011

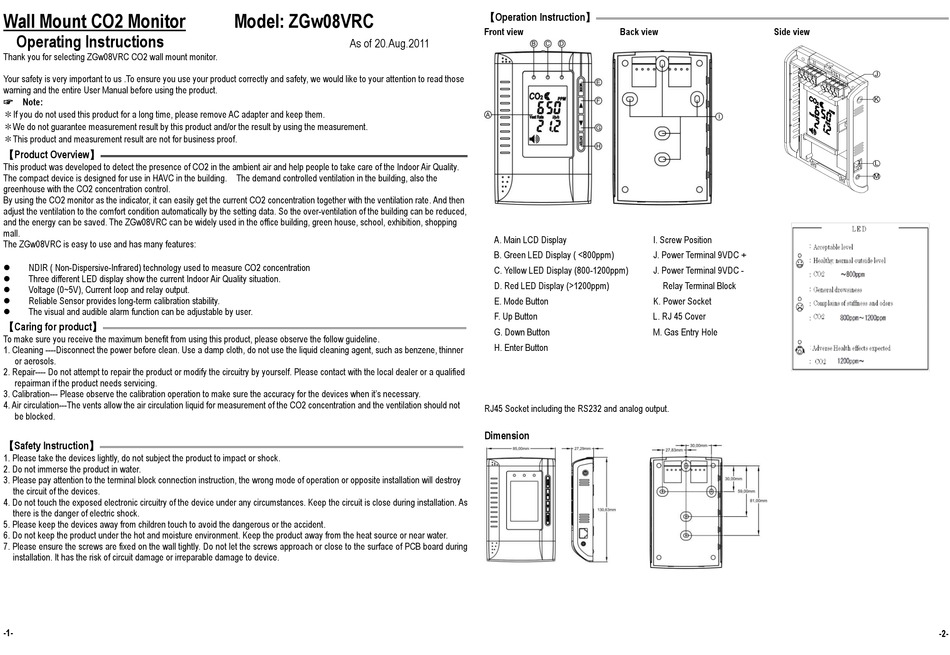

【Operation Instruction】

Front view Back view
A. Main LCD Display I. Screw Position
B. Green LED Display ( <800ppm) J. Power Terminal 9VDC +
C. Yellow LED Display (800-1200ppm) J. Power Terminal 9VDC -
D. Red LED Display (>1200ppm) Relay Terminal Block
E. Mode Button K. Power Socket
F. Up Button L. RJ 45 Cover
G. Down Button M. Gas Entry Hole
H. Enter Button
RJ45 Socket including the RS232 and analog output.
Dimension
Side view
J
K
L
M
-2-
