How To Use - ITech IT-E165A User Manual

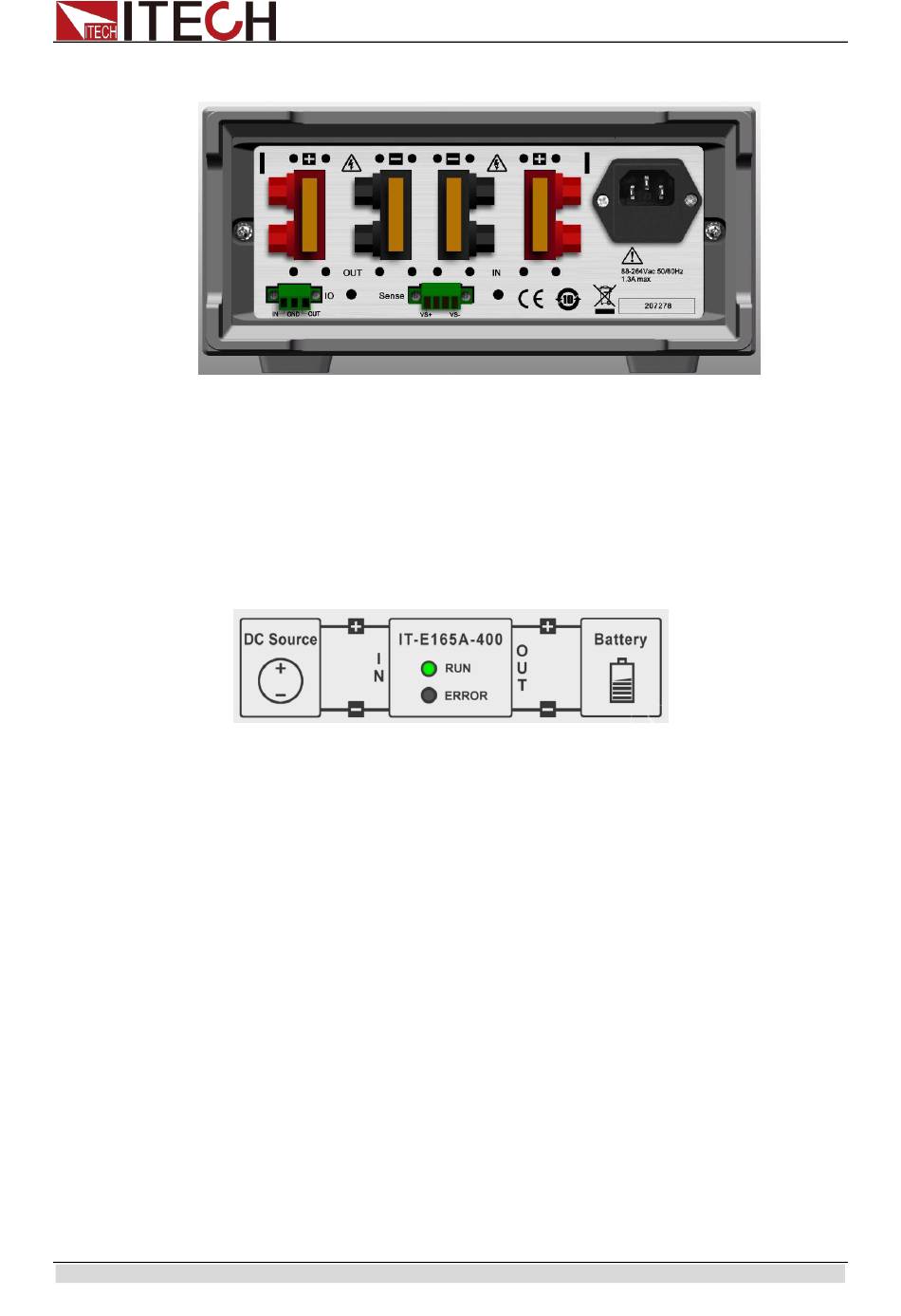

The rear panel is shown in the figure below.

1.2 How to Use

1.
2.
3.
4.
5.
Make sure that the power of the battery, IT-E165A, and IT6000 is turned
off.
Refer to the following diagram to connect the IT6000 series instrument and
the DUT (battery).
Note: The green terminals Sense and IO on the rear panel are reserved
terminals and do not need to be connected.
Connect the power cord of IT-E165A.
Start the battery and turn on the IT6000 power switch.
Turn on the Power switch of the IT-E165A.
If IT6000 (IN) and DUT (OUT) are not reversed, and the voltage difference
between IT6000 (IN) and DUT (OUT) is less than 2V, the indicator will
display RUN (green light);
If there is a reverse connection between IT6000 (IN) and DUT (OUT), or
the voltage difference between IT6000 (IN) and DUT (OUT) is greater than
2V, the indicator will display ERROR (red light). Please recheck whether
IT6000 (IN) and DUT (OUT) are reversely connected, and make sure that
the voltage difference between IT6000 (IN) and DUT (OUT) is less than 2V.
