Chapter 1 It-E165A Introduction; Introduction - ITech IT-E165A User Manual

IT-E165A is an optional anti-reverse module we prepared for users, suitable for
IT6000 series products (including IT6000B, IT6000C, IT6000D, IT8000).
It is necessary to consider that the voltage/current of the DUT is within the rated
voltage/current range of IT-E165A.
The following models are available:
Model
IT-E165A-250
IT-E165A-400
IT-E165A-500
The main functions are as follows:
It can effectively avoid the reverse connection of the DUT. IT-E165A has a
built-in detection circuit to detect the voltage difference to determine whether it
is reversed. If it is reversed, the test circuit is disconnected to ensure the safety
of the DUT and the operator.

1.1 Introduction

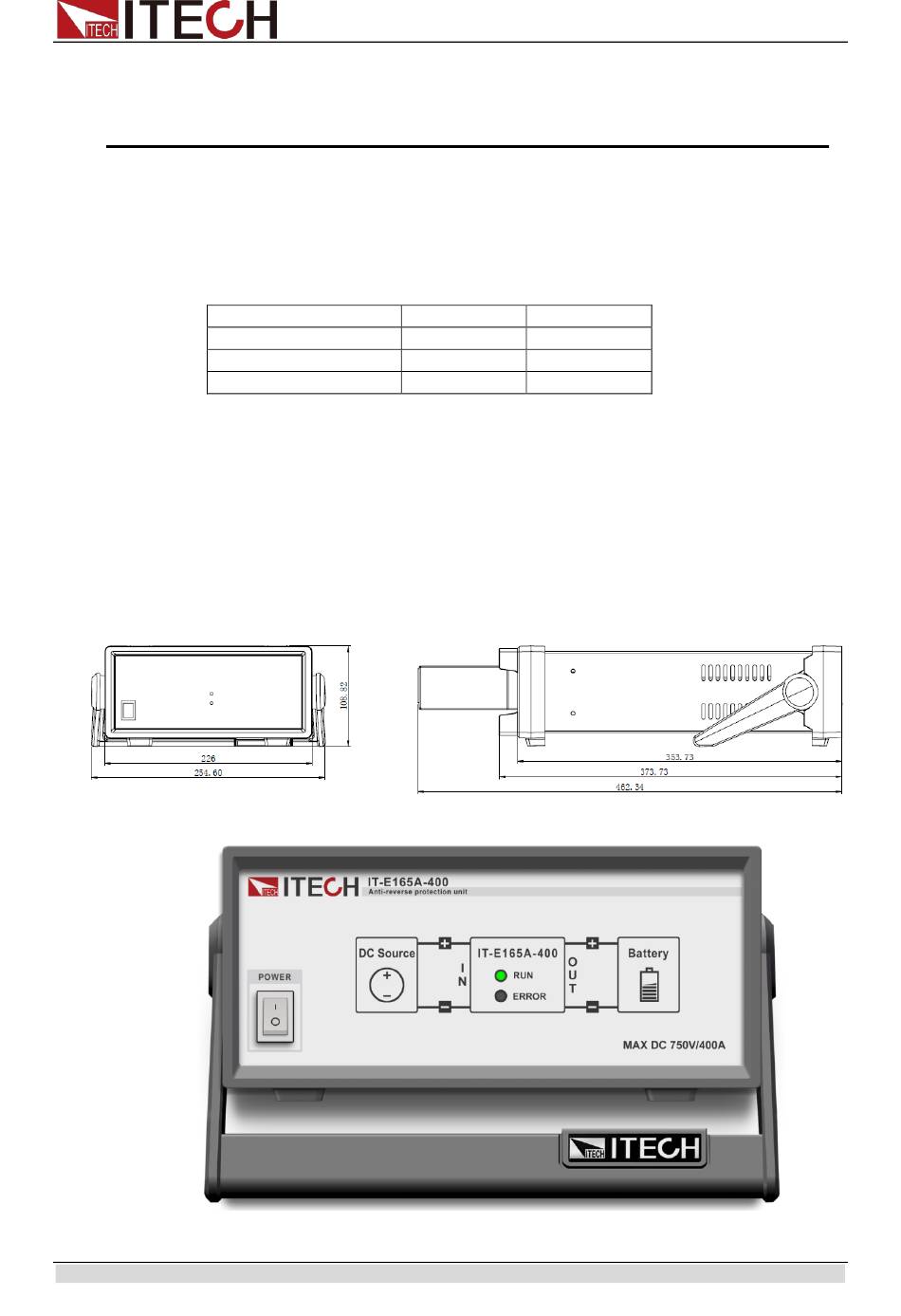

The dimensions of IT-E165A are shown in the figure below. Unit: mm
The front panel is shown in the figure below.

Chapter 1 IT-E165A Introduction

Voltage
750V
750V
900V
Copyright© Itech Electronics Co., Ltd.
IT-E165A User Manual
Current
250A
400A
400A
1
