Jack Model
1 inch
[25 mm]
JA6024 JU11
JA6037 JU11
JA10026 JU11
JA10037 JU11
JAS10026 JU11
JAS10037 JU11
JAS15026 JU151
JAS15037 JU151
JAS20026 JU201
JAS20037 JU201
5. Slowly lower the cylinder rod until the weight of the load
is supported by the U-Rings. Refer to the information in
Section 5.3 for jack operating instructions.
IMPORTANT: Follow all applicable work rules and regulations
in effect at your facility or worksite. The use of auxiliary stands,
blocking or other additional load supports may be required even
when U-Rings are installed.
Steel U-Ring
(top)
Locator (on each
U-Ring and at
top of cylinder
housing)
Steel U-Ring
(bottom)
Load
Cap
Load
Support
Ring
Assembled View

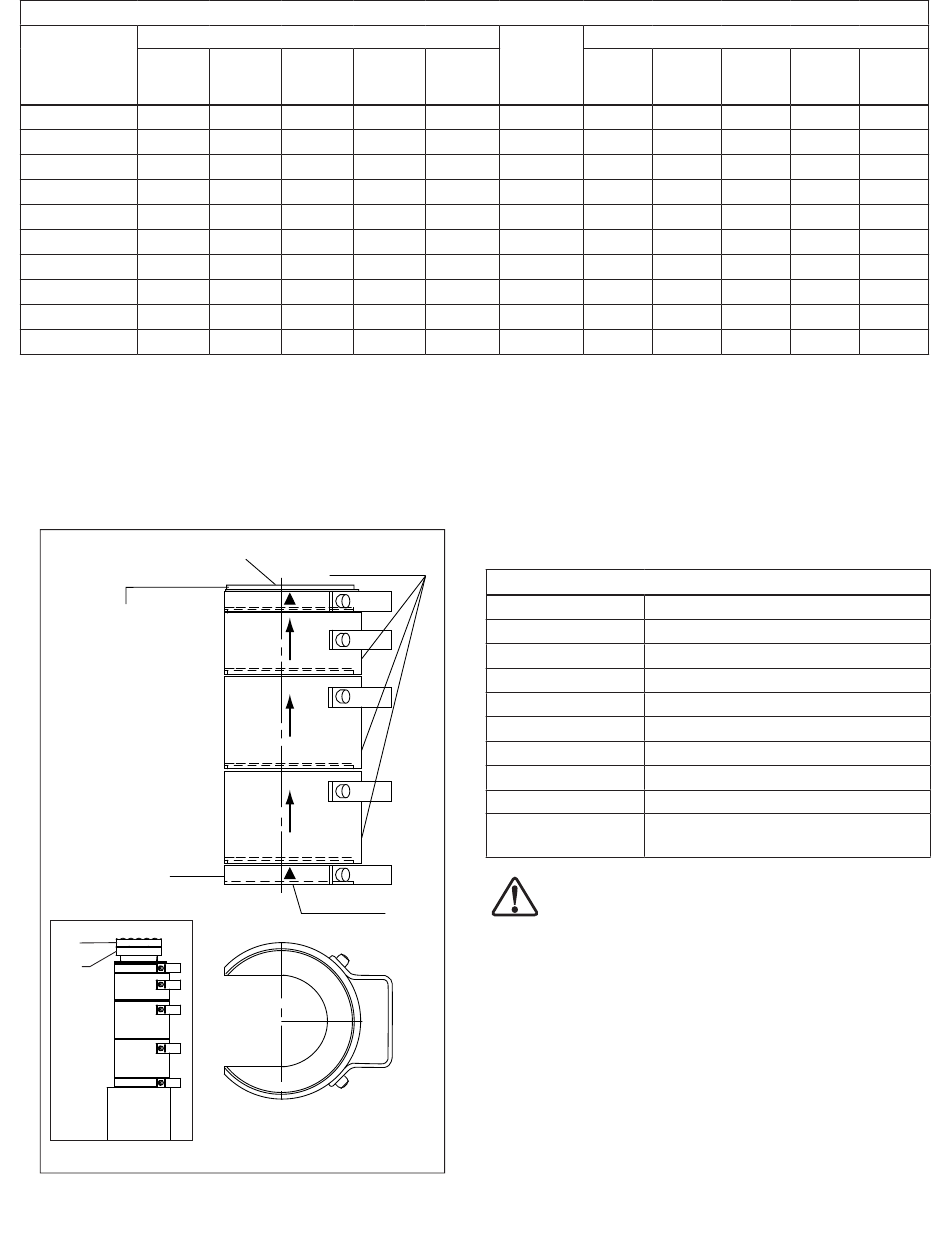

Figure 5, U-Ring Stacking Arrangement (typical)
Table 7 - U-Ring Information
U-Ring Size and Model Number
3 inch 4-1/2 inch 5-1/2 inch
[76 mm] [114 mm] [140 mm]
JU13 JU14 -
JU13 JU14 -
JU13 JU14 -
JU13 JU14 -
JU13 JU14 -
JU13 JU14 -
JU153 - JU155
JU153 - JU155
JU203 - JU205
JU203 - JU205
Aluminum U-Rings
Recess of U-Ring
U-Ring
Set Model
10 inch
2x
Number
[254 mm]
- JUS126 JU11
JU110 JUS137 JU11
- JUS126 JU11
JU110 JUS137 JU11
- JUS126 JU11
JU110 JUS137 JU11
- JUS1526 JU151
JU1510 JUS1537 JU151
- JUS2026 JU201
- JUS2037 JU201

6.0 MAINTENANCE

6.1 Maintain Oil Level in Hydraulic Reservoir
Check the hydraulic oil level every 30 days. Oil level should be
approximately 1 inch [25 mm] below top of reservoir, with cylinder
fully retracted and motor off.
If oil level is low, add Simplex hydraulic oil as required. If Simplex
hydraulic oil is not available at the work site, use an equivalent
hydraulic oil that meets the specifications shown in Table 8.
Table 8 - Oil Specifications
ISO Grade
Viscosity Index
Viscosity at 210 °F
Viscosity at 100 °F
Viscosity at 0 °F
Specific Gravity
Flash, C.O.C. °F
Pour Point, °F
ASTM D-943
Additives
CAUTION: Failure to use the proper oil may result in
damage to jack hydraulic components and will void the
product warranty. Use of Simplex hydraulic oil is
strongly recommended.
IMPORTANT: Be sure that the oil is clean. If the oil has a milky,
cloudy or dark appearance, it should be changed immediately as
described in Section 6.2.
6.2 Changing the Oil (See Figure 6)
Change the oil at least every 12 months.
Note: The following conditions will require more frequent oil
changes:
• Rigorous duty, where oil temperature may reach 150 °F
[60 °C].
• A high humidity environment and/or extreme changes in
temperature that can result in condensation inside the
reservoir.
• Dirty or dusty environments that may contaminate the oil.
7
Items Included in Each U-Ring Set
1x 2x 1x
JU13 JU14
JU13 JU14 JU110
JU13 JU14 -
JU13 JU14 JU110
JU13 JU14 -
JU13 JU14 JU110
JU153 JU155 -
JU153 JU155 JU1510
JU203 JU205 -
JU203 - -
32
100 minimum
42 S.U.S.
165 S.U.S.
<12000 S.U.S.
0.86
400
-35
2600 hours
Oxidation inhibitor, foam inhibitor,
anti-wear inhibitor
4x
-
-
-
-
-
-
-
-
-
JU205
