(Latest online doc version)

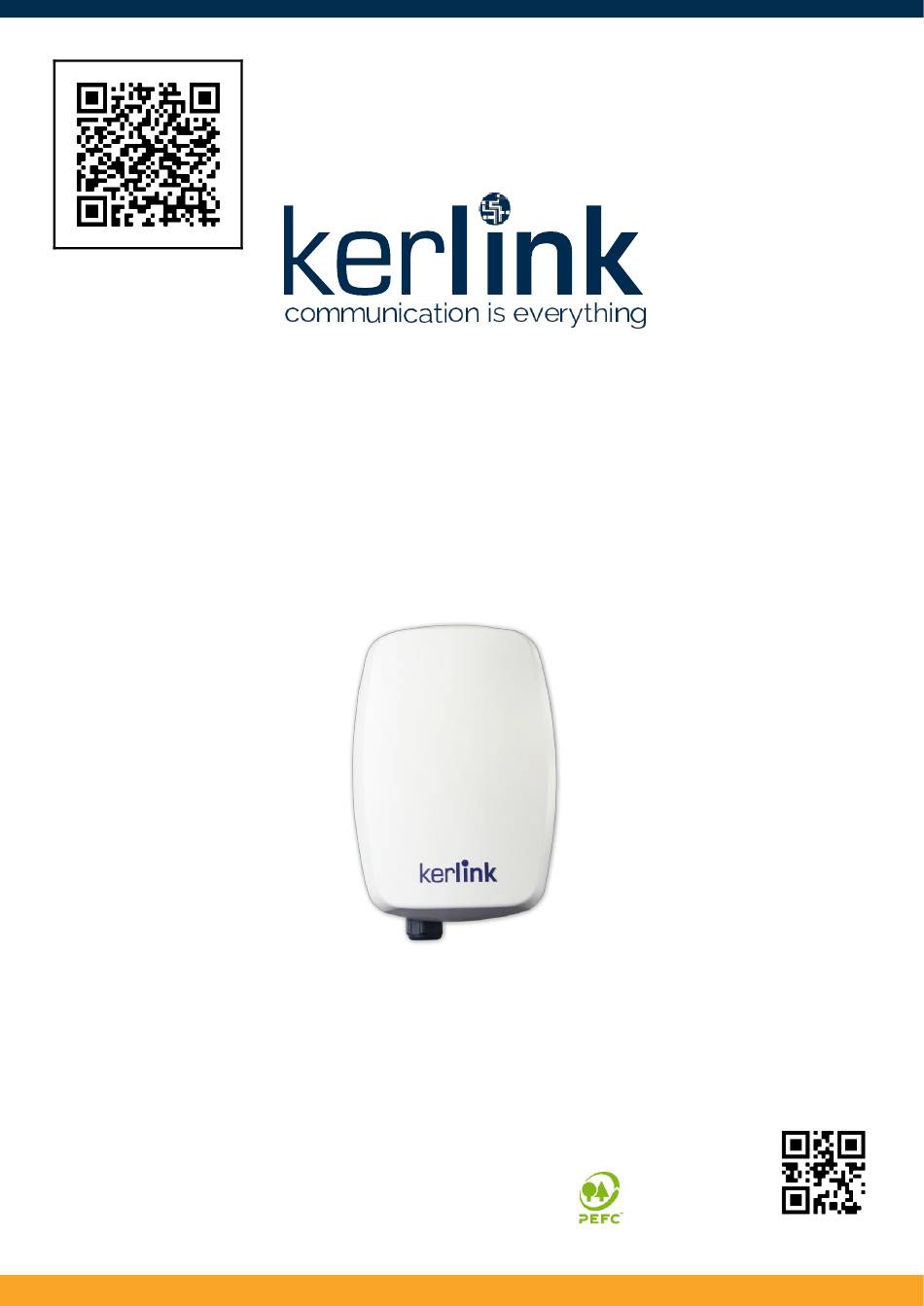

TM
Wirnet
iStation 915MHz Helium
LoRaWAN® gateway for the Internet of Things
Quick Start Guide
Thank you for choosing Kerlink.
We are proud to be part of your project.
For ecological reasons, this guide has been printed on recycled paper
KLK03577_01
Kerlink internal use only
Advertisement
Table of Contents
Related Manuals for Kerlink Wirnet iStation 915H
Summary of Contents for Kerlink Wirnet iStation 915H
- Page 1 Wirnet iStation 915MHz Helium LoRaWAN® gateway for the Internet of Things Quick Start Guide Thank you for choosing Kerlink. We are proud to be part of your project. For ecological reasons, this guide has been printed on recycled paper KLK03577_01...
-
Page 2: Need Help
• Kerlink is gathering all the technical information on a Wiki: http://wikikerlink.fr/ - If your don’t have yet your Wiki login/password please request them to support@kerlink.com (note that the “Product ID” of one of your products will be required). - How to find the “Product ID”? Please look at the Wirnet iStation 915 helium sticker placed on the right side of the case. -
Page 3: Package Contents
For additional information or if you need any assistance to use the product, please contact your reseller. You can also find more information here: https://www.kerlink.com/customer-support/ Manufacturer Kerlink, 1 Rue Jacqueline Auriol, 35235 Thorigné-Fouillard, France Tel.: +33 (0)2 99 12 29 00 – Fax: +33 (0) 2 99 12 29 11 www.kerlink.com Safety •... - Page 5 Markings Symbol Description Symbol Description Wirnet iStation Type of Equipment QR Code with EUI information 915H FCC marking indicating that the product complies with current US 42-57V 170mA Power supply information regulations other marking depending on the country Marking indicating that the product Board ID Serial number of board complies with RoHS directives...
- Page 6 Mandatory ground Installation support on a Installation the Wirnet™ Gateway support (Strapping connection on the Wirnet™ pole with strapping iStation on the support not included) iStation Mounting of the antenna and the cavity filter The antenna should be also connected to the ground. The pole diameter shall 48mm max.
- Page 7 Remove caps on both N Screw the cavity filter onto the Screw the coaxial cable onto the N connectors antenna through the N connector connector of the cavity filter • Use a M19 wrench to screw the cavity filter and the coaxial cable. Setting antenna connection Before setting all connections, ensure that the power supply is not connected to the mains supply.
- Page 8 / antenna and the gateway shall be limited to 1m max due to the coaxial cable length. If longer distance is required, use an alternate coaxial (not provided by Kerlink) • Use strapping wires to attach the RF coaxial cable to the pole •...
- Page 9 End-Span or Mid-Span at least a 15W PoE (Power over Ethernet) (not included) The Ethernet cable is not provided and must consist of two RJ45 T 568A (or 568B) plugs on each side. KERLINK recommends using a cable with the following characteristics: • Category: 6A •...
-
Page 10: First Connection
Blink / 2 seconds Restore stock Blink / 4 seconds For more information on the « Quick start of Wirnet™ iStation Gateway, please consult the Kerlink Wiki: http://wikikerlink.fr/wirnet-productline/doku.php?id=wiki:quickstart:quickstart_istation First connection The Wirnet productline embeds a web interface to allow to easily manage the gateways: •... -
Page 11: Declaration Of Conformity
The power supply of the Wirnet™ iStation 915MHz Helium must be a limited source of power. Note that: Kerlink is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user’s authority to operate the equipment. -
Page 12: Disposal / Recycling
Contact your reseller for warranty conditions of the Wirnet™ iStation 915MHz Helium. The Wirnet™ iStation 915MHz Helium is not warranted by Kerlink in case the enclosure is opened, modified, painted, branded out, outlined by CUSTOMER for any reason. Feel free to contact us for a guideline for the branding. - Page 13 We would be very proud to get any photo of your gateway installation. Can you share them to dmk@kerlink.com Find us in Social Media We would like to hear from you: any tips, any news to share ? @kerlink_news Kerlink Kerlink channel We stay at your disposal for any help on your project. Yours sincerely. Kerlink Team...
