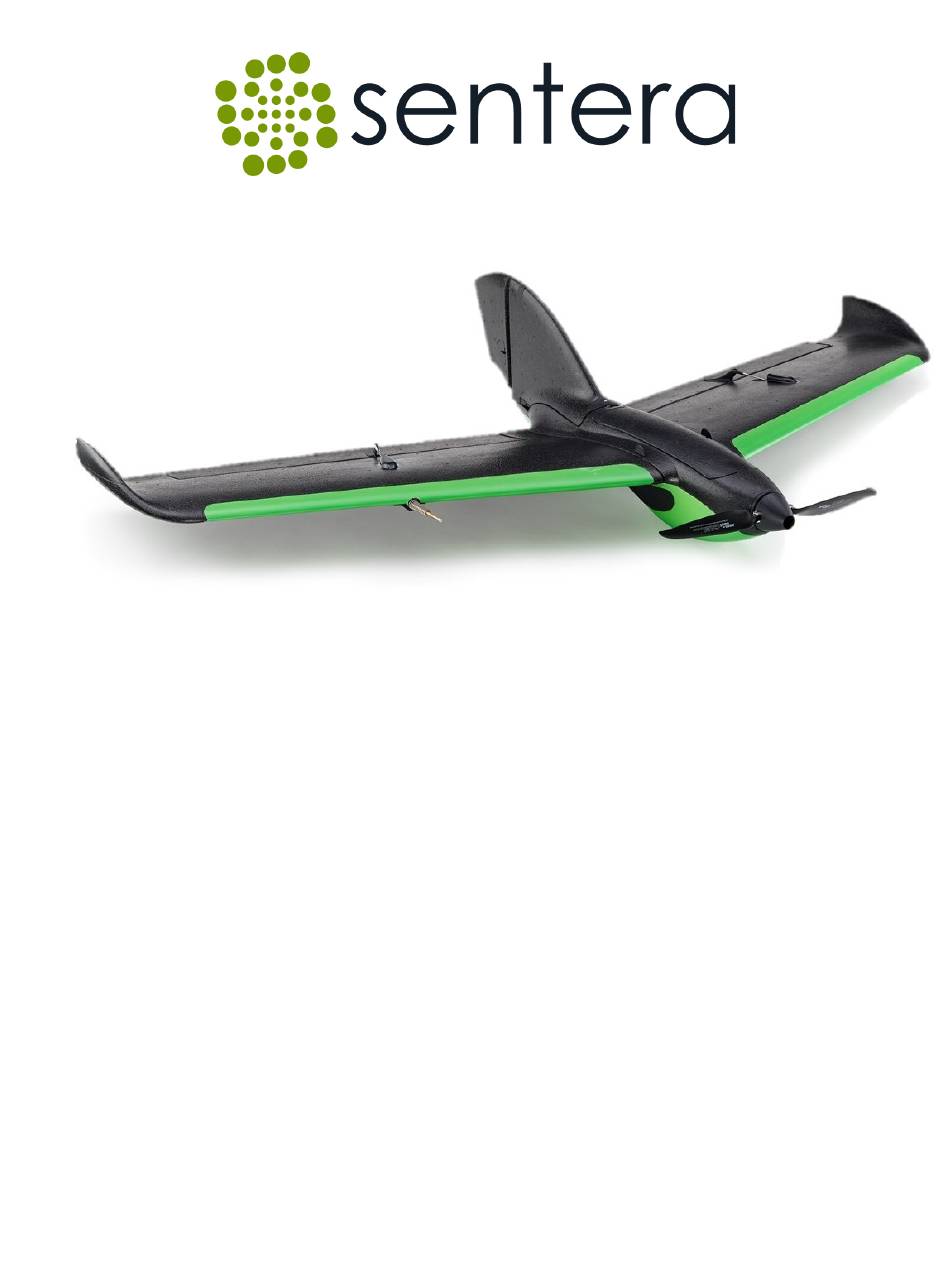

- Page 1 Sentera PHX ® Battery Troubleshooting Guide DOC 17012 Rev - Engineered in Minneapolis, MN, USA December 15, 2020 Rev 1.0...
- Page 2 Sentera is not responsible for and expressly disclaim all warranties of any kind with respect to third-party content, products, and services. Sentera will not be responsible for any loss, costs, or damages incurred due to your access to or use of third-party content, products, or services.
-
Page 3: Table Of Contents
3 Lost Front Battery Strap ..........................3 4 Battery 1% Error ............................5 5 Issues ................................7 6 Support ................................. 8 7 Revision History ............................8 www.sentera.com Page 2 December 15,r 2020 844.SENTERA © 2020 Sentera Inc. All rights reserved. -
Page 4: Introduction
2 Sentera Support Prior to flying the PHX, it is recommended you download and read the Sentera PHX Unmanned Aircraft Pilot User Guide to safely fly your PHX, found on the Sentera Support site at https://support.sentera.com/portal/kb/sentera/drones/sentera-phx. - Page 5 Never tape the front battery strap back in place. Placing tape over the ESC restricts cooling airflow which could cause the ESC to overheat. This could also cause poor battery fit, contributing to issue shown in Figure 2. www.sentera.com Page 4 December 15,r 2020 844.SENTERA © 2020 Sentera Inc. All rights reserved.
-
Page 6: Battery 1% Error
The battery bulkhead board is secured by two plastic tabs on either side of the aircraft and a third on top. Figure 3 shows installation of the battery bulkhead board under the top tab. Images below show correct and incorrect positioning. • www.sentera.com Page 5 December 15,r 2020 844.SENTERA © 2020 Sentera Inc. All rights reserved. - Page 7 DOC 17012 REV - Figure 3: Remove Obstructions Ensure battery is pressed firmly down into place when powering on aircraft, as shown correctly in Figure 4. www.sentera.com Page 6 December 15,r 2020 844.SENTERA © 2020 Sentera Inc. All rights reserved.
-
Page 8: Issues
Verify that the aircraft is in an area where it has a GPS fix and a home location. The camera does not start will not automatically start a session without a GPS position and home location. www.sentera.com Page 7 December 15,r 2020 844.SENTERA © 2020 Sentera Inc. All rights reserved. -
Page 9: Support
Verify that there is an SD card in the camera. The camera will not start a session without an SD card. Verify that the aircraft and Fly PHX are connected. The video stream is not visible if the application and the aircraft are not connected.
