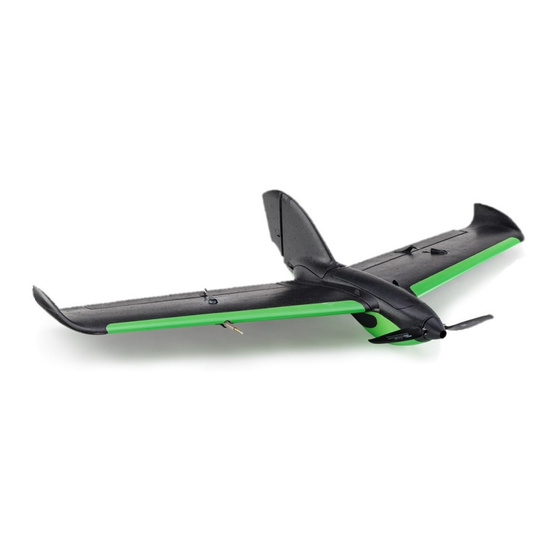

PHX™ Fuselage Repair Guide
Engineered in Minneapolis, MN, USA
June 12, 2020
Rev. 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the PHX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sentera PHX

Summary of Contents for Sentera PHX

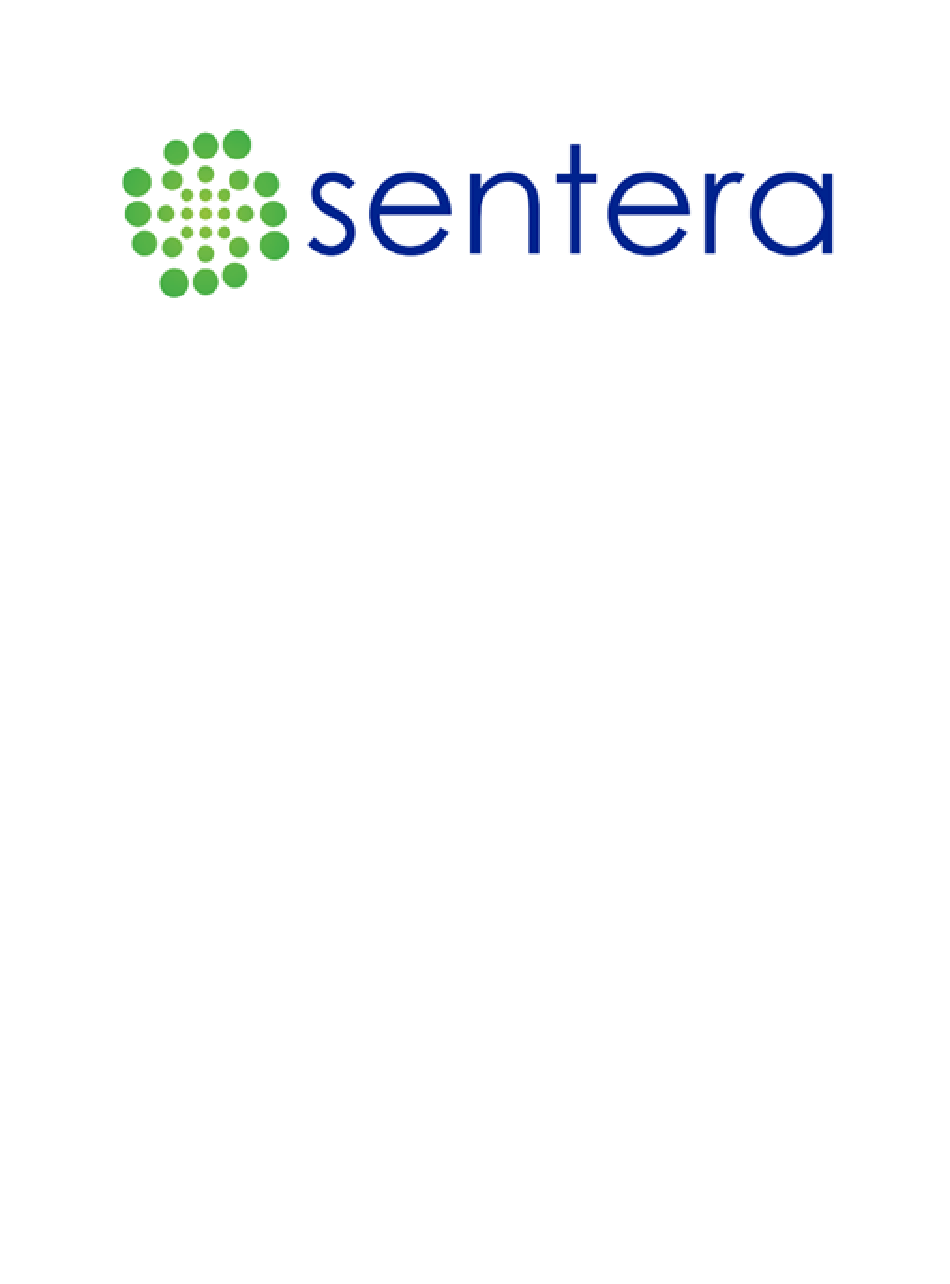

  • Page 1 PHX™ Fuselage Repair Guide Engineered in Minneapolis, MN, USA June 12, 2020 Rev. 1.0...
  • Page 2 Sentera is not responsible for and expressly disclaim all warranties of any kind with respect to third-party content, products, and services. Sentera will not be responsible for any loss, costs, or damages incurred due to your access to or use of third-party content, products, or services.
  • Page 3 PHX™ Fuselage Repair Guide Contents Introduction ............................2 Fuselage Repair ............................. 2 Support..............................7 www.sentera.com Page 1-2 Updated June 12, 2020 844.SENTERA © 2020 Sentera, LLC. All rights reserved.
  • Page 4 PHX™ Fuselage Repair Guide 1 Introduction The purpose of this document is to guide the user through the repair of the PHX™ fuselage. If you have any issues, contact Sentera Support. 2 Fuselage Repair To repair the PHX fuselage, follow these steps: Remove the two screws from the motor wire bracket\clamp of the damaged aircraft, as shown in Figure 1 and Figure 2.
  • Page 5 Figure 3: Remove Cone Remove the four motor screws from the plastic motor cup of the damaged aircraft, as shown in Figure 4. www.sentera.com Page 3 Updated June 12, 2020 844.SENTERA © 2020 Sentera, LLC. All rights reserved.
  • Page 6 , as shown in Figure 5. The work time for the JB weld is about 3-5 minutes. Mix glue in several stages if needed. www.sentera.com Page 4 Updated June 12, 2020 844.SENTERA © 2020 Sentera, LLC. All rights reserved.
  • Page 7 Replace the four motor screws. Install the motor wire clamp (the small plastic bar) onto the motor wire bracket using the two screws. www.sentera.com Page 5 Updated June 12, 2020 844.SENTERA © 2020 Sentera, LLC. All rights reserved.
  • Page 8 Arm the aircraft as you normally would after completing the pre-flight checklist.  Securely hold the aircraft such that the propellers cannot under any circumstance come into  contact with your body or appendages. www.sentera.com Page 6 Updated June 12, 2020 844.SENTERA © 2020 Sentera, LLC. All rights reserved.

  • Page 9: Revision History

    Revision History The revision history is listed in the following table. Release No. Date Revision Description Rev. 1.0 06-12-2020 Initial repair guide. [END OF DOCUMENT] www.sentera.com Page 7 Updated June 12, 2020 844.SENTERA © 2020 Sentera, LLC. All rights reserved.
