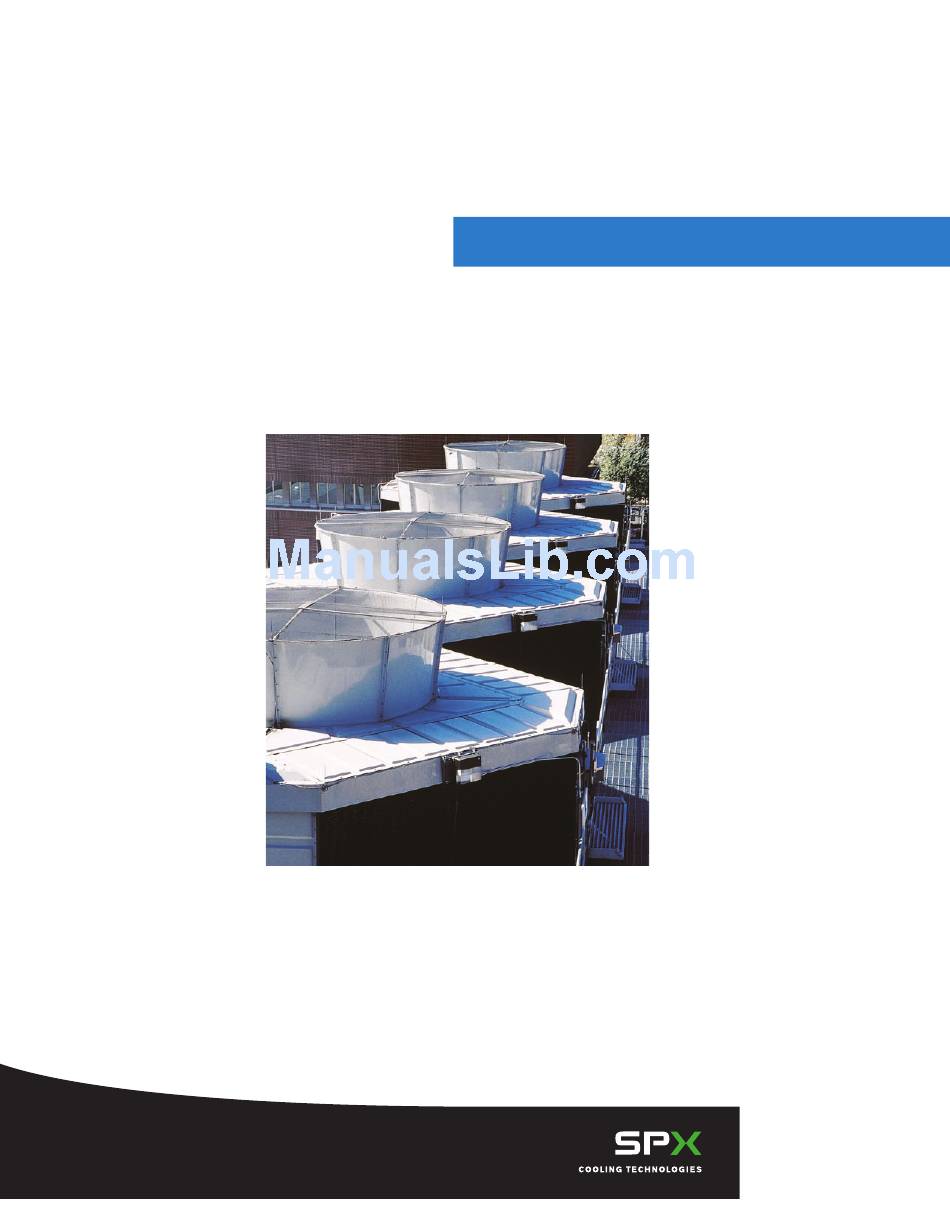

- Page 1 Marley QuadraFlow Cooling Tower...
- Page 2 / A Truly Unique Cooling Tower Design / The QuadraFlow is a unique cooling tower. Unique in its design—unique in its appearance—unique in its performance reliability in all seasons—unique in its maintainability—and unique in its use of inert, noncorroding construction materials. The FRP structure and basins—PVC fill, louvers and eliminators and the stainless steel hardware and mechanical equipment support structure...
- Page 3 CTI Certified ■ Although the QuadraFlow’s thermal ratings are certified by CTI, SPX Cooling Technologies will not use certification as a means to avoid responsibility. The QuadraFlow is guaranteed to work as well in the real world as it does in the laboratory. SPX guarantees the thermal performance of each QuadraFlow as installed.
- Page 4 / Features and Benefits /...
- Page 5 Air Movement Package ■ Removable fan guard—welded heavy gauge rods. Hot dip galvanized after fabrication. Eased inlet fan cylinder—assures full area, low turbulent airflow through the cylinder. Marley fan—cast aluminum alloy or glass reinforced epoxy. Adjustable pitch blades. Marley System 5 Geareducer—no oil changes for five full years. Offers significant savings in maintenance costs. External Geareducer Oil level Gauge and Fill-Drain connection—user friendly maintenance.
- Page 6 / On-Site Assembly / The QuadraFlow is factory-fabricated, and is designed to be assembled at the jobsite. This allows the design flexibility that results from the unique QuadraFlow configuration and permits a wide variety of orientations. Normally this assembly is included as part of the cooling tower contract, and is performed by erection subcontractors recognized and sanctioned by SPX.
- Page 7 / Available Options / Inlet Water Bypass—provision for total water bypass directly into the tower collection basin during cold ■ weather operation. Hoistable Steel Grillage—allows assembling tower at grade on temporary supports and hoisting ■ into final location. Fire Retardant FRP—flame spread rating of 25 or less per ASTM E-84. ■...
- Page 8 7401 WEST 129 STREET OVERLAND PARK, KANSAS 66213 UNITED STATES 913 664 7400 spxcooling@spx.com spxcooling.com In the interest of technological progress, all products are subject to design and/or material change without notice. ©2008 SPX Cooling Technologies, Inc. Printed in USA | QF-07A...
