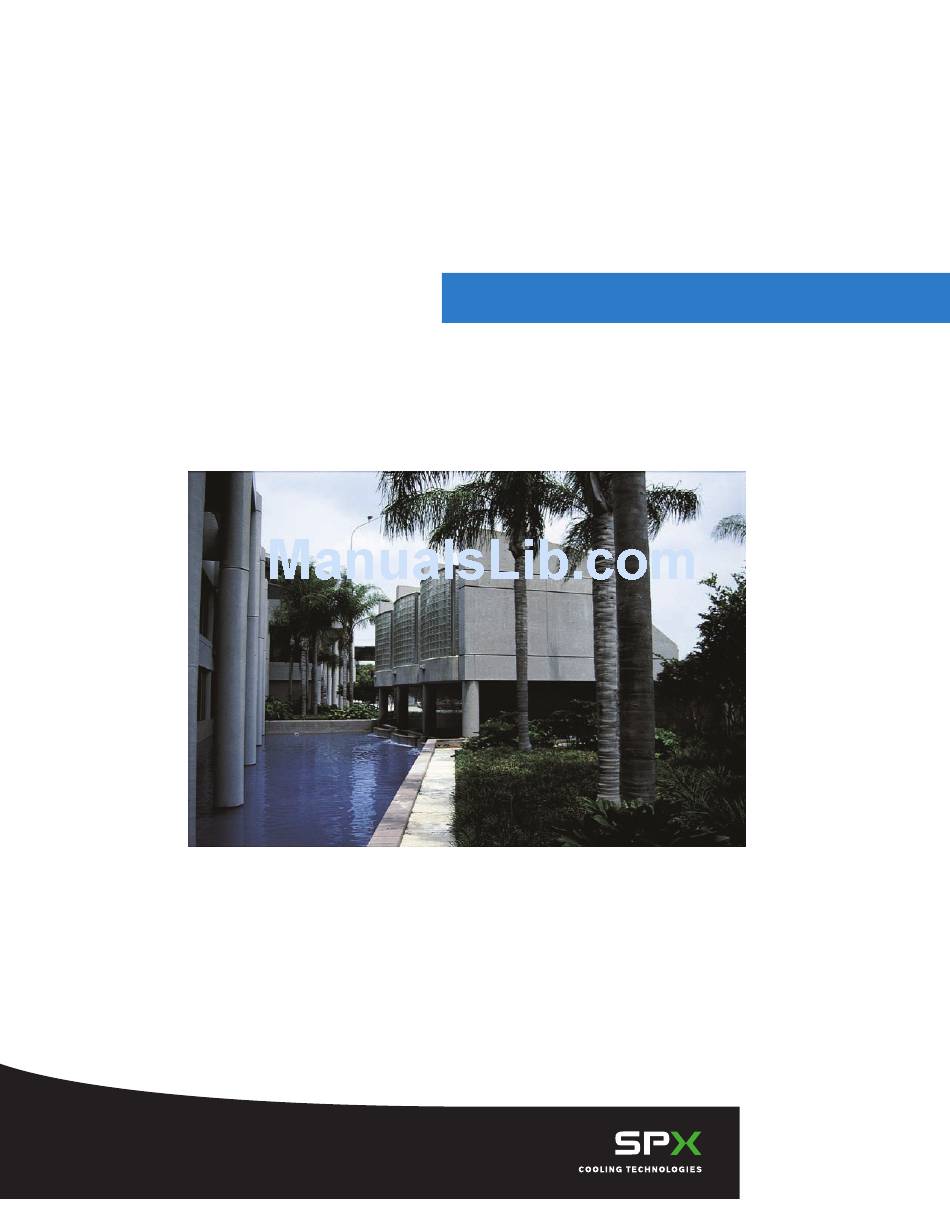

- Page 1 Marley MS Cooling Tower...
- Page 2 SPX COOLING TECHNOLOGIES SPX Cooling Technologies has worldwide recognition as the pacesetter in the field of water cooling technology. Unique within its industry in the scope of products and services offered,we design and manufacture cooling towers of virtually any capacity and configuration.
- Page 8 FILL: Marley MC high performance PVC film fill sheets are thermoformed at the Marley factory to exacting quality and strength standards. Maximum performance and clog resistant designs are both available for a wide range of thermal and COMPONENTS water quality requirements. ELIMINATORS: Marley XCEL ®...
- Page 9 GEAREDUCERS: Marley Geareducer drives are the ® industry quality standard. They are designed to meet or exceed the requirements of CTI STD-111 and AGMA Std, 420.4, and are run- in under load prior to shipment. Numerous reduction ratios are available so that horsepower is applied at optimum fan speed.
- Page 10 MECHANICAL EQUIPMENT SUPPORT: The Marley hot- dipped galvanized torque tube unitized support assures permanent alignment of the motor, driveshaft and Geareducer. DISTRIBUTION SYSTEM: Marley- patented non-clogging, large diameter NS spray nozzles assure an unimpeded, uniform flow with min-imal operating pump head.
-
Page 11: Specifications
COOLING TOWER: Furnish and install (1) Induced Draft Counterflow Cooling Tower. Cooling tower shall be______ft. long x ______ft. wide x ______ ft. overall height with a maximum operating weight of______lbs. Cooling tower shall consist of_____fan cells with a maximum of_____total fan horsepower and a maximum pump head of______ft. - Page 12 7401 WEST 129 STREET OVERLAND PARK, KANSAS 66213 UNITED STATES 913 664 7400 spxcooling@spx.com spxcooling.com In the interest of technological progress, all products are subject to design and/or material change without notice. ©2008 SPX Cooling Technologies, Inc. Printed in USA | MS-06...
