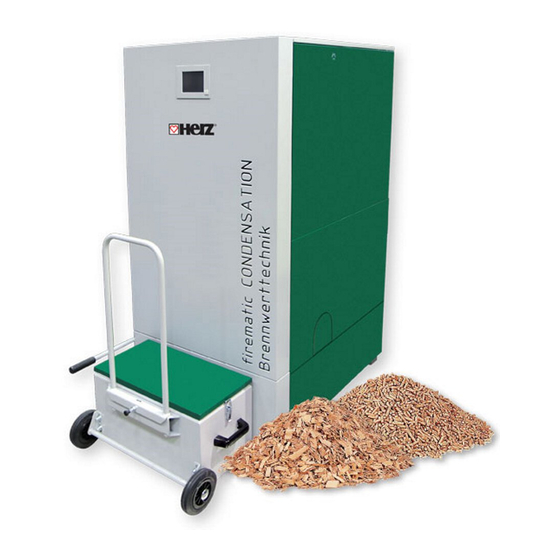

Wood chips & pellets heating system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATING INSTRUCTIONS
Wood chips & pellets heating system
firematic CONDENSATION
30-40

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the firematic CONDENSATION 30 and is the answer not in the manual?

Questions and answers

Related Manuals for Herz firematic CONDENSATION 30

Summary of Contents for Herz firematic CONDENSATION 30

  • Page 1 OPERATING INSTRUCTIONS Wood chips & pellets heating system firematic CONDENSATION 30-40...
  • Page 2 Your heating system is powered by a HERZ firematic boiler system and we are pleased to be able to count you as one of our many satisfied owners of a HERZ system. The HERZ boiler is the result of years of experience and continuous improvement.

  • Page 3: Table Of Contents

    Table of content TABLE OF CONTENT Page page SAFETY NOTES ........4 9.10.4 Heating circuit ..........39 Basic safety information ......5 9.10.5 Time mode ........... 44 Installation ........... 5 9.10.6 Solar ............45 Operation and maintenance ....... 5 9.10.7 Hydraulic compensator ........

  • Page 4: Safety Notes

    ◼ Should you have any queries, please call us on +43 3357 / 42840-840. ◼ Initial commissioning must be carried out by the HERZ Customer Service department or an authorised specialist (otherwise any warranty claim will not be applicable). ◼...

  • Page 5: Basic Safety Information

    Therefore, the chimney must be designed and available from HERZ on request. produced in accordance with DIN 4705 or EN 13384. When the boiler is switched on again,...

  • Page 6: Maintenance

    HERZ Customer use this equipment unless they are supervised or Service department.

  • Page 7: Fuels

    Fuels FUELS ◼ The boiler should be operated with the fuels and Fines content at loading: < 1,0 m-% their properties which are described in this ◼ Calorific value at as-delivered condition chapter. > 4,6 kWh/kg Wood chips ◼ Bulk density (BD) as-delivered...

  • Page 8: Safety Devices

    It opens only when fuel is fed to the boiler. ◼ The load pumps are being controlled by 5 Safety valve the HERZ Control. The so-called excess temperature flue would The safety valve automatically releases, when the automatically activated by the HERZ pressure or temperature exceeds preset limits.

  • Page 9: System

    If all room discharge and storage room filling systems of HERZ would be presented, the scope of this guide would be exceeded considerably. More information can be provided by the company HERZ.

  • Page 10: Boiler (Firematic Condensation With Screw Discharge)

    System Boiler (firematic CONDENSATION with screw discharge) Operating terminal (Central control unit) Efficient heat insulation for the lowest radiation losses High quality boiler body made of stainless steel High heat resistant stainless steel combustion chamber Automatic ignition Automatic tipping grate for complete cleaning Frontside ash container ID fan speed controlled and monitored for the highest operating safety Lambda probe control automatic flue gas and combustion monitoring...

  • Page 11: Mode Of Operation

    Commissioning room area and a flexible auger in the area of the boiler room. As drive a standard gear motor is The commissioning must be carried out by HERZ used. factory customer...

  • Page 12: Operating And Impermissible Temperatures

    Operating and impermissible temperatures The chimney must be insensitive to moisture and calculated and dimensioned according to DIN 18160 or EN 13384. HERZ does not carry out Boiler temperature chimney calculations. The chimney calculation The HERZ firematic boiler operates at a boiler must be calculated by authorised personnel.
  • Page 13 Scorch phase Heat exchanger cleaning During the scorch phase the boiler control tries to The Heat exchanger gets cleaned automatically. achieve an even fire bed. The length of the scorch The cleaning interval and duration is set up in the service area with the parameter “heat exchanger phase can be set in the fuel value settings (only cleaning interval“...

  • Page 14: Temperature Manager

    Temperature manager TEMPERATURE MANAGER The heat demand of the individual modules (boiler, hot water tank, heating circuit, solar, etc.) is controlled by the temperature manager. The below-mentioned scheme explains the functionality of the temperature manager. From the individual modules the MUST-temperature is determined and to that an adjustable temp. increase is added.
  • Page 15 Temperature manager If the required buffer-top-temperature (required temperature) is higher than the sum of buffer-bottom-MUST- temperature and the set difference, then the required boiler temperature is the result of the required buffer- top-temperature (required temperature) + the adjusted temp. increase (see fig. 8.2) Caution: Consider the set minimum requirement Fig.
  • Page 16 Temperature manager If there is no buffer in the system, then the MUST-temperature from the individual modules is determined and to that an adjustable temp. increase is added. The highest of these temperatures is the boiler-MUST- temperature. To this an adjustable hysteresis is added and the result is the boiler-END-temperature (see fig. 8.4).
  • Page 17 Temperature manager Fig 8.6: Example temperature manager when time mode without difference...

  • Page 18: Control

    T-CONTROL T-CONTROL The handling and menu navigation are described in this chapter. Every single T-CONTROL parameter is explained in chapter 9.11. figure 9. 1: T-CONTROL Starting the system To switch on the display, two conditions must be fulfilled: ◼ The boiler must be connected to the power supply (see figure below) ◼...

  • Page 19: Operation And Handling

    T-CONTROL Operation and handling The touch panel is a touch-sensitive screen and control unit. By touching the screen, you can change released values or move to other pages. The screen navigation and input can be done with finger. Main menu After start up, this picture will appear.

  • Page 20: Symbols Explanation

    T-CONTROL Symbols explanation In this section important symbols are explained. This symbol shows that remote access is currently taking place. This symbol shows that an e-mail is currently being sent. This symbol shows that a USB stick is currently connected. The CHIMNEY SWEEPING FUNCTION provides a test mode for the chimney sweeper.

  • Page 21: Code - Entry

    T-CONTROL Code – entry If entering the code, the following operations can be performed: ◼ Setting up values ◼ Activation of the aggregate-test (see chapter 9.4) ◼ Navigation in the menu settings (see chapter 9.13) Navigation 1: Navigation 2: Screen: Screen: By pressing the button: Note:...

  • Page 22: Switching The Boiler On And Off (Chimney Sweeping Function)

    T-CONTROL Switching the boiler on and off (Chimney sweeping function) SWITCH-ON SWITCH-OFF Navigation: Navigation: Screen: Screen: By pressing the button: By pressing the button: the boiler will be switched on. the boiler will be switched off. the boiler will switch off, remains the boiler remains on and the off and the previous page will be previous page will be displayed.

  • Page 23: Date And Time

    T-CONTROL Date and time Navigation 1: Navigation 2: Screen: Screen: By pressing the button: By pressing the button: the language can be set up. the language can be set up. the server name can be set up. (The server receives the time can be set up.

  • Page 24: Main Menu Values

    T-CONTROL Main menu values 9.6.1 Adding / defining display values Code – entry Navigation 1: Navigation 2: Show value Screen: Screen: By pressing the button: By pressing the button: an overview of available values the selected value can be add favourite Act.

  • Page 25: Delete Values

    T-CONTROL Navigation 3: Load scheme Navigation 4: Show value BOILER 000 Screen: Screen: By pressing the button: Note: The values of the default scheme can also be Boiler-must, the value will be confirmed and adapted individually. There by press 3-5 seconds on Power, Back displayed at the main menu.

  • Page 26: Fault Messages And Warnings

    T-CONTROL Fault messages and warnings Navigation: → Screen: By pressing the button: the current fault messages will be displayed. (By default, current errors are always Actual displayed first) Archive all fault messages will be displayed. Note: ◼ A red highlighted field represents an active fault (appears in the lower left box). ◼...

  • Page 27: Modules

    T-CONTROL Modules Navigation: → Screen: By pressing the button: the „boiler values“ menu will be displayed BOILER (see chapter 9.12.1) the „buffer values“ menu will be displayed Buffer (see chapter 9.12.2) the „hot water tank values“ menu will be displayed HOT WATER TANK (see chapter 9.12.3) the „heating circuit values“...

  • Page 28: Module Configuration

    T-CONTROL Module configuration Boiler Buffer Hot water tank Overview Overview Overview Status Status Status Settings Settings Settings Operating hours Agg-Test Agg-Test Inputs/Outputs Barrier times Circulation pump General settings Time program/Barrier times Heating circuit Time mode Solar Overview Overview Overview Status Time program Status Operation modes...

  • Page 29: Boiler

    T-CONTROL 9.10.1 Boiler Navigation: → → BOILER Screen: By pressing the button: the „boiler status“ menu will be displayed (Schematic representation of the boiler and overview of various values) the menu for the "settings" will be displayed the menu "inputs / outputs" (system-specific) will be displayed the menu "operating hours"...
  • Page 30 T-CONTROL Term Description Unit Rotation speed Indicates the actual ID-fan rotation speed Under pressure Indicates the current under pressure in the burning chamber Secondary air flap Indicates the state of the secondary air flap Status 4 1 2 3 ID-fan correction Indicates the current ID-fan correction factor of the lambda control Material correction Indicates the actual material correction of the lambda probe control...
  • Page 31 T-CONTROL Term Description Unit Here the maximum boiler output is limited depending on the outside temperature. Therefore, according to the example, the maximum boiler output at outdoor temperatures < 0°C at the set output at Temp. 1 (100%). At outside temperatures > 20°C the maximum boiler output is the set output at Temp.
  • Page 32 T-CONTROL Term Description Unit In- / Outputs 3 4 5 6 7 Indicates the state of the Sensor Zeropoint / Position: Sensor Zeropoint If the control lamp lights up, the sensor zero point / position input is Position active. Indicates the state of the motor counter clockwise / clockwise: Motor counter If switch on green ➔...
  • Page 33 T-CONTROL Term Description Unit Indicates the state of the heat exchanger cleaning: Heat exchanger If switch on green ➔ Output active. cleaning Indicates the state of the magnetic valve: Magnetic valve If switch on green ➔ Output active. Fault E-filter Indicates the output of the E-filter Fluegas-recirculation Indicates the output of the fluegas-recirculation flap...
  • Page 34 T-CONTROL Term Description Unit Operating hours 2 Display Operating hours until inspection. Can be reset by entering a code. Operating hours until inspection Information message "Maintenance" (error No.38) appears after the set inspection interval has been exceeded (standard: 1000 operating hours). Display date until to next maintenance.

  • Page 35: Buffer

    T-CONTROL 9.10.2 Buffer Navigation: → → BUFFER Screen: By pressing the button: the „buffer status“ menu will be displayed the menu for the "settings" will be displayed the menu for the "Aggregate-Test“ will be displayed the „barrier times“ menu will be displayed Term Description Unit...
  • Page 36 T-CONTROL Term Description Unit Menu "Settings" Settings Winter must Setting up the winter must temperature (20-95). That´s the Buffer bottom °C temperature temperature, which will be provided during winter operation. Setting up the summer must temperature (15-95). That´s the Buffer Summer must temperature (Buffer bottom temperature- respectively if installed Buffer °C...

  • Page 37: Hot Water Tank

    T-CONTROL 9.10.3 Hot water tank Navigation: → → Hot water tank Screen: By pressing the button: If fast start up is activated, the hot water tank is heated independently (maximum loading time) to the requested set temperature the „hot water tank status“ menu will be displayed the menu for the "settings"...
  • Page 38 T-CONTROL Term Description Unit Must temperature Setting the must temperature (47-85) of the boiler °C Activate/setting the min. temperature (20-58) (ON/OFF) ▪ With activated min. Outside of the hot water tank loading time, the hot Min. Temperature °C water tank temperature is set to the set min. temperature loaded. If the hot water tank temperature is below the value of the set min.

  • Page 39: Heating Circuit

    T-CONTROL 9.10.4 Heating circuit Navigation: → → HEATING CIRCUIT Screen: By pressing the button: Selection of the operating mode (for a description, see "Overview of operating modes") the „hot water tank status“ menu will be displayed the menu for the "settings" will be displayed the menu for the "Aggregate-Test“...
  • Page 40 T-CONTROL Term Description Unit Overview Operation modes Selection operation modes: ▪ Heating OFF The heating system is switched off ▪ Heating time mode: Heating corresponds to the set heating time ▪ Durable heat: Constant heat up to required set room temperature or to the calculated feed flow target temperature ▪...
  • Page 41 T-CONTROL Term Description Unit Active Heating time Indicates the actual operating mode mode Remote control Display of the selected remote controller number Balancing room Setting the value (-5 to +5) for calibrating the room sensor sensor Kneeling barrier over Activates the kneeling barrier over the room temperature room temperature Barrier over room Activates the barrier over the room temperature...
  • Page 42 T-CONTROL Term Description Unit 1 - 3 times can be set. The second and third time can be added by the +. Example: ▪ 08:00 – 10:00 time 1: Time 1 ▪ 15:00 – 21:00 time 2: ▪ 00:00 – 00:00 time 3: 08:00 –...
  • Page 43 T-CONTROL Table 9.1: Operation mode "Screed drying" Flow set If screed drying gets interrupted, resume Bake out day temperature in drying as follows: °C Day of interruption resume from day 0 – 15 17 – 23 5 – 12 24 – 28 17 –...

  • Page 44: Time Mode

    T-CONTROL 9.10.5 Time mode Navigation: → → Time mode Screen: By pressing the button: the menu for the "settings" will be displayed the menu for the "time program“ will be displayed Indicates the state of the active requirement of the time mode Demand active If the indicator lamp lights up, the requirement is activated Required temperature...

  • Page 45: Solar

    T-CONTROL 9.10.6 Solar NOTE: At the solar module 5 resp. 6 (only at external solar module) program numbers are available, which are set up by the service technician. The only differences of the programs are the integration and the number of tanks (e.g.
  • Page 46 T-CONTROL Term Description Unit Tank 1 must Setting up the set temperature (25-90) of tank 1 °C temperature Difference 1 Setting up the collector difference (5-30) of tank 1 °C Tank 1 max. Setting up the maximum temperature (25-95) of tank 1 °C temperature Tank 2 must...

  • Page 47: Hydraulic Compensator

    T-CONTROL 9.10.7 Hydraulic compensator Navigation: → → Hydraulic compensator Screen: By pressing the button: the „Hydraulic compensator status“ menu will be displayed the menu for the "Aggregate-Test“ will be displayed the „barrier times“ menu will be displayed Indicates the required temperature of the downstream module (e.g. heating Required temperature circuit) in °C Existing temperature...

  • Page 48: Net Pump

    T-CONTROL Term Description Unit Indicates the state of pump 2: Pump 2* Pump 2 is the pump in the flow on the secondary side. If the indicator lamp lights up, pump 2 is switched on Menu "Barrier times" Barrier times 1 - 2 times can be set.

  • Page 49: Zone Valve

    T-CONTROL Term Description Unit Pump Indicates the state of the net pump Menu "Aggregate-Test" Agg-Test Indicates the state of the net pump: Pump ▪ If the indicator lamp lights up, the net pump is switched on Menu "Barrier times" Barrier times 1 - 2 times can be set.
  • Page 50 T-CONTROL Indicates the required temperature of the downstream module (e.g.: buffer) Required temperature °C The required temperature is the temperature, which the upstream module disposal to the downstream module Zone valve Indicates the state of the zone valve Status 2 Menu "Aggregate-Test"...

  • Page 51: External Requirement

    T-CONTROL 9.10.10 External requirement The external requirement module provides an interface to an external foreign control loop (e.g. central building control system). The requirement, which can be digital or analogue, is registered as a required temperature (e.g. boiler must temperature by the boiler or buffer top temperature by the buffer) in the heat supplier (e.g.
  • Page 52 T-CONTROL Term Description Unit Displays the requirement curve Menu "Barrier times" Barrier times 1 - 2 times can be set. The second time can be added by the +. Example: ▪ 08:00 – 10:00 Time 1 time 1: ▪ 15:00 – 21:00 time 2: Setting up individual buffer tank loading times of every weekday, when it 08:00 –...
  • Page 53 T-CONTROL Current signal [mA] figure 9.2: Analogue set temperature as a function of the applied current signal of the external requirement At the input of the external requirement module a current signal between 4 and 20 mA should be given, because a current signal is compared to a voltage signal insensitive to electromagnetic disturbances and voltage losses at the cables.

  • Page 54: Additional Boiler

    T-CONTROL 9.10.11 Additional boiler The recommended hydraulic schemes are shown in appendix 15.1. Navigation: → → Additional boiler Screen: By pressing the button: the „additional boiler status“ menu will be displayed (Schematic representation of the boiler and overview of various values) the menu for the "settings"...
  • Page 55 T-CONTROL Term Description Unit Menu "Aggregate-Test" Agg-Test Indicates the state of the back flow pump of the additional boiler ▪ Pump If the indicator lamp lights up, the pump of the additional boiler is operating. Release Indicates the state of the release of the additional boiler. (only automatic boiler) If the indicator lamp lights up, the additional boiler is operating.

  • Page 56: System Settings

    T-CONTROL 9.11 System settings Navigation: → → → → Screen: If touching symbol: the network configuration will be displayed. the Remote – settings will be displayed. information such as software version operating system number, … will be displayed. the screensaver settings will be displayed. messages by E-mail can be send Display if a USB stick is plugged in (USB-symbol).

  • Page 57: Network Configuration

    T-CONTROL 9.11.1 Network configuration Navigation 1: Navigation 2: Screen: Screen: By pressing the button: By pressing the button: the IP address of the DNS server NetBIOS Name the NetBIOS name can be set up DNS 1 / DNS 2 can be set up The boiler IP address can be set the network configuration page IP-Address...

  • Page 58: Modbus - Settings

    Modbus is an application protocol to exchange messages between intelligent Modbus controllers in the building management system. The Modbus protocol “TCP” is used in the HERZ control. This protocol transmits the encoded data via LAN cable. Modbus ensures that connected controllers in the building...

  • Page 59: Screensaver

    T-CONTROL 9.11.3 Screensaver Navigation: Screen: By pressing the button: the screensaver standby mode gets activated. the standby mode waiting time can be set up. the screensaver gets activated the screen saver waiting time can be set up. Set the display brightness to return to the settings overview.

  • Page 60: Information Overview

    T-CONTROL 9.11.5 Information overview Navigation: Screen: Note: The information shows an overview of the current software versions, operating system, firmware and also the hydraulic scheme. If a USB-Stick is plugged in, the hydraulic scheme can be saved. No values can be changed.
  • Page 61 T-CONTROL the mail settings will be displayed again. Note: Selection: The box must be activated. If the status is inactive, no E-mail will be sent to the recipient. If the box is checked, errors will be transmitted If the box is checked, warnings will be transmitted If the box is checked, information will be transmitted ENTER MAIL SUBJECT...

  • Page 62: Mail Server Settings

    T-CONTROL 9.11.7 Mail Server settings Navigation: Screen: By pressing the button: Mail Server the mail server address can be entered (=outgoing mail server) the boiler’s E-mail address can be entered Mail address Password the password can be entered SSL,TLS,… the encoding can be chosen (no, SSL, TLS) Port Setting up the TCP port number.

  • Page 63: Service Special

    T-CONTROL 9.11.9 Service special Navigation: Screen: By pressing the button: Status module the status of the external modules is displayed Format USB- the USB stick can be formatted. Stick a backup can be created. The backup can be stored directly in the control and/or on an Backup USB-stick.

  • Page 64: Fault Reports And Their Corrections

    Fault reports and their corrections FAULT REPORTS AND THEIR CORRECTIONS You should always take particular note of the safety instructions! If a fault arises, the fault must always be rectified first and afterwards cleared by switching the system on again. If several faults arise at the same time, they will be displayed in order of their occurrence.
  • Page 65 Fault reports and their corrections No. Fault report Cause of fault Fault correction ▪ Check sensor, replace as renew ▪ Check plug, replace as renew ▪ BOILER SENSOR Failure boiler temperature sensor Check wiring incl. connections, replace as renew ▪ ✆ - contracting party Check sensor, replace as renew Check plug, replace as renew...
  • Page 66 Fault reports and their corrections No. Fault report Cause of fault Fault correction Check sensor, replace as renew Check plug, replace as renew Sensor break; Value outside the HOT WATER TANK Check wiring incl. connections, measuring range SENSOR replace as renew (-10 - 120°C) ✆...
  • Page 67 Fault reports and their corrections No. Fault report Cause of fault Fault correction Check sensor, replace as renew Check plug, replace as renew Sensor break; Value outside the Check wiring incl. connections, SENSOR SOLAR TANK 2 measuring range replace as renew (-10 - 120°C) ✆...
  • Page 68 Fault reports and their corrections No. Fault report Cause of fault Fault correction Carry out boiler system when exceeding the set inspection 039 SERVICE maintenance by authorised interval personnel Check add. boiler pump add. boiler temperature over 92 °C 040 OVERHEAT ADD.BOILER increase Check settings Boiler operation mode “HEATING...
  • Page 69 Fault reports and their corrections No. Fault report Cause of fault Fault correction Setting value is not within the valid Restart T-Control CHECK DATA BOILER range when switching on the boiler Check boiler parameter CAN-ID used CAN-ID must not be used change station number of the modul Check fuel quality Stoker temperature in operation or...
  • Page 70 Fault reports and their corrections No. Fault report Cause of fault Fault correction Lambda probe calibration outside clean lambda probe ✆ LAMBDA CALIBRATION the limit range or error during - contracting party lambda calibration check sensor Cable break; Air flow sensor does AIR FLOW SENSOR not provide a signal Check or clean the heat exchanger /...
  • Page 71 Fault reports and their corrections No. Fault report Cause of fault Fault correction Check module CAN connection CAN communication to the PWM- Check module BACK FLOW SET PWM module was interrupted or the ✆ - contracting party module was not found Burning chamber door end switch Close burning chamber door COMBUSTION...
  • Page 72 Fault reports and their corrections No. Fault report Cause of fault Fault correction 144 Zero point sensor Zero point sensor not reached check zero point sensor or renew Kessel has no connection in the check network connection KAS CONNECTION network a participant in the cascade network check network connection 181 KAS OFFLINE...

  • Page 73: Not Indicated Faults

    Fault reports and their corrections 10.1 Not indicated faults Fault Cause of fault Fault correction Ash/slag on the grate; fly ash container is Reduce cleaning intervals or clean Boiler output full; heat exchanger heavily clogged / manually; empty the fly ash container; gradually decreases sooted;...

  • Page 74: Maintenance Schedule

    Maintenance schedule MAINTENANCE SCHEDULE (Some points have also been prescribed in accordance with TGPF 118 H!) - For safety reasons, maintenance must only be carried out with the main switch turned off. However, first of all, the system must be switched off by means of the On/Off button and you must wait for the burnout phase.
  • Page 75 Maintenance schedule Item Procedure Check burning chamber stones and walls visually for damages and wear and conduct cleaning with scraper and broom (2), afterwards remove ash off burning chamber. Check and clean burning chamber vents (3). Check ignition pipe, if necessary cleaning Combustion chamber tipping grate...
  • Page 76 Maintenance schedule Item Procedure Check fault recognition and fault report Check fault report e.g.: CONTAINER FAULT is shown Safety valve Check safety valve tightness Check system pressure System pressure Minimum pressure: 1,5 bar (cold) Maximum pressure: see boiler plate Check fire extinguisher securing and seal Fire extinguisher as well as hose and nozzle (according to national standard)

  • Page 77: Biannual Inspection

    Maintenance schedule 11.3 Biannual inspection Item Procedure Function test of ID-fan using the aggregate test ID-fan Check ID-Fan for abnormal or conspicuous running noises Unscrew revision cover (depending on the boiler type) Light barrier system (symbolic Clean sensors inside representation) intermediate hopper with soft tissue on the left and right Demount top boiler cover (1)

  • Page 78: Annually Inspection (Service, Notification)

    Maintenance schedule 11.4 Annually inspection (service, notification) Annual inspection, at least every 3000 operating hours Maintenance by manufacturers or certified sales partners Item Procedure Conduct system maintenance by authorised Maintenance personnel Unscrew revision cover (depending on the boiler type) Check BFP flap visually for damages, wear Backfire and tightness protection device...

  • Page 79: As Needed

    Procedure Maintenance respectively cleaning inspection according to national standards. A stainless steel chimney may only be cleaned with a stainless steel or plastic brush. 1 HERZ firematic CONDENSATION 2 old chimney Chimney 3 adapter (schematic representation) 4 condensate drainage 5 90° bow with cleaning opening 6 mi.

  • Page 80: Eu Declaration Of Conformity

    In accordance with regulations the installation and commissioning of the biomass furnace inclusive discharge system must be carried out by specialist personnel authorised by HERZ and Chimney connection line KS from the Herz scope of delivery. If the installation or commissioning, a connection to other machines or changes of the technical specification were not carried out in accordance with regulations, this declaration loses its validity.

  • Page 81: According To Eu Regulation 2015/1189

    According to EU regulation 2015/1189 ACCORDING TO EU REGULATION 2015/1189 Annual space heating emissions Boiler Fuel ηs [%]: [mg/m³] at O =10% firematic CONDENSATION 30 Pellets < 40 < 20 < 500 < 200 firematic CONDENSATION 30 Wood chips < 40 <...

  • Page 82: Index Directory

    Index directory INDEX DIRECTORY Basic safety information ........5 Installation ............5 Aggregate-Test ..........20 Maintenance ............ 6 Ambient conditions ..........5 Operation ............5 Safety notes ............4 Screed drying ........... 42 Boiler operation ..........11 System ..............9 CHIMNEY SWEEPING FUNCTION ....

  • Page 83: Annex

    Annex ANNEX 15.1 Additional boiler module Hydraulic recommendation 1...
  • Page 84 Annex Hydraulic recommendation 2...

  • Page 85: Solar Module

    Annex 15.2 Solar module Program 1...
  • Page 86 Annex Program 2...
  • Page 87 Annex Program 3...
  • Page 88 Annex Program 4...
  • Page 89 Annex Program 5...
  • Page 90 Annex Program 6...

  • Page 91: Notes

    Notes NOTES...
  • Page 92 Österreich/Austria Herz Energietechnik GmbH Herzstraße 1 7423 Pinkafeld  +43 (3357) / 42 84 0 – 0  +43 (3357) / 42 84 0 – 190  office-energie@herz.eu Deutschland/Germany Herz Armaturen GmbH Fabrikstraße 76 D-71522 Backnang  +49 (7191) 9021 – 0 ...

This manual is also suitable for:

Firematic condensation 40
