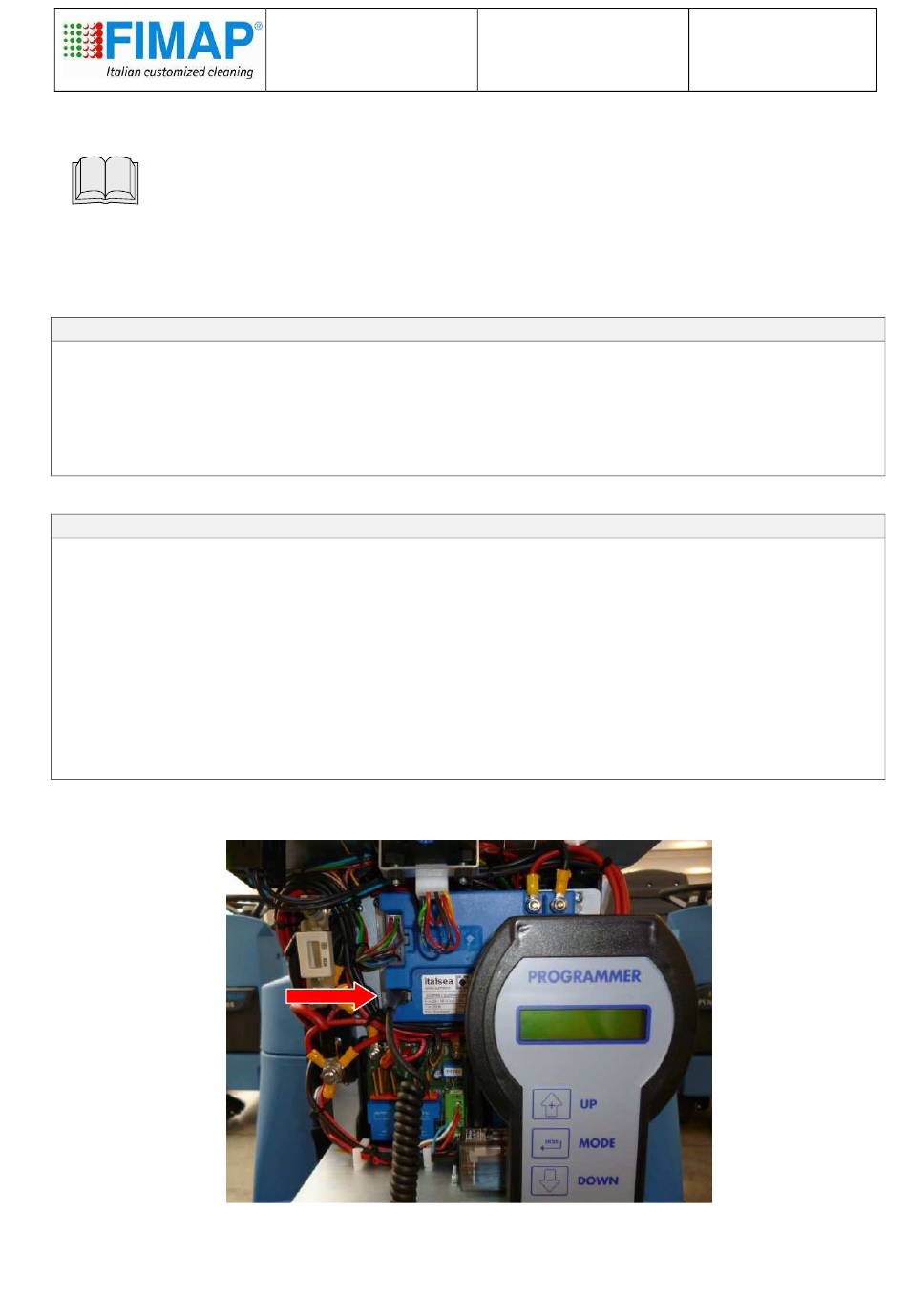

CONSOLE CONFIGURATIONS AND SETTINGS
Console Services
The console allows you to:
-
Program the chopper card to ensure the correct behaviour of the machine;
-
Test the electric components and circuit regarding the traction system.
-
Read the alarms to identify the error code easily.
Console use
The correct sequence to connect the console is:
1. TURN OFF the machine by turning the main key.
2. Connect the console to the chopper card via the connector on the board.
3. Turn on the machine and operate with the console.
4. When finish TURN OFF the machine.
5. Disconnect the console from the machine.
A BAD SEQUENCE IN CONNECTING AND UNCONNECTING THE CONSOLE CAN EASILY
ADJUSTMENTS
AND
TESTING
READ THE USE AND MAINTENANCE MANUAL
DAMAGE THE CARD OR THE CONSOLE.

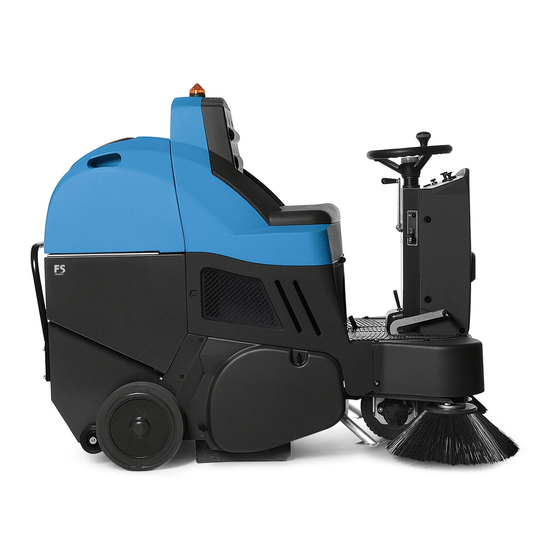

FS700 B – FS800 B
Doc.
10032657
Issued
12/2011
Ver.
AA
Pag.
1 di 12

Advertisement

loading
Need help?

Need help?

Do you have a question about the FS700 B and is the answer not in the manual?

Questions and answers

Related Manuals for Fimap FS700 B

Summary of Contents for Fimap FS700 B

  • Page 1 Doc. 10032657 ADJUSTMENTS Issued 12/2011 FS700 B – FS800 B Ver. TESTING Pag. 1 di 12 READ THE USE AND MAINTENANCE MANUAL CONSOLE CONFIGURATIONS AND SETTINGS Console Services The console allows you to: Program the chopper card to ensure the correct behaviour of the machine;...

  • Page 2: Alarm Table

    Doc. 10032657 ADJUSTMENTS Issued 12/2011 FS700 B – FS800 B Ver. TESTING Pag. 2 di 12 ALARM TABLE Message Alarm What to do Put the potentiometer in idle position and ALARM A1 Forward micro-switch on in verify that the forward micro-switch is FW Switch ON turning on.
  • Page 3 Doc. 10032657 ADJUSTMENTS Issued 12/2011 FS700 B – FS800 B Ver. TESTING Pag. 3 di 12 CHOPPER CARD CONFIGURATION Console code: 431320 To enter the parameter list: 1. Press the “MODE” button. 2. The first parameter description will appear, pressing up or down it is possible to scroll the parameter list.
  • Page 4 Doc. 10032657 ADJUSTMENTS Issued 12/2011 FS700 B – FS800 B Ver. TESTING Pag. 4 di 12 PARAMETERS: PARAMETER DEFAULT CS700-800 DISABLE DISABLE RESET TO DEFAULT ACCELERATION RAMP REVERSE RAMP NEUTRAL RAMP FORWARD SPEED BACKWARD SPEED MINIMUM SPEED BATTERY VOLTAGE single-ended...

  • Page 5: Potentiometer Settings

    Doc. 10032657 ADJUSTMENTS Issued 12/2011 FS700 B – FS800 B Ver. TESTING Pag. 5 di 12 POTENTIOMETER SETTINGS (Resister Settings) Ensure the machine is TURNED OFF. Connect the console to the machine. Turn on the machine. Enter into the parameter list using the “MODE” button.
  • Page 6 Doc. 10032657 ADJUSTMENTS Issued 12/2011 FS700 B – FS800 B Ver. TESTING Pag. 6 di 12 ELECTRIC INSTALLATION TEST 1. Disconnect battery cable. 2. Check cleanliness and the tightness of the cables connecting the batteries. 3. Check cleanliness and the tightness of the power cables: relay, fuse, motor etc.
  • Page 7 Doc. 10032657 ADJUSTMENTS ADJUSTMENTS Issued 12/2011 FS700 B – FS800 B Ver. TESTING Pag. 7 di 12 TRACTION AND BRAKES ADJUSTMENT TRACTION AND BRAKES ADJUSTMENT 1. Move the brake level to put it in parking posi to put it in parking position.
  • Page 8 Doc. 10032657 ADJUSTMENTS Issued 12/2011 FS700 B – FS800 B Ver. TESTING Pag. 8 di 12 6. If necessary, add some grease into the bearing support of the traction wheel. VACUUM ADJUSTMENT 1. Check cleanliness and functionality of filter. 2. Check functionality of shaker motor.
  • Page 9 Doc. 10032657 ADJUSTMENTS Issued 12/2011 FS700 B – FS800 B Ver. TESTING Pag. 9 di 12 4. Check cleanliness and functionality of the gasket of the recovery tank. 5. Check the correct movement of recovery tank. If necessary, adjust the...
  • Page 10 Doc. 10032657 ADJUSTMENTS Issued 12/2011 FS700 B – FS800 B Ver. TESTING Pag. 10 di 12 CENTRAL BRUSH ADJUSTMENT 1. Check the cable to lift up and down the central brush, so that, with the central brush completely up, we have a distance of 170 mm.
  • Page 11 Doc. 10032657 ADJUSTMENTS Issued 12/2011 FS700 B – FS800 B Ver. TESTING Pag. 11 di 12 LATERAL BRUSH ADJUSTMENT 1. Check the cable to lift up and down the lateral brush. With the lateral brush completely lift up, the motor must not touch against the frame.
  • Page 12 Doc. 10032657 ADJUSTMENTS Issued 12/2011 FS700 B – FS800 B Ver. TESTING Pag. 12 di 12 FINAL CHECK OF THE MACHINE Check the functionality of switches and hourmeter; Check the functionality of the safety seat micro switch; Check the functionality of the acceleration pedal;...
