- Page 1 ORBITIZER COMMERCIAL SINGLE DISC MACHINES USE AND MAINTENANCE MANUAL ORIGINAL INSTRUCTIONS DOC. 10100648 - Ver. AA - 10-2020...
-
Page 3: Table Of Contents
CONTENTS CONTENTS ..........................3 GENERAL SAFETY REGULATIONS ..................4 RECHARGING THE BATTERY ....................4 USING THE MACHINE .......................6 DEACTIVATION OF THE MACHINE ..................8 MAINTENANCE ..........................8 TRANSPORT ..........................9 GENERAL DESCRIPTION .......................10 SYMBOLS USED IN THE MANUAL ........................10 DEFINITION OF LEVELS OF WARNING ......................10 PURPOSE AND CONTENT OF THE MANUAL .................... -
Page 4: General Safety Regulations
GENERAL SAFETY REGULATIONS The following symbols are used to indicate any potentially hazardous situations. Always read this information carefully and take the necessary precautions to protect any people and/or objects that may be present. Operator cooperation is paramount for accident prevention. No accident prevention programme can be effective without the full cooperation of the person directly responsible for the machine's operation. - Page 5 WARNING: • Do not use incompatible battery chargers since they could damage the batteries and potentially cause a fire. • Keep a safe distance from flames or sparks. • Before using the battery charger, make sure that the frequency and voltage indicated on the rating plate match the mains voltage.
-
Page 6: Using The Machine
ATTENTION: if the battery is handled in the wrong way, it could explode or release acids. This could cause burns and injuries to the people nearby. ATTENTION: when the battery is run down or damaged, respect the disposal regulations in force in the country of use. - Page 7 ATTENTION: • Children must be supervised to ensure they do not play with the machine. • During the working of the machine, pay attention to other people and especially to children. • Read the labels on the machine carefully. Do not cover them for any reason, and replace them immediately if they become damaged.
-
Page 8: Deactivation Of The Machine
DEACTIVATION OF THE MACHINE WARNING: • Always protect the machine against sunlight, rain, and other atmospheric agents, both while it is stationary and while it is in function. • Store the machine in a dry, sheltered place: this machine is only designed for use under dry conditions, and must not be used or stored outdoors under humid conditions. -
Page 9: Transport
ATTENTION: • Avoid contact with moving parts. Do not wear loose clothing or jewellery and tie long hair back. • Lift the machine with equipment that can sustain the weight to be lifted. • Never tamper with the machine's protection devices for any reason; always follow the supplied routine maintenance instructions scrupulously. -
Page 10: General Description
The operators and qualified technicians must carefully read the instructions in this manual before carrying out any operations on the machine. If in doubt about the correct interpretation of instructions, contact your nearest FIMAP Customer Service Center to obtain the necessary clarifications. -
Page 11: Preservation Of The User

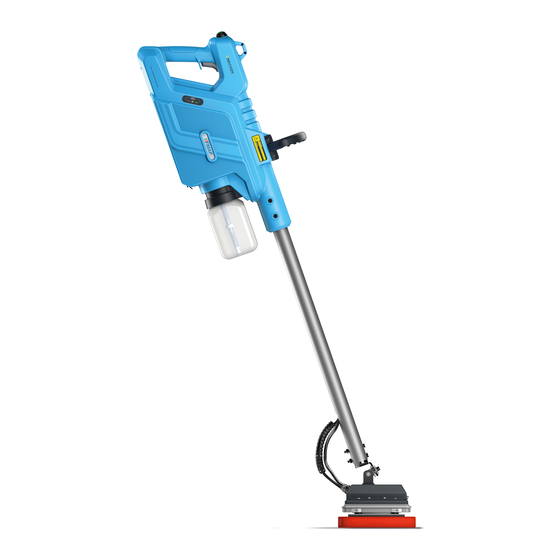

TECHNICAL DESCRIPTION The Orbitizer is a single-brush machine that uses the oscillation of an abrasive pad along with the chemical action of a water-detergent solution to clean a wide range of floors and types of dirt. The machine must only be used for this purpose. -
Page 12: Technical Data
TECHNICAL DATA TECHNICAL DATA Orbitizer [KMS] Rated input power [EN 60335-2-67; IEC 62885-9] 0,31 Maximum theoretical productivity Working width [IEC 62885-9] Rated power of brush head motor [IEC 62885-9] Total width of the abrasive pad [IEC 62885-9] 1x340 Central brush head motor RPM... -
Page 13: Labels Used On The Machine
LABELS USED ON THE MACHINE Symbol of battery charge level: Used near the operator's handle to represent the battery charge level. Warning symbol: Used near the nozzle holder support to warn the operator that it is forbidden to use flammable liquids, and that the machine must only be used in closed or covered areas.. -
Page 14: How To Move The Machine
WARNING: It is recommended to wear the appropriate PPE (Personal Protective Equipment), suitable for the work to be carried out. 3. Take the machine out of the box. ATTENTION: It is recommended that all the packaging components be kept in case the appliance ever needs transporting. HOW TO MOVE THE MACHINE To transport the machine safely, proceed as follows: DANGER: before starting any task, make sure the current regulations concerning the safe transport of dangerous substances are... -
Page 15: Type Of Battery To Be Used
TYPE OF BATTERY TO BE USED In order to perform to a good standard, the machine must be supplied with 36V of power; we suggest using the 36V 5400mAh battery (code 443147). BATTERY MAINTENANCE AND DISPOSAL Please follow the battery manufacturer's instructions for battery maintenance and charging. When the battery is dead, it must be disconnected by a trained specialist. -
Page 16: Filling The Solution Tank
ATTENTION: Ensure that the green LED (15) on the battery charger lights up when you connect the battery charger base circuit to the power(Fig.13). This LED indicates that the battery charger circuit is correctly powered. ATTENTION: Before inserting the battery into the charging holder, check that there is no condensation or other liquid in the dock that will hold the battery. -
Page 17: Preparing To Work
PREPARING TO WORK Before beginning to work, it is necessary to: 1. Check that the quantity of detergent solution present in the solution tank is suitable for the type of work to be carried out. If this is not the case, fill the solution tank;... -
Page 18: Alarm Signalling Device
ALARM SIGNALLING DEVICE When an error occurs on the control display (3) (Fig.3) the LEDs on this will start flashing in accordance with a precise sequence; they will continue to flash until the error itself is resolved. N.B.: when the machine is in alarm status, the following codes are displayed on the control display: •... -
Page 19: Disposal
WARNING: It is recommended to wear the appropriate PPE (Personal Protective Equipment), suitable for the work to be carried out. 2. Unscrew the solution tank (1) from the machine (Fig.1). 3. Empty the solution tank. N.B.: the place designated for this operation must comply with current environmental protection regulations. 4. -
Page 20: Troubleshooting
WIDTH LENGTH CODE NOTES [cm] [cm] 453208 RED ABRASIVE PAD 453410 BROWN ABRASIVE PAD 453411 WHITE ABRASIVE PAD 453412 MICROFIBRE PAD TROUBLESHOOTING This chapter lists the most common problems linked with the use of the machine. If you are unable to resolve the problems with the information given here, please contact your nearest assistance center. -
Page 21: Ec Declaration Of Conformity
Via Invalidi del Lavoro, 1 37059 Santa Maria di Zevio (VR) declares under its sole responsibility that the products SINGLE DISC MACHINE mod. ORBITIZER comply with the requirements of the following Directives: 2006/42/EC: Machinery Directive. 2014/30/EU: Electromagnetic compatibility directive. 2011/65/EU: RoHS... - Page 24 FIMAP S.p.A. - Via Invalidi del Lavoro, 1 - 37059 S. Maria di Zevio - Verona - Italy Tel. +39 045 6060411 – Fax +39 045 6060417 – E-mail:fimap@fimap.com www.fimap.com...
