Summary of Contents for Congo Play MONKEY PLAYSYSTEM OPTIONAL WOODROOF

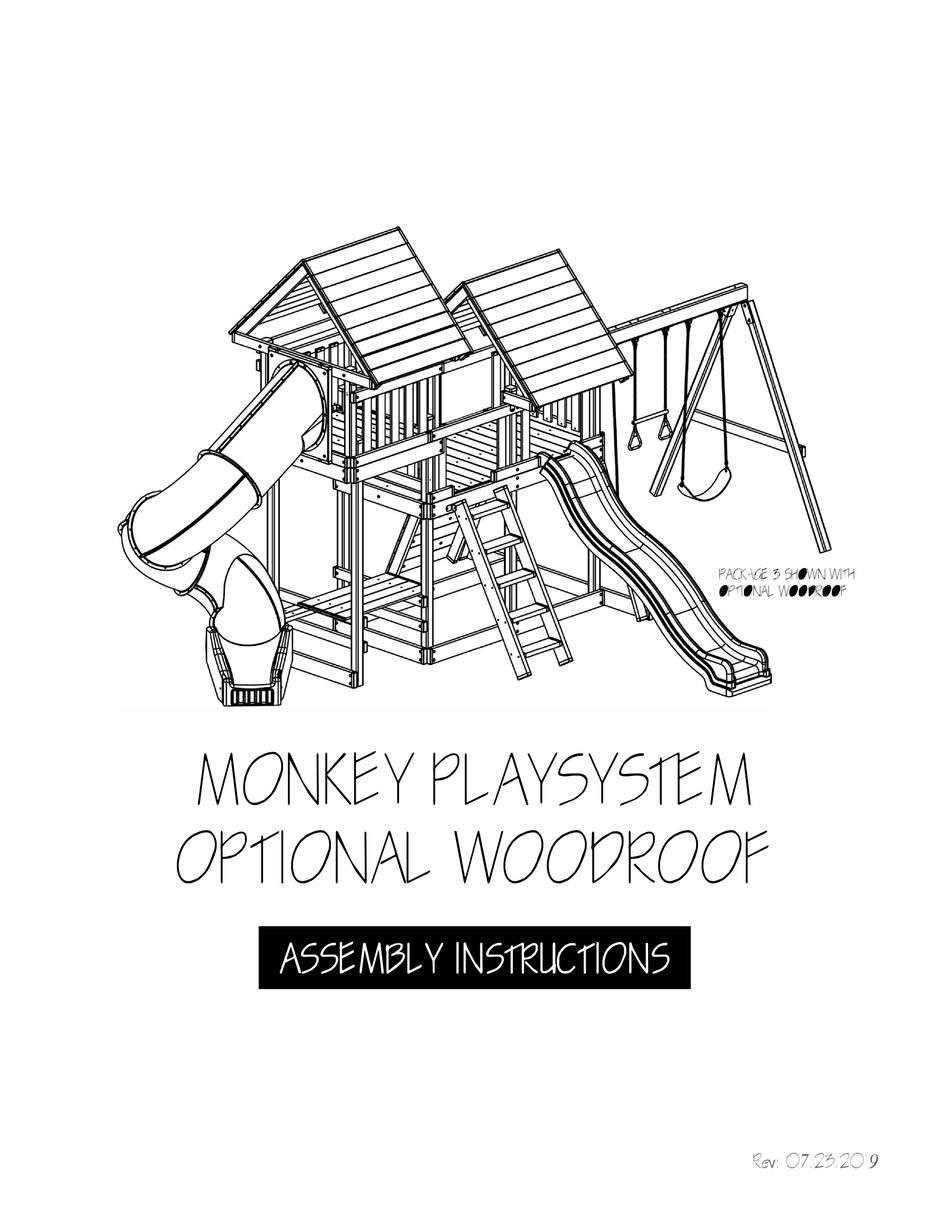

- Page 1 PACKACif 5 SnOWN WlfH OP110NAL- WOO�OOf MONKC:Y PlAY5Y5ffM OPf ONAL WOODROOF A55�MB� Y IN5fRUCflON5 Rev: O7.25.2019...
-
Page 3: Parts Identification
P ART S IDENTIFICATION WOOD COMPONENTS QUANTITY DESCRIPTION ID LETTER 11 • 2"x4"x47 1/2" - ROOF FRAME 11 • 2"x4"x50 3/4" - ROOF FRAME 1 "x4"x48" - WOODROOF BOARD 2"x4"x50 3/4" - MIDDLE ROOF FRAME 2"x4"x47 1/2" - MIDDLE ROOF FRAME •... - Page 4 PHASE 1 WOODROOF FRAME ASSEMBLY IF YOU HAVE THIS OPENING (MONKEY TOWER): Remove the tarp and board listed below @- TARP END CAP @-- TARP SUPPORT TARP UPRIGHT IF YOU HAVE THIS OPENING (MONKEY FORT): Remove the Tarp and board listed below @-- VERTICAL TARP SUPPORT ®- WALL RAIL...
- Page 6 WOODROOD FRAME ATTACHMENT PHASE 3 * MONKEY FORT SECTION * TABLE 3 - PARTS AND HARDWARE ID LETTER DESCRIPTION ROOF SUPPORT - 2"x4"x15-5/8" STEP 1: Gather parts and hardware shown in table 3. 5/16 x 5" HEX BOLTS 5/16 FLAT WASHERS STEP 2: Attach roof support to the uprights 'MA'...
- Page 11 PHASE 9 WOODROOF ATTACHMENT TABLE 9 - PARTS AND HARDWARE STEP 1: Gather parts and hardware shown in table 9. ID LETTER DESCRIPTION WOODROOF BOARD NOTE: Make sure woodroof frame is level and square 1-5/8" DECK SCREWS before attaching woodroof board. - I I - EQUALLY EQUALLY...
- Page 12 PHASE 10 WOODROOF ASSEMBLY TABLE 10 - PARTS AND HARDWARE STEP 1: Gather parts and hardware shown in table 10. ID LETTER DESCRIPTION WOODROOF BOARD STEP 2: Starting from the top, center woodroof board, 1-5/8" DECK SCREWS (See Detail-E) first board should be flush as shown and attach with 1-5/8"...
