Module No. 2700

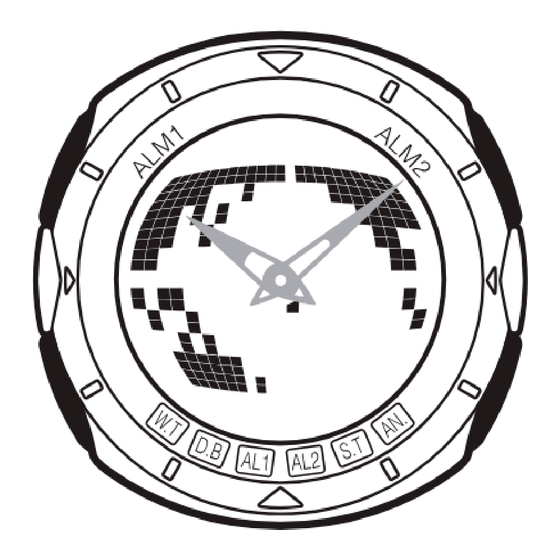

• Button operations are indicated using the letters shown in the illustration.
• Depending on the model of your watch, display text appears either as dark figures on a light background (positive), or light figures on a dark background
(negative). All sample displays in this manual are shown in positive.
• For the sake of simplicity, the sample displays in this manual do not show the analog hands of the watch.
• Each section of this manual provides you with the information you need to perform operations in each mode. Further details and technical information can be
found in the "REFERENCE" section.
• Press C to change from mode to mode. Changing to another mode causes one of a number of different animations to be performed on the display.
• In any mode, press B to illuminate the display.
Timekeeping
Mode
Press
Use the Timekeeping Mode to set and view the current time and date.
• In the Timekeeping Mode, press A to change the display format as shown below.
World Map
Press
Analog
Hour hand
• The analog screen does not show the alarm on indicator, DST indicator, or any other
digital display information.
• Pressing D while any of the above screens is on the display momentarily displays
the current time and then the current date in the cycle shown below.
Press
PM indicator
Read This Before You Set the Time and Date !
The digital times displayed in the Timekeeping Mode and World Time Mode are
linked. Because of this, make sure you select a city code for your Home City (the city
where you normally use the watch).
• This watch features separate digital and analog timekeeping. Note that the digital
time and analog time are independent of each other, and must be set separately.
To set the digital time and date
1. In the Timekeeping Mode, hold down A until the
2. Press C to move the flashing in the sequence shown
Seconds
Day
3. When the setting you want to change is flashing, use D and B to change it as
described below.
To change this setting
Seconds
DST
12/24-Hour Format
City Code, Hour, Minutes,
Year, Month, Day
• See "CITY CODE TABLE" for a complete list of available codes.
• Pressing D while the second's count is in the range of 30 to 59 resets the
seconds to 00 and adds 1 to the minutes. In the range of 00 to 29, the minute's
count is unchanged.
• See "Daylight Saving Time (DST)" for details on DST setting.
4. Press A to exit the setting screen.
If the digital display of your watch is continuously changing, press any button other than B to stop it. See "Auto Display" for more information.
World Time
Data Bank
Mode
.
TIMEKEEPING
Seconds
.
Minute hand
Seconds
Day of week
.
Hour : Minutes
Month – Day
second's digits start to flash, which indicates the setting
screen.
below to select other settings.
City
DST
Hour
Code
12/24-Hour
Month
Year
Format
Perform this button operation
Press D to reset to 00.
Press D to toggle between Daylight Saving Time (On)
and standard time (OF).
Press D to toggle between 12-hour (12H) and
24-hour (24H) timekeeping.
Use D (+) and B (–) to change the setting.
ABOUT THIS MANUAL
GENERAL GUIDE
Alarm 1
Mode
Mode
Note
• Resetting the seconds only (without changing the hour or minute setting) causes the
analog minute hand setting to be adjusted automatically. If you change the hour or
minute setting, you should also use the procedure under "To adjust the analog time"
to adjust the analog hands accordingly.
• With the 12-hour format, the P (PM) indicator appears to the left of the hour digits for
times in the range of noon to 11:59 p.m. and no indicator appears to the left of the
hour digits for times in the range of midnight to 11:59 a.m.
• With the 24-hour format, times are displayed in the range of 0:00 to 23:59, without
any indicator.
• The 12-hour/24-hour timekeeping format you select in the Timekeeping Mode is
applied in all modes.
Fireworks
• The day of the week is automatically displayed in accordance with the date (year,
month, and day) settings.
• The year can be set in the range of 2000 to 2039.
• The watch's built-in full automatic calendar automatically makes allowances for
different month lengths and leap years. Once you set the date, there should be no
reason to change it except after you have the watch's batteries replaced.
Daylight Saving Time (DST)
Daylight Saving Time (summer time) advances the time setting by one hour from
Standard Time. Remember that not all countries or even local areas use Daylight
Saving Time.
To toggle the Timekeeping Mode time between DST and Standard Time
Analog Timekeeping
Perform the procedure below when the time indicated by the analog hands does not
match the time of the digital display.
To adjust the analog time
Minutes
Current
digital time
When you want to do this:
Move the hand setting forward 20 seconds.
Move the hand setting a short way forward
at high speed.
Move the hand setting a long way forward at
high speed.
4. Press A to exit the setting screen.
• To return to the Timekeeping Mode, press C.
Alarm 2
Stopwatch
Mode
Mode
1. In the Timekeeping Mode, hold down A until the
second's digits start to flash, which indicates the setting
screen.
2. Press C once to display the DST setting screen.
3. Press D to toggle between Daylight Saving Time (On
displayed) and standard time (OF displayed).
4. Press A to exit the setting screen.
• The DST indicator appears on the display to indicate
that daylight saving time is turned on.
1. In the Timekeeping Mode, press C six times to enter
the Analog Setting Mode.
2. Hold down A until the current digital time starts to
flash, which indicates the setting screen.
• Analog timekeeping is suspended while the analog
setting screen is on the display.
3. Use D and B to adjust the analog setting as
described below.
• The hands move clockwise only. They cannot move
counterclockwise.
Mode
indicator
Perform this button operation:
Press D.
• Hold down D.
• Release D when the hands reach the
setting you want.
• While holding down D to move the hands
at high-speed, press B to lock the high-
speed hand movement.
• Press any button when the hands are
close to the setting you want.
• Hand movement stops automatically if the
hour hand makes one full (12-hour)
revolution.
2700-1
Analog Setting
