Softkeys; Function Display; Description - Icom IC-M91D Instruction Manual

3

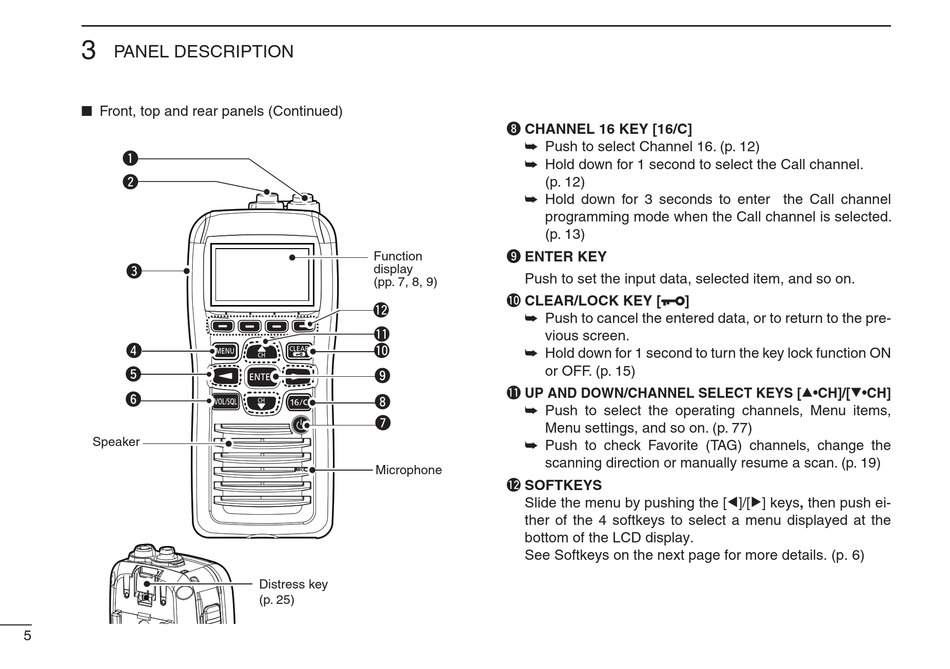

PANEL DESCRIPTION
■ Front, top and rear panels (Continued)
q
w
e
r
t
y
Speaker
5
Function
display
(pp. 7, 8, 9)
!2
!1
!0
o
i
u
Microphone
Distress key
(p. 25)
i CHANNEL 16 KEY [16/C]
➥ Push to select Channel 16. (p. 12)
➥ Hold down for 1 second to select the Call channel.
(p. 12)
➥ Hold down for 3 seconds to enter the Call channel
programming mode when the Call channel is selected.
(p. 13)
o ENTER KEY
Push to set the input data, selected item, and so on.
!0 CLEAR/LOCK KEY [ ]
➥ Push to cancel the entered data, or to return to the pre-
vious screen.
➥ Hold down for 1 second to turn the key lock function ON
or OFF. (p. 15)
!1 UP AND DOWN/CHANNEL SELECT KEYS [∫•CH]/[√•CH]
➥ Push to select the operating channels, Menu items,
Menu settings, and so on. (p. 77)
➥ Push to check Favorite (TAG) channels, change the
scanning direction or manually resume a scan. (p. 19)

!2 SOFTKEYS

Slide the menu by pushing the [Ω]/[≈] keys, then push ei-
ther of the 4 softkeys to select a menu displayed at the
bottom of the LCD display.
See Softkeys on the next page for more details. (p. 6)
