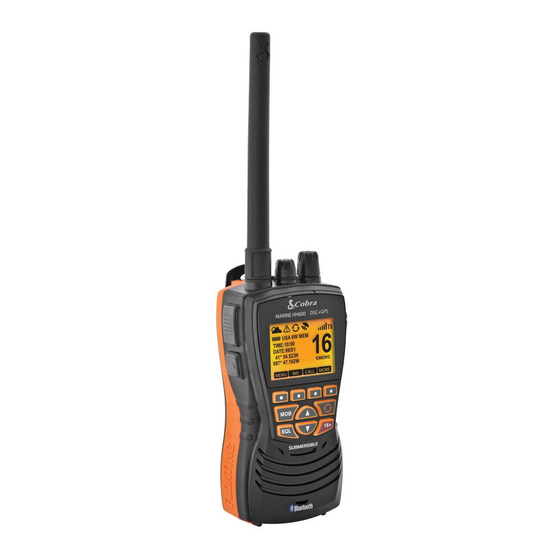

Cobra Marine MR HH600 FLT GPS BT Owner's Manual

Vhf marine radio
Hide thumbs Also See for MR HH600 FLT GPS BT:
Table of Contents

Advertisement

Quick Links

Download this manual
VHF MARINE RADIO
MR HH600 FLT GPS BT
Nothing Comes Close to a Cobra
®
Our Thanks to You and
Customer Assistance
Introduction
Thank you for purchasing a Cobra Marine
Properly used, this Cobra
many years of reliable service.
Owner's Manual
How Your Cobra Marine VHF Radio Works
This radio is a battery-powered portable transceiver for use afloat. It gives you 2-way
vessel-to-vessel and vessel-to-shore station communications, primarily for safety and
secondarily for navigation and operational purposes. With it, you can call for help, get
information from other boaters, talk to lock or bridge tenders and make radiotelephone
calls to anywhere in the world through a marine operator.
Besides 2-way communications, in the U.S.A., the radio can provide quick
access to receive eight NOAA (National Oceanographic and Atmospheric
Administration) and two Canadian weather channels for alerting you to weather
emergencies with a tone on a weather channel you can select for your area.
Customer Assistance
Customer Assistance
Should you encounter any problems with this product, or not understand
its many features, please refer to this owner's manual. If you require further assistance
after reading this manual, Cobra Electronics offers the following
customer assistance services:
For Assistance In The U.S.A.
Monday-Friday 9:00 AM- 5:00 PM EST
Call: 800-543-1608
SERVICE
Monday-Thursday 9:00AM-5:00PM EST
Call: 800-543-1608
Have questions? We can help. Contact us at 800-543-1608
M-F 9:00AM-5PM EST
For Assistance Outside the U.S.A.
Contact Your Local Dealer
A1 English
English
®
VHF radio.
®
product will give you
©2022 Cobra Electronics Corporation
www.cobra.com
Radio Controls
and Indicators
Introduction
Distress
Key
Antenna
Speaker/
Backlit
Microphone
LCD
ON/OFF/
External Cover
Screen
Volume Control
Push
to Talk
Button
Backlight/
Key Lock
Button
Man Overboard
(MOB) Button
Squelch
Button
Channel
Down
Button
Speaker
A2 English
Belt Clip
DISTRESS
DISTRESS
Battery
Door
Screw
Battery
Battery
Door
Screw
Bluetooth
®
Calling
Microphone
Distress
Key
Soft Key Functions
Channel
Up Button
Rewind-Say-Again
®
Button
Instant
Channel
16+ Button
VHF Microphone
LED Flashlight/
S.O.S.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MR HH600 FLT GPS BT and is the answer not in the manual?

Questions and answers

Related Manuals for Cobra Marine MR HH600 FLT GPS BT

Summary of Contents for Cobra Marine MR HH600 FLT GPS BT

  • Page 1 Our Thanks to You and Radio Controls Customer Assistance and Indicators Introduction Introduction Belt Clip Thank you for purchasing a Cobra Marine ® VHF radio. Properly used, this Cobra ® product will give you many years of reliable service. Distress Owner’s Manual...

  • Page 2: Backlit Screen

    Backlit Screen Product Features Notes and Product Features Introduction Introduction Introduction Backlit Screen Product Features (continued) • • GPS Icon Unlimited Memory Channels Rewind-Say-Again ® Icon MOB (Man Over Board) Bluetooth VOX Icon The radio dedicated MOB button marks and Allows programming of unlimited Signal Level Icon memorizes the position information if a crew...

  • Page 3: Table Of Contents

    Table of Contents Introduction Introduction Our Thanks to You ..........A1 Customer Assistance .

  • Page 4: Important Safety Information

    Important Safety Information General Precautions Introduction Introduction Introduction Important Safety Information General Precautions • • The following WARNINGS and NOTICE information will make you aware of RF exposure hazards and Before using your CobraMarine VHF radio, please read these general precautions how to assure you operate the radio within the FCC RF exposure limits established for the radio.

  • Page 5: Recommendations For Marine Communication

    AB) be used as a call sign and be clearly visible on the vessel. the coast, consider installing a Cobra Marine fixed mount radio with up to 25 watts of output power. (Visit www.cobra.com or your local dealer for model availability.) If traveling far offshore, you should consider adding even more powerful radio equipment such as HF single side band or satellite radio for your vessel.

  • Page 6: Included In This Package

    You need a Radio Operator’s Certificate if your vessel is operated in Canadian waters. Radio You should find all of the following items in the package with Operator training and certification is available from the Canadian Power Squadron. Visit their your Cobra Marine VHF radio: website at http://www.cps-ecp.ca/. User Responsibility and Operating Locations...

  • Page 7: Install/Remove Antenna

    Install/Remove Antenna Wrist Strap and Belt Clip VHF Marine Radio Protocols Installation VHF Marine Radio Protocols Installation Install/Remove Antenna Wrist Strap and Belt Clip • • 1. To install the antenna turn the antenna into the radio Use the spring-loaded belt clip to carry the radio on your person. Belt Clip Antenna clockwise to tighten.

  • Page 8: Batteries And Charger

    Batteries and Charger Batteries and Charger VHF Marine Radio Protocols Installation VHF Marine Radio Protocols Installation Charging To Remove Battery Pack from Radio Power Sources Remove Battery 1. Loosen the screws on the back of the battery pack. The Cobra-provided LiON battery pack may be charged at home, in a car or in a boat using the appropriate 12V or 120V power cord 2.

  • Page 9: Getting Started

    On for 10 seconds after the button is released. Tones And Alarms When your Cobra Marine VHF radio is On, you can expect to hear the following tones and Common Radio Functions alarms. The volume of these sounds is controlled by the circuitry in the radio and is not The following procedures define common operating functions of the radio when in either affected by the volume set with the On-Off Power/Volume knob.
  • Page 10 Getting Started Getting Started VHF Marine Radio Protocols Operating Your Radio VHF Marine Radio Protocols Operating Your Radio Radio Speaker and Microphone Channel Up/Down Buttons Speaker/Mic Port Channel Up/Down Buttons The internal Radio Speaker and Microphone are located on the bottom Your radio will Receive (Rx) and Transmit (Tx) VHF signals on front face of the radio below the lower control buttons.

  • Page 11: Setup Mode Programming

    087° 47.192W begins at the selected lower channel, and scans to higher channels. The Settings menu in the Cobra Marine VHF radio allows you to turn On and Off many of Press the Channel Up/Down button to change the scan direction.
  • Page 12 Setup Mode Programming Setup Mode Programming VHF Marine Radio Protocols Operating Your Radio VHF Marine Radio Protocols Operating Your Radio Confirmation Key Tone Backlight Lamp Adjust The LCD has a Backlight lamp to make it visible in the dark. The Confirmation Tone sounds to confirm all button presses except for the Talk button. If you This lamp can be adjusted for brightness or turned Off.
  • Page 13 Setup Mode Programming Setup Mode Programming VHF Marine Radio Protocols Operating Your Radio VHF Marine Radio Protocols Operating Your Radio Time Adjust To Select 12 or 24 Hour Format Time Display: Menu Soft Key 1. Enter the Settings menu and scroll to TIME ADJUST All VHF, DSC, and GPS activities use a 24-hour clock and Universal Coordinated Time (UTC) with the Up/Down soft keys or the Up/Down channel buttons.
  • Page 14 Setup Mode Programming Setup Mode Programming VHF Marine Radio Protocols Operating Your Radio VHF Marine Radio Protocols Operating Your Radio Weather Alert Coordinate System Menu Soft Key This setting will allow you to choose whether activate the Weather Alert feature. The Coordinate System allows adjusting to your navigating preference.
  • Page 15 Setup Mode Programming Setup Mode Programming VHF Marine Radio Protocols Operating Your Radio VHF Marine Radio Protocols Operating Your Radio Satellite Based Augmentation (SBAS) Speed Measurement Units Menu Soft Key Menu Soft Key The SBAS can be turned ON or OFF. Some areas of the earth Select KNOTS, MPH or KM/H to change if speed is indicated in need it turned off for greater accuracy.
  • Page 16 Setup Mode Programming Setup Mode Programming VHF Marine Radio Protocols Operating Your Radio VHF Marine Radio Protocols Operating Your Radio Distance Measurement Power Save Mode for GPS Menu Soft Key Menu Soft Key elect STATUTE MILE, NAUTICAL MILE or KILOMETER to This menu will offers selecting from several Power Save change the unit used to display distance.

  • Page 17: Bluetooth

    ® Mode Pairing ® Mode Pairing Bluetooth Bluetooth and Programming and Programming VHF Marine Radio Protocols Operating Your Radio VHF Marine Radio Protocols Operating Your Radio VOX On or Off Bluetooth ® Mode Pairing and Programming The VOX function converts the radio microphone’s pickup of Bluetooth wireless technology is a standard which has been developed for use in mobile ®...

  • Page 18: Standby/Receive And Transmit

    Standby/Receive and Transmit Weather Mode Programming Introduction VHF Marine Radio Protocols Operating Your Radio VHF Marine Radio Protocols Operating Your Radio Standby/Receive and Transmit Weather (WX) Alert Programming • Marine Standby and Receive (Rx) Mode NOAA Weather Channels and Alert Marine Standby mode is the default mode for the radio whenever it is turned on.
  • Page 19 Weather Mode Programming Weather Mode Programming VHF Marine Radio Protocols Operating Your Radio VHF Marine Radio Protocols Operating Your Radio This setting will allow you to choose to activate the Weather Alert feature. When NOAA Weather (WX) Standby Mode broadcasts a Weather Alert Signal, and your radio has Weather Alert turned On, you To enter the WX Standby mode, press the WX soft key.

  • Page 20: Advanced Operation

    Advanced Operation Advanced Operation VHF Marine Radio Protocols Operating Your Radio VHF Marine Radio Protocols Operating Your Radio Advanced Operation Tri-Watch • Tri-Watch gives you one (1) soft key access to scan the three (3) channels of most importance Channel 16+ Mode Channel 16/9 Button to you.
  • Page 21 Advanced Operation Advanced Operation VHF Marine Radio Protocols Operating Your Radio VHF Marine Radio Protocols Operating Your Radio Memory Channels NOTE Standby Mode You can program (or tag) any or all channels to be scanned in the Memory Memory channels must be programmed to use memory Scan mode.

  • Page 22: Rewind Operation

    Rewind Operation Rewind Operation VHF Marine Radio Protocols Operating Your Radio VHF Marine Radio Protocols Operating Your Radio ® Setup and Advanced Operation of Rewind-Say-Again Rewind-Say-Again Icon Rewind-Say-Again ® Feature ® Operation of Rewind-Say-Again 1. Rewind is set to ON by default. The Rewind icon will appear The radio has a Cobra exclusive playback feature, Rewind-Say-Again .

  • Page 23: Mobile Phone Operation With Bluetooth

    Mobile Phone Operation Mobile Phone Operation With Bluetooth ® With Bluetooth ® VHF Marine Radio Protocols Operating Your Radio VHF Marine Radio Protocols Operating Your Radio Initiate a Phone Call Mobile Phone Operation with Bluetooth ® There are several ways to initiate a call. These include initiating (as normal) from the mobile phone, using voice dialing and last NOTE number redial.
  • Page 24 Mobile Phone Operation Mobile Phone Operation With Bluetooth ® With Bluetooth ® VHF Marine Radio Protocols Operating Your Radio VHF Marine Radio Protocols Operating Your Radio Using Voice Dial Last Number Redial Bluetooth Soft Key Bluetooth Soft Key This feature allows you to use your voice to dial a contact from the This feature allows you to redial the last number stored in the USA 6W USA 6W...
  • Page 25 Mobile Phone Operation Mobile Phone Operation With Bluetooth ® With Bluetooth ® VHF Marine Radio Protocols Operating Your Radio VHF Marine Radio Protocols Operating Your Radio Please make sure to note your VOX setting. General Bluetooth Operation and Frequently Asked Questions If VOX is set to On, then the receiving caller might hear conversation and noise in your What is the Industry Standard Range for Bluetooth ®...

  • Page 26: Floating Feature

    Maintenance and Floating Feature Troubleshooting VHF Marine Radio Protocols Operating Your Radio VHF Marine Radio Protocols Operating Your Radio Floating Radio Maintenance Floating Radio • This radio is designed to float if dropped overboard. The flashing Very little maintenance is required to keep your CobraMarine VHF radio light at the bottom of the radio will activate as soon as it makes in good operating condition: contact with water and the orange center makes it visible and...

  • Page 27: Vhf Marine Radio Procedures

    VHF Marine Radio Procedures VHF Marine Radio Procedures Introduction VHF Marine Radio Protocols VHF Marine Radio Protocols VHF Marine Radio Procedures Prohibited Communications • You MUST NOT transmit: Maintain Your Watch Whenever your boat is underway, the radio must be turned On and be tuned to Channel 16 False distress or emergency messages.

  • Page 28: Voice Calling & Mob

    Voice Calling Voice Calling & MOB VHF Marine Radio Protocols VHF Marine Radio Protocols Voice Calling • NOTE You are required to listen to Channel 16 while standing by. Channel 16 is the distress and safety For best sound quality at the station you are calling, hold the microphone on channel used for establishing initial contact with another station and for emergency communication.
  • Page 29 DSC capable For your Cobra Marine® ™ radio to operate in the DSC mode, you must enter your radios.
  • Page 30 Digital Select Calling (DSC) Digital Select Calling (DSC) Setup Setup Operating Your Radio VHF Marine Radio Protocols VHF Marine Radio Protocols To Enter Your MMSI Number: DSC Set-Up DSC SETUP MENU • RADIO MMSI ENTRY RADIO ATIS ENTRY 1. Enter the Settings menu and scroll to DSC SETUP menu Digital selective calling —...
  • Page 31 DSC calling allows you to call another vessel or station directly if you INDIVIDUAL DIRECTORY GROUP MMSI ADD NAME. know its MMSI number. Your Cobra Marine VHF radio allows you to POSITION REPLY GROUP MMSI AUTO CHANNEL SWITCH store up to twenty (20) names and their associated MMSI numbers 4.
  • Page 32 AUTO CHANNEL SWITCH Up/Down channel buttons. Your Cobra Marine VHF radio allows you to choose whether to have the radio automatically INDIVIDUAL CALL REPLY respond to all Position Requests it receives or to alert you to a Position Request and allow you...

  • Page 33: Radiotelephone Calls

    Emergency Messages and Radiotelephone Calls Distress Procedure VHF Marine Radio Protocols VHF Marine Radio Protocols Radiotelephone Calls Emergency Messages and Distress Procedure • • Boaters may make and receive radiotelephone calls to and from any number on the telephone The ability to summon assistance in an emergency is the primary reason to have a VHF network by using the services of public coast stations.
  • Page 34 Emergency Messages and Emergency Messages Distress Procedure and Distress Procedure Introduction VHF Marine Radio Protocols Introduction VHF Marine Radio Protocols Marine Emergency Signals Marine Distress Procedure The three (3) spoken international emergency signals are: Speak slowly — clearly — calmly. 1.
  • Page 35 Emergency Messages Warranty and Distress Procedure Introduction VHF Marine Radio Protocols Introduction Warranty Warranty Terms: For Example Cobra warrants your product against all defects in materials and workmanship for a period of “Mayday — Mayday — Mayday” three (3) years from the date of original purchase. “This is Corsair —...

  • Page 36: Product Service

    Specifications Product Service Specifications Customer Service Introduction Introduction If you have any questions about operation or installing your new Cobra product, PLEASE General CONTACT COBRA FIRST…do not return this product to any retail store. Number of Channels All U.S., Canadian, International and NOAA Weather Channels The contact information for Cobra will vary depending on the country in which you Channel Spacing 25 kHz...

  • Page 37: Vhf Marine Channel Assignments

    VHF Marine VHF Marine Channel Assignments Channel Assignments Introduction VHF Marine Radio Protocols Appendix Introduction Appendix VHF Marine Channel Assignments Asignación de canales de VHF para radiocomunicación marítima • • Three (3) sets of VHF channels have been established for marine use in the U.S.A., Existen tres (3) juegos de canales VHF para uso marítimo en los EE.UU., Canadá...
  • Page 38 VHF Marine VHF Marine Channel Assignments Channel Assignments Appendix Introduction Appendix Channel Assignments (English) Asignaciones de canales (Español) Correspondencia pública (operador marítimo) Public Correspondence (Marine Operator) Para llamadas a operadores marítimos en estaciones costeras públicas. Usted puede realizar y recibir For calls to marine operators at public coast stations.
  • Page 39 VHF Marine VHF Marine Channel Assignments Channel Assignments Appendix Appendix Channel Map Frequency Power Limits Channel Number Mapa de canales Frecuencia Límites de potencia Int’l Canada Transmit Número Receive Channel Use (English) Uso de canales (Español) de canal EE.UU. nternac Canadá...
  • Page 40 VHF Marine VHF Marine Channel Assignments Channel Assignments Introduction Appendix Introduction Appendix Channel Map Frequency Channel Number Frecuencia Mapa de canales Int’l Canada Transmit Número Receive Channel Use (English) Uso de canales (Español) de canal EE.UU. nternac Canadá Transm. Recepción •...
  • Page 41 VHF Marine VHF Marine Channel Assignments Channel Assignments Introduction Appendix Introduction Appendix Channel Map Frequency Power Limits Channel Number Mapa de canales Frecuencia Límites de potencia Int’l Canada Transmit Número Receive Channel Use (English) Uso de canales (Español) de canal EE.UU.
  • Page 42 VHF Marine VHF Marine Channel Assignments Channel Assignments Introduction Appendix Introduction Appendix Channel Map Frequency Power Limits Channel Number Frecuencia Límites de potencia Mapa de canales Int’l Canada Transmit Número Receive Channel Use (English) Uso de canales (Español) de canal EE.UU.
  • Page 43 VHF Marine VHF Marine Channel Assignments Channel Assignments Introduction Appendix Introduction Appendix Channel Map Frequency Power Limits Channel Number Mapa de canales Frecuencia Límites de potencia Int’l Canada Transmit Número Receive Channel Use (English) Uso de canales (Español) de canal EE.UU.
  • Page 44 VHF Marine VHF Marine Channel Assignments Channel Assignments Introduction Appendix Introduction Appendix Power Limits Channel Channel Map Frequency Number Mapa de canales Frecuencia Límites de potencia Int’l Canada Transmit Número Receive Channel Use (English) Uso de canales (Español) de canal EE.UU.

  • Page 45: Weather Channel Assignments

    VHF Marine Weather Channel Channel Assignments Assignments Introduction Appendix Introduction Appendix Weather Channel Assignments VHF Marine Channel Assignments (English) Asignaciones de canales meteorológicos • Weather NOTE Many of the plain-numbered channels, such as 01, 02 and 03, transmit and receive on Channels Wx 1 Thru 10 Receive-only channels for NOAA and Canadian weather broadcasts.

  • Page 46: World City Time Zones

    Accessories Order Info World City Time Zones Introduction Introduction Appendix Introduction Accessories You can find quality Cobra products and accessories at your local Cobra dealer, or in World City Time Zones • the U.S.A., you can order directly from Cobra. In order to set correct local time as compared to different World City Time Zones, enter the Please visit www.cobra.com hour “offset”...
  • Page 47 ©2022 Cobra Electronics Corporation Cobra®, Cobra Marine®, MicroBlue®, Nothing Comes Close to a Cobra®, Rewind-Say-Again® and the snake design are registered trademarks of Cobra Electronics Corporation, USA. Cobra Electronics Corporation™ is a trademark of Cobra Electronics Corporation, USA.
