Outdoor Unit
Boundary Dimension
Platform
W1(W2)× H× D(mm)
750× 285×200
1.3P
900× 310× 225
1.8P
945× 725× 435
2.3P
Note:

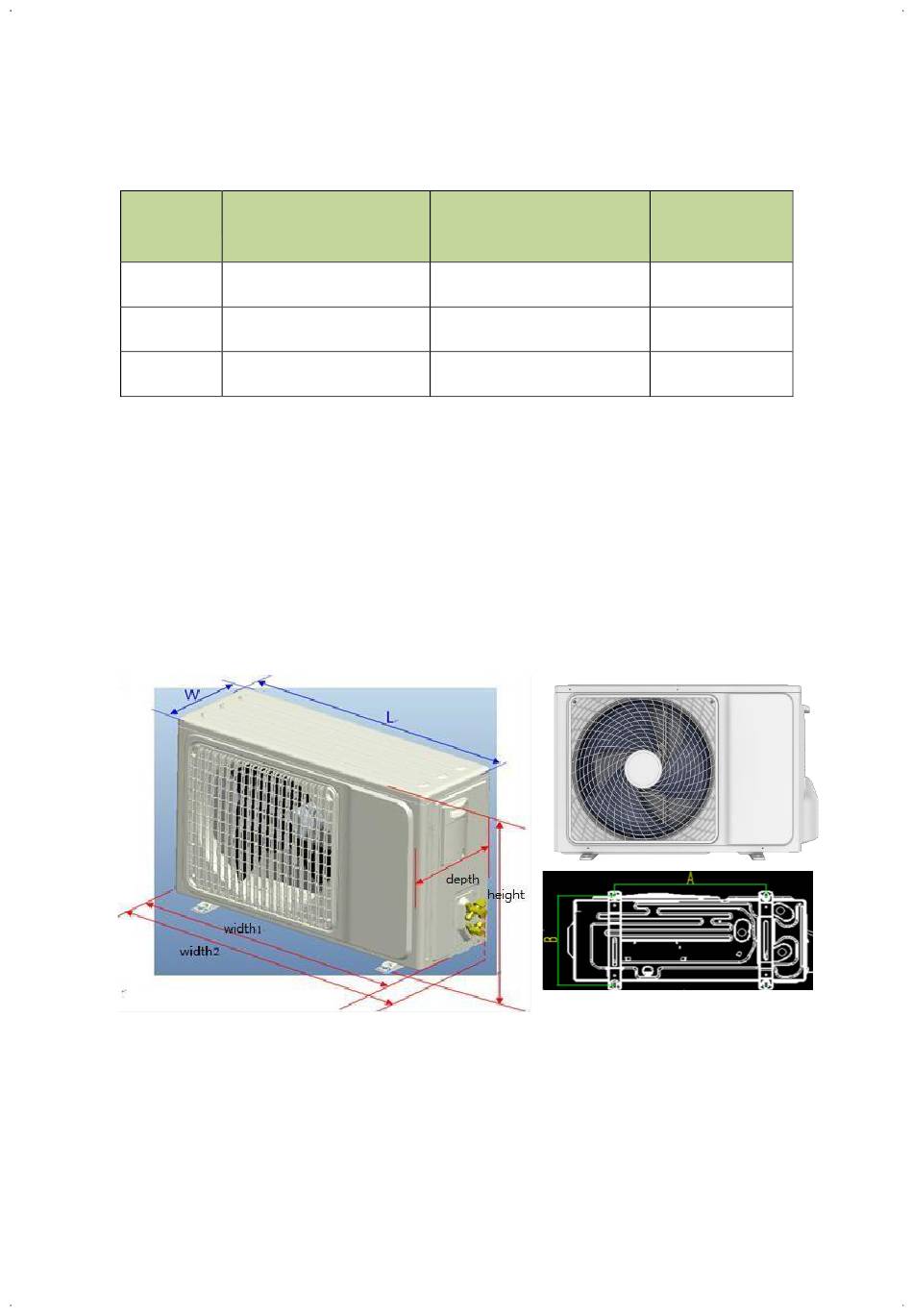

1. The main body size of the front shape after normal installation: width × height ×
depth (mm). An example of the dimension measurement is shown in the figure.
a) Width direction:
Width 1: Not include the size of the stop valve.
Width 2: Include the size of the stop valve.
b) Height direction: including the height of the mounting foot;
c) Depth direction: not include the size of mounting foot but include the size of the
large-area parts such as panel grille
2. Base footing center size A × B.
Base footing center size
A× B(mm)
540×280
545×315
630×350
3
Package Size
W× H× D(mm)
850×620×370
920×620×400
1082× 330× 233
