snug SnugStat Duo Instruction Manual

2 channel wi-fi thermostat
Hide thumbs Also See for SnugStat Duo:
Table of Contents

Advertisement

Quick Links

Download this manual
SnugStat Duo
2 Channel Wi-Fi Thermostat
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SnugStat Duo and is the answer not in the manual?

Questions and answers

Related Manuals for snug SnugStat Duo

Summary of Contents for snug SnugStat Duo

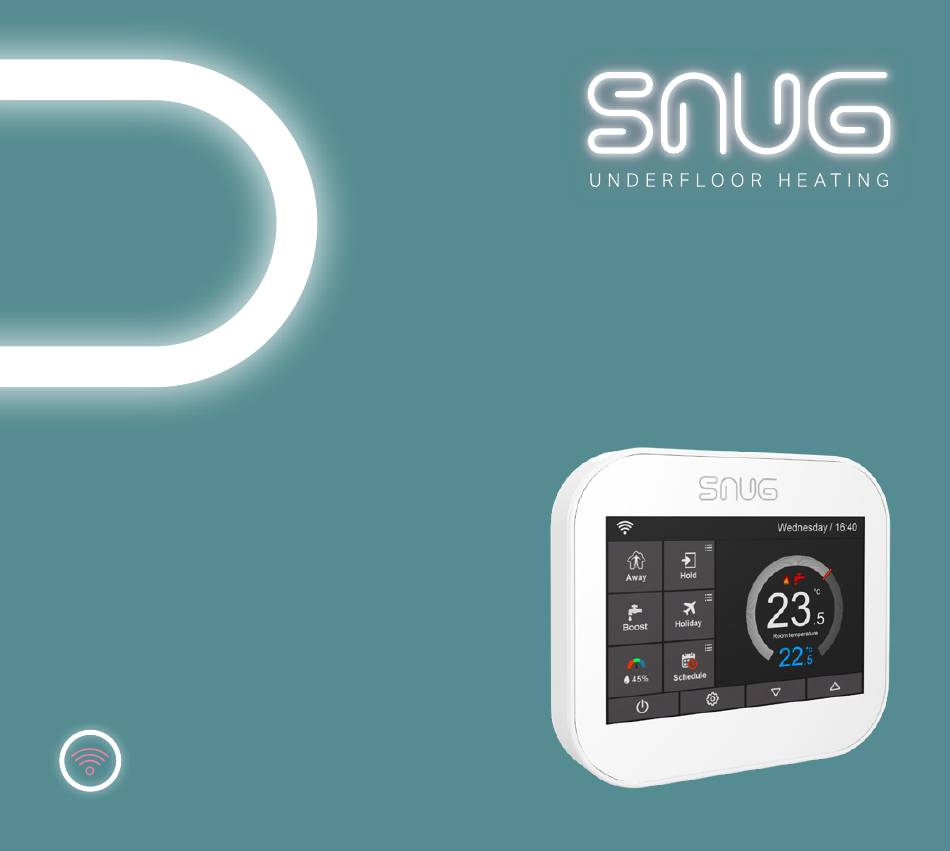

  • Page 1 SnugStat Duo 2 Channel Wi-Fi Thermostat Instruction Manual...
  • Page 2 WELCOME The Snugstat Duo 2 Channel Wi-Fi Thermostat makes smart, high performance heating, easier than ever. This guide tells you everything you need to know.

  • Page 3: Table Of Contents

    CONTENTS Standby Screen Screen Lock Temperature Format Temperature Limit Pairing with SnugStat App Away LCD Display Defrost Sensor Selection Operation of Main Display Icons Floor Temperature Limit Schedule Humidity Sensor Calibration Programming Timer Mode Schedule Open Window Function Copy To Optimum Start Hold Mode Daylight Saving Time...
  • Page 4 INTRODUCTION...
  • Page 5 It’s important to note that adjusting a room thermostat to a higher setting Our SnugStat Duo model allows for the use of one thermostat when the will not make the room heat up more quickly. How quickly the room heats up situation normally requires two, for example –...
  • Page 6 GETTING STARTED Select your Wi-Fi network and enter your Wi-Fi password, press next. A countdown will then begin. Pairing the SnugStat Thermostat with the SnugStat App On your thermostat, press the icon. Download the free SnugStat App from the Apple Store or the Google Play Store by searching SnugStat.
  • Page 7 Scan QR Code The app will display ‘Is Connected to the Wi-Fi’ and the thermostat will read ‘App Matching Successful’. On the SnugStat app, select ‘Scan QR Code’ and then ‘Add Device Location’. Manual Entry Allow the SnugStat app camera access. On the SnugStat app, select ‘Manual Entry’...
  • Page 8 Note: DO NOT enter the colons – enter as just the numerical digits with no spaces. Select ‘Add Device Location’. Then select a pre-written room name or create your own. Your thermostat is now connected – it may display ‘fault’ for a few seconds before connection is fully established.

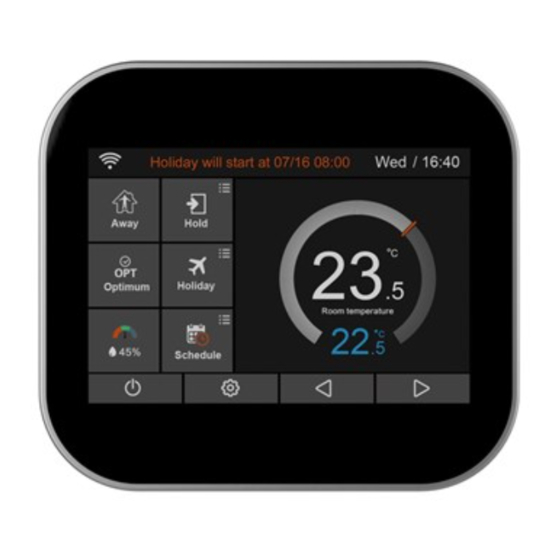

  • Page 9: Lcd Display

    LCD DISPLAY 01 02 Temperature Hold ‘Schedule’: Programming your ON/ OFF heating cycles. Adjusting the optional settings. Setup button. Day indicator and clock. Adjusting the temperature setting. ‘Away’: Means the thermostat is maintaining a lower temperature or turning a page. to improve efficiency whilst away.

  • Page 10: Operation Of Main Display Icons

    OPERATION OF MAIN DISPLAY ICONS...

  • Page 11: Schedule

    09 Press the third column of ‘Temperature’, use the scroll function or the icons to set desired temperature. The SnugStat Duo arrives preset to the weekday/weekend (5/2 day) setting. This is the default mode. If you would like to change this, turn to page 28.

  • Page 12: Programming Timer Mode Schedule

    Programming Timer Mode Schedule Copy To 01 Press the schedule icon on the main screen. The ‘Copy To’ feature allows you to copy times and schedules across multiple days, without inputting the data again. 02 Press the ‘Timer’ option. 01 To use this, simply select your time and press ‘Copy To’. Then select 03 On the schedule page, select the days you wish to edit.
  • Page 13 Hold Boost The temperature hold function allows you to manually override the current The boost function allows you to override the timer function of the operating program and set a different temperature for a desired period. This thermostat outside of the programmed times. is useful for when you want the temperature to remain for a longer period This can be to override on or override off.

  • Page 14: Humidity Sensor

    Holiday Humidity Sensor The SnugStat Duo Wi-Fi Thermostat will maintain the defrost preset Selecting the Humidity Sensor option on the main screen will show temperature for the duration of the holiday and will then automatically return you a detailed gauge of your room’s exact temperature and humidity.

  • Page 15: Feature Settings Explained

    Weekday / Weekend (5 + 2) Programming - Allows you to edit the 4 time so the SnugStat Duo Wi-Fi Thermostat does not light up the room. periods for the weekday and 4 time periods for the weekend. This is the preset setting.
  • Page 16 Output Delay: This setting is to stop rapid switching, if set to 15min, once Floor Temp Limit: The function is available when the floor sensor is the thermostat stops calling for heat it will not switch on for 15 minutes. enabled.

  • Page 17: Operation Of Feature Settings

    OPERATION OF FEATURE SETTINGS...

  • Page 18: Clock Setting

    OPERATION OF Clock Setting FEATURE SETTINGS To set the clock, follow these steps. 01 Press the icon and enter Feature Settings. Language 02 Press ‘Clock’ Setting. 01 Press the icon and enter Feature Settings. 03 Press the column of Day/Month/Year, use the icons to set the Day/Month/Year values.

  • Page 19: Standby Screen

    Screen Lock When Ambient Light Dimming is in mode, you can manually adjust the backlight brightness. 01 Touch the icon and enter Feature Settings. 05 Use the icons to adjust to the desired brightness.. 02 Press ‘Screen Lock’ and enter setting interface. 06 Press the icon twice to save and return to the main screen.

  • Page 20: Temperature Limit

    04 Press the icon to the left of 0C or 0F. 01 Press the icon and enter Feature Settings. 02 Find ‘Away’ option and press it. 05 Press the icon twice to save and return to the main screen. 03 Use the scroll function icons to adjust the temperature.

  • Page 21: Sensor Selection

    Sensor Selection Press the icon twice to save and return to the main screen. 01 Press the icon and enter Feature Settings. Humidity Sensor Calibration 02 Find ‘Sensor Selection’, and press it. This feature is to recalibrate your humidity sensor, if you have one at home and the readings are mismatched, simply: 03 Press the name of the sensor that you require.

  • Page 22: Optimum Start

    02 Press ‘System Information’ and enter system interface. Note: The rate of change is impossible to change on the thermostat, as the SnugStat Duo is self-learning it will adjust to your home the more it is used. 03 Press the icon twice to exit.

  • Page 23: Reset To Factory Settings

    03 Press ‘Reset’. Once the back plate is secure, re-fit the thermostat front panel to the back 04 The SnugStat Duo will now restart, this may take a few moments. plate and gently tighten the bottom retaining screw. Once this is complete the SnugStat Duo has reset to factory settings.

  • Page 24: Technical Specification

    TECHNICAL SPECIFICATION Power supply: 230V, 50/60Hz Screw hole CC: 60mm Setting temp range: 5-350C              Grade of protection: IP 20 Working temp range: -100C to +450C Sensor type: NTC10k Power consumption: Installation type: Flush Floor Temperature Limit: 20-450C Dimension: 96 * 86 * 42.5 (W*H*D) mm Max Switch Current: Heating Mode: 13A –...

  • Page 25: Wiring Diagrams

    WIRING DIAGRAM Electric Radiator and Electric Underfloor Heating Electric Radiator and Wet Underfloor Heating 230v MAINS 230v BOILER SUPPLY MAINS SUPPLY SL PL Electric Towel Radiator Electric Towel Radiator REMOTE FLOOR PROBE REMOTE FLOOR PROBE UFH 2 port valve or RAD 2 port valve Electric UFH...
  • Page 26 Electric Underfloor Heating and Hot Water Wet Underfloor Heating and Hot Water Towel Radiator Towel Radiator 230v 230v MAINS BOILER MAINS SUPPLY BOILER SUPPLY SL PL SL PL UFH 2 port valve or RAD 2 port valve REMOTE FLOOR PROBE HW Towel Rad 2 port valve Electric UFH...

  • Page 27: Recalibration

    Recalibration Wet Underfloor Heating and Radiators Your thermostat has been fully calibrated and tested. Should this need changing. 01 Press the icon to enter the Feature Settings. 02 Press the icons to turn to page 4 and press ‘Sensor Selection’ 03 Press on the name of the sensor you wish to recalibrate.
  • Page 28 Notes...
  • Page 29 If you have any problems installing or programming your Snugstat Duo 2 Channel Wi-Fi Thermostat, call our dedicated technical support team on 01772 761333, who will be more than happy to help.
  • Page 30 Can We Help? Your SnugStat comes with a 2 year warranty from date of purchase. If you have any problems installing or programming your SnugStat, call our dedicated technical support team on 01772 761333, who will be more than happy to help.
