Cobra Marine MR HH350 FLT Owner's Manual

Vhf marine radio
Hide thumbs Also See for MR HH350 FLT:
Table of Contents

Advertisement

Quick Links

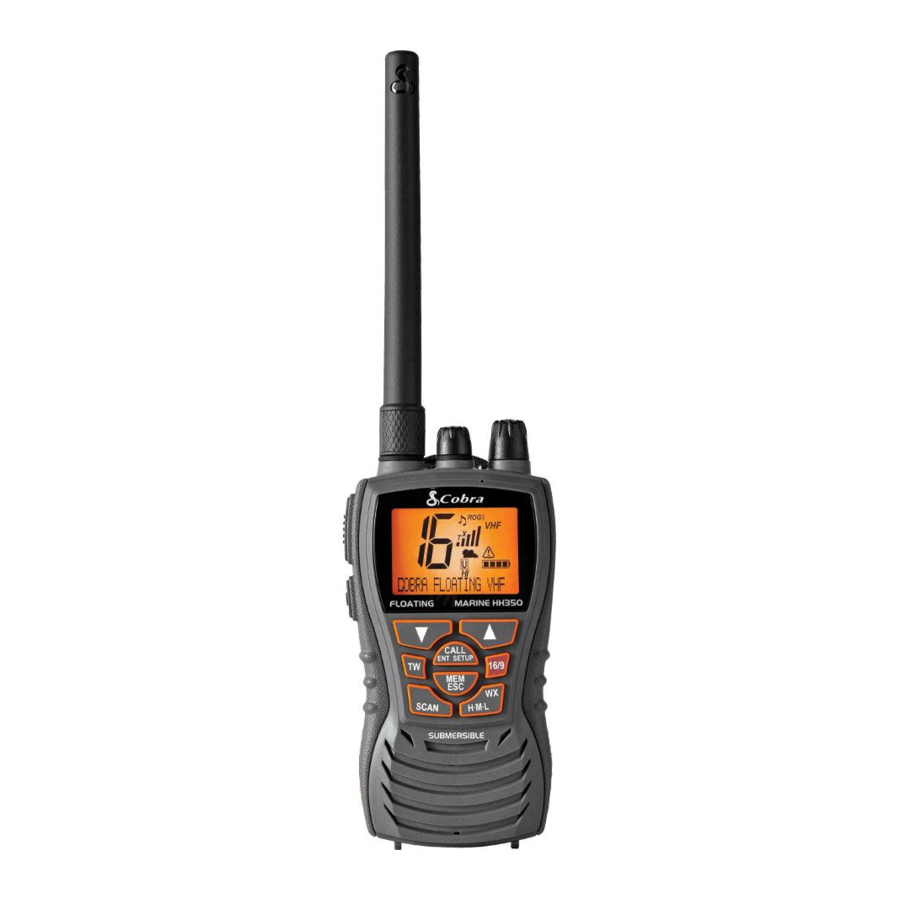

VHF MARINE RADIO
MR HH350 FLT
Nothing Comes Close to a Cobra
®
Our Thanks to You and
Customer Assistance
Introduction
Our Thanks to You
Thank you for purchasing a Cobra Marine
Properly used, this Cobra
Owner's Manual
many years of reliable service.
How Your Cobra Marine VHF Radio Works
This radio is a battery-powered portable transceiver for use afloat. It gives you
two-way vessel-to-vessel and vessel-to-shore station communications, primarily
for safety and secondarily for navigation and operational purposes. With it, you
can call for help, get information from other boaters, talk to lock or bridge tenders,
and make radiotelephone calls to anywhere in the world through a marine operator.
Besides two-way communications, the radio can provide quick access to receive
all the NOAA (National Oceanographic and Atmospheric Administration) weather channels
and alert you to weather emergencies with a tone on a weather channel you can select for
your area.
Customer Assistance
Customer Assistance
Should you encounter any problems with this product, or not understand
its many features, please refer to this owner's manual. If you require further assistance
after reading this manual, Cobra Electronics offers the following
customer assistance services:
For Assistance In The U.S.A.
Monday-Friday 9:00 AM- 5:00 PM EST
Call: 800-543-1608
SERVICE
Monday-Thursday 9:00AM-5:00PM EST
Call: 800-543-1608
Have questions? We can help. Contact us at 800-543-1608
M-F 9:00AM-5PM EST
For Assistance Outside the U.S.A.
Contact Your Local Dealer
English
English
A1
•
VHF radio.
®
®
product will give you
©2022 Cobra Electronics Corporation
www.cobra.com
Radio Controls
and Indicators
Introduction
Antenna
Speaker/
Backlit
Microphone
LCD
External Cover
ON/OFF/
Screen
Volume Control
Push
to Talk
Button
Backlight/
Key Lock
ROG
Button
VHF
R
X
T
A
U
C I
B
Channel
LOMEDHI
MEM
Down
Button
FLOATING
MARINE HH350
Call/Enter
Button
CALL
ENT SETUP
TW
16/9
MEM
ESC
Tri-Watch
SUBMERSIBLE
Button
SCAN Button
Speaker
A2 English
Belt Clip
Battery
Battery
Door
Screw
Channel
Up Button
Instant
Channel
16/9 Button
Memory/Escape
Button
Power Level/
Weather Button
VHF Microphone

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MR HH350 FLT and is the answer not in the manual?

Questions and answers

Related Manuals for Cobra Marine MR HH350 FLT

Summary of Contents for Cobra Marine MR HH350 FLT

  • Page 1 Our Thanks to You and Radio Controls Customer Assistance and Indicators Introduction Introduction Our Thanks to You • Thank you for purchasing a Cobra Marine VHF radio. ® Properly used, this Cobra ® product will give you Belt Clip Owner’s Manual many years of reliable service.

  • Page 2: Backlit Lcd (Liquid Crystal Display) Screen

    Backlit LCD Screen and Product Features Product Features Notes Introduction Introduction Introduction Backlit LCD (Liquid Crystal Display) Screen Product Features (continued) • • Call Tone Icon Key Tone Icon Roger Beep Icon Locking Desktop Charger Signal Strength Meter Weather Icon Frequency Band Icon Holds the radio or battery in place while Shows the strength of incoming or outgoing...

  • Page 3: Table Of Contents

    Table of Contents Introduction Introduction Our Thanks to You ..........A1 Customer Assistance .

  • Page 4: Important Safety Information

    The following WARNINGS and NOTICE information will make you aware of RF exposure Before installing and using your Cobra Marine VHF radio, please read these general hazards and how to assure you operate the radio within the FCC RF exposure limits precautions and warnings.

  • Page 5: Recommendations For Marine Communication

    If the 6 watt maximum output of your radio is not sufficient for the distances you travel from the coast, consider a higher powered handheld or installing a Cobra Marine fixed mount radio with up to 25 watts of output power. (Visit www.cobra.com or your local dealer for model availability.)

  • Page 6: Included In This Package

    You should find all of the following items in the package with If your vessel will be entering the sovereign waters of a country other than the U.S.A. or Canada, you should contact that country’s communications regulatory authority for your Cobra Marine VHF radio: licensing information. Radio Call Sign...

  • Page 7: Install/Remove Antenna

    Install/Remove Antenna Wrist Strap and Belt Clip VHF Marine Radio Protocols Installation VHF Marine Radio Protocols Installation Install/Remove Antenna Wrist Strap and Belt Clip • • 1. To install the antenna turn the antenna into the radio Belt Clip Belt Clip Antenna clockwise to tighten.

  • Page 8: Batteries And Charger

    Batteries and Charger Batteries and Charger VHF Marine Radio Protocols Installation VHF Marine Radio Protocols Installation Initial Charge To Remove Battery Pack from Radio Power Sources Remove Battery The Cobra-provided LiON battery pack may be charged at home, 1. Loosen the screw on the back of the battery pack. in a car or in a boat using the appropriate 12V or 120V power 2.

  • Page 9: Getting Started

    Batteries and Charger Getting Started VHF Marine Radio Protocols Installation VHF Marine Radio Protocols Operating Your Radio Maintaining the Battery Charge Getting Started Fully Charged • As you use your radio, the battery power icon will show the Refer to the foldout at the front of this manual to identify the HH350 Radio battery power remaining.
  • Page 10 Getting Started Getting Started VHF Marine Radio Protocols Operating Your Radio VHF Marine Radio Protocols Operating Your Radio Radio Speaker and Microphone Channel Up/Down Buttons Speaker/Mic Port Channel Up/Down Buttons The internal Radio Speaker and Microphone are located on the Your radio will Receive (Rx) and Transmit (Tx) VHF signals on bottom front face of the radio below the lower control buttons.

  • Page 11: Setup Mode Programming

    Getting Started Setup Mode Programming VHF Marine Radio Protocols Operating Your Radio VHF Marine Radio Protocols Operating Your Radio High/Medium/Low (H-M-L) Power Button Setup Mode Programming H-M-L Power Button • Your radio can transmit selectively at 1, 3 or 6 Watts of power. The following series of procedures is designed to allow you Cobra suggests you maintain the low power setting for short- to set the programmable features of your radio.
  • Page 12 Setup Mode Programming Setup Mode Programming VHF Marine Radio Protocols Operating Your Radio VHF Marine Radio Protocols Operating Your Radio Squelch Control USA/International/Canada Channel Maps Channel Up/Down Buttons Active Channel Map Icon Squelch Control filters weak signals and radio frequency (RF) noise Three (3) sets of VHF Channel Maps have been established so that you will clearly hear the signals you want.
  • Page 13 Setup Mode Programming Setup Mode Programming VHF Marine Radio Protocols Operating Your Radio VHF Marine Radio Protocols Operating Your Radio Call Tone Select Call Tone Select Weather (WX) Mode Programming This setting will also allow you to transmit a unique Call Tone alert to identify your radio when you transmit Programming these features will allow your radio to listen to GMRS...

  • Page 14: Standby/Receive And Transmit

    Standby/Receive Standby/Receive and Transmit and Transmit VHF Marine Radio Protocols Operating Your Radio VHF Marine Radio Protocols Operating Your Radio To Set WX Auto Search (SCAN) On or Off: Transmit (Tx) Mode WX Auto Search (SCAN) Check Channel Number WX auto search setup is only shown if WX Alert is set to ON. Transmit (Tx) mode gives you the ability to interact with safety services, other vessels and shore stations.

  • Page 15: Noaa Weather Channels And Alert

    NOAA broadcasts a 1050 Hz tone that receivers such as your Cobra Marine VHF radio can detect and warn you of a weather alert condition. When the Weather Alert mode on your radio is On, this signal will produce a loud tone from the speaker in the radio and will automatically switch to the alerting weather channel so the alert broadcast can be heard.

  • Page 16: Advanced Operation

    Advanced Operation Advanced Operation VHF Marine Radio Protocols Operating Your Radio VHF Marine Radio Protocols Operating Your Radio Advanced Operation Tri-Watch Mode TRI-WATCH Button • Tri-Watch mode gives you one (1) button access to scan Channel 16/9 Mode Channel 16/9 Button a total of three (3) channels of most importance to you.
  • Page 17 Advanced Operation Advanced Operation VHF Marine Radio Protocols Operating Your Radio VHF Marine Radio Protocols Operating Your Radio Using Tri-Watch Memory Location Mode TRI-WATCH Button MEM/ESC Button ENT SETUP Your radio has unlimited memory locations for storing your Tri-Watch Scan Mode: most frequently used channels.
  • Page 18 Advanced Operation Advanced Operation VHF Marine Radio Protocols Operating Your Radio VHF Marine Radio Protocols Operating Your Radio To Recall a Stored Memory Location: Channel Scan Mode MEM Icon SCAN Button 1. Press the MEM/ESC button. The MEM icon will be During Channel Scan mode, the radio will rapidly switch from turned On.

  • Page 19: Floating Feature

    Advanced Operation Floating Feature VHF Marine Radio Protocols Operating Your Radio VHF Marine Radio Protocols Operating Your Radio Burp Feature Memory Location Scan Mode 16 and Scan Cobra’s Burp feature allows the operator to expel water from inside During Memory Location Scan mode, the radio will rapidly scan the speaker grill.

  • Page 20: Maintenance

    VHF Marine Radio Procedures • • Very little maintenance is required to keep your Cobra Marine VHF radio Maintain Your Watch in good operating condition: Whenever your boat is underway, the radio must be turned On and be tuned to Channel 16 Keep the radio and charger clean by wiping with a soft cloth and mild detergent.

  • Page 21: Vhf Marine Radio Protocols

    VHF Marine Radio Procedures Voice Calling VHF Marine Radio Protocols VHF Marine Radio Protocols Prohibited Communications Voice Calling • You MUST NOT transmit: You are required to listen to Channel 16 while standing by. Channel 16 is the distress and False distress or emergency messages.

  • Page 22: Emergency Messages And Distress Procedure

    Emergency Messages and Voice Calling Distress Procedure VHF Marine Radio Protocols VHF Marine Radio Protocols If the other does not respond, wait two (2) minutes and repeat. You are permitted Emergency Messages and Distress Procedure • to attempt contact three (3) times, two (2) minutes apart. If you still have not made The ability to summon assistance in an emergency is the primary reason to have a VHF contact, wait 15 minutes before trying again.
  • Page 23 Emergency Messages Emergency Messages and Distress Procedure and Distress Procedure VHF Marine Radio Protocols VHF Marine Radio Protocols Marine Emergency Signals Marine Distress Procedure The three (3) spoken international emergency signals are: Speak slowly — clearly — calmly. 1. Make sure your radio is On. MAYDAY The distress signal MAYDAY is used to indicate that a station is threatened by grave and 2.

  • Page 24: Warranty

    Emergency Messages and Distress Procedure Warranty VHF Marine Radio Protocols Warranty Warranty Terms: For Example Cobra warrants your product against all defects in materials and workmanship for a period of “Mayday — Mayday — Mayday” three (3) years from the date of original purchase. “This is Corsair —...

  • Page 25: Product Service

    Specifications Product Service Specifications Customer Service VHF Marine Radio Protocols If you have any questions about operation or installing your new Cobra product, PLEASE Specifications (Typical) • CONTACT COBRA FIRST…do not return this product to any retail store. General The contact information for Cobra will vary depending on the country in which you Number of Channels All U.S., Canadian, International and purchased and utilize the product.

  • Page 26: Vhf Marine Channel Assignments

    VHF Marine VHF Marine Channel Assignments Channel Assignments Introduction Appendix Introduction Appendix VHF Marine Channel Assignments Asignación de canales de VHF para radiocomunicación marítima • • Three (3) sets of VHF channels have been established for marine use in the U.S.A., Existen tres (3) juegos de canales VHF para uso marítimo en los EE.UU., Canadá...
  • Page 27 VHF Marine VHF Marine Channel Assignments Channel Assignments Appendix Introduction Appendix Channel Assignments (English) Asignaciones de canales (Español) Correspondencia pública (operador marítimo) Public Correspondence (Marine Operator) Canales 84, 85, 86, 87, 87A, 88* Channels 84, 85, 86, 87, 87A, 88* Para llamadas a operadores marítimos en estaciones costeras públicas.
  • Page 28 VHF Marine VHF Marine Channel Assignments Channel Assignments Appendix Appendix Channel Map Frequency Power Limits Channel Number Frecuencia Límites de potencia Mapa de canales Int’l Canada Transmit Número Receive Channel Use (English) Uso de canales (Español) de canal EE.UU. nternac Canadá...
  • Page 29 VHF Marine VHF Marine Channel Assignments Channel Assignments Appendix Appendix Channel Map Frequency Channel Number Frecuencia Mapa de canales Int’l Canada Transmit Número Receive Channel Use (English) Uso de canales (Español) de canal EE.UU. nternac Canadá Transm. Recepción • • •...
  • Page 30 VHF Marine VHF Marine Channel Assignments Channel Assignments Appendix Appendix Channel Map Frequency Power Limits Channel Number Frecuencia Límites de potencia Mapa de canales Int’l Canada Transmit Número Receive Channel Use (English) Uso de canales (Español) de canal EE.UU. nternac Canadá...
  • Page 31 VHF Marine VHF Marine Channel Assignments Channel Assignments Appendix Appendix Frequency Power Limits Channel Channel Map Number Frecuencia Mapa de canales Límites de potencia Int’l Canada Transmit Número Receive Channel Use (English) Uso de canales (Español) de canal EE.UU. nternac Canadá...
  • Page 32 VHF Marine VHF Marine Channel Assignments Channel Assignments Appendix Appendix Channel Map Frequency Power Limits Channel Number Mapa de canales Frecuencia Límites de potencia Int’l Canada Transmit Número Receive Channel Use (English) Uso de canales (Español) de canal EE.UU. nternac Canadá...

  • Page 33: Weather Channel Assignments

    VHF Marine Channel Weather Channel NOAA Weather Channels Assignments Assignments and Alert Appendix Appendix Weather Channel Assignments VHF Marine Channel Assignments (English) Asignaciones de canales meteorológicos • NOTE Channel Many of the plain-numbered channels, such as 01, 02 and 03, transmit and receive on Number RX Frequency MHz Weather Channel...

  • Page 34: Order Info

    ©2021 Cobra Electronics Corporation Cobra®, Cobra Marine®, Nothing Comes Close to a Cobra®, and the snake design are registered trademarks of Cobra Electronics Corporation, USA. Cobra Electronics Corporation™ is a trademark of Cobra Electronics Corporation, USA.
