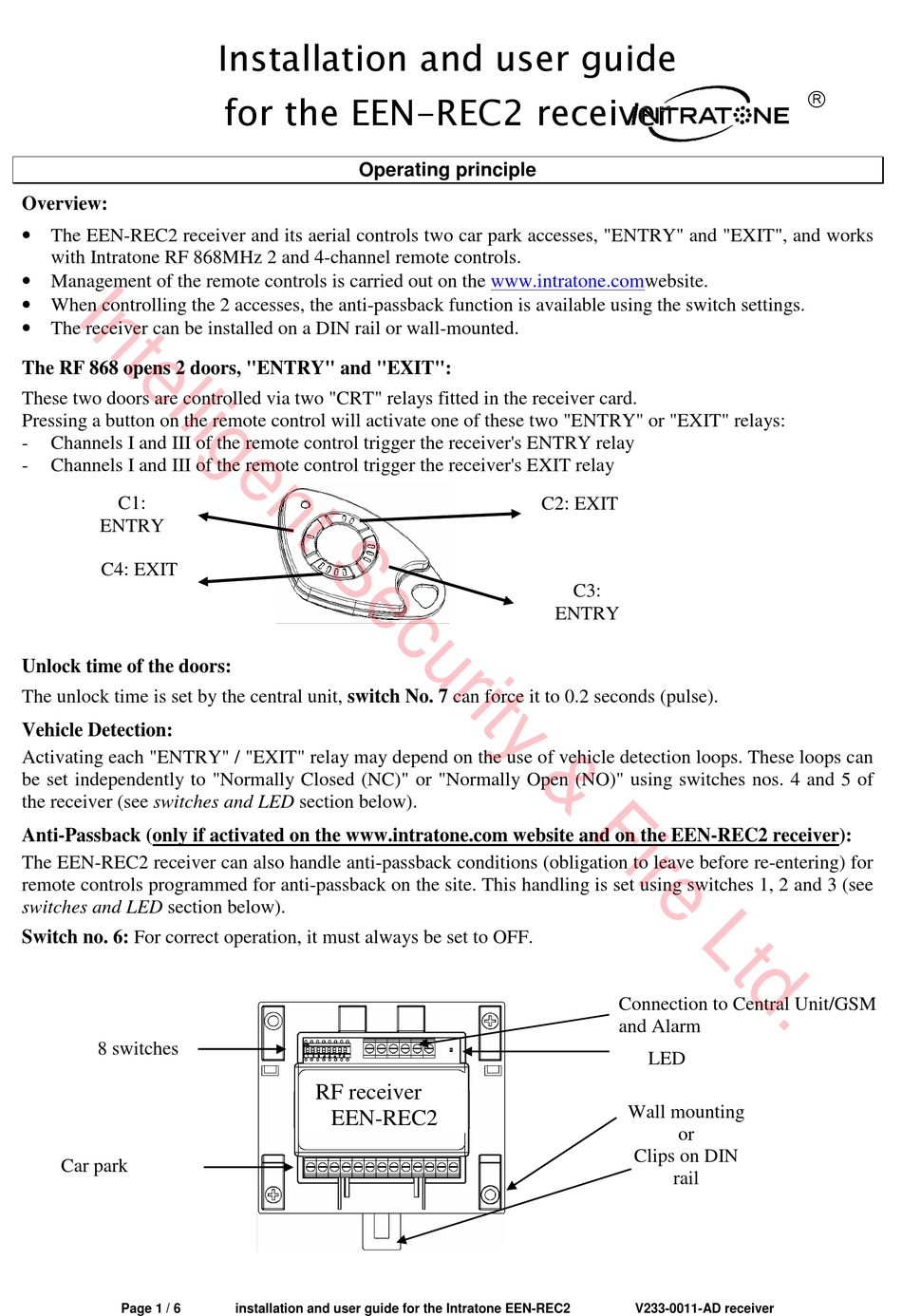

Overview:
• The EEN-REC2 receiver and its aerial controls two car park accesses, "ENTRY" and "EXIT", and works
with Intratone RF 868MHz 2 and 4-channel remote controls.
• Management of the remote controls is carried out on the www.intratone.comwebsite.
• When controlling the 2 accesses, the anti-passback function is available using the switch settings.
• The receiver can be installed on a DIN rail or wall-mounted.
The RF 868 opens 2 doors, "ENTRY" and "EXIT":
These two doors are controlled via two "CRT" relays fitted in the receiver card.
Pressing a button on the remote control will activate one of these two "ENTRY" or "EXIT" relays:
-
Channels I and III of the remote control trigger the receiver's ENTRY relay
-
Channels I and III of the remote control trigger the receiver's EXIT relay
C1:
ENTRY
C4: EXIT
Unlock time of the doors:
The unlock time is set by the central unit, switch No. 7 can force it to 0.2 seconds (pulse).
Vehicle Detection:
Activating each "ENTRY" / "EXIT" relay may depend on the use of vehicle detection loops. These loops can
be set independently to "Normally Closed (NC)" or "Normally Open (NO)" using switches nos. 4 and 5 of
the receiver (see switches and LED section below).
Anti-Passback (only if activated on the www.intratone.com website and on the EEN-REC2 receiver):
The EEN-REC2 receiver can also handle anti-passback conditions (obligation to leave before re-entering) for
remote controls programmed for anti-passback on the site. This handling is set using switches 1, 2 and 3 (see
switches and LED section below).
Switch no. 6: For correct operation, it must always be set to OFF.
8 switches
Car park
unitterminals
Page 1 / 6
Installation and user guide
for the EEN-REC2 receiver
Operating principle
RF receiver
EEN-REC2
installation and user guide for the Intratone EEN-REC2
C2: EXIT
C3:
ENTRY
Connection to Central Unit/GSM
and Alarm
LED
Wall mounting
or
Clips on DIN
rail
V233-0011-AD receiver
