Overview:
• The EEN-REC3 receiver enables control of two car park accesses: "ENTRY" and "EXIT", and
works with RF 868MHz 2 and 4-channel remote controls.
• Management of the remote controls is carried out on the internet.
• When controlling the 2 accesses, the anti-passback function is available using the switch settings.
• It is waterproof and can be attached to an outside wall.
The RF 868 opens 2 doors, "ENTRY" and "EXIT":
These 2 doors are controlled via 2 "CT" relays fitted to the receiver card.
Pressing a button on the remote control will activate one of these two "ENTRY" or "EXIT" relays:
Unlock time of the doors: The unlock time is set by the central unit.
Vehicle Detection:
Activating each "ENTRY" / "EXIT" relay may depend on the use of vehicle detection loops. These
loops can be set independently to "Normally Closed (NC)" or "Normally Open (NO)" using switches
nos. 4 and 5 of the receiver (see switches and LED section below).
Anti-Passback (only if activated on the website and on the EEN-REC3 receiver):
The EEN-REC2 receiver can also handle anti-passback conditions (obligation to leave before re-
entering) for remote controls programmed for anti-passback on the site. This handling is set using
switches 1, 2 and 3 (see switches and LED section below).
Switch no. 6: For correct operation, it must always be set to OFF.
Page 1 / 6
Page / Fitting and user guide for the EEN-REC3
Fitting and user guide
for the EEN-REC3 receiver

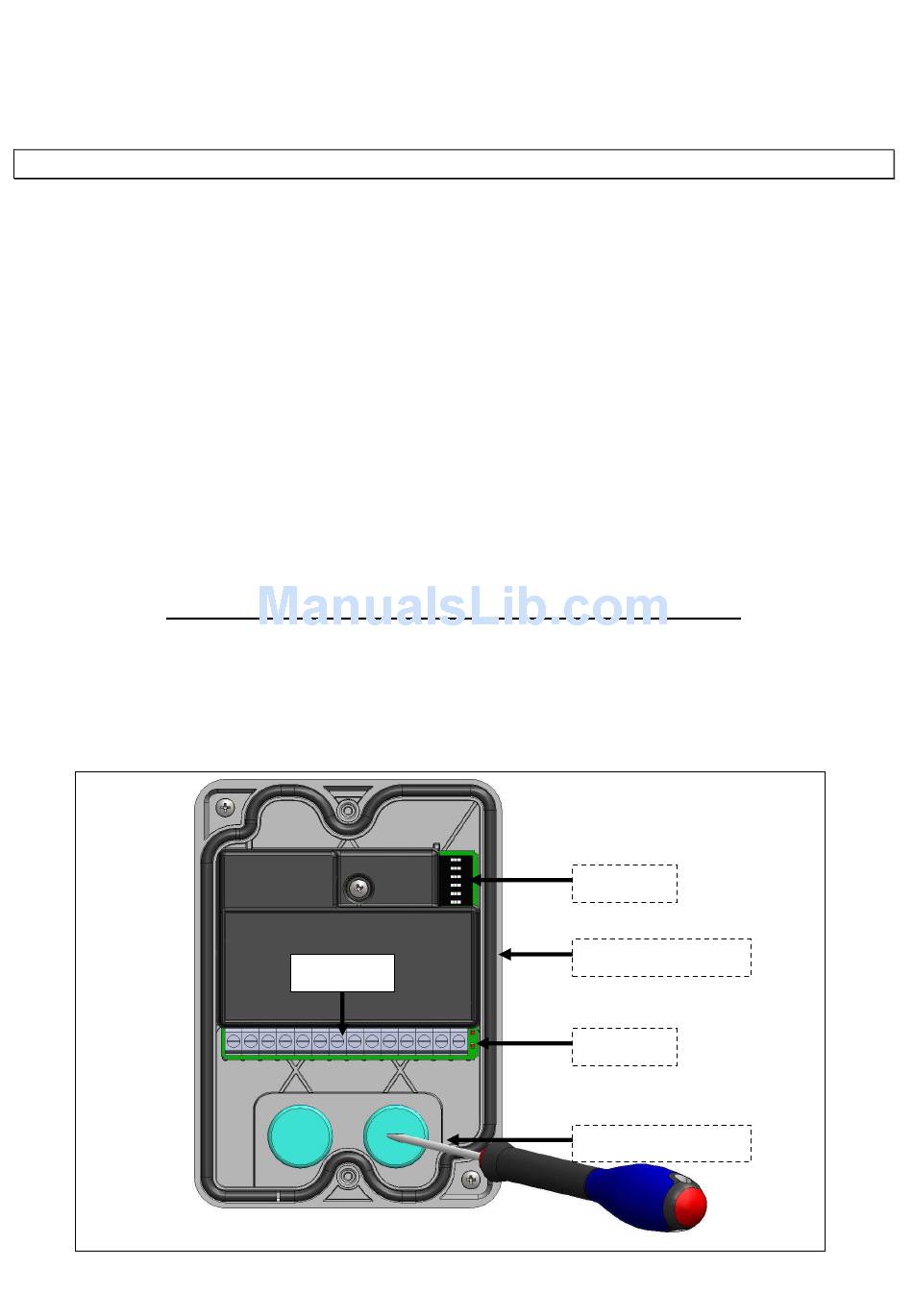

Operating principle
Terminal
blocks
Switches
Waterproof seal
LEDs
Waterproof cable pass
through
V233-0013-AA receiver
Advertisement
Related Manuals for Intratone EEN-REC3
Summary of Contents for Intratone EEN-REC3
- Page 1 EEN-REC3 receiver Operating principle Overview: • The EEN-REC3 receiver enables control of two car park accesses: "ENTRY" and "EXIT", and works with RF 868MHz 2 and 4-channel remote controls. • Management of the remote controls is carried out on the internet.
- Page 2 Correct communication with the central unit: Diagnosis displays "RF". Goes off for 1 second Correct reception of the RF emission by a 868 MHz remote control. Page 2 / 6 Page / Fitting and user guide for the EEN-REC3 V233-0013-AA receiver...
- Page 3 P. Supply: As near as poss to near as poss to 12V / 24V 12V / 24V central central AC / DC AC / DC Page 3 / 6 Page / Fitting and user guide for the EEN-REC3 V233-0013-AA receiver...
- Page 4 Failure to comply with this requirement will void the warranty. Notes: • If the range of the remote controls is too short (no signal detected by the EEN-REC3 receiver): place the aerial in several locations to find the best position (if possible in an open area away from metal parts in order not to interfere with the reception).
- Page 5 Every time a key on one of the remote controls is pressed, a code is emitted which must meet criteria known only to the EEN-REC3 receiver. The security of your site is thus optimal. It may be necessary to erase the rolling codes stored on the receiver. (Fitting the receiver on another site for example).
- Page 6 Sizes Page 6 / 6 Page / Fitting and user guide for the EEN-REC3 V233-0013-AA receiver...
