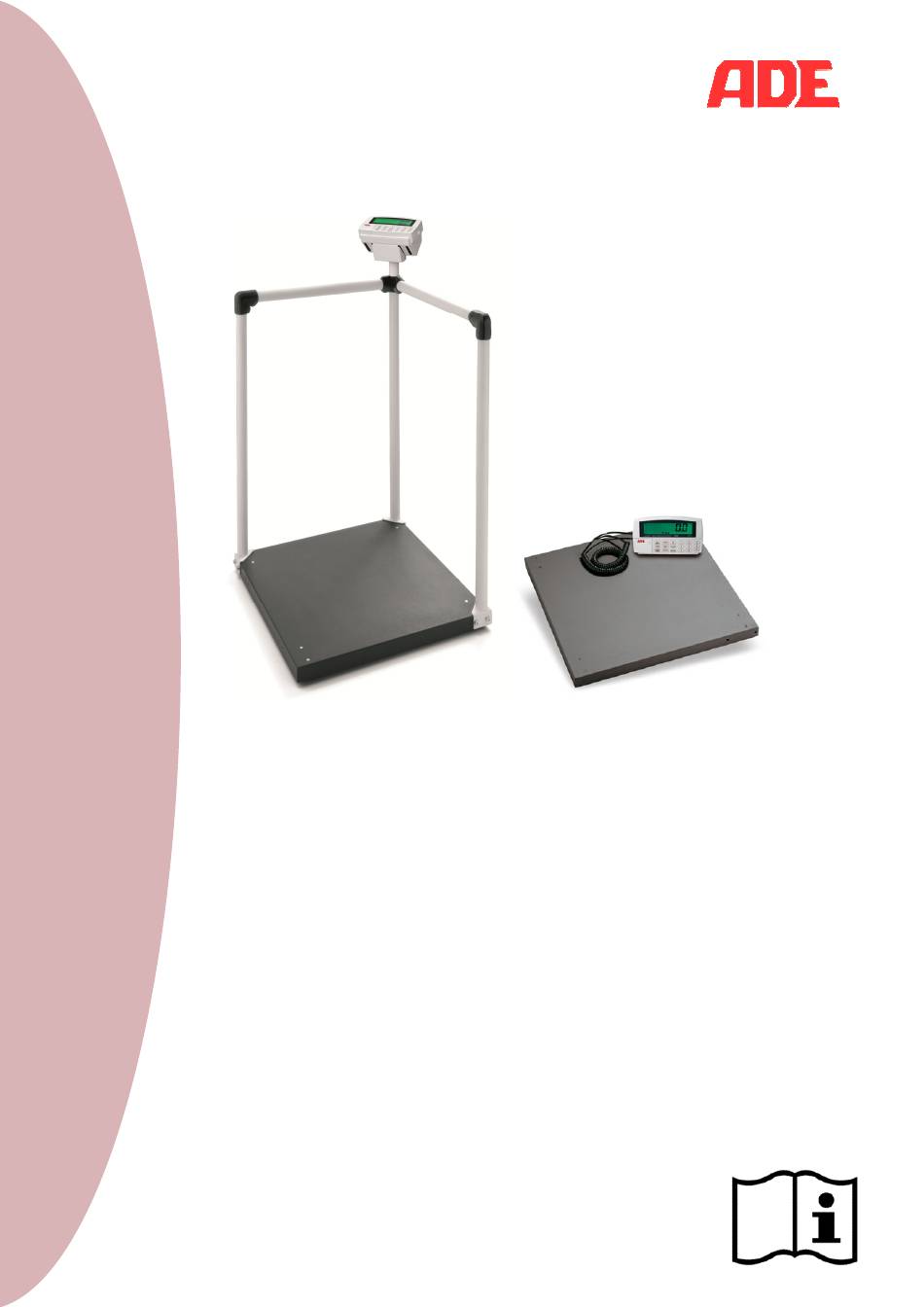

- Page 1 Operating Manual Class III approved Scales Electronic Platform and Handrail Scales Series M301020 M301020-01-210322-Rev005-UM-e...
-
Page 2: Table Of Contents
Content Introduction ............................3 Assembly ..............................3 Attachment of the indicator ....................3 Power supply ........................3 Replacing the rechargeable battery ................... 4 Tips for handling the batteries .................... 4 Quality features ........................4 Display ..............................5 Description ..........................5 Safety .............................. -
Page 3: Introduction
ADE representative or visit our web page at www.ade-hamburg.de Assembly The indicator/ display of your ADE scale is able to be mounted on walls, on sockets, handrails or on stand-on devices for the table depending on the model you have selected. -
Page 4: Replacing The Rechargeable Battery
3) Close the battery compartment again. Only use original rechargeable batteries and charger units from ADE. The warranty does not cover any damage caused by using other types of batteries or charger units. Tips for handling the batteries The life of a battery depends essentially on the load, frequency of use, temperatures, settings and the acces- sories used. -
Page 5: Display
Display Description The ADE-display (MAK) is a digital precision display unit for medical use in hospitals by doctors and special- ists of all medical fields. The unit in particular features easy operation, high efficiency and long-lasting opera- tion (over 200 hours in power save mode). -
Page 6: Safety
Safety Safety instructions The ADE-display unit (MAK) corresponds to the latest state of the art technology and complies with standard regulations and directives. Kindly follow the safety instructions in this operating manual, the country-specific installation standards as well as the applicable safety conditions and accident prevention regulations in all aspects. -
Page 7: Housing And Connections
The "weighing mode" is of course the standard mode of your scale. After initial configuration and sealing (by attaching a calibration sticker to the back of the unit), the ADE-scale can only be operated in this mode. Setting mode Date, time and consecutive numbers for print commands are being set in this mode. -
Page 8: Setting Date And Time
To do this, weigh these items first. After the weight is displayed, press the TARE key (9) to reset the display back to zero. The ADE-MAK changes to net mode (NET status indicator (5) is on). -
Page 9: Hold Function
If no number is entered within five seconds, the unit will turn back to weighing mode. After entering the number, the ADE-MAK accesses the preset tare value, shows it for five seconds on the dis- play and then changes to net mode. The accessed tare value is accepted at the same time. Enter the tare button again to leave this mode. -
Page 10: Print Out A Record
Print out a record The scales must be at standstill, e.g. standstill status display (14) appears at the screen. Press the ENTER key (13) to send the data to the serial interface. Note: Printing is not possible if the net weight is 0. The print function only produces one print-out. A reset is required to print out another copy. -
Page 11: Waste Disposal
Any warranty or damage compensation claims presuppose the use of original ADE accessories and replace- ment parts. The warranty does not cover units that have been opened by unauthorised persons. -
Page 12: Technical Specifications
Technical specifications Power supply Mains Adapter: Mains voltage 115 or 230VAC Frequency 50 or 60HZ Power Consumption 11W in-charger, 2W off-charger Main power circuit Input Voltage 5.0VDC Max. Current (in-charger) 1000mA Battery Requirement: Rechargeable Lithium Ion Cylindrical (18650x2) Cell 3.7V 4000mAH Battery Operation: Charger 7~10 Hours... -
Page 13: Conformity Declaration
RoHS Directive 2011/65/EC in the currently valid versions. This declaration loses its validity if modifications are made to the scale without our approval. Hamburg, March 2021 ADE Germany GmbH Neuer Hoeltigbaum 15 22143 Hamburg / Germany Manufacturer: ADE Germany GmbH... - Page 14 M301020-01-210322-Rev005-UM-e...
- Page 15 M301020-01-210322-Rev005-UM-e...
-
Page 16: Dealer
Dealer: M301020-01-210322-Rev005-UM-e...
