Fröling Lambdatronic P 3200 Service Manual

For pellet boiler (4,3" touch)
Hide thumbs Also See for Lambdatronic P 3200:
Table of Contents

Advertisement

Quick Links

Download this manual

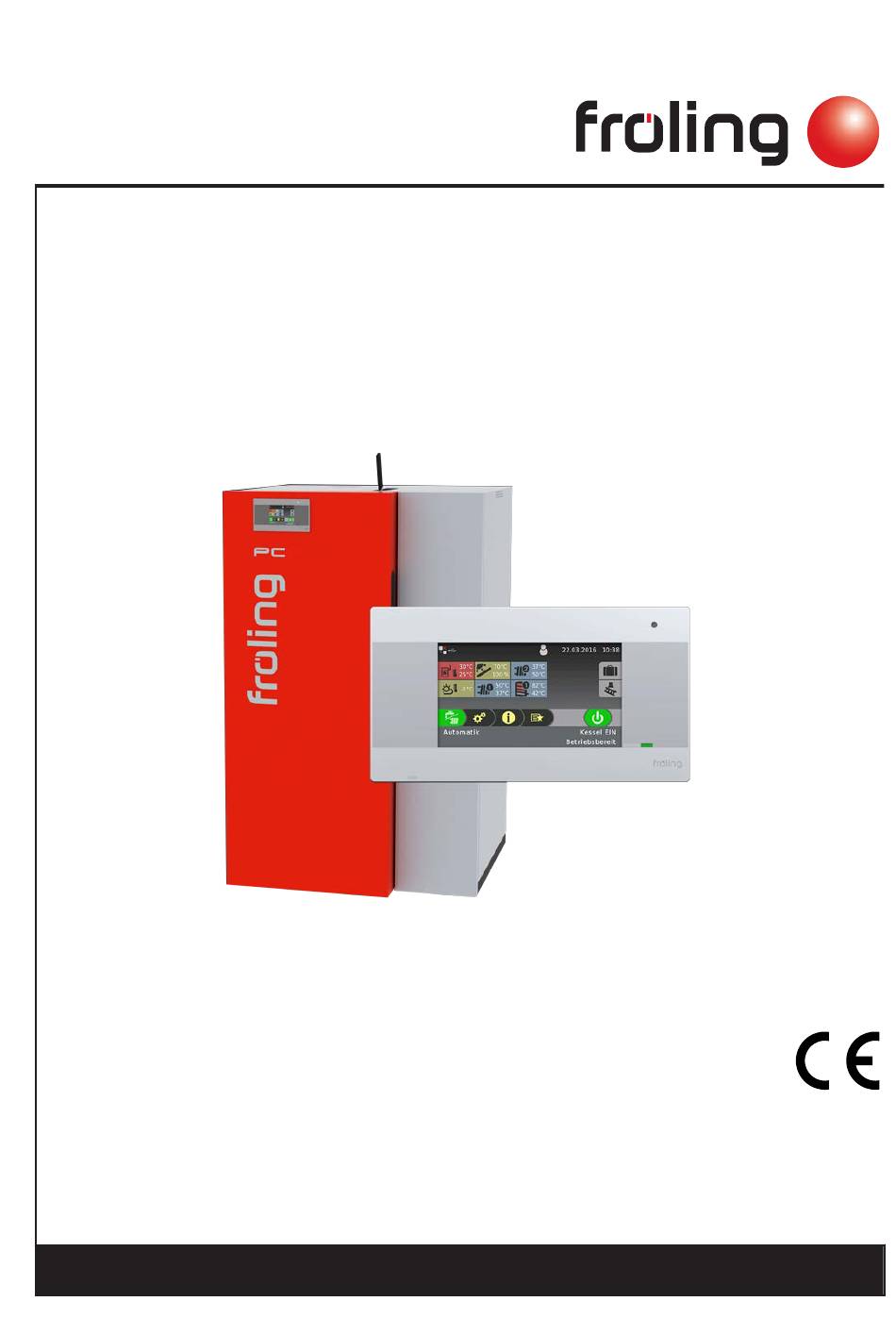

Service Manual
Lambdatronic P 3200 for pellet boiler (4,3" Touch)
Core module version 50.04 - Build 05.19 | Touch control version 60.01 - Build 01.37
Translation of the original German operating instructions for technicians
Read and follow the instructions and safety information!
Technical changes, typographical errors and omissions reserved!
B1620121_en | Edition 17/08/2021
Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lambdatronic P 3200 and is the answer not in the manual?

Questions and answers

Related Manuals for Fröling Lambdatronic P 3200

Summary of Contents for Fröling Lambdatronic P 3200

  • Page 1 Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) Core module version 50.04 - Build 05.19 | Touch control version 60.01 - Build 01.37 Translation of the original German operating instructions for technicians Read and follow the instructions and safety information!

  • Page 2: Table Of Contents

    Table of contents 3.2 Default configuration 1 General 3.3 Setting the system selection 1.1 About these instructions 3.4 Before heating up for the first time 1.2 Safety information 3.5 Starting the system on initial startup 2 Power connection and wiring 4 Parameters overview 2.1 Core module and connection options 4.1 Heating...
  • Page 3 4.11.4 Diagnostics - Clear error history 7.1 Addresses 7.1.1 Address of manufacturer 4.12 Touchscreen Customer service 4.12.1 Touchscreen - Display settings 7.1.2 Address of the installer Display settings - General Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 4: General

    General About these instructions 1 General 1.1 About these instructions Please read and follow the operating instructions, in particular the safety information contained therein. Keep them available next to the boiler. These operating instructions include important information about operation, electrical connection and troubleshooting.

  • Page 5: Power Connection And Wiring

    KM-02 Patch cable CAT 5 RJ45 SFTP 1:1 configuration; pellet module connection KM-03 KM-04 COM 2 Null modem cable 9-pin SUB-D; Connection is used e.g. as MODBUS interface Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...
  • Page 6 Power connection and wiring Core module and connection options Connection / Name Note KM-05 COM 1 Null modem cable 9-pin SUB-D; Service interface for software update and connection to visualisation software KM-06 Broadband probe Connection cable 5 x 0.75 mm Connection of a Bosch (item number 69001A) or NTK (item number 69003) broadband Lambda probe KM-07...

  • Page 7: Mains Connection

    In the delivered state, the outside temperature sensor is read in by the core module ("KM-19 / outside temperature sensor" connection). Alternatively, the outside temperature sensor can be connected to an additional heating circuit module. ⇨ See "Heating circuit module" [page 13] Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 8: Fra Room Temperature Sensor

    Power connection and wiring Core module and connection options 2.1.4 FRA room temperature sensor In addition to recording the current room temperature, the Froling FRA room temperature sensor also has a handwheel to adjust the required room temperature and a slide switch to set the mode for the heating circuit. affecting room: not affecting room: Raumfühler FRA...

  • Page 9: Connecting A Circulating Pump To The Core Module

    High efficiency pump without control signal It is not possible to control the speed when using this type of pump. The use of a line regulating valve (e.g.: Setter balancing valve) is recommended. Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 10: Connecting An Isolating Valve To The Core Module

    Power connection and wiring Core module and connection options 21 11 24 14 22 12 FRKEM29 A2 A1 AO-P1 ❒ Connect pump with relay and RC element isolated from the output ❒ In the relevant menu, set the pump control to “HE pump without control signal” AC pump without control signal (pulse package control) On older pumps without a control signal that are not highly efficient, the speed control is implemented via a pulse package control.
  • Page 11 ❒ Phase (L) for switching the valve and connecting neutral conductor (N) to output “Pump 1” with the RC element ❒ Phase (L) for continuous supply (switches the valve back to the initial position) at output “HCP0” – connect terminal “L1” Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 12: Heating Circuit Pump 0 / Burner Relay

    Power connection and wiring Core module and connection options 2.1.8 Heating circuit pump 0 / burner relay Depending on the system setting, the connection “Heating circuit pump 0” can be used for heating circuit pump 0 or as a burner relay. The following connection instructions must be observed: Heating circuit pump 0 Burner relay The pump can be supplied with up to a...

  • Page 13: Expansion Modules

    Mixing valve 1 Connection cable 4 x 0.75 mm , max. 0.15A / 230V HE-12 Mixing valve 2 1. YMM as per ÖVE-K41-5 or H05VV-F as per DIN VDE 0881-5 Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 14: Hydraulic Module

    Power connection and wiring Expansion modules 2.2.2 Hydraulic module The hydraulic module makes the connections of sensors and pumps available for the hydraulic components of the system (storage tank, DHW tank etc.). You must ensure that the module address is assigned correctly. ⇨...

  • Page 15: Connecting A Circulating Pump To The Hydraulic

    CAUTION! As of module version FRHYU22, one relay output is available at each of the pump outlets in addition to the triac output. Observe the following connection diagrams to correctly implement the wiring of the circulating pump. Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...
  • Page 16 Power connection and wiring Expansion modules High efficiency pump with control line (PDM / 0-10V) On high efficiency pumps with an additional wired control line, the speed control is implemented via the additional connection for the PDM or 0-10V signal. up to hydraulic module version FRHYU21 up to hydraulic module version FRHYU22 FRHYU21...
  • Page 17 ❒ Hydraulic module FRHYU22: Connect the power supply for the pump to output "Pump 1" or “Pump 2” and use the triac output for phase (L) ❒ In the relevant menu, set the pump to “Pump without control signal” Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...
  • Page 18 Power connection and wiring Expansion modules High efficiency pump with control signal and release contact When using a high efficiency pump that requires a release contact in addition to the control signal (e.g. Grundfos Magna 3), the pump outlet of the hydraulic module is used to switch the release. up to hydraulic module version FRHYU21 21 11 24 14...

  • Page 19: Connecting An Isolating Valve To The Hydraulic

    “Pump 1” or “Pump 2” using the relay output for phase (L) ❒ Connect the phase (L) for continuous supply (switches the valve back to the initial position) to the power supply at terminal “L” Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 20: Pellet Module

    Power connection and wiring Expansion modules 2.2.3 Pellet module The pellet module is included in standard delivery and provides the connections of the hardware components for the pellet feed and pellet combustion: PM-21 (Pelletmodulerweiterung) PM-20 (Störmeldung) PM-17 PM-19 (Bus) (Türkontaktschalter) Pellet module PM-18 PM-16...
  • Page 21 10 AT Suction unit Connection configuration for max level S1 and min level S4 brown +24V white blue ❒ The black wire of the sensor is not used. Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 22: Pellet Module Expansion

    Power connection and wiring Expansion modules 2.2.4 Pellet module expansion The pellet module controls a suction delivery unit as standard. The pellet module expansion is necessary if the suction screws or other discharge systems or system components from third-party manufacturers are used. The power supply line and the communication line must be connected to the pellet module.

  • Page 23: Automatic Room Air Flap

    NOTICE! The return signal of the room air flap at input “Digi IN” must have a floating design. Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 24: Bus Connection

    Power connection and wiring BUS connection 2.3 BUS connection All of the bus models are connected with a bus line. The specification of the cable that is used must adhere to the LIYCY 2x2x0.5 type. A maximum cable length of 200 m must be observed. The cable length can be extended using the Fröling bus repeater.

  • Page 25: Connecting The Bus Cable

    If the contacts at the base of the end jumper are not bridged (image left), it is referred to as “not set". In this case there is no bus termination. If the contacts are closed (image right), the end jumper is set and the bus connection is terminated. Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 26: Setting The Module Address

    Power connection and wiring BUS connection 2.3.3 Setting the module address The necessary order for hydraulic modules and heating circuit modules is set with the module addresses. The first board of a module type should always have the address 0, so that the standard hydraulic systems set do not have to be subsequently configured.

  • Page 27: Potential Equalisation / Potential Separation

    The potential separation (galvanic isolation) allows the bus network to be split into two separate sub- networks. Bus side A Bus side B Expansion Bus repeater module Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 28: Connection Information According To Pump Types

    Power connection and wiring Connection information according to pump types 2.4 Connection information according to pump types Either a 2-pin, 3-pin, or 4-pin control cable is used for the connection depending on the pump type. Please follow the connection instructions below for the wiring depending on the pump type used: Pump type with 2-pin control cable Power supply 2-pin control cable...

  • Page 29: Connection Options With Standard Delivery

    If a zone valve is used for the minimum flow volume: ❒ In the service menu of the boiler, set the “Pump output for skimming” parameter to “HCP 0” Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 30: System 0 (Two Heating Circuits)

    Power connection and wiring Connection options with standard delivery 2.5.2 System 0 (two heating circuits) Note: The minimum flow through rate of the Pellet boiler shall be respected! (e.g. with zone valve) HKP0 PECO 15 = 260 l/h PECO 20 = 340 l/h PECO 25 = 430 l/h Flow temperature sensor 1/2 PECO 30 = 520 l/h...

  • Page 31: System 1 (Layered Tank / Two Heating Circuits)

    ⇨ See "Setting the system selection" [page 34] Adjust sensor assignments: ❒ In the service menu of the storage tank, assign the sensor inputs according to the diagram shown above Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 32: System 1 (Hygienic Layered Tank / Two Heating Circuits)

    Power connection and wiring Connection options with standard delivery 2.5.4 System 1 (hygienic layered tank / two heating circuits) Domestic hot water Flow temperature sensor 1/2 Heating circuit pump 1/2 Note: Please install a mixing Mot. mixing valve 1/2 valve to limit the outlet temperature of the domestic hot water.

  • Page 33: Initial Startup

    ▪ Discharge: Cube (universal suction, manually operated) ▪ System selection: System 0 ▪ DHW tank system: DHW tank 01 installed = “YES” ▪ Heating system: Heating circuit 01 installed = “YES” Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 34: Setting The System Selection

    Initial startup Setting the system selection 3.3 Setting the system selection ❒ In the “system menu”, under the sub-item “system”, open the “system selection” menu item System menu System System selection Boiler type ❒ In the “Boiler type” menu, select the correct option and activate the output and relevant boiler type parameter ➥...
  • Page 35 Setting the system selection Remote control 1 … 18 installed If one of the three remote controls shown is installed in the respective heating circuit, the respective parameter must be activated. Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 36: Before Heating Up For The First Time

    Initial startup Before heating up for the first time Solar system Solar collector 01 installed If a solar panel system is installed, which is controlled via the Froling boiler controller, this parameter must be activated. A second pump is used instead of the switch valve If one pump per solar element is used instead of the combination of collector pump and switch valve, this parameter must be activated.

  • Page 37: Parameters Overview

    Heating circuit remains in setback mode until another mode is activated Party: Party mode; the current or next setback phase is ignored OFF: Switched off; heating circuit deactivated, only frost protection! Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 38: Heating - Temperatures

    Parameters overview Heating 4.1.2 Heating – Temperatures System menu Heating Desired room temperature during heating mode Reduction of flow temperature in setback mode Prerequisite: Heating circuit used in conjunction with The flow temperature is reduced by this value during remote control setback mode.

  • Page 39: Heating - Times

    Prerequisite: Heating circuit is operated without remote control If a flow temperature setpoint is calculated below the value set, the heating circuit pump switches off and the mixing valve closes. Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 40: Heating - Heating Up Program

    Parameters overview Heating High temperature requirement because of DHW tank High temperature requirement because of DHW tank loading loading The DHW tank can be loaded via the heating circuit. If IMPORTANT! Parameter only available for heating circuit there is a requirement from the DHW tank and the criteria 1 and 2! for DHW tank loading have been met, the switch valve Set Pellet as the unit model for “DHW tank 1”...

  • Page 41: Heating Up Programs

    If only 2 heating circuits are installed, then only 2 heating circuits will be available for selection. The heating up program selected will be used for all heating circuits! Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 42: Heating - General Settings

    Parameters overview Heating 4.1.6 Heating - General settings System menu Heating General settings service Correction value for external sensor Using room sensor inputs for room thermostat If the outside temperature sensor shows an incorrect NOTICE! This parameter influences all sensor connections value, the value can be adjusted using this parameter.

  • Page 43: Water

    If the boiler temperature is above the current DHW tank temperature by this value and the time window is active, DHW tank loading starts (only for systems without a storage tank). Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 44: Water - Times

    Parameters overview Water 4.2.3 Water - Times System menu Water ⇨ See "Setting times" [page 76] 4.2.4 Water - Service System menu Water Residual heat use DHW tank temp. setpoint for legionella heating (same for all DHW tanks) Prerequisite: Hydraulic system 0 and return temperature control with mixing valve If the parameter “Legionella heating activated”...
  • Page 45 If you need to limit the maximum speed of the boiler mode of pump in accordance with pump manufacturer). loading pump for systemic reasons, you can do so by adjusting this parameter. Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 46: Solar

    Parameters overview Solar 4.3 Solar 4.3.1 Solar - Status System menu Solar Collector temperature DHW tank bottom temperature Display of the current temperature at the solar collector. Current temperature in the area of the reference sensor of the solar panel system. Top storage tank solar sensor Heat exchanger sec.

  • Page 47: Solar - Temperatures

    If the measured value of the solar collector sensor exceeds the set value, the solar collector must cool down by 20°C within 15 minutes, otherwise the solar collector pump stops in order to protect the pump. Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 48: Solar - Times

    Parameters overview Solar 4.3.3 Solar - Times System menu Solar The solar panel system pump is allowed to start from The solar panel system pump is allowed to run until If the criteria for starting the collector pump have been Also when the criteria for starting the collector pump have reached from the set time, the collector pump starts.
  • Page 49 DHW tank (if installed). Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 50: Solar - Heat Meter

    Parameters overview Solar Minimum pump speed secondary HE Minimum pump speed secondary HE This parameter applies for the pump between the solar Prerequisite: Hydraulic system 12 or 13 heat exchanger and storage tank, as well as for the pump Adjustment of the minimum speed to the pump type (set between the solar heat exchanger and DHW tank (if mode of pump in accordance with pump manufacturer).

  • Page 51: Buffer Tank

    All of the configured sensors are used to calculate the storage tank charge status. Buffer tank bottom temperature Display of the current temperature in the lower part of the buffer tank. Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 52: Buffer Tank - Temperatures

    Parameters overview Buffer tank 4.4.2 Buffer tank - Temperatures System menu Buffer tank Heating circuit release from following buffer tank Storage tank – storage tank difference temperature Prerequisite: Variant 3 Temperature value which must be reached to release the Difference, which must be given for loading a storage tank heating circuit pumps in the top part of the buffer tank.

  • Page 53: Boiler 2 - Status

    Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 54: Boiler 2 - Service

    Parameters overview Boiler 2 Start standby boiler only after storage tank top Minimum temperature of secondary boiler Standby boiler enabled after temperature decreases below When the secondary boiler reaches the specified minimum temperature on top storage tank. No consumers temperature, the loading pump is started and switches the are taken into consideration.

  • Page 55: Feed System

    ▪ YES: If the boiler shuts down once buffer tank loading is complete, this parameter can then be used to fill the cyclone without having to wait for the next filling start point. Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 56: Feed System - Consumption

    Parameters overview Feed system Gate valve status Vibration timing Shows the status of the gate valve on the cover of the The default vibration interval timing is 60%: pellet container. The following displays are possible: Time basis: 100 sec. → 60 sec. on / 40 sec. pause ▪...

  • Page 57: Network Pump

    When the return temperature from specified value, the network pumps starts up at minimum distributor 1 reaches the specified value, the pump for speed. distributor 1 starts up at minimum speed. Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 58: Network Pump - Service

    Parameters overview Network pump Return temperature setpoint distributor 2 ... 4 Prerequisite: Variant 2 or variant 3 and pump for distributor 2 ... 4 installed The return temperature from distributor 2 ... 4 is regulated to the value set here. When the return temperature from distributor 2 reaches the specified value, the pump for distributor 2 ...

  • Page 59: Difference Regulator

    If the temperature difference between the heat source and differential controller is deactivated. the heat sink falls below this value, the pump of the differential controller is deactivated. Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 60: Difference Regulator - Times

    Parameters overview Difference regulator 4.8.3 Difference regulator - Times System menu Diff. control ⇨ See "Setting times" [page 76] 4.8.4 Difference regulator - Service System menu Diff. control Pump output of diff. control pump Sensor input of heat source sensor Pump outlet to which the pump of the differential controller Sensor input to which the heat source sensor is is connected.

  • Page 61: Circulation Pump

    If the set temperature at the return circulation line is reached, the circulation pump will be deactivated. NOTICE! Parameter only relevant when using a return feed sensor in the circulation line! Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 62: Circulation Pump - Times

    Parameters overview Circulation pump 4.9.3 Circulation pump - Times System menu Circ. Pump ⇨ See "Setting times" [page 76] 4.9.4 Circulation pump - Service System menu Circ. Pump Sensor input of circulation return sensor Control of circulation pump Sensor input to which the sensor at the return line of the Definition of control signal for pump type used.

  • Page 63: System

    The primary air flap is set to this value in the “Boiler off”, “Standby” and “Fault” operating statuses. Setting - Lambda values Lambda values System menu System Setting Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 64: Set - Lambda Probe

    Parameters overview System Residual oxygen content setpoint Residual oxygen above which the lambda probe is allowed to switch off Residual oxygen content which is regulated during “Heating” status. If the boiler switches to “Boiler off” or “Off” mode, the lambda probe heating remains active for at least 1 hour, up to a maximum of 24 hours.

  • Page 65: Set - Quantity Of Heat Calculation

    If the boiler temperature is used to calculate the quantity of heat, the correction value is applicable to the boiler sensor. Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 66: Setting - General Settings

    Parameters overview System Calculating the feed output of the circulating pump Specific heat capacity This parameter indicates the specific heat capacity of the Flow rate at 100% pump rotation speed heat carrier. The value for pure water (4180 Ws/kgK) is The parameter specifies the volumetric flow rate at 100% used as the default value.

  • Page 67: System - System Selection

    The number of parameters depends on the configuration. 4.10.4 System - System selection System menu System System selection Menu for setting the configuration for systems that have not been configured with the setting wizard. Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 68: Diagnostics

    Parameters overview Diagnostics 4.11 Diagnostics 4.11.1 Diagnosis – Current fault list Current fault list System menu Diagnostics Display of the current fault messages. In addition, you can also invoke time information here, such as when the fault occurred, when the fault was acknowledged and when the fault was cleared.

  • Page 69: Diagnostics - Clear Error History

    System menu Diagnostics The entire error history can be deleted using this function. From this time on, the error history will be filled again with new fault messages. Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 70: Touchscreen

    Parameters overview Touchscreen 4.12 Touchscreen 4.12.1 Touchscreen - Display settings Display settings - General General System menu Touchscreen Display settings Brightness Module address Display of the light sensor’s evaluation of the current This is where you can change the module address if it is brightness in the room for adjusting the backlight.

  • Page 71: Display Settings - Basic Display

    (e.g. when replacing the core ⇨ See "Software update Lambdatronic 3200" [page 80] module). Restart display Touch control unit is restarted and the data is reloaded from the core module. Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 72: Touchscreen - Display Operating Rights

    Parameters overview Touchscreen 4.12.2 Touchscreen - Display operating rights System menu Touchscreen Display operating rights In this menu the operating rights for the individual room consoles are allocated. If access from a room console to a heating system component is permitted, the corresponding parameter must be set to “YES”.

  • Page 73: Touchscreen - Display Allocation

    DHW tank number with its address must set on set on the room console. The parameters are set to “none” the room console. The parameters are set to “none” at the at the factory! factory! Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 74: Faq

    Activation options of pump outlets 5 FAQ 5.1 Activation options of pump outlets Pump 0.1 – 7.2, pump 1 The following settings are possible at the hydraulic modules as well as at pump 1 on the core module with pump outlets 0.1 –...

  • Page 75: Boiler Operating Statuses

    The Lambdatronic controls the connected heating components. The boiler waits for a start request from the hydraulic system. Boiler off The boiler controller controls the connected heating components. All parts of the boiler are deactivated. Chamber discharge system active! Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 76: Setting Times

    Setting times 5.3 Setting times The desired time window for the component can be set in the "Times" tab in the individual menus of the heating components (heating circuits, DHW tanks etc.). The structure of the time menu and the procedure for changing the times are always the same.
  • Page 77 If you want to apply the time window setting to another day in addition, you can do this by activating the relevant day. A set time window can be deleted by tapping on the “Recycle bin” symbol. Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 78: Calibrating The Touchscreen

    Calibrating the touchscreen 5.4 Calibrating the touchscreen If the touchscreen stops working properly, it will need to be calibrated. ❒ Go to the “Display settings” menu ❒ Scroll down until the “Software update / Service" submenu appears and open the submenu ❒...
  • Page 79 Calibrating the touchscreen NOTICE Inaccurate calibration If you do not tap the indicated points accurately, the control may stop working properly and a software update may be required. Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 80: Software Update Lambdatronic 3200

    Software update Lambdatronic 3200 5.5 Software update Lambdatronic 3200 The following description shows the software update process for systems with Lambdatronic 3200 and a touch control in the system environment (also applies to systems with button boiler console and touch room console). The Froling Flash Update Wizard (core module) as well as a USB storage device is necessary to perform the software update.

  • Page 81: Carrying Out A Software Update On The Boiler Controller

    ➥ A window is displayed where you can search for the Flash file ❒ Navigate to the folder where the file is saved ❒ Select the Flash (*.s19) file and click on the "Open" button Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...
  • Page 82 Software update Lambdatronic 3200 Starting the Flash update After selected the desired Flash file, it will be displayed next to the "Update to:" field: ❒ Click on the "Next" button ➥ The update process will now start and a progress bar displays the current status When the flash update is successfully transferred to the boiler controller, the following window appears: NOTICE! Do not close the update at this time and do not disconnect the boiler controller! Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...

  • Page 83: Carrying Out A Software Update On The Touch Control

    ❒ Remove the USB stick ➥ The touch control restarts automatically The touch control software is up-to-date following the restart. ❒ Perform updates to any other touch controls Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...

  • Page 84: Finishing A Software Update

    Software update Lambdatronic 3200 5.5.3 Finishing a software update When the software update has been performed on all touch controls, the Flash Update Wizard must be ended correctly. End flash update ❒ Click on the "Next" button ➥ The completion window appears ❒...

  • Page 85: Notes

    Notes 6 Notes Service Manual Lambdatronic P 3200 for pellet boiler (4,3" Touch) | B1620121_en...
  • Page 86 Notes Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
